9MM SPARK PLUG WIRE SETS - "FORD RACING"

    9MM SPARK PLUG WIRE SETS - "FORD RACING"

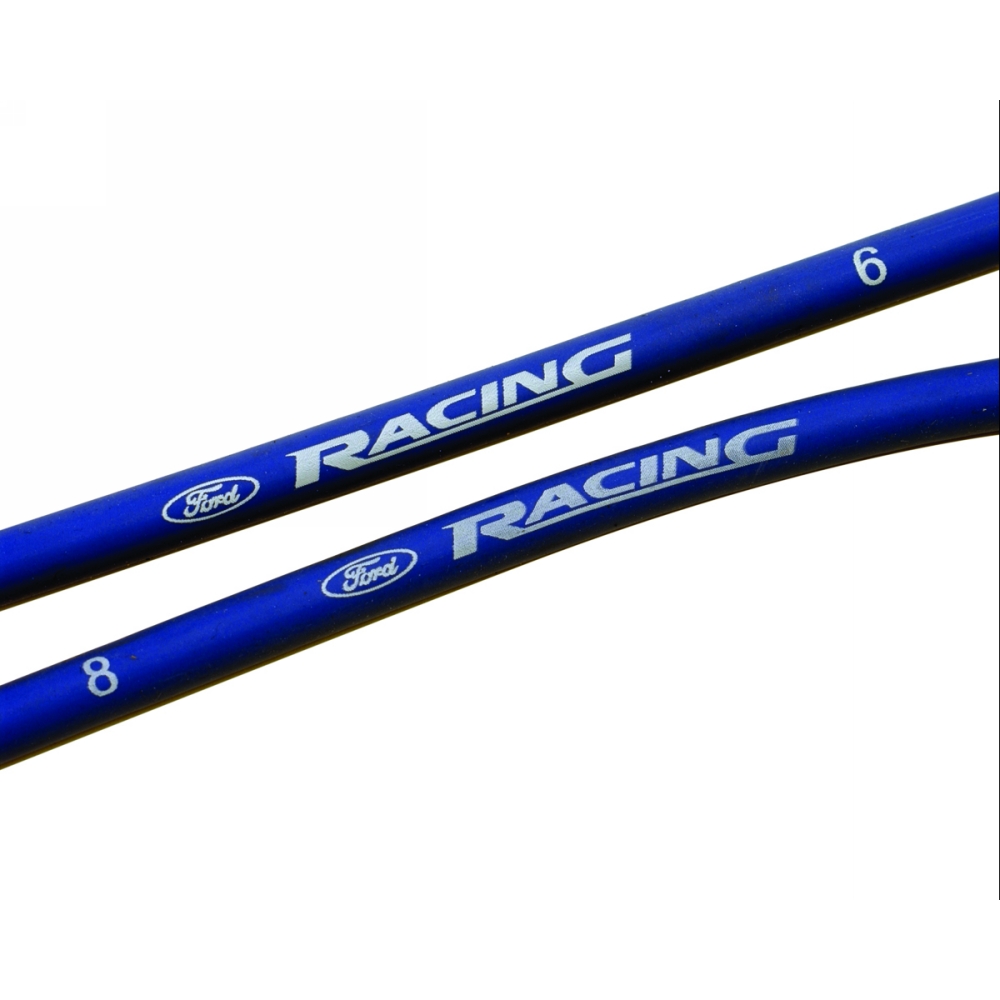

    Wire-wound custom ignition wire sets feature low resistance for minimum spark loss. Silicone insulation and boots withstand high temperatures and voltage loss for minimum cross-fire and are highly resistant to fuels, oils and solvents. Long-life, tough stainless steel terminals for “post” type distributor caps. Includes coil wire for socket-type coil and “Ford Racing” identification. Cylinder number appears on each wire.

    NEW AND IMPROVED Spark plug wires feature high quality 9mm wire available in 4 colors: blue, black, yellow and red.
    PART NUMBER APPLICATION WIRE COLOR END CONFIG.
    M-12259-C301** 5.0/5.8L V-8 Engine Blue 45° Boot
    M-12259-R301** 5.0/5.8L V-8 Engine Red 45° Boot
    M-12259-M301** 5.0/5.8L V-8 Engine Black 45° Boot
    M-12259-Y301** 5.0/5.8L V-8 Engine Yellow 45° Boot
    M-12259-C460** 7.0/7.5L V-8 Engine Blue 45° Boot
    M-12259-R460** 7.0/7.5L V-8 Engine Red 45° Boot
    M-12259-C302** V-6 & V-8 Universal Blue 45° Boot
    M-12259-M302** V-6 & V-8 Universal Black 45° Boot
    M-12259-C462** 4.6L 2V Mustang Blue 45° Long Boot
    M-12259-R462** 4.6L 2V Mustang Red 45° Long Boot
    M-12259-C464** 4.6L 4V Mustang Blue 45° Long Boot
    M-12259-R464** 4.6L 4V Mustang Red 45° Long Boot
    M-12259-T462** 4.6L 2V F-150 Truck Blue 45° Long Boot
    NOTES: Universal sets can be cut to length with a crimping tool. Includes terminals for post and socket type coils, plus easy to follow instructions.
    Wire sets M-12259-C301/R301/M301/Y301/C302/M302 do not fit distributorless ignition system (DIS) 5.0L/302 Explorer engines. The universal wire sets do not fit distributorless ignition system (DIS).
Part Type
Electrical: Ignition Related
Warranty Availability
Package Dimensions
7.5" x 9" x 3.5"
Package Weight
2.9 lb(s)
UPC Code
756122122341
Country of Origin
Mexico
