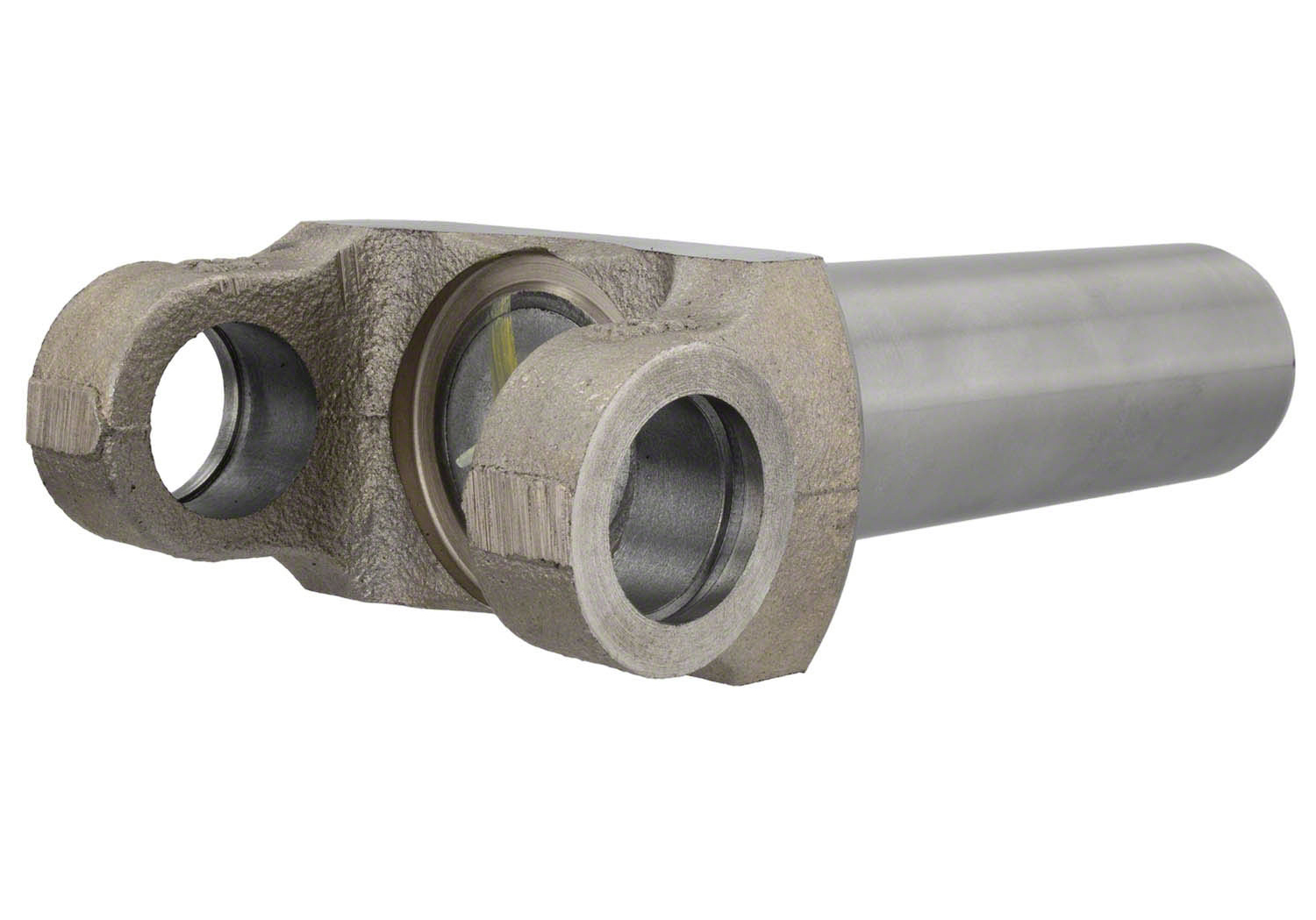

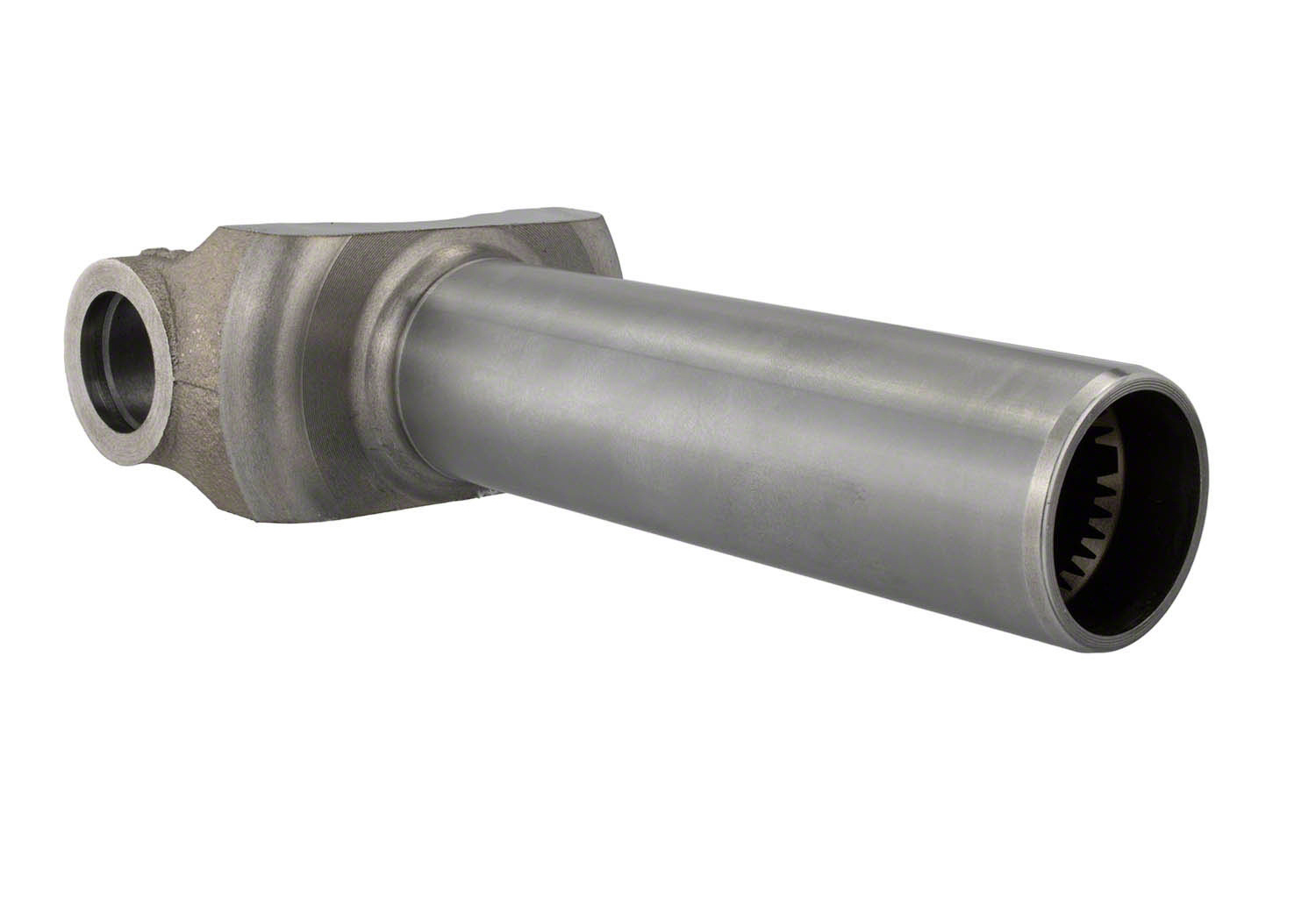

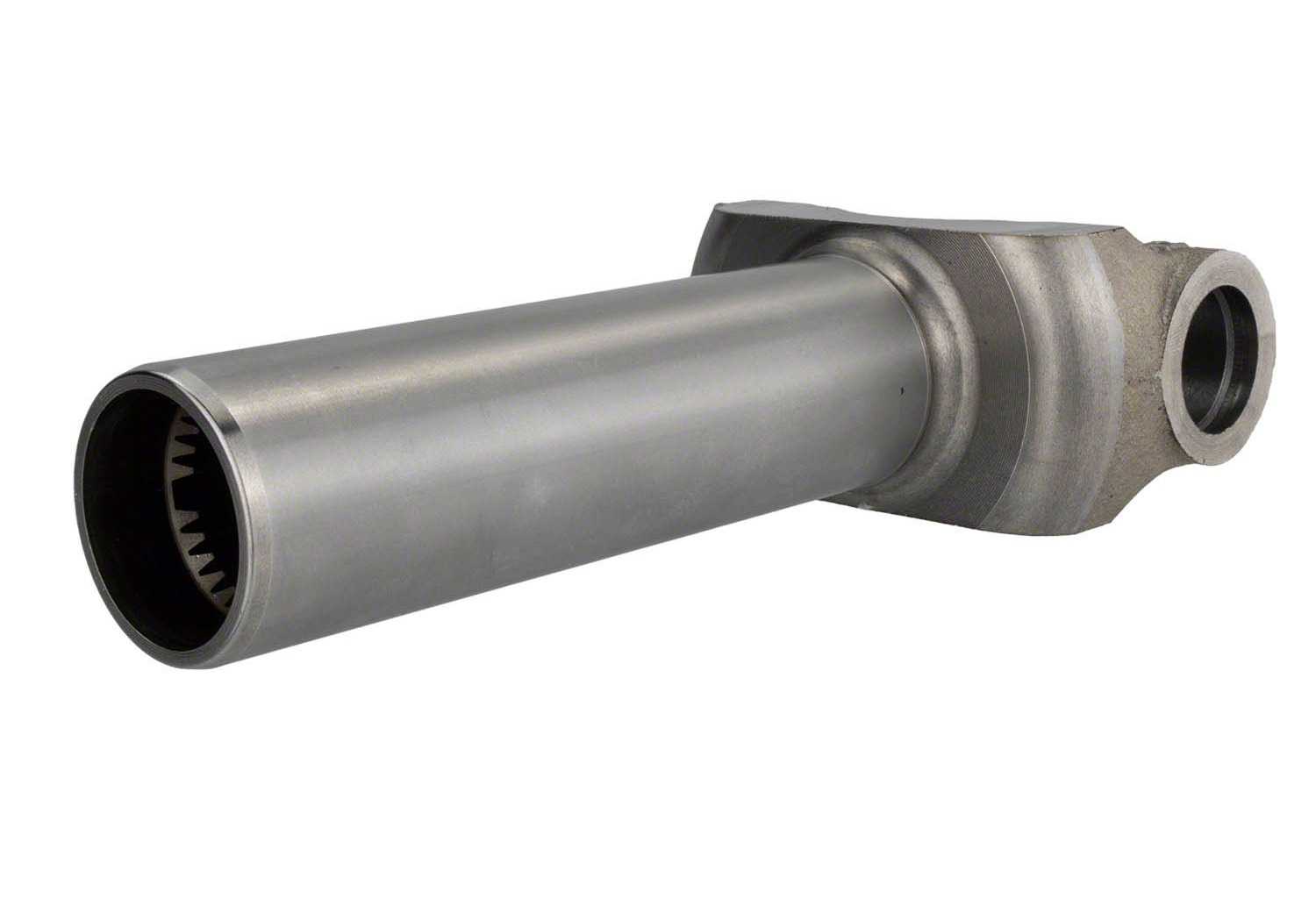

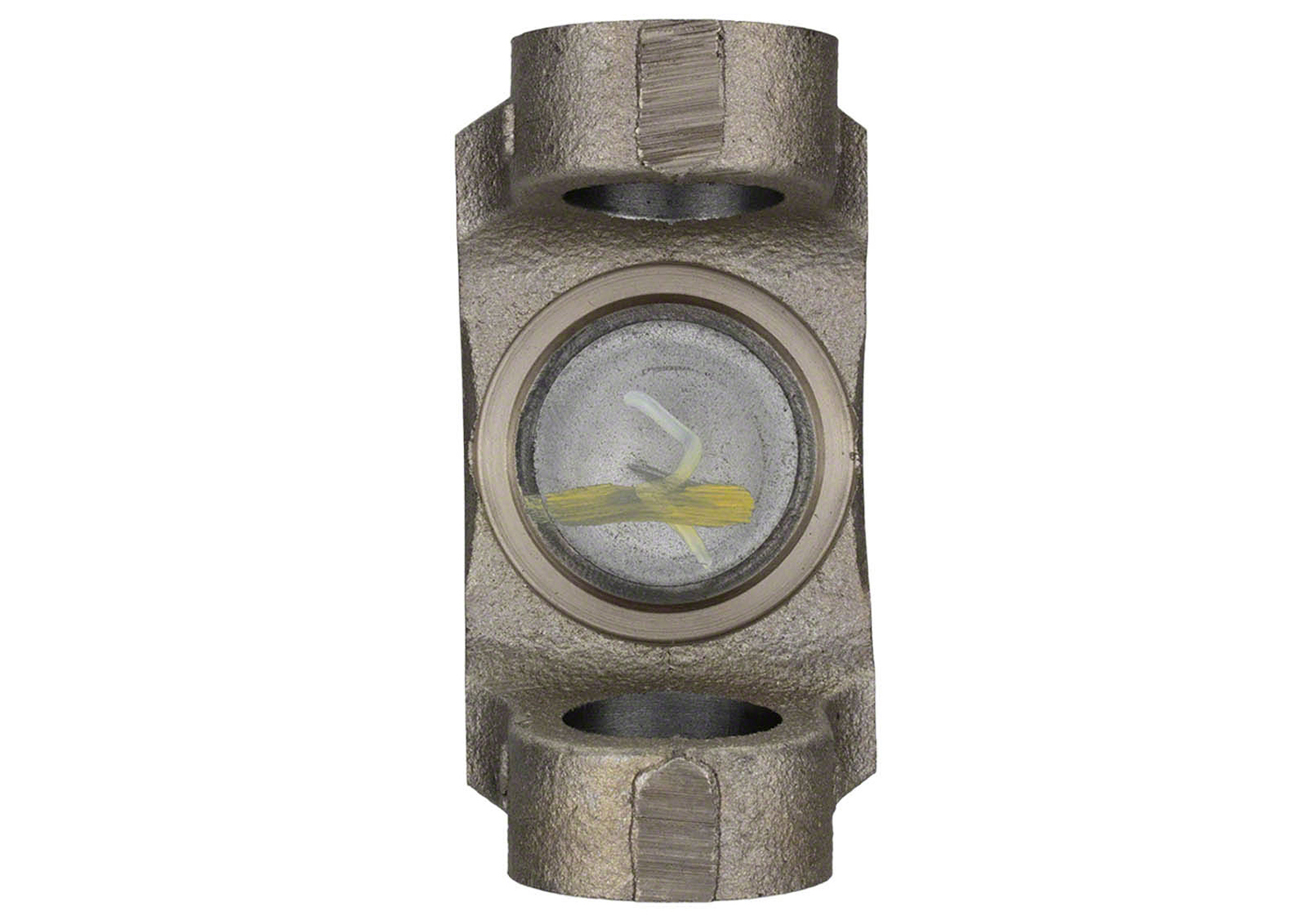

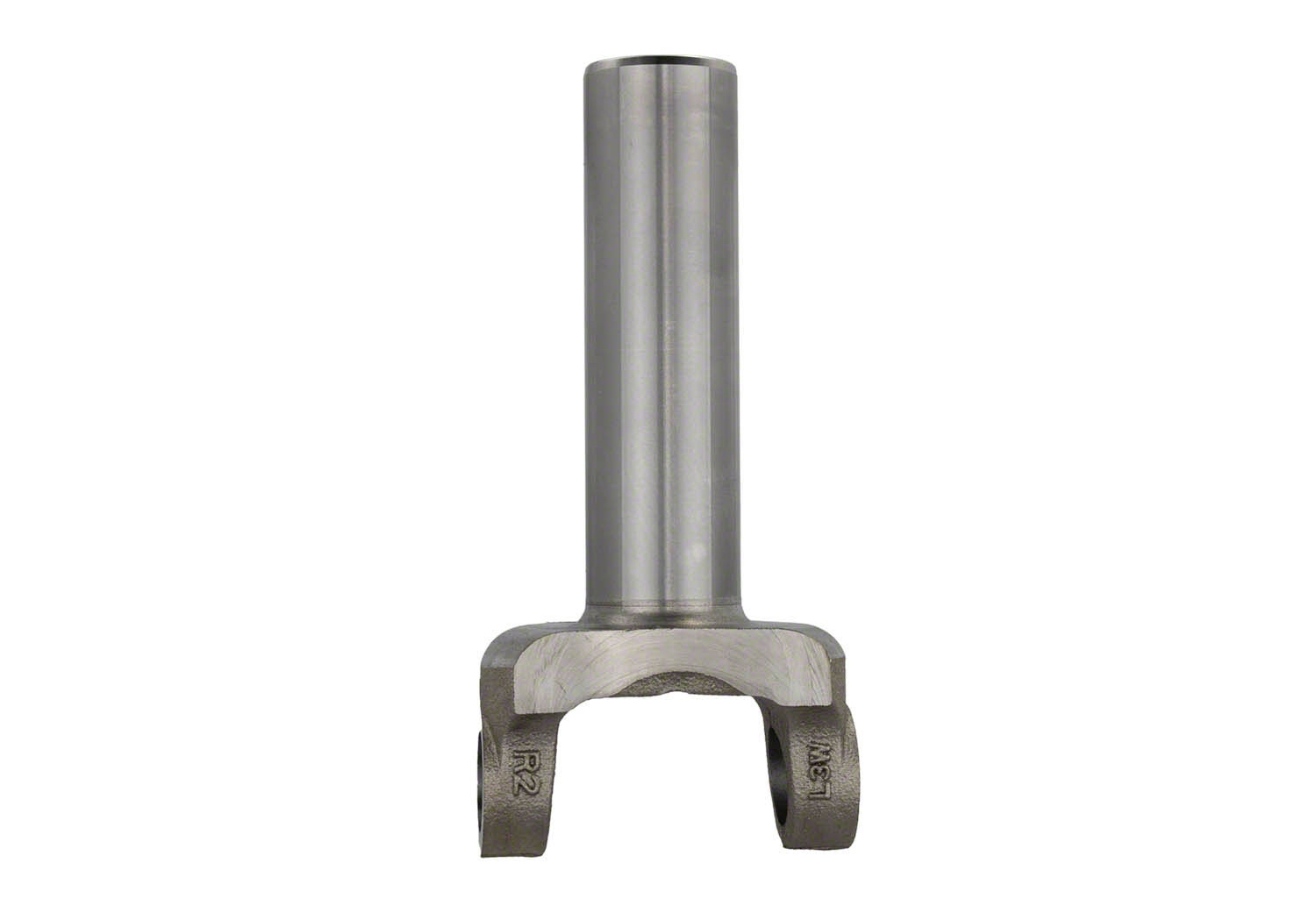

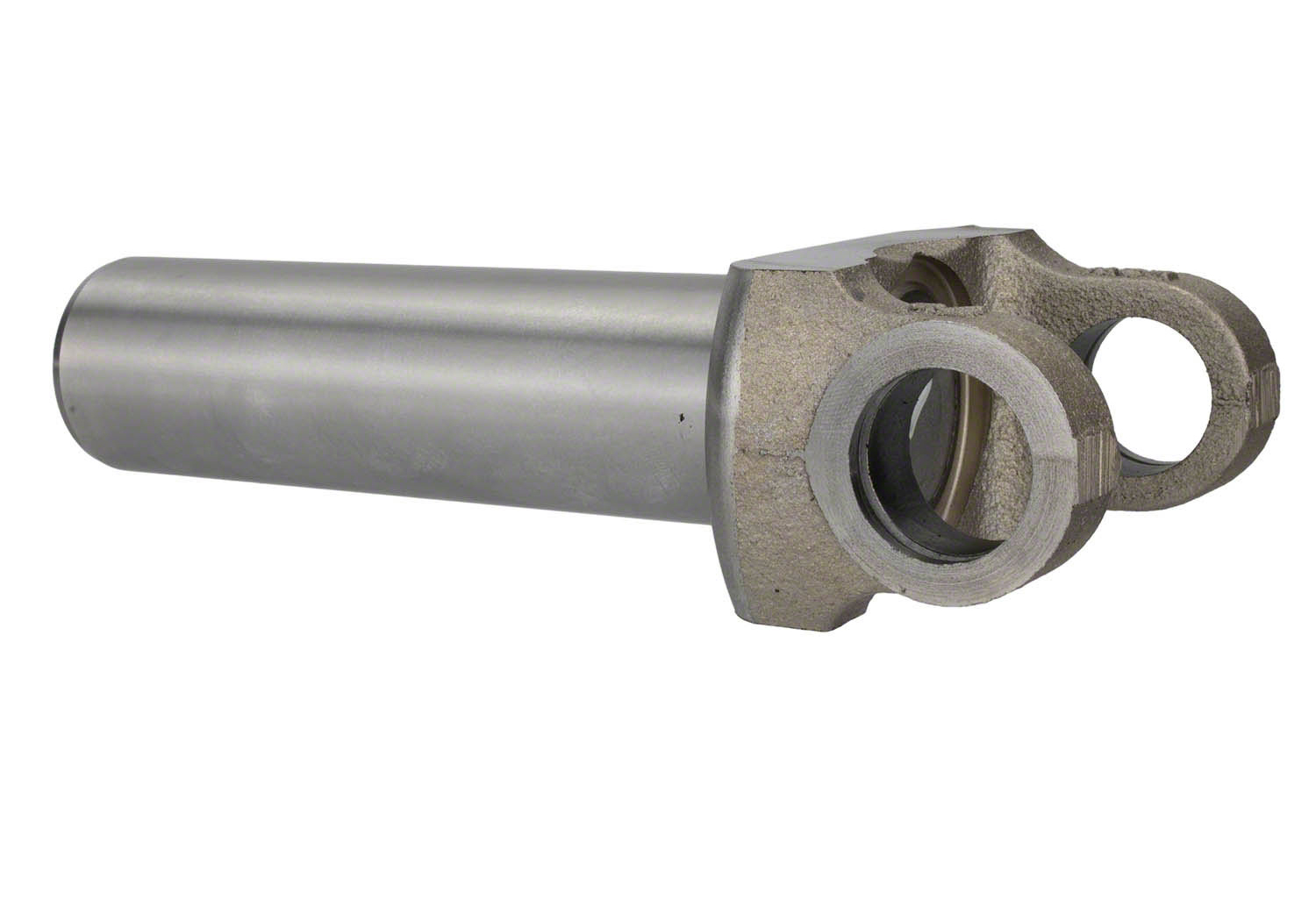

DRIVESHAFT YOKE 31 SPLINE

DRIVESHAFT YOKE 31 SPLINE
M-4841-A
Retail
$105.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available

Proudly Made in the USA

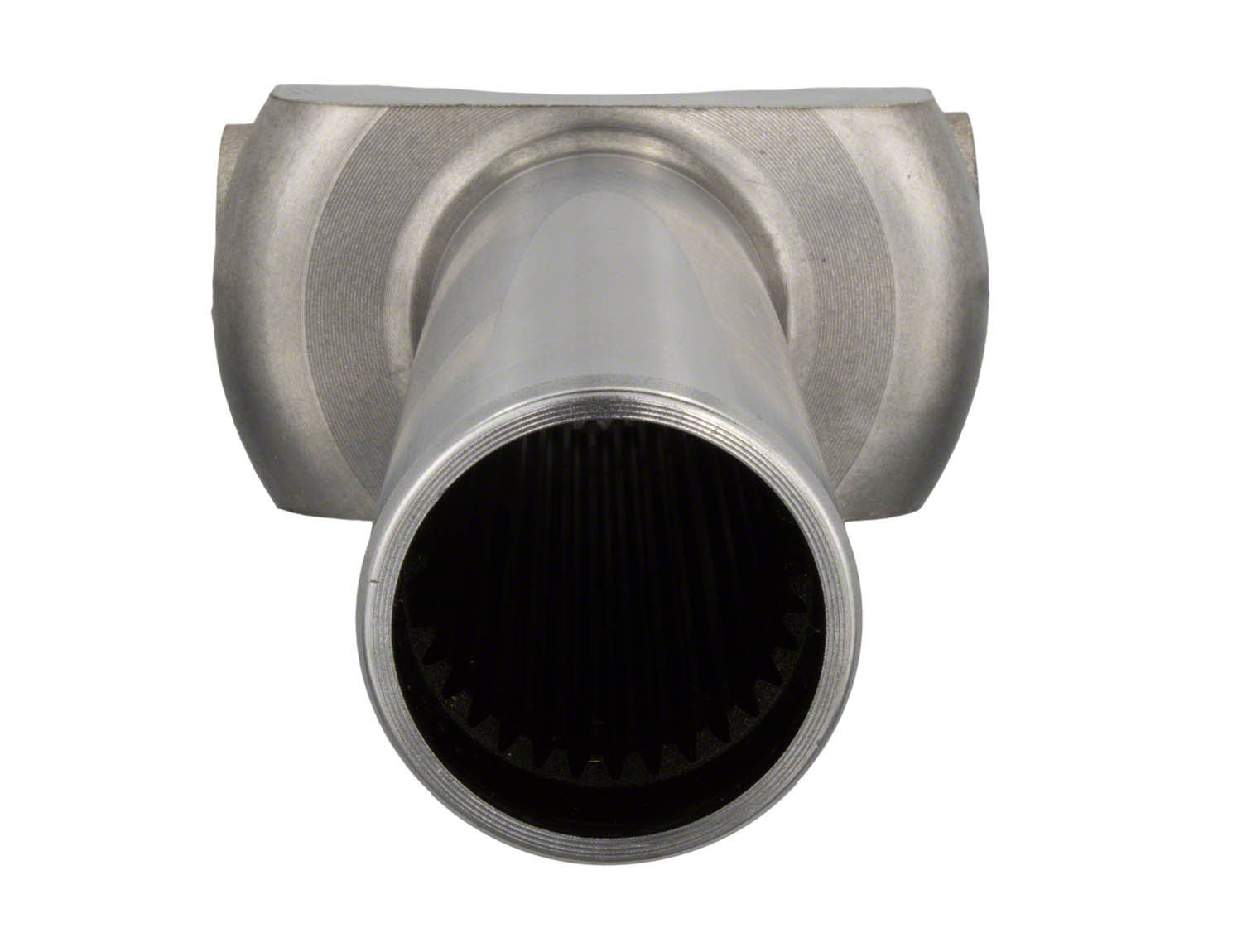

  • Fits 31-spline output shafts
  • The Splines have an undercut  .530" long, with a 1.425" I.D.
  • Uses 1330 U-joints
  • Use with production T-45, C-6, 3550 and 3650 transmissions
  • U-joint cap diameter 1.062"
  • U-joint width 3.500"
  • Yoke O.D. is 1.685". Machined area length, 6.068"
  • Center of u-joint to front of yoke, 7.750" (approx.)
Part Type
D-Line: Drive Shafts
Warranty Availability
Not Available
Packaged Dimensions
4.75" x 4.75" x 10.75
Packaged Weight
4.9 lb(s)
Part Type
D-Line: Drive Shafts
UPC Code
756122073568
Catalog Page Number
210
Country of Origin
United States
California Executive Order
No
