Crate Engines

MODULAR CRATE ENGINES
// COYOTE

Part Number M-6007-A52XS M-6007-A50NAA M-6007-A50SCA M-6007-M50A M-6007-M50SA
Displacement 5.2L/317 5.0L/302 5.0L/302 5.0L/302 5.0L/302
HP 580 435+ - 435 435
Torque - 400+lb-ft - 400lb-ft 400lb-ft
Block Aluminum Aluminum Aluminum Aluminum Aluminum
Comp. Ratio 12.0:1 11.0:1 9.5:1 11.0:1 11.0:1
Assembly Dressed minus A/C Dressed minus A/C and alternator Dressed minus A/C and alternator Dressed minus A/C and alternator Dressed minus A/C and alternator
Use Suitable for racing. High RPM, naturally aspirated. Works well in naturally aspirated or supercharged applications Works well in supercharged applications Great for hot rods, street rods, and resto mods Suitable for drag racing - where a "sealed" engine is necessitated
Notes - - - Also available in automatic version - M-6007-M50AAUTO -

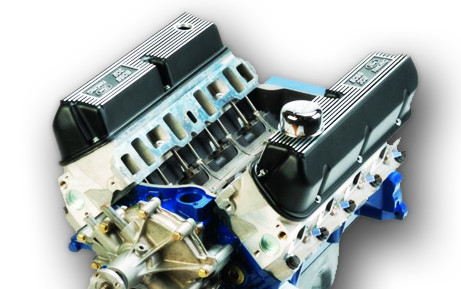

PUSHROD CRATE ENGINES
// 302

Part Number M-6007-X302E M-6007-X302B M-6007-Z2363FT M-6007-Z2363RT
Displacement 302 302 363 363
HP 340 345 507 507
Torque 310lb-ft 310lb-ft 450lb-ft 450lb-ft
Block BOSS 302 BOSS 302 BOSS 302 BOSS 302
Comp. Ratio 9.0:1 9.0:1 10.0:1 10.0:1
Heads X306 GT-40 X306 GT-40 M-6049-Z2 M-6049-Z2
Camshaft E303 Hydraulic Roller B303 Hydraulic Roller Hydraulic Roller Hydraulic Roller
Crank 3.00" Forged Neutral BalanceCrank 3.00" Forged Neutral BalanceCrank 3.400" Forged Neutral BalanceCrank 3.400" Forged Neutral BalanceCrank
Rod Forged I-beam 5.090" Forged I-beam 5.090" Forged I-beam 5.400" Forged I-beam 5.400"
Pistons 4.000" Lightweight Forged 4.000" Lightweight Forged 4.125" Lightweight Forged 4.125" Lightweight Forged
Intake No Intake No Intake No Intake No Intake
Distributor No Distributor No Distributor No Distributor No Distributor
Valve Cover M-6582-W351PR M-6582-W351PR M-302-139 M-302-139
Oil Pan Production Production Front Sump Rear Sump
Waterpump Serpentine Belt Serpentine Belt V-Belt V-Belt
Use Hot rods / street rods Hot rods / street rods Hot rods / street rods Hot rods / street rods

Part Number M-6007-X347DF M-6007-X347DR
Displacement 347 347
HP 360 360
Torque 400lb-ft 400lb-ft
Block BOSS 302 BOSS 302
Comp. Ratio 9.6:1 9.6:1
Heads M-6049-X306 M-6049-X306
Camshaft Hydraulic Roller Hydraulic Roller
Crank 3.40" Lightweight Forged 3.40" Lightweight Forged
Pistons Forged Mahle® w/ Floating Wrist Pin Forged Mahle® w/ Floating Wrist Pin
Intake Edelbrock®-Included Edelbrock®-Included
Distributor MSD®-Included MSD®-Included
Valve Cover M-6582-A301R M-6582-A301R
Oil Pan 7 quart Front Sump 7 quart Rear Sump
Waterpump Serpentine Belt Serpentine Belt
Use Hot rods / street rods Hot rods / street rods

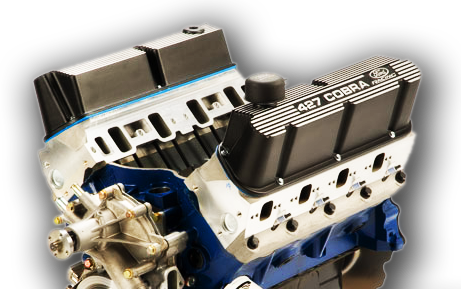

PUSHROD CRATE ENGINES
// 351

Part Number M-6007-Z2427FFT M-6007-Z2427FRT M-6007-Z460FFT M-6007-Z460FRT
Displacement 427 427 460 460
HP 450 450 575 575
Torque 520lb-ft 520lb-ft 575lb-ft 575lb-ft
Block BOSS 351 BOSS 351 BOSS 351 BOSS 351
Comp. Ratio 10.5:1 10.5:1 10.0:1 (nominal) 10.0:1 (nominal)
Heads M-6049-Z2 M-6049-Z2 M-6049-Z304DA M-6049-Z304DA
Camshaft Hydraulic Roller Hydraulic Roller Hydraulic Roller Hydraulic Roller
Crank 4" Stroke Forged Steel 4" Stroke Forged Steel 4.250" Stroke Forged Steel 4.250" Stroke Forged Steel
Pistons Forged Mahle® w/ Floating Wrist Pin Forged Mahle® w/ Floating Wrist Pin Forged Mahle® w/ Floating Wrist Pin Forged Mahle® w/ Floating Wrist Pin
Intake None None None None
Distributor Steel Distributor Gear Required Steel Distributor Gear Required Steel Distributor Gear Required Steel Distributor Gear Required
Valve Cover 302-135 302-135 302-137 302-137
Oil Pan M-6675-FT351 M-6675-DRS351 9 quart Front Pan 7 quart Rear Pan
Waterpump Serpentine Belt and V-Belt Serpentine Belt and V-Belt Serpentine Belt and V-Belt Serpentine Belt and V-Belt
Use Hot rods / street rods Hot rods / street rods Hot rods / street rods Hot rods / street rods

Part Number M-6007-Z427AFT M-6007-Z427ART
Displacement 427 427
Block Aluminum Block Aluminum Block
Comp. Ratio 10.5:1 10.5:1
Heads Z304P High Flow Z304P High Flow
Camshaft Solid Roller Solid Roller
Crank 4" Stroke Forged Steel 4" Stroke Forged Steel
Pistons 4.125" Forged 4.125" Forged
Intake None None
Distributor None None
Valve Cover M-6582-W427B M-6582-W427B
Oil Pan 9 quart Front T-Pan 7 quart Rear T-Pan
Waterpump Serpentine Belt and V-Belt Serpentine Belt and V-Belt
Use Hot rods / street rods Hot rods / street rods

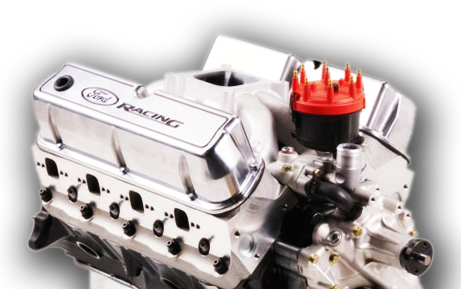

PUSHROD CRATE ENGINES
// RACE

Part Number M-6007-S347JR M-6007-D347SR M-6007-D347SR7
Displacement 347 347 347
HP 350 415 415
Block BOSS 302 BOSS 302 BOSS 302
Series American Canadian Tour ASA Late Model, ASA, SE, GAS, SUPERPRO, FASCAR ASA Late Model, ASA, SE, GAS, SUPERPRO, FASCAR
Comp. Ratio 10.0:1 10.0:1 10.0:1
Heads M-6049-X306 Z304A High Flow M-6049-Z304DA7
Camshaft COMP Hydraulic Roller Cam F303 Hydraulic Roller Cam F303 Hydraulic Roller Cam
Crank 3.40" Forged Steel 3.40" Forged Steel 3.40" Forged Steel
Pistons Forged Flat Top Forged Flat Top Forged Flat Top
Intake Performer RPM Air Gap Victor Jr. Single Plane Victor Jr. Single Plane
Distributor MSD Billet MSD Billet MSD Billet
Valve Cover M-6582-CT2 M-6582-CT2 M-6582-CT2
Oil Pan 7 quart Oval Track 7 quart Oval Track 7 quart Oval Track
Waterpump V Belt V Belt V Belt
Use Suitable for asphalt and dirt racing - where a "sealed" engine is necessitated Suitable for asphalt and dirt racing - where a "sealed" engine is necessitated Suitable for asphalt and dirt racing - where a "sealed" engine is necessitated
CRATE ENGINES
// EcoBoost™

Part Number M-6007-20T
HP 252 @5500
Torque 270lb-ft
Comp. Ratio 9.3:1
Use Great for hot rods, street rods, and resto mods
