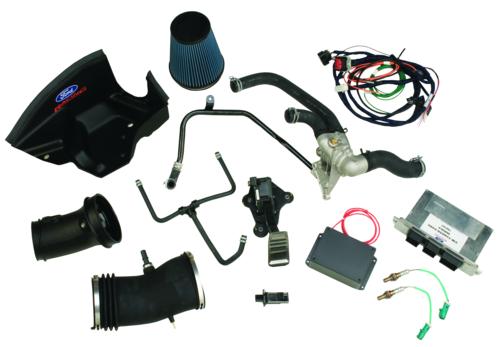

CONTROL PACK-5.4L 4V SUPERCHARGED MANUAL TRANSMISSION

CONTROL PACK-5.4L 4V SUPERCHARGED MANUAL TRANSMISSION
M-6017-54SC
Retail
$2,349.00
Sold in Units of
Each (1)
Instruction Sheet

WARNING:
This part has been designed and is intended for off-highway application only. Installation of this part on a vehicle that is driven on public roads may violate U.S. and Canadian laws and regulations relating to emission requirements and motor vehicle safety standards.
Proudly Made in the USA

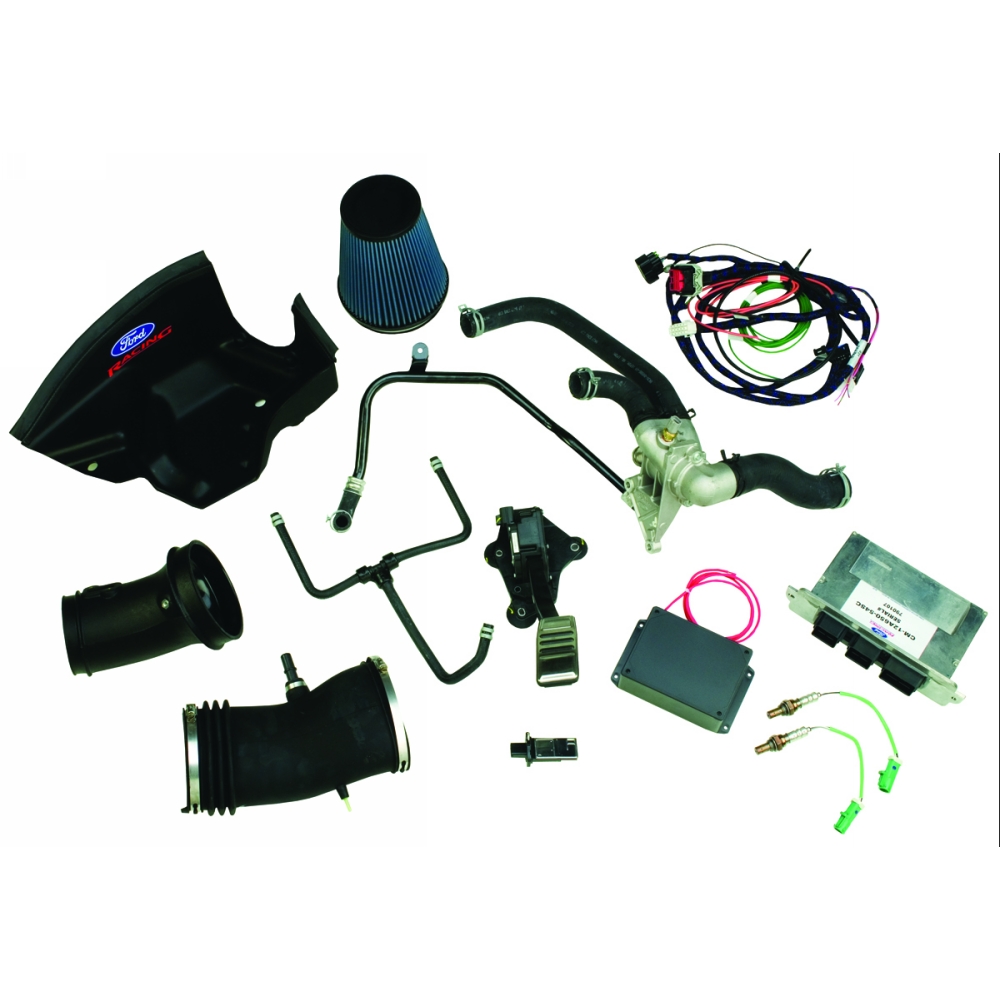

  • Take the complexity and mystery out of wiring a late model 5.4L 4V supercharged engine!
  • Designed to run 2007-2012 Shelby GT500 engine.
  • Includes Ford Racing cold air kit M-9603-SVT07 minus the Pro-Cal tool (PCM included with the Control Pack already contains the Ford Racing calibration)
  • Includes Electronic Throttle Control accelerator pedal eliminates throttle cable routing problems
  • Unique body harness replaces stock body harness and is designed for streetrod installation
  • Features OBD-II diagnostic port to assist in vehicle calibration upload and problem diagnosis
  • Compatible with 2007-2009 Shelby GT500 engine harness, 2010-2012 Shelby GT500 engines require engine harness M-12B637-A54SC
  • Includes unique downsized power distribution module, inlet tube, MAF sensor with bolts, EGO sensors, thermostat housing with hoses and an integrated intercooler pump relay
  • PCM with Ford Racing calibration requires return type fuel system, will not work with returnless fuel system
  • NOTE: Installation of this PCM in a 2007-2012 Mustang SVT will result in a no-start condition. See "Tip sheets" for more tech tips about E.F.I.

Mustangs and Fords Magazine is currently working on a "resto-mod" 1968 Mustang project that will use the 4.6L version of the controls pack for a 3-valve modular engine install. For a review of the control pack, visit the Mustangs and Fords website.


Part Type
Electrical: Microprocessors
Instruction Sheet
Warranty Availability
Not Available
Packaged Dimensions
15" x 14.5" x 31
Packaged Weight
26.5 lb(s)
Part Type
Electrical: Microprocessors
UPC Code
756122105375
Country of Origin
United States
California Executive Order
No
