2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP

This part is no longer available.
2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP
2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP
2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP
2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP
2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP
Proudly Made in the USA
  • Fits 2015-2017 Mustang GT with manual or automatic transmission
  • 670HP at approximately 9 psi of boost with 93 octane fuel
  • Kit comes complete with all hardware for install
  • Ford Performance calibrations are 50 state legal with CARB EO (D-418-26)
  • Developed with ROUSH Performance
  • Calibration does not support adaptive cruise
  • NOTE: Right Hand Drive (RHD) models require part number M-9066-M8RHD
  • NOTE: All customers who purchased this kit when rated at 627 horsepower, please contact the Ford Performance Tech Line at 800-367-3788 if you have NOT received your calibration upgrade to 670 horsepower

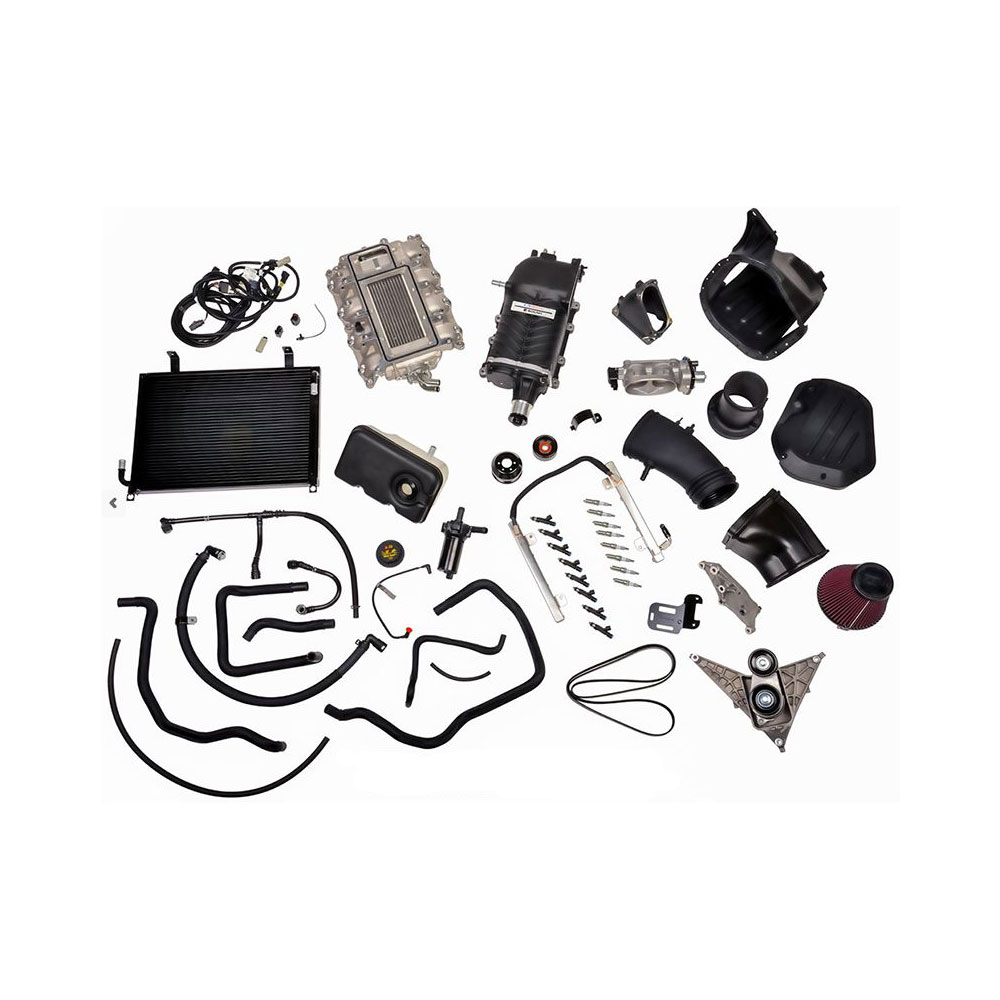

Kit Includes:

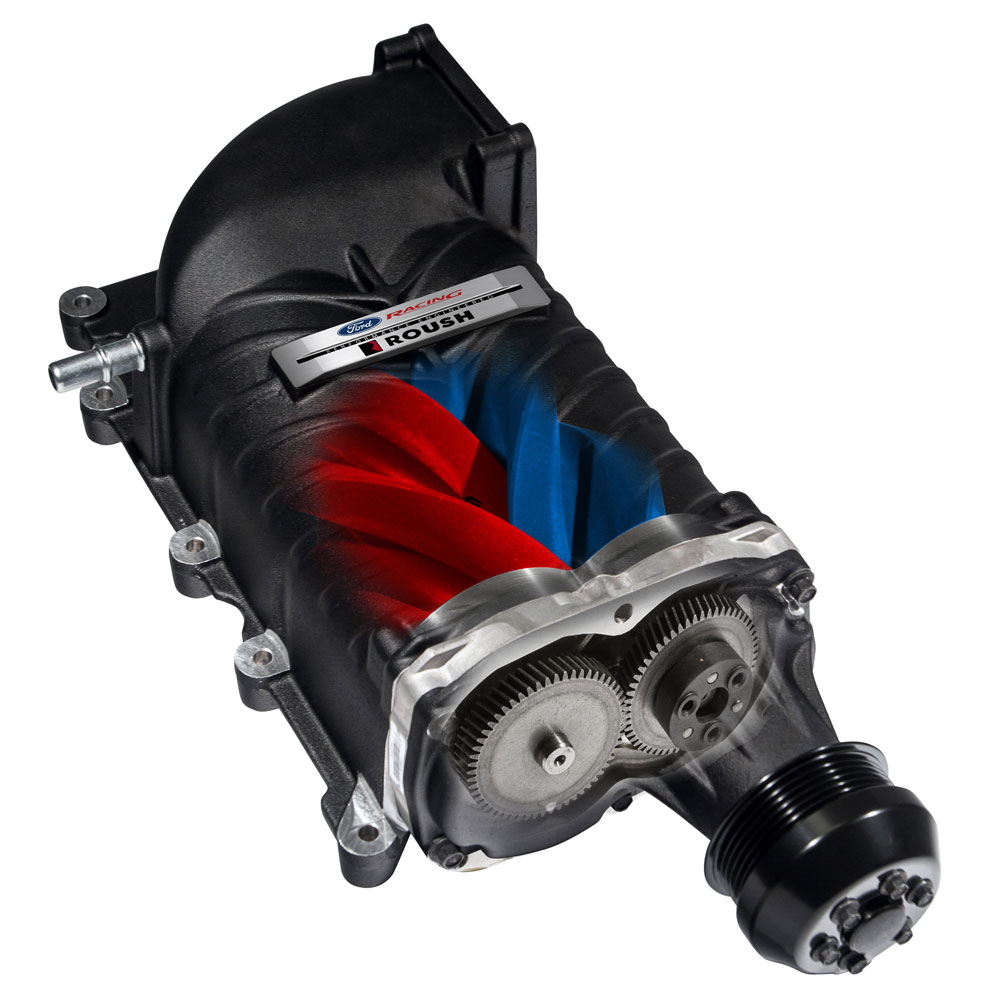

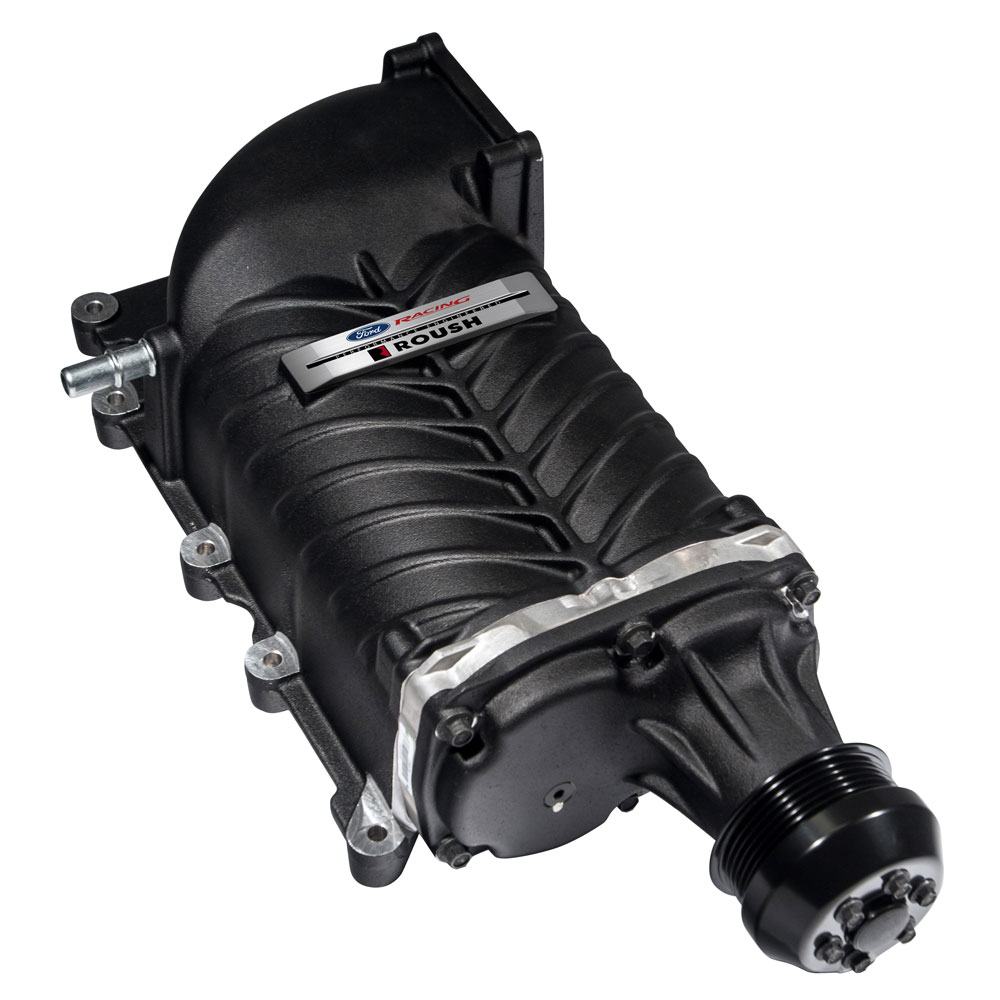

  • 2.3L Twin Vortices (TVS) Supercharger Assembly.   The R2300 Supercharger features new TVS Technology. The new Twin Vortices Series features new four-lobe rotors and high-flow inlet and outlet ports that greatly enhance thermal efficiency, enabling greater volumetric capacity at higher revolutions per minute (RPM)
  • Lower Intake manifold
  • Dual 60mm electronic throttle body
  • Air inlet system
  • Fuel rails
  • Complete air-to-liquid intercooler system includes pump, heat exchanger and reservoir
  • Drive Belt: FEAD 6-rib system
  • 47 lb/hr, 6-hole, high-impedance fuel injectors
  • Ford Performance ProCal 3 tool (requires laptop and internet access) with performance calibration for significantly improved throttle response and performance feel.

  • NOTE: Powertrain calibrations are developed and supported for U.S. and Canadian vehicles only.  Federal and state laws prohibit any person from installing aftermarket add-on or modified parts prior to the sale of a new motor vehicle
    Part Type
    Engine: Superchargers
    Instruction Sheet
    Warranty Availability
    Ships In
    3 Boxes
    Box 1 Dimensions
    24" x 30" x 18"
    Box 1 Weight
    61 lb(s)
    Box 2 Dimensions
    19" x 25" x 12"
    Box 2 Weight
    61 lb(s)
    Box 3 Dimensions
    15" x 30" x 10"
    Box 3 Weight
    61 lb(s)
    UPC Code
    756122001516
    Country of Origin
    United States
