M-7560-A302N
Retail
$395.00
Sold in Units of
Each (1)
Instruction Sheet

Fits all 1986-01 Mustang GT, 1993-98 Cobra with T-5 or T45 Transmissions.

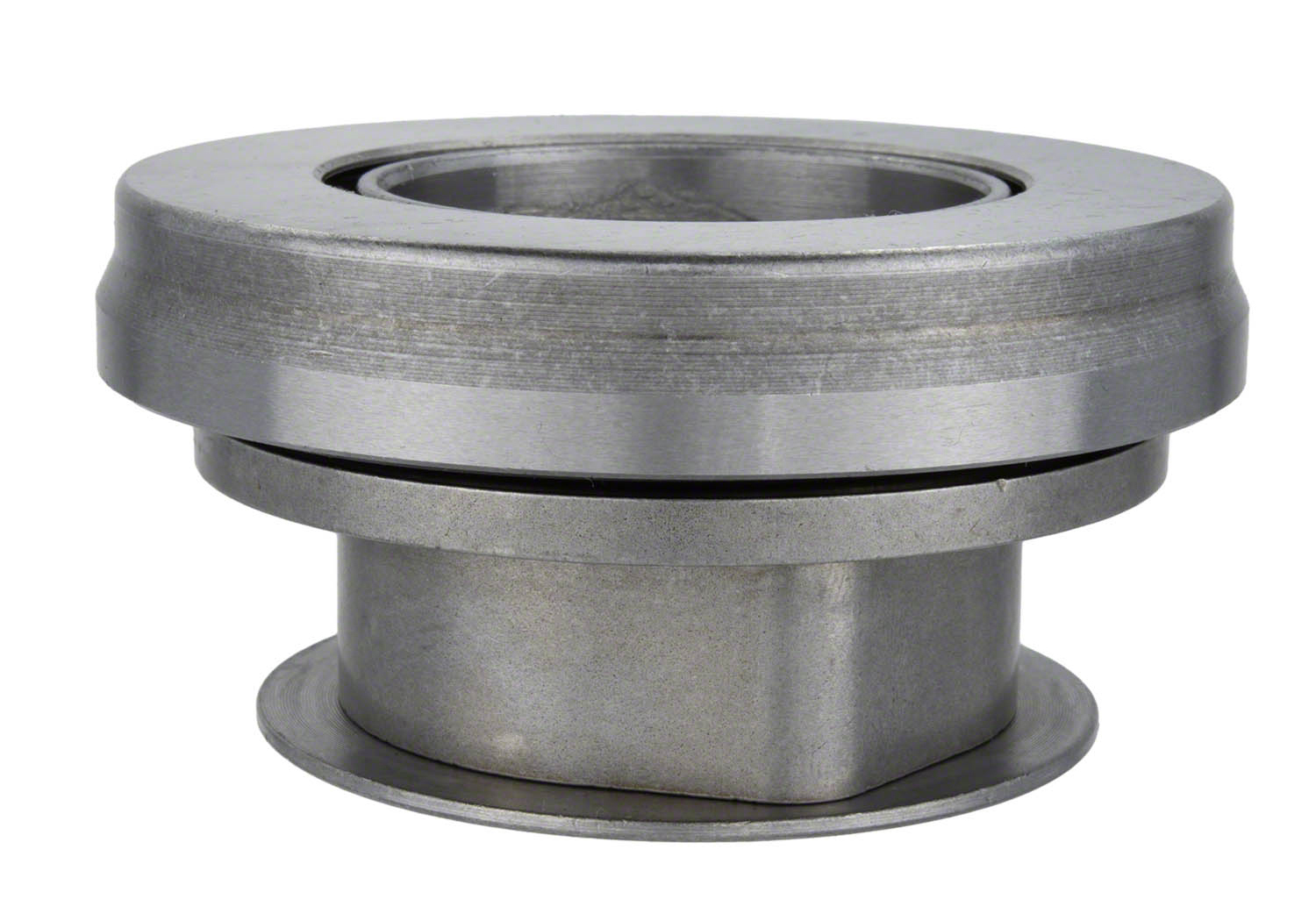

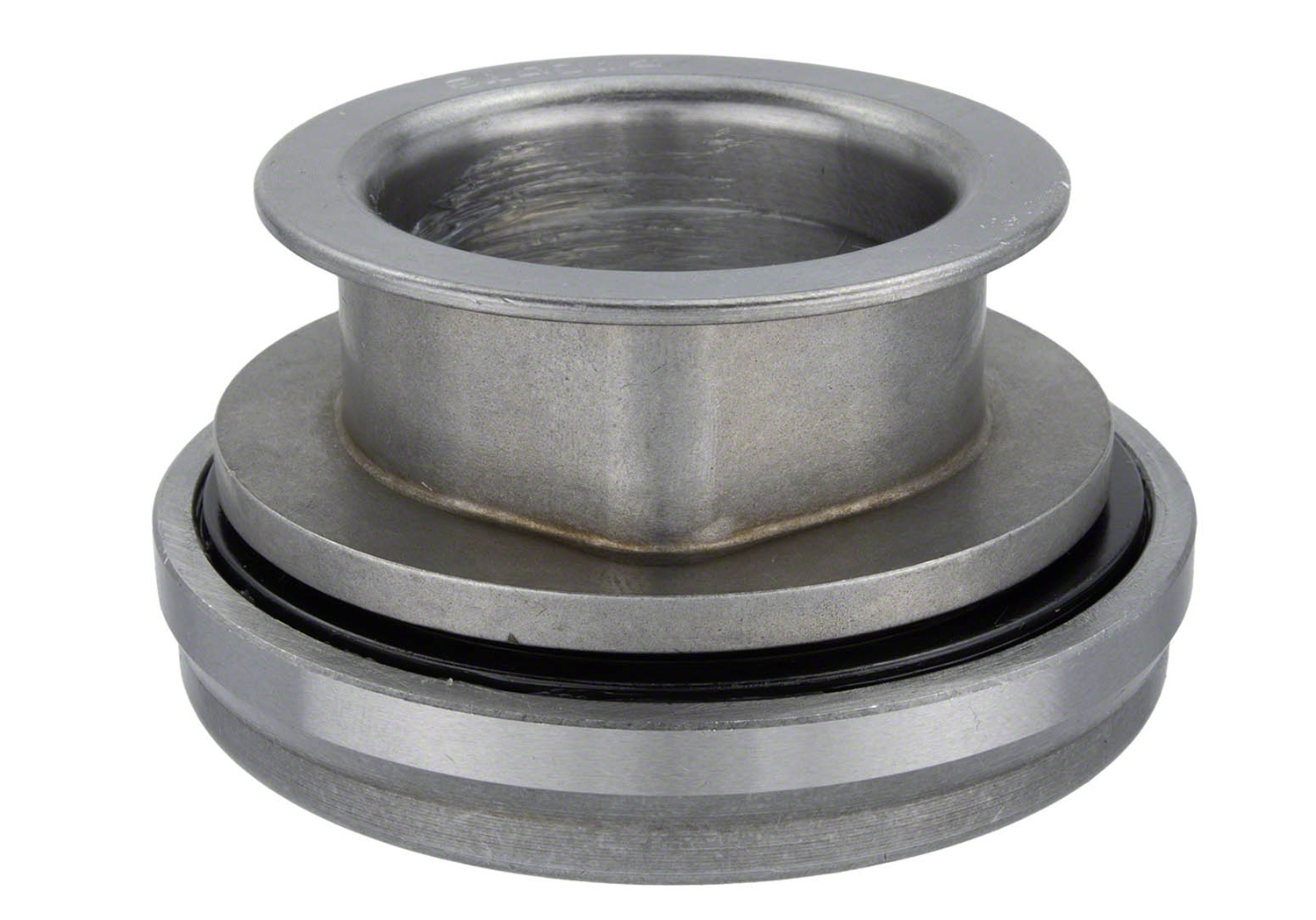

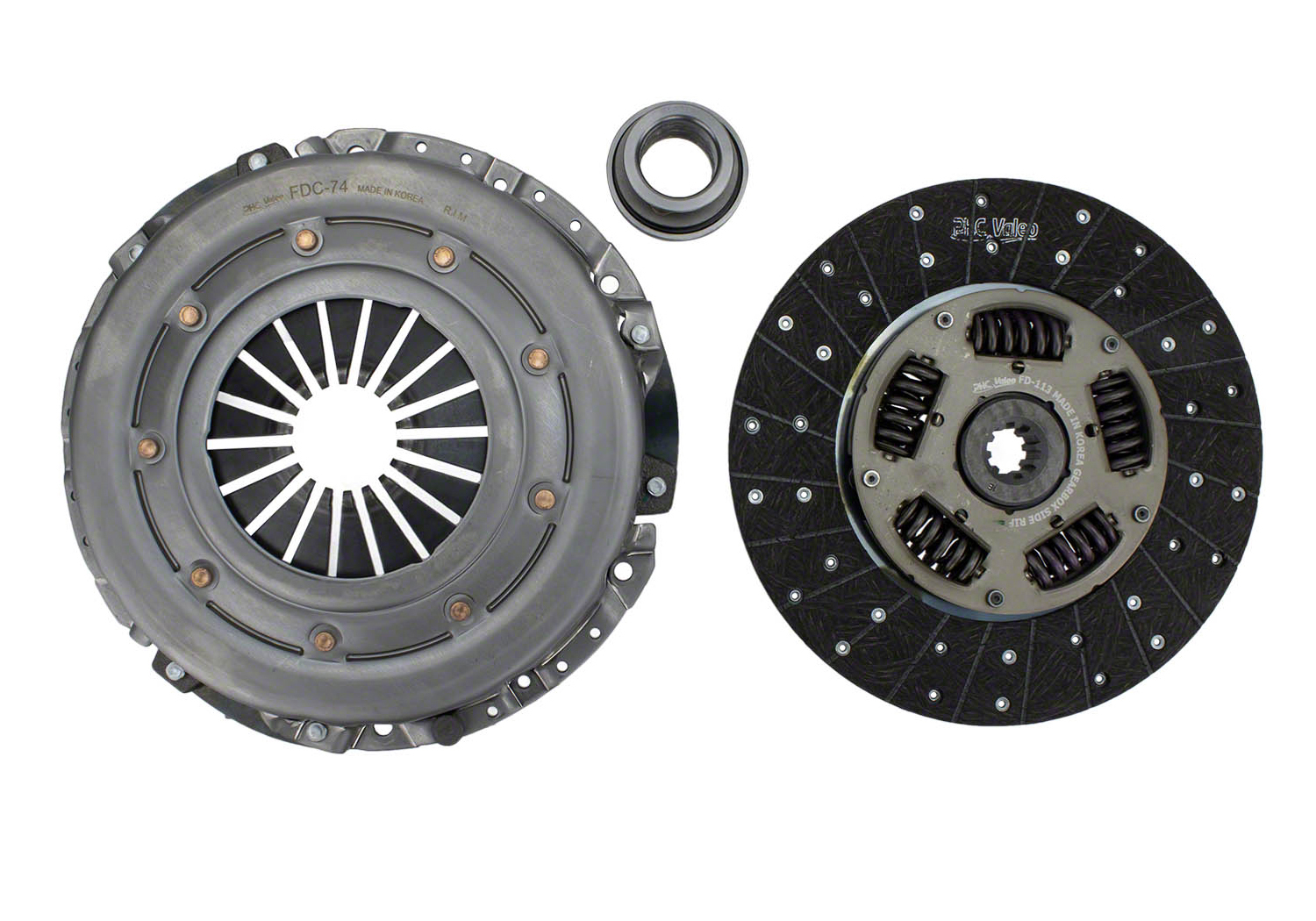

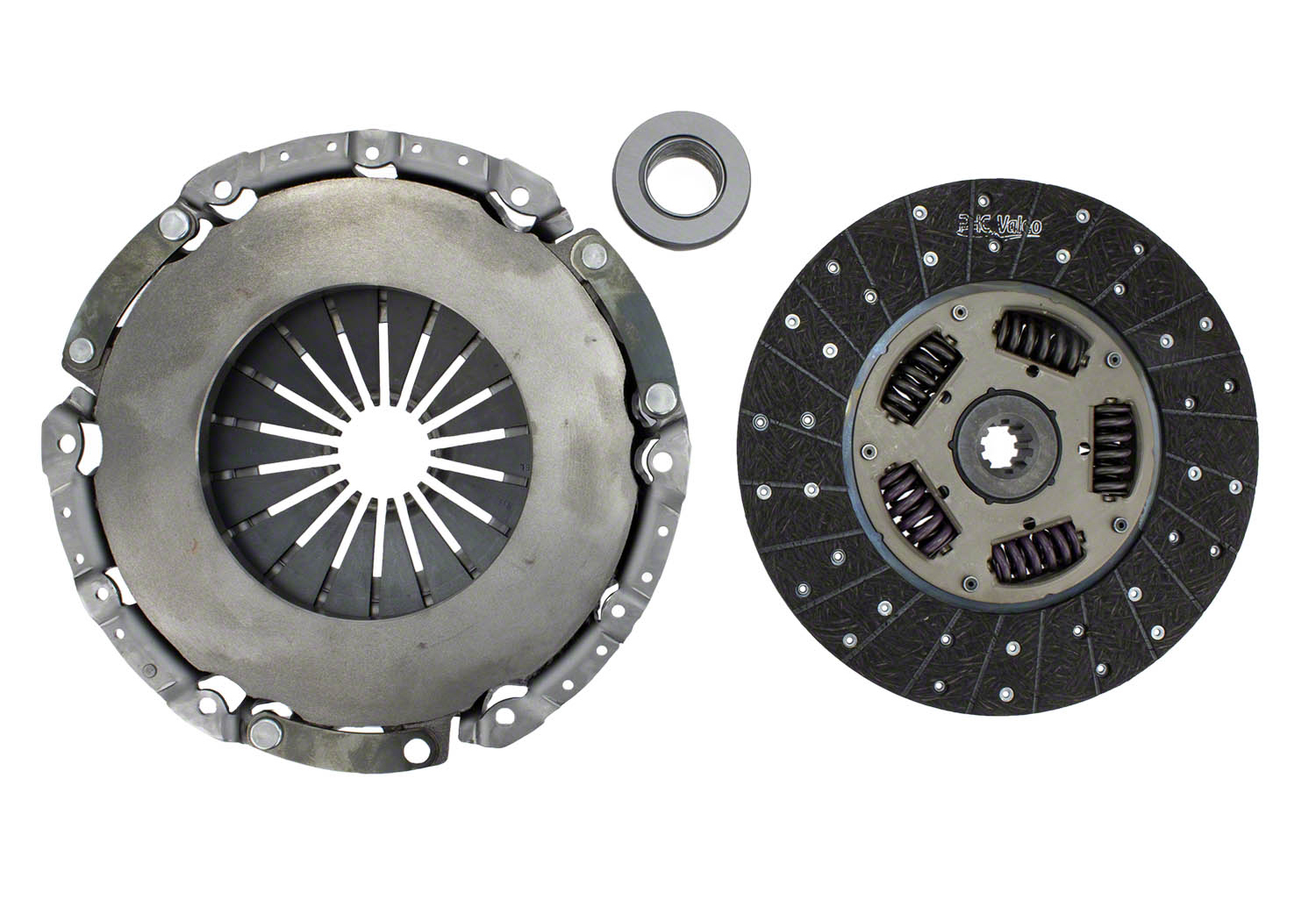

Consists of clutch disc, pressure plate and throwout bearing

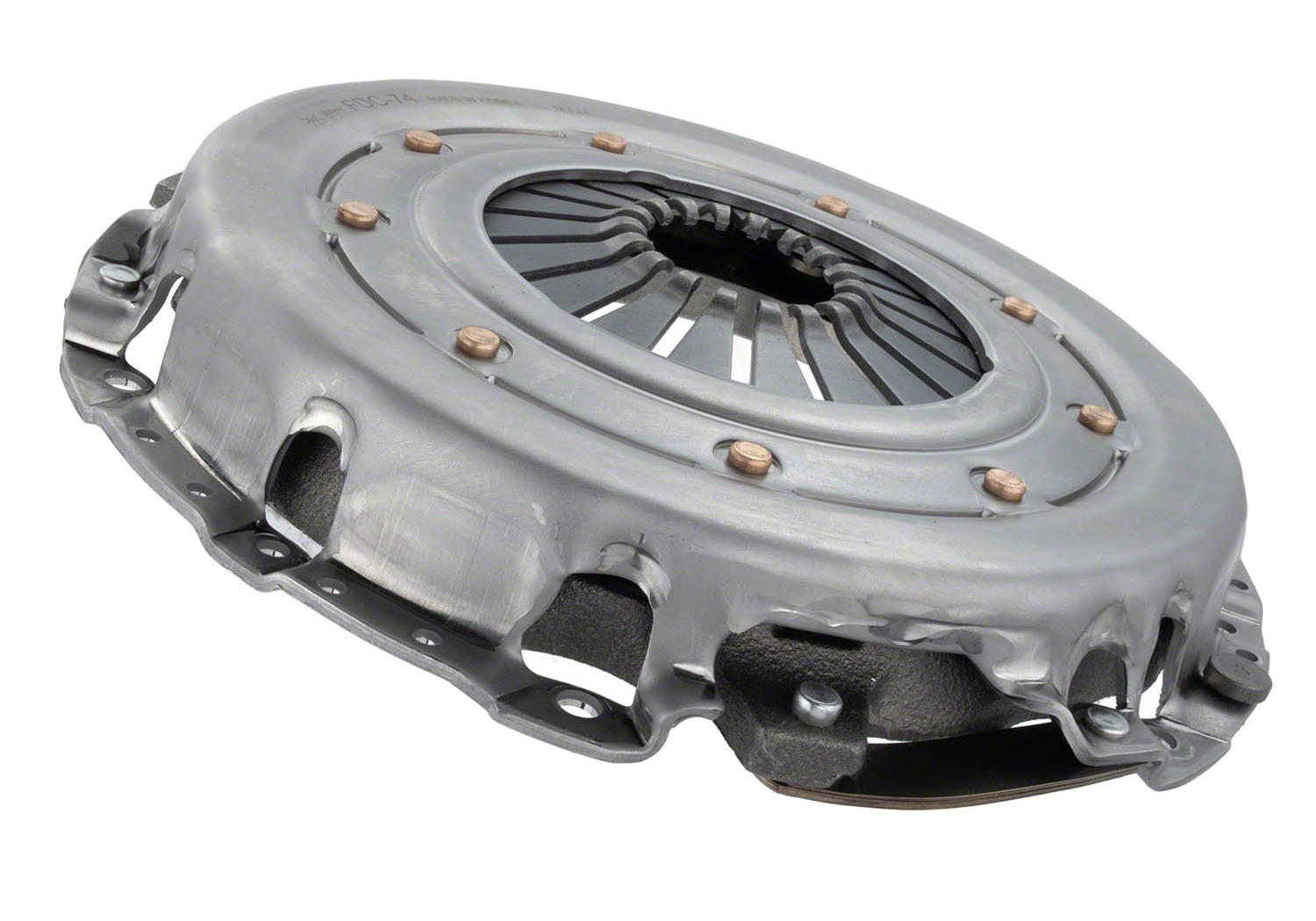

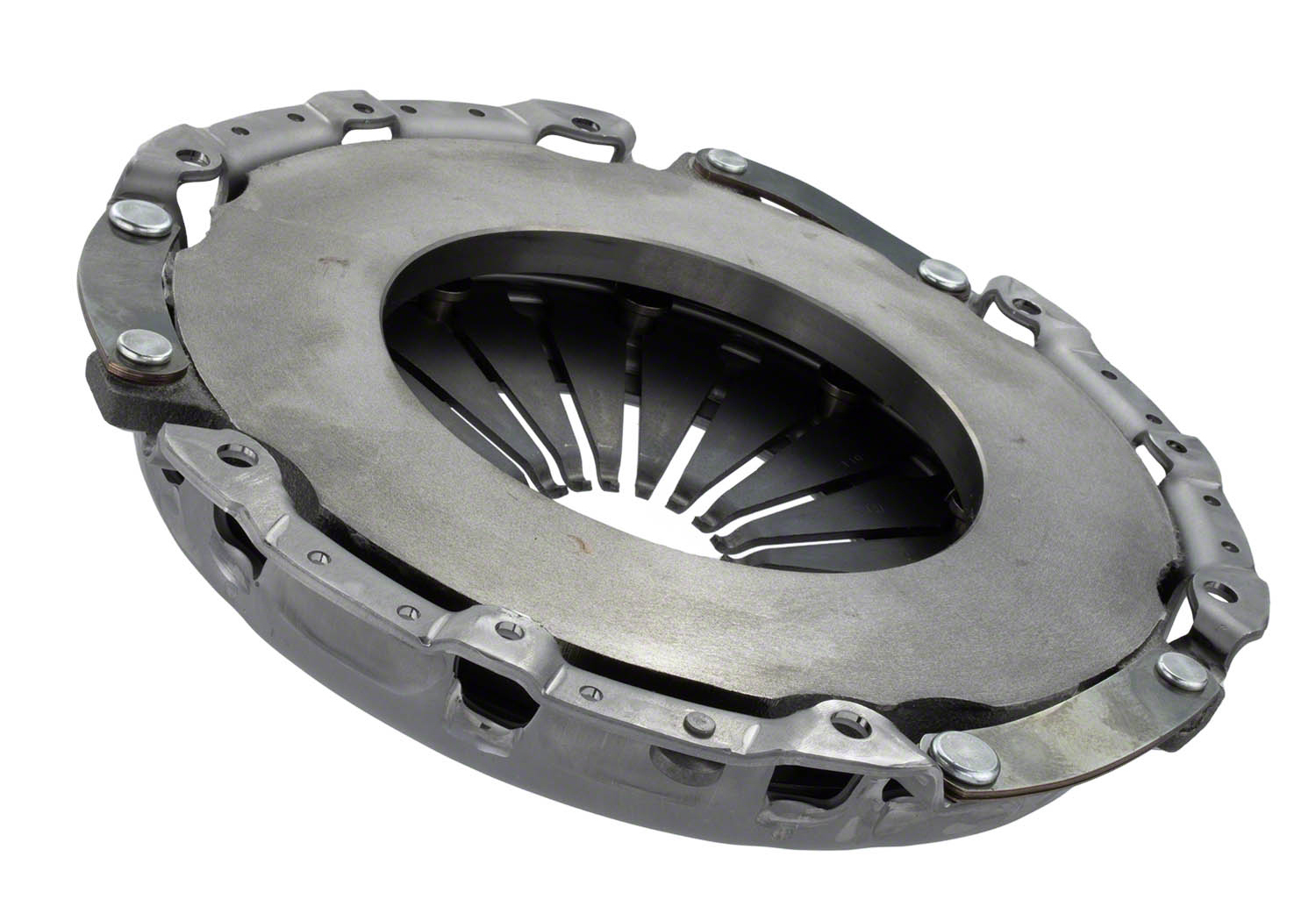

Heavy duty diaphragm type clutch assembly with approximately 40 % more capacity than stock Mustang clutch.

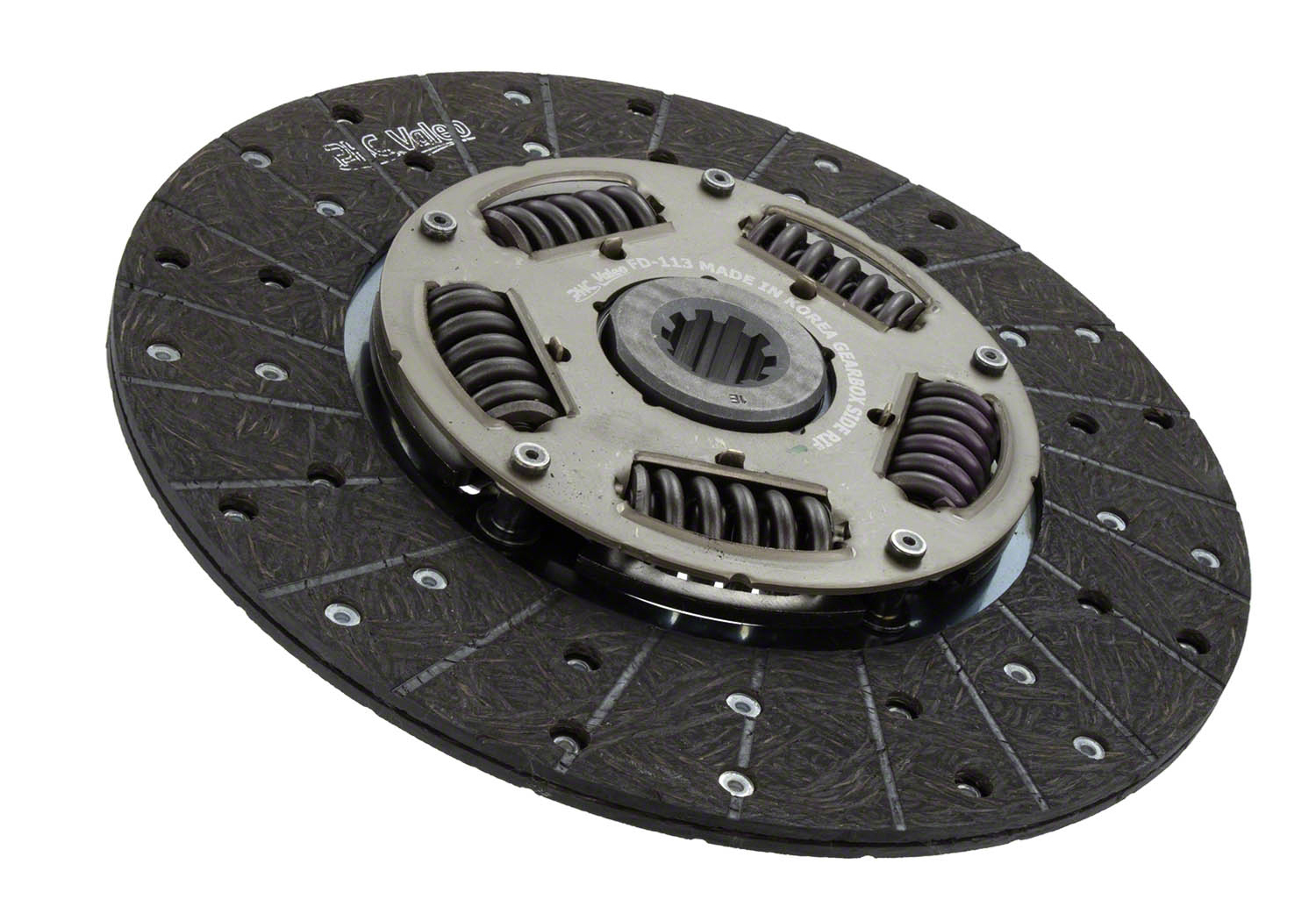

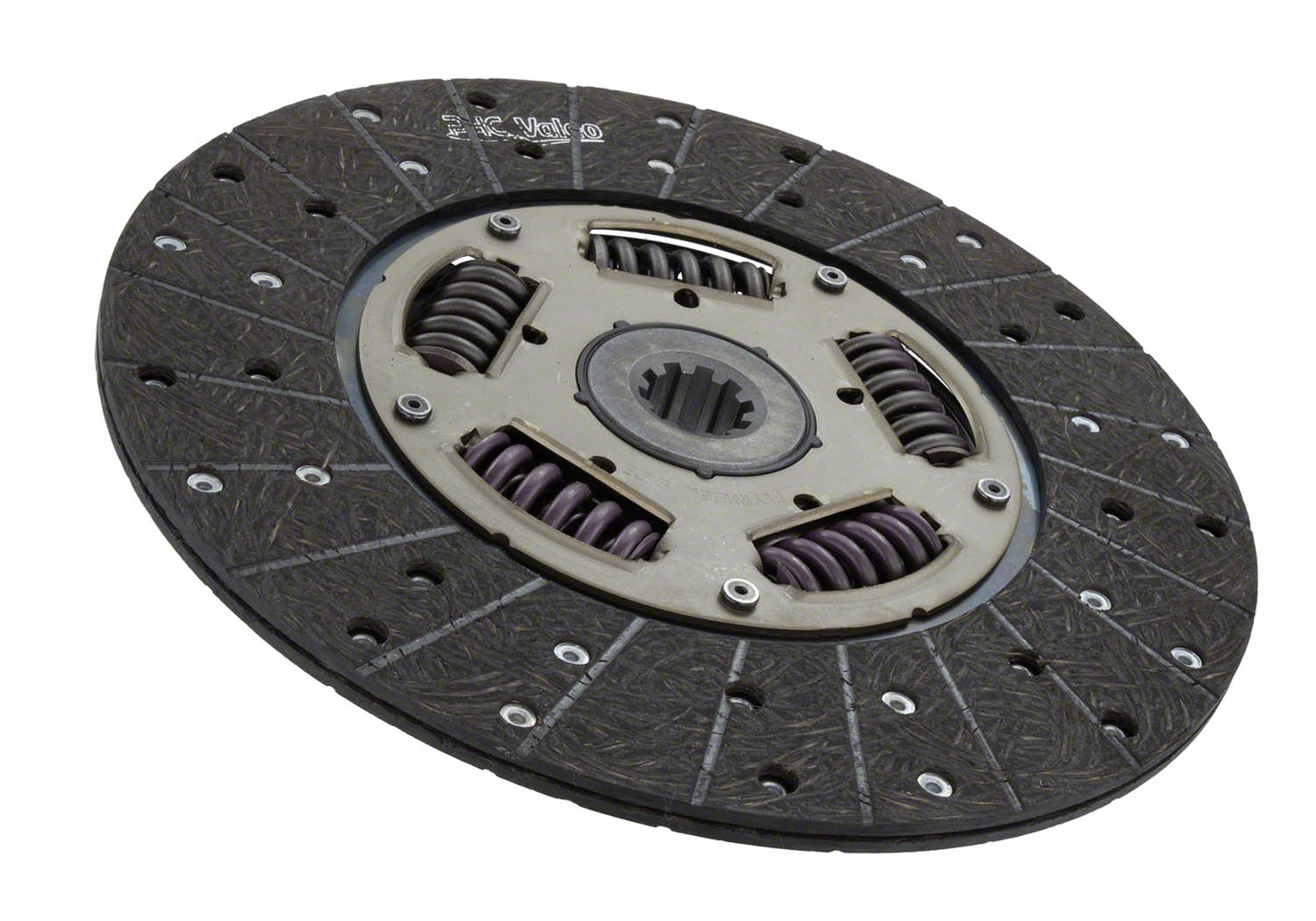

Clutch disc has 1-1/16-inch - 10 spline hub.

OK to mix and match Ford Racing clutch discs and pressure plates but do NOT install a FRPP pressure plate with a stock disc or vice-versa as disengagement problems may occur.

Metric fasteners and dowel pins must be used with 10.5" clutches M-6397-A302

Clutches have NO warranty!

Also recommended Roller Pilot Bearing M-7600-A or M-7600-B.

    CLUTCHES

    PART NUMBER DESCRIPTION ENGINE DIAMETER TECHNICAL INFORMATION
    M-7550-X302
    (1)(2)(3)
    Disc V-8 10.5" HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side.
    M-7550-T302
    (1)3
    Disc V-8 10.5" HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Designed for 26 spline shaft on M-7003-R58C, and M-7003-R58H transmissions. Will work with M-7563-A302N/B302/C302N/D302 pressure plates.
    M-7563-B302
    (1)(3)(4)
    Pressure Plate V-8 10.5" HD diaphragm type with centrifugal assist. Has approx. 25% more capacity than stock Mustang unit. Cast iron plate.
    M-7560-A302N
    (1)(2)(3)(4)
    Mustang HD Kit V-8 10.5" Consists of M-7550-A302N disc, M-7563-A302N pressure plate and D9ZZ-7548-A throwout bearing.
    M-7560-C302N
    (1)(2)(3)(4)
    Mustang HD "King Cobra" Kit V-8 10.5" Consists of M-7550-A302N disc, M-7563-C302N pressure plate and D9ZZ-7548-A throwout bearing.
    M-7560-T46
    (1)
    11" Clutch Kit 4.6L 11" Kit contains 11" clutch disc with 26 spline hub and pressure plate. Clutch disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Centrifugal assist design pressure plate with 25% more torque capacity then production Cobra. Used when installing M-7003-R58C and M-7003-R58H transmissions into 1996-04 4.6L Mustangs with production 11" flywheel or Ford Racing flywheels M-6375-F46, M-6375-G46 or M-6375-R00.
    NOTES:
    (1) Clutches have NO warranty!
    (2) All clutch discs have 1.0625"-10 spline hub.
    (3) Fits all 1986-01 Mustang GT, 1993-98 Cobra with T-5 or T45 Transmissions.

    2001-04 Mustang GT with 3650 transmission and 1999-03 Cobra uses an 11" clutch.

    OK to mix and match Ford Performance Parts clutch discs and pressure plates but do NOT install a FPP pressure plate with a stock disc or vice-versa as disengagement problems may occur. Installation of 10.5" clutch assemblies on 1979-85 vehicles equipped with 10" clutch requires new flywheel (see page 116). Metric fasteners and dowel pins must be used with 10.5" clutches. 4 Requires metric pressure plate bolts N602549-S51M and alignment dowel pins D1FZ-6397-B. Ford Performance Parts kit M-6397-A302 (see page 116).
Part Type
Driveline: Clutch Related
Instruction Sheet
Warranty Availability
Package Dimensions
14.75" x 4.75" x 14.75"
Package Weight
24 lb(s)
UPC Code
756122084595
Country of Origin
Korea, South (Republic of)
