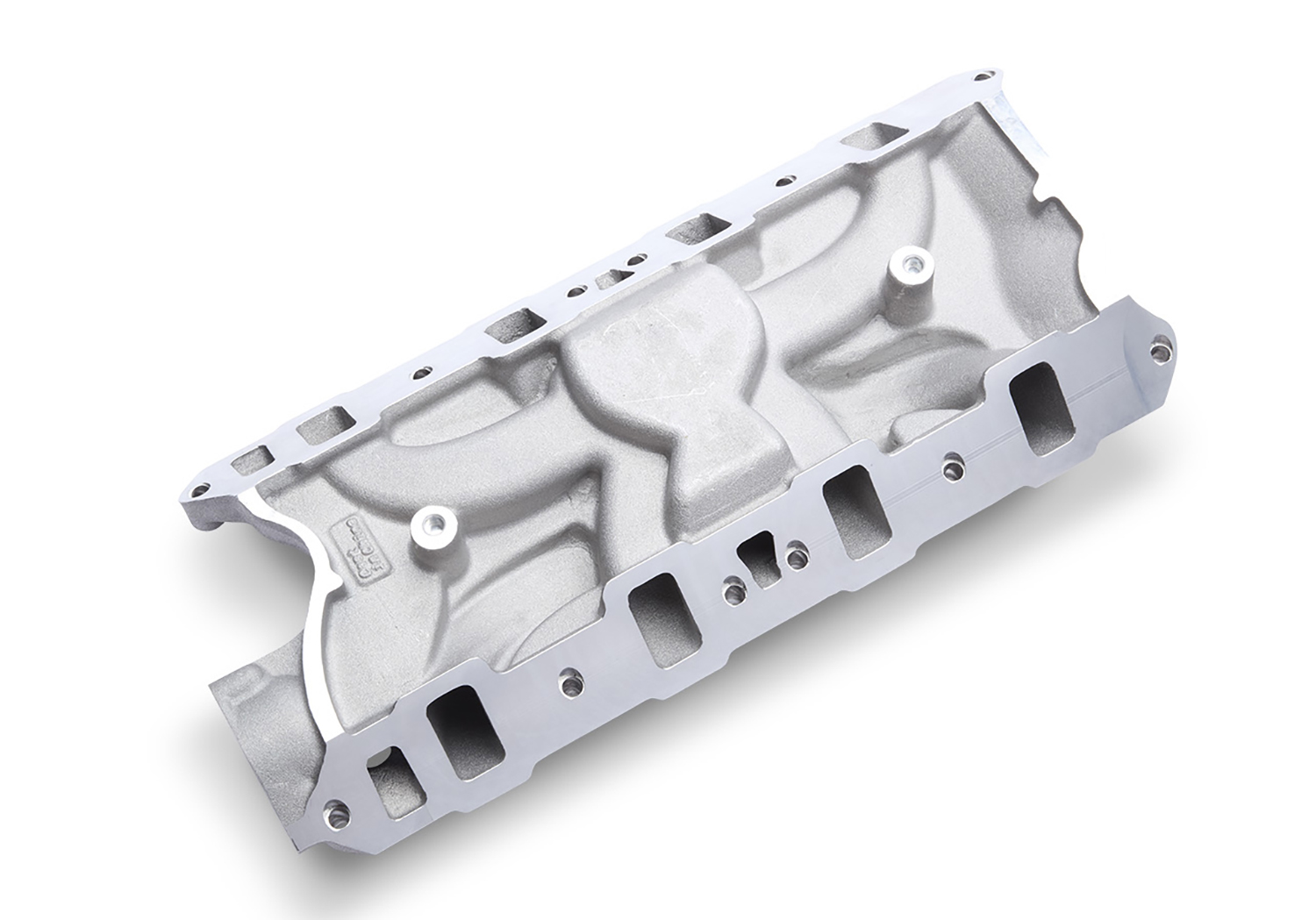

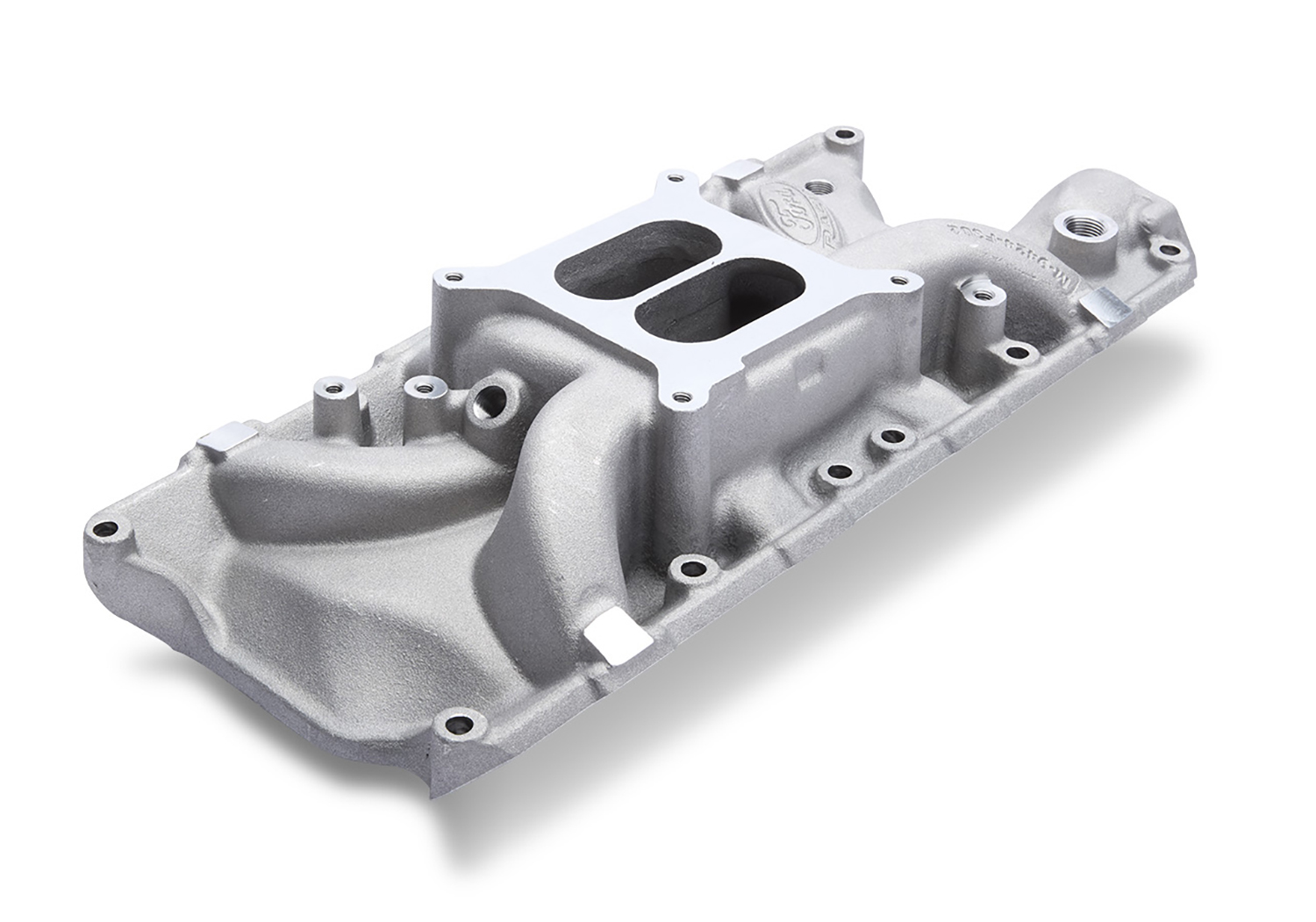

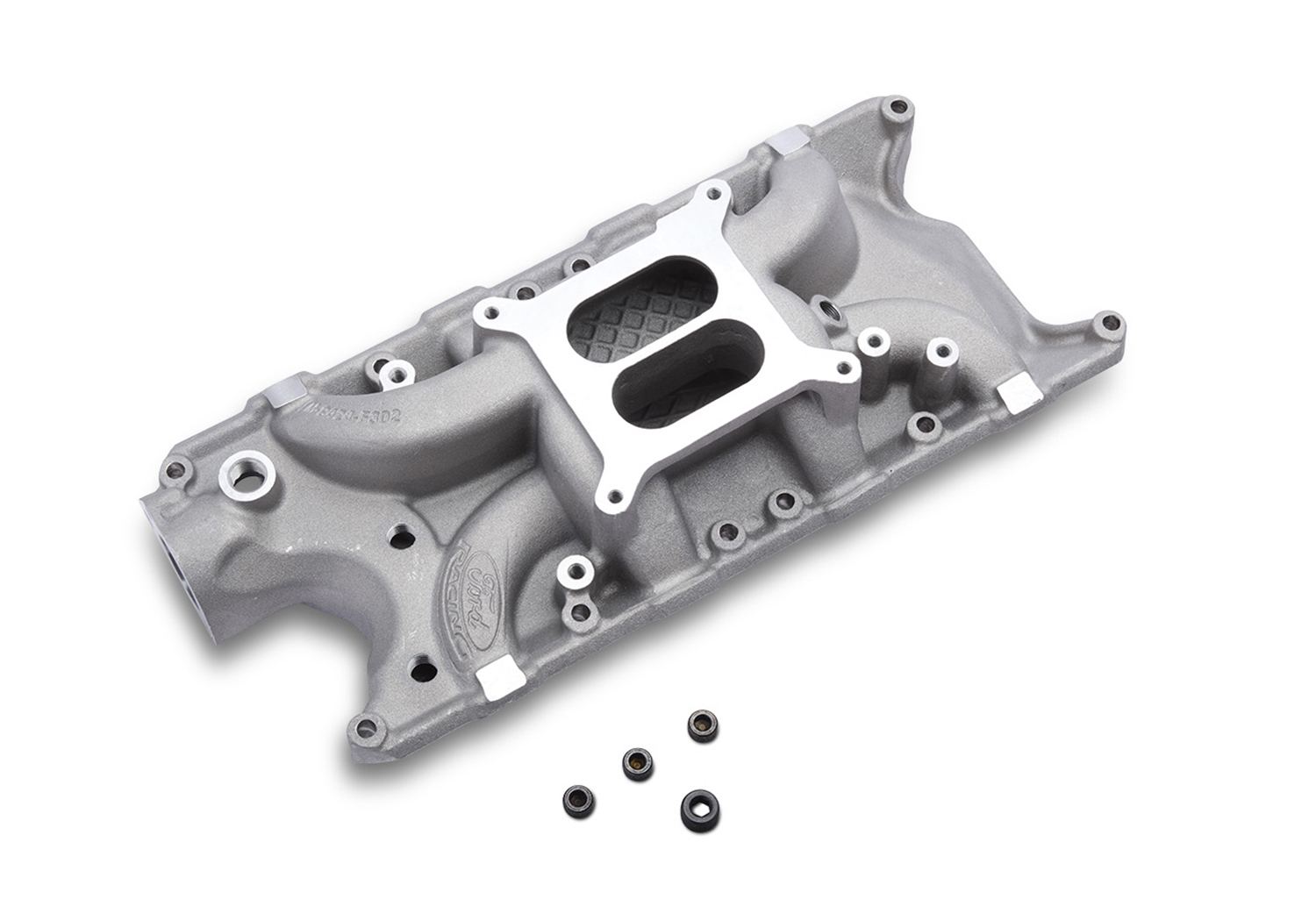

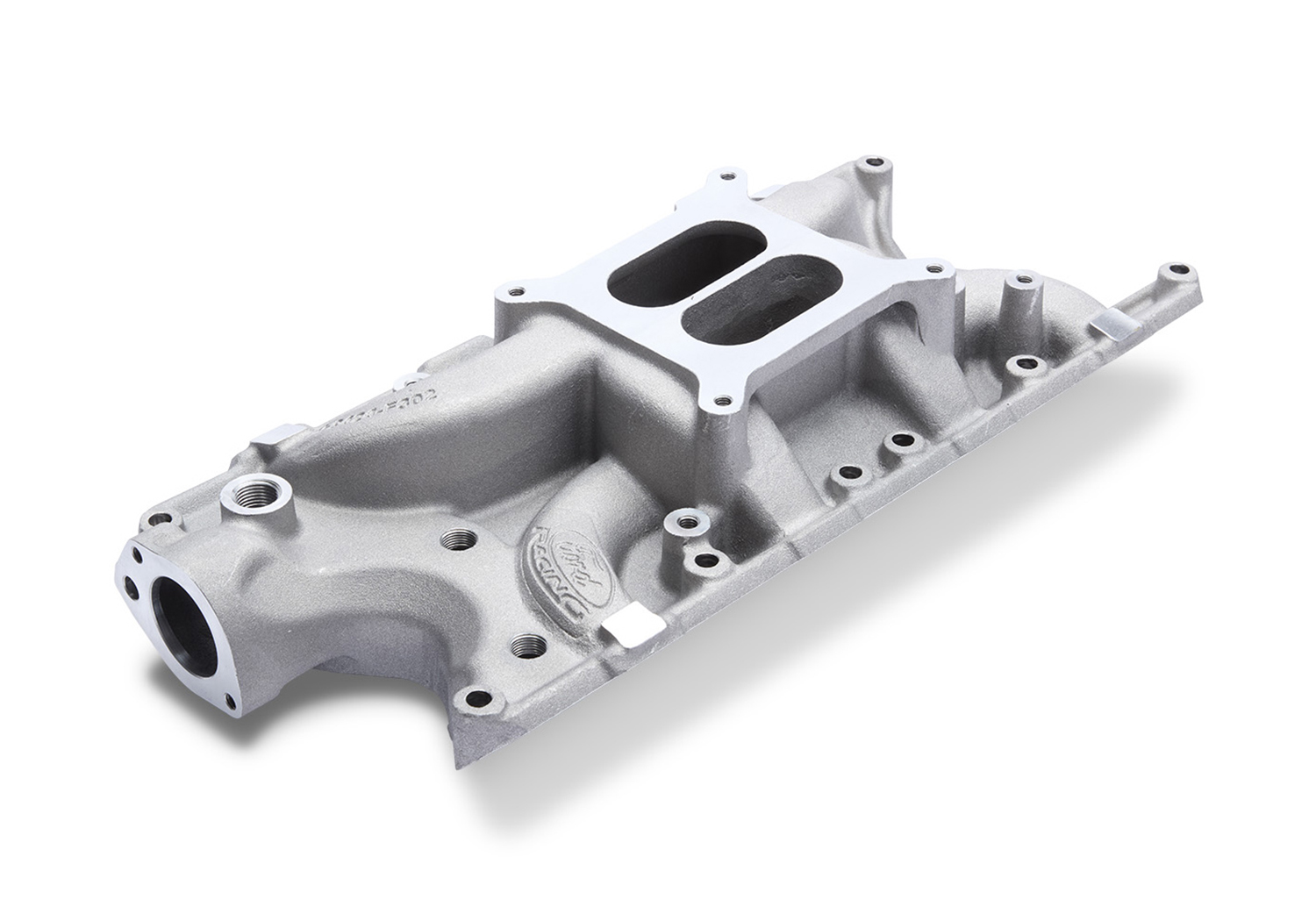

289/302 DUAL PLANE INTAKE MANIFOLD

  • For use with 8.206" deck height block and inline valve heads
  • 4.375" at the front of the carburetor pad, 5.250" at the rear
  • Dual plane intake
  • 1500-6000 rpm range
  • For use with any mid-rpm small block application, great for street cars and mild race engines
  • Excellent fuel distribution
  • Does not fit "Z", "Z2" or the GT-40 "X" heads
Part Type
Engine: Intake Related
Warranty Availability
Not Available
Packaged Dimensions
10.5" x 5.5" x 22.5
Packaged Weight
16.3 lb(s)
UPC Code
756122094846
Catalog Page Number
191
Country of Origin
United States
