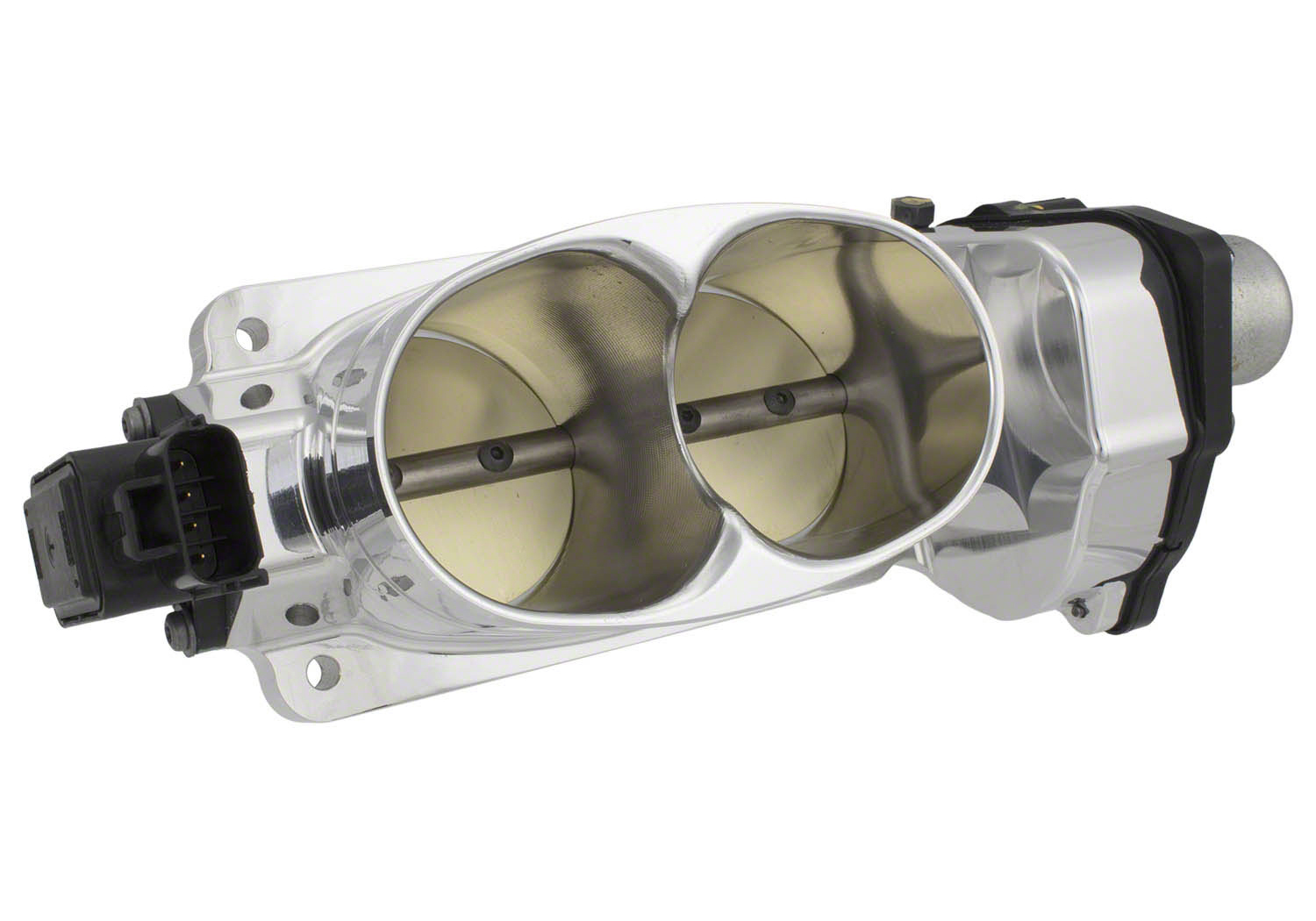

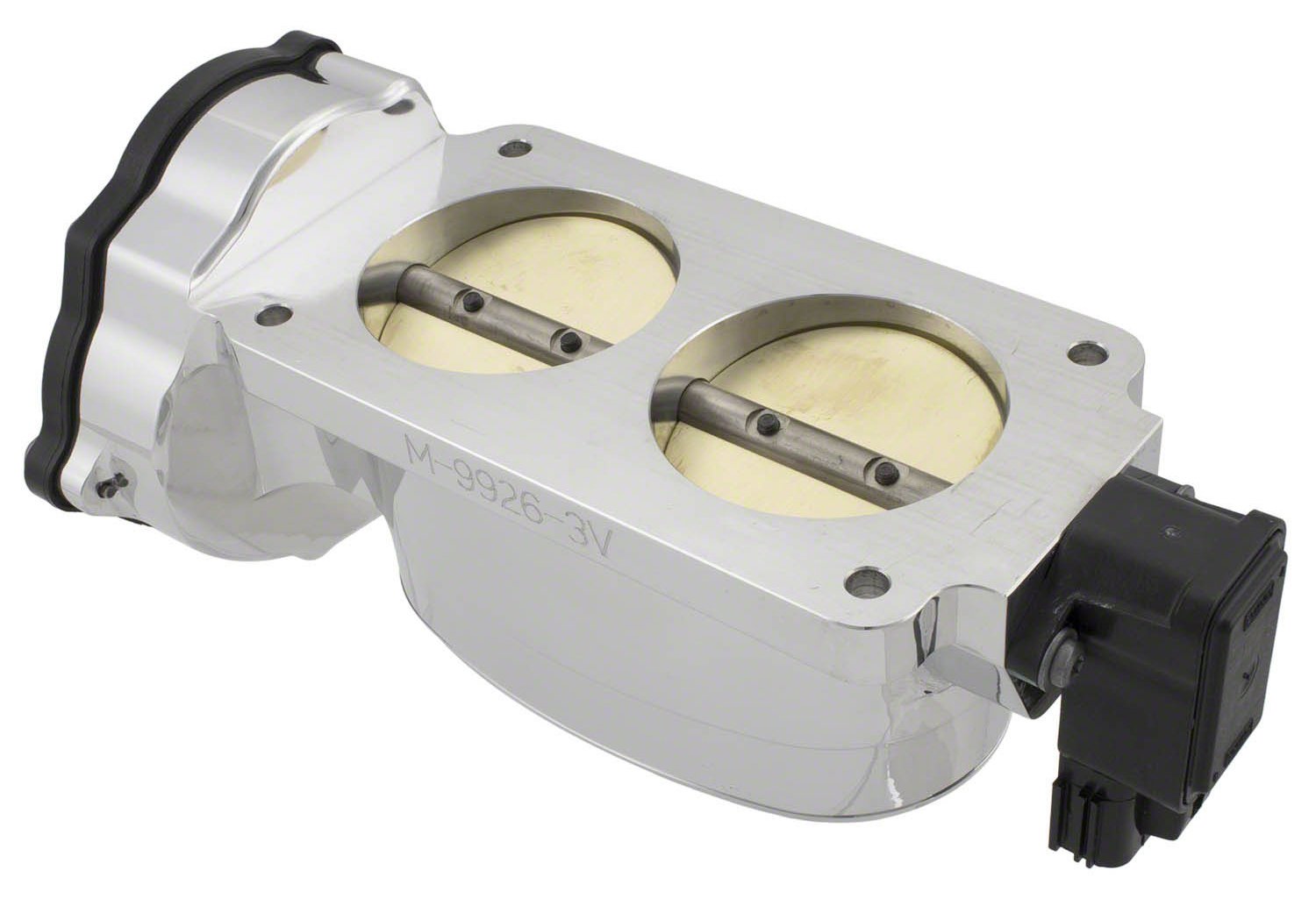

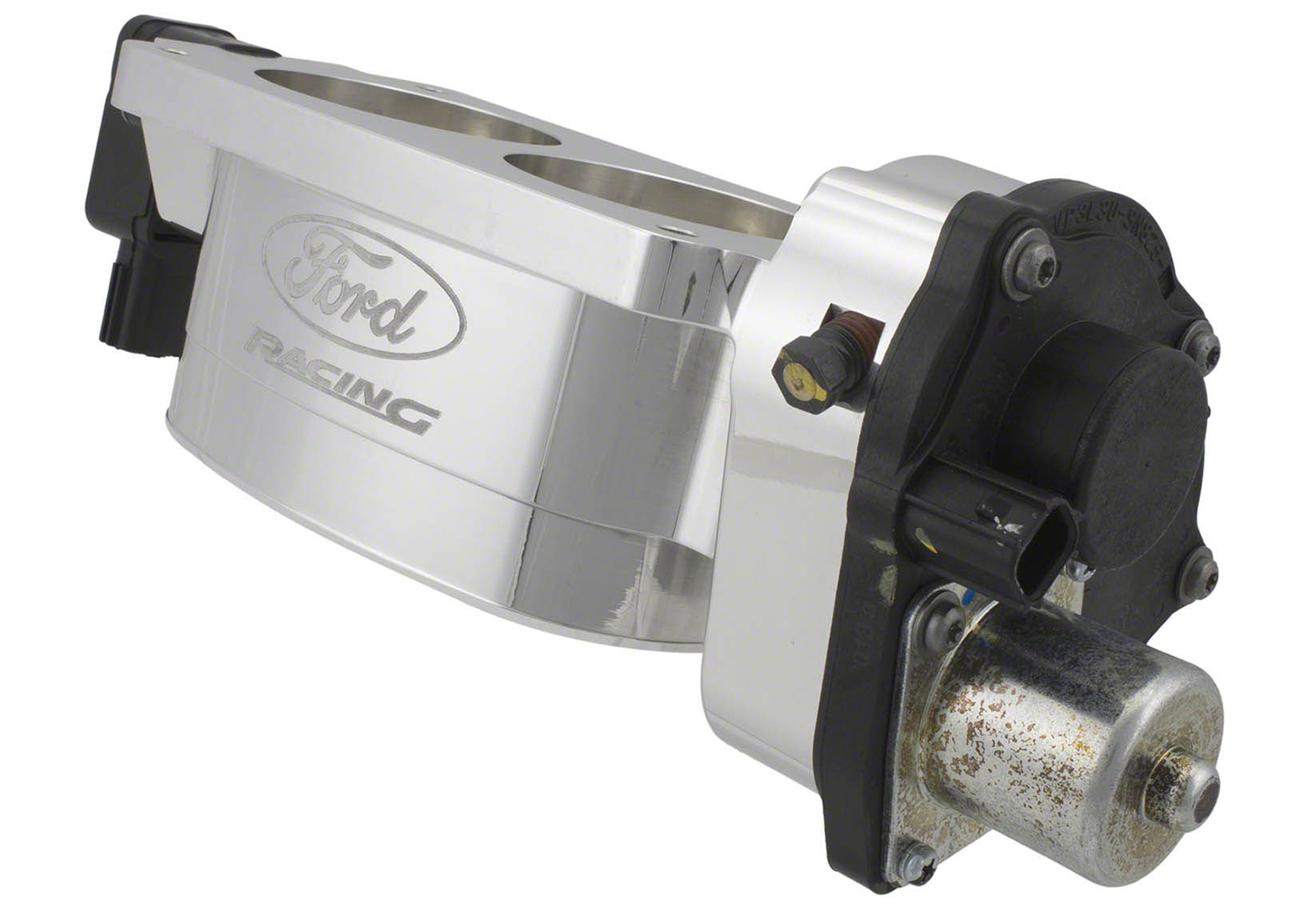

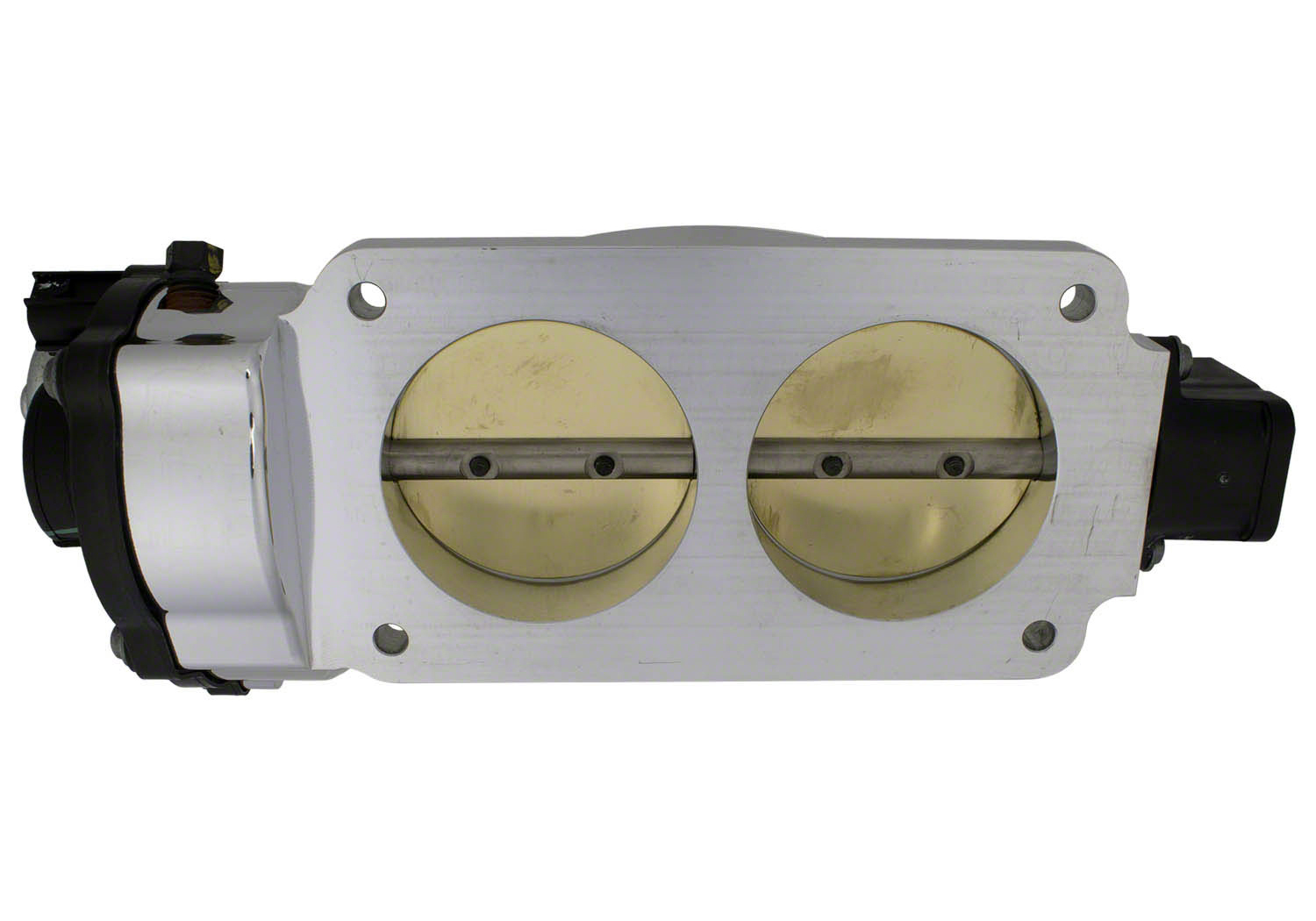

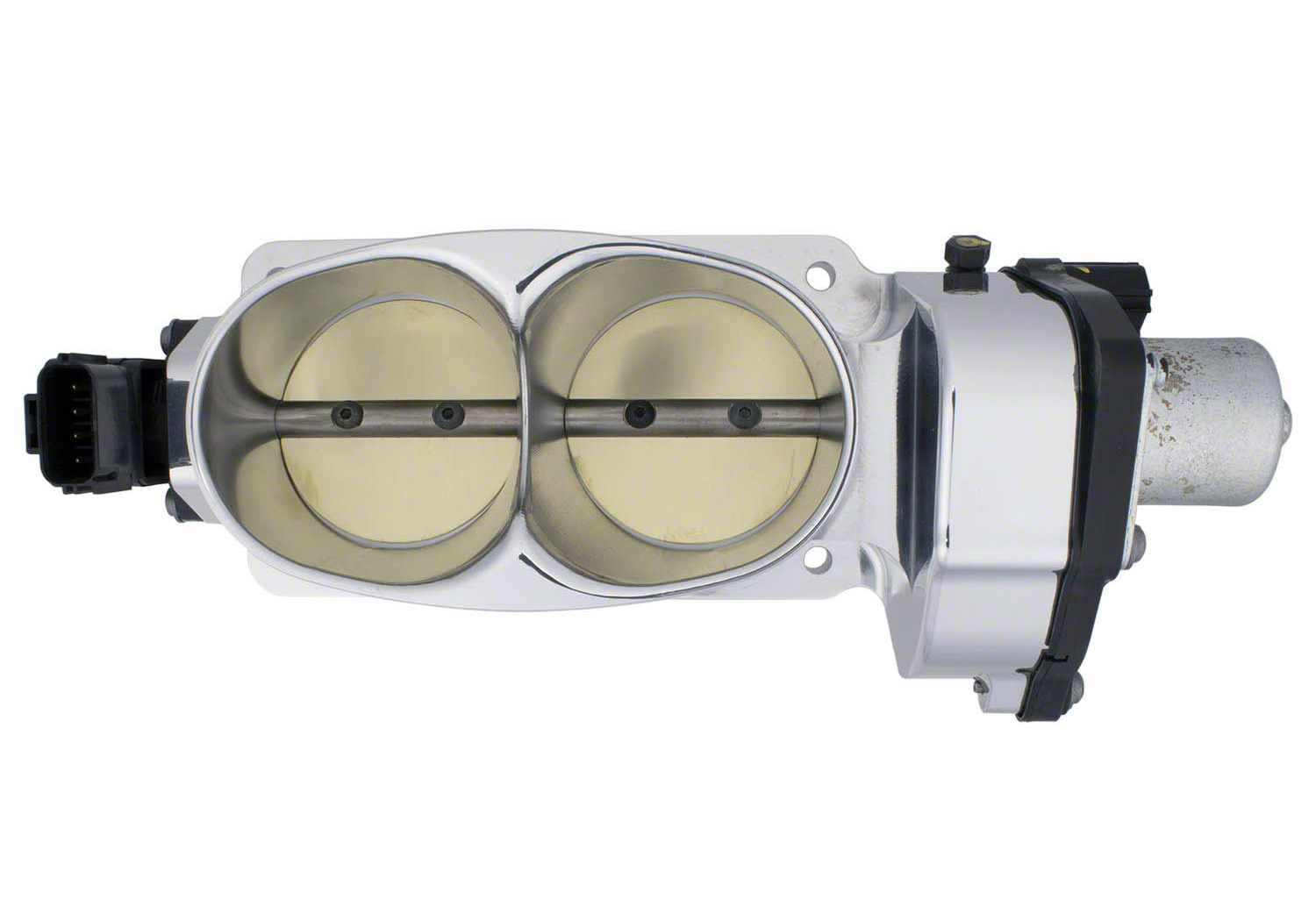

2005-2010 MUSTANG GT BILLET THROTTLE BODY

2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
  • Fits in factory location on 2005-2010 Mustang GT
  • Does not include calibration, CALIBRATION REQUIRED, sold for tuner use
  • Twin 62mm bore (stock Mustang GT is twin 55mm)
  • CFM Rating: 1306cfm (stock dual 55mm throttle body: 953cfm)*
  • Precision machined from billet aluminum to ensure consistency
  • Polished finish with CNC'd Ford Racing logo

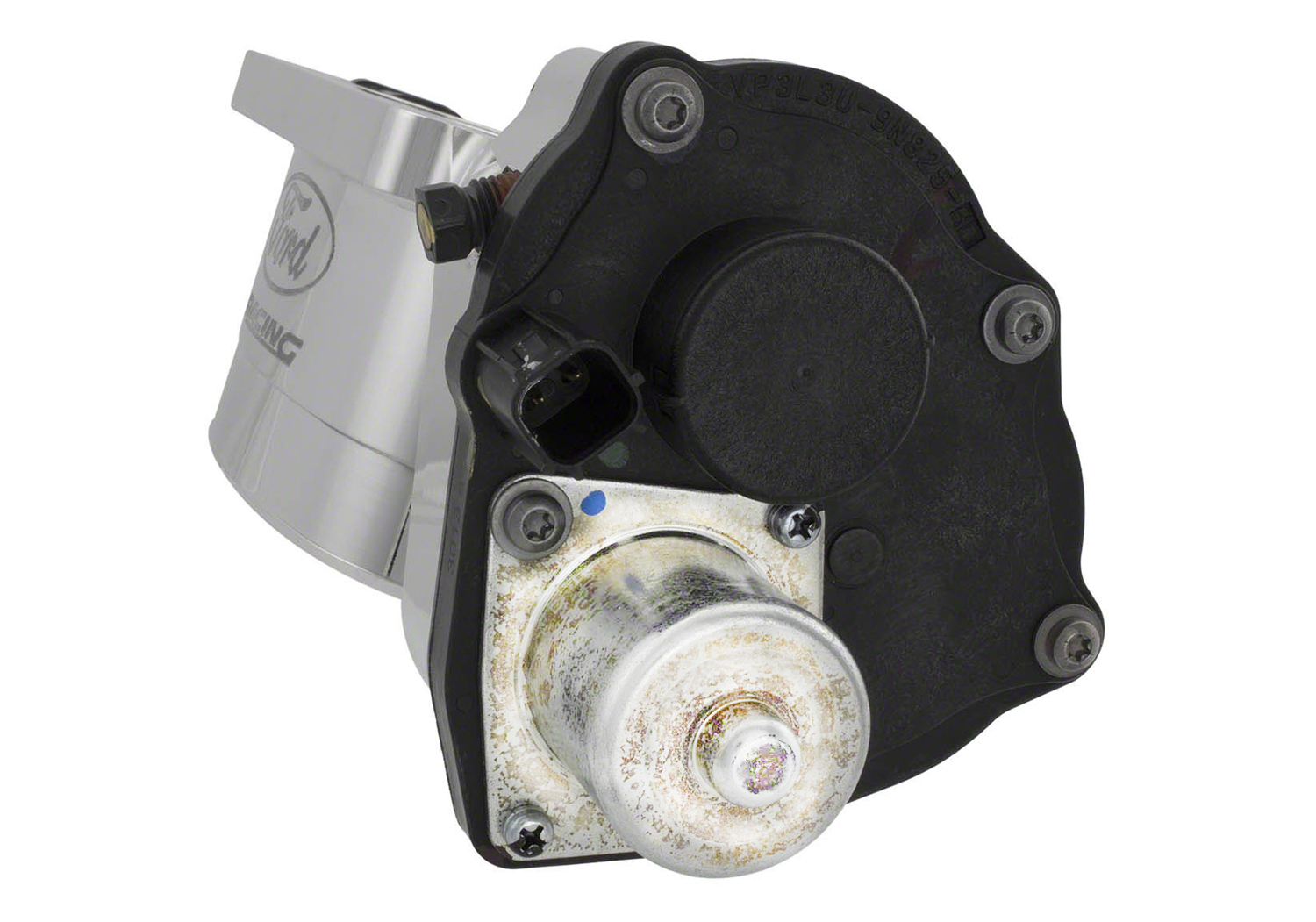

  • Fully assembled complete with throttle position sensor and actuator motor, ready to bolt on!
  • Uses OE gears to prevent gear bind and wear common with other aftermarket throttle bodies
  • Electronic throttle control was introduced on the Mustang in 2005. It's introduction has made attention to detail and setup of replacement throttle bodies even more critical than in the past.
  • Works well with Ford Performance M-6550-3V hot rod camshafts, M-6049-N3VPA high performance CNC ported 3V Cylinder Heads and Ford Perforamance M-9424-463V performance intake manifold. Calibration Required.

All Ford Performance ETC throttle bodies feature:

  • All factory sensors installed - no need to tear apart your original throttle body
  • Calibrated for idle air flow using the same procedure as production throttle bodies
  • Precision billet construction with tapered inlet for consistent high flow
  • Polished aluminum for great looks and underhood "bling"
  • Throttle body features CNC'd Ford Racing logo
  • Validation through hundreds of hours of dyno, racing, and street performance driving


*All cfm ratings are calibrated at 28-inches of water, measured on SuperFlow SF-1020 Flow Bench.

Part Type
Engine: Intake Related
Warranty Availability
Not Available
Package Dimensions
8.75" x 8.5" x 15.5"
Package Weight
5.8 lb(s)
UPC Code
756122109533
Country of Origin
United States
