CONTROL PACK - 2011-2014 COYOTE 5.0L 4V MANUAL TRANS
M-6017-A504VB
Retail
$2,475.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
-
Take the complexity and mystery out of wiring a late model 5.0L 4V Ti-VCT engine!
-
Replaces M-6017-A504VA Control Pack
-
Designed to run 2011-2014 5.0L 4V Coyote engines, M-6007-M50 and M-6007-A50NA 5.0L 4V Coyote crate engines with manual transmission
-
M-6007-A50SC, M-6007-A50XS, M-6007-M50B (BOSS 302) and F-150 truck engines require modifications, call the Ford Performance Tech Line at 800-367-3788 for more information
-

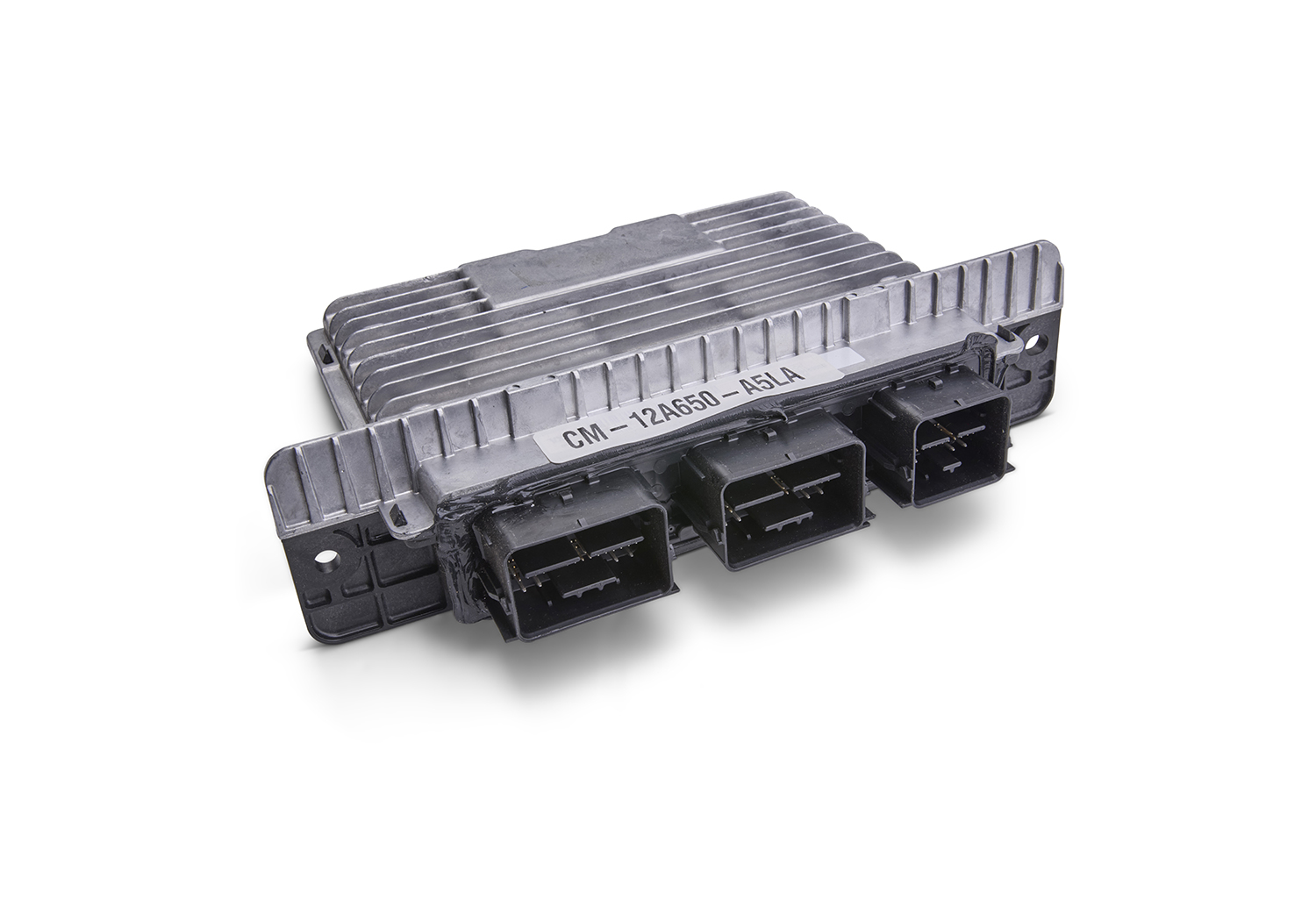

Includes PCM with Ford Performance calibration. Supercharged, M-6007-A50SC, M-6007-A50XS, M-6007-M50B (BOSS 302) and F-150 truck engines require custom calibration
-

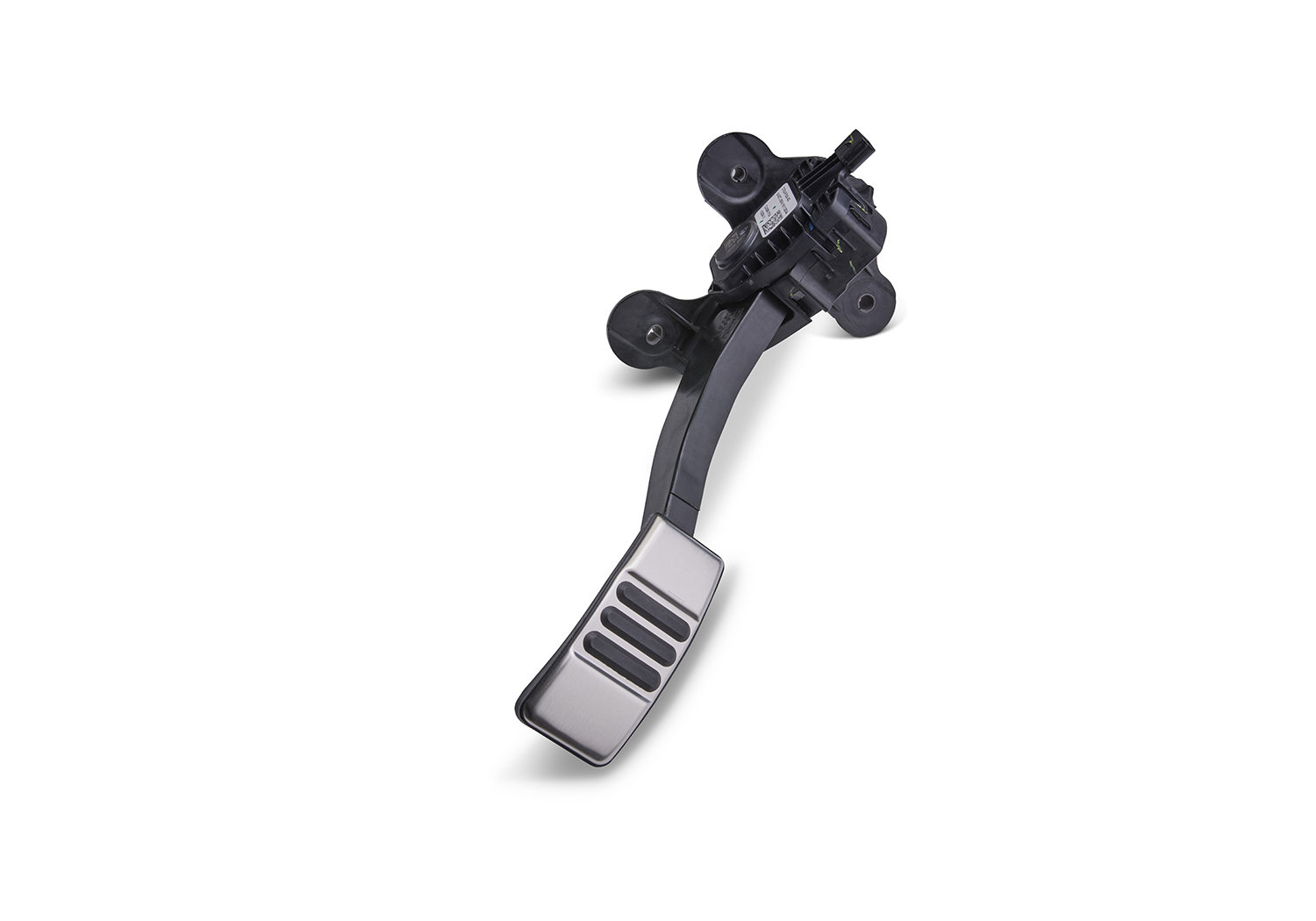

Includes Electronic Throttle Control accelerator pedal, eliminating throttle cable routing problems
-
Unique control pack harness replaces stock body harness and is designed for custom vehicle builds
-
Features OBD-II diagnostic port to assist in vehicle calibration upload and problem diagnosis
-

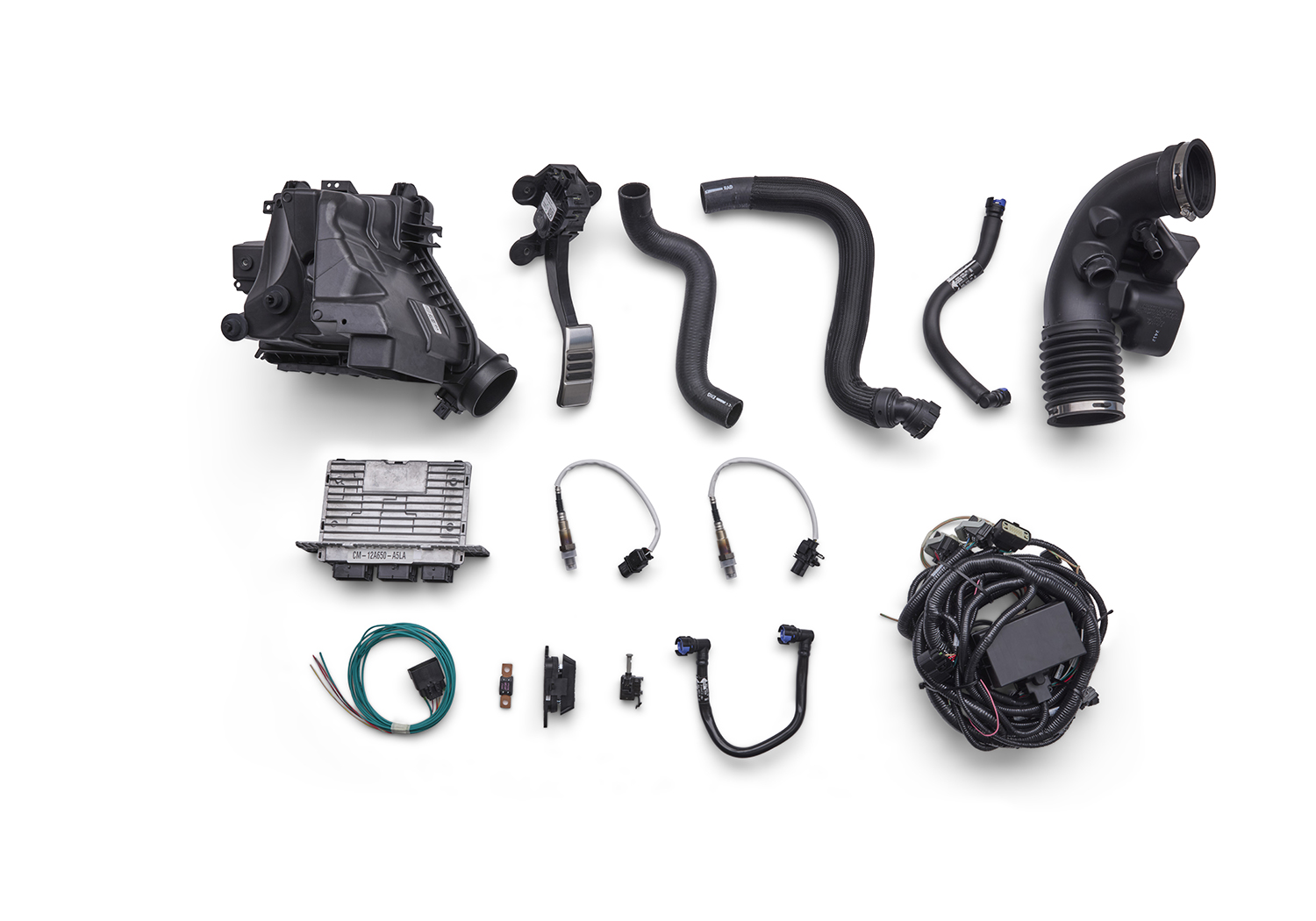

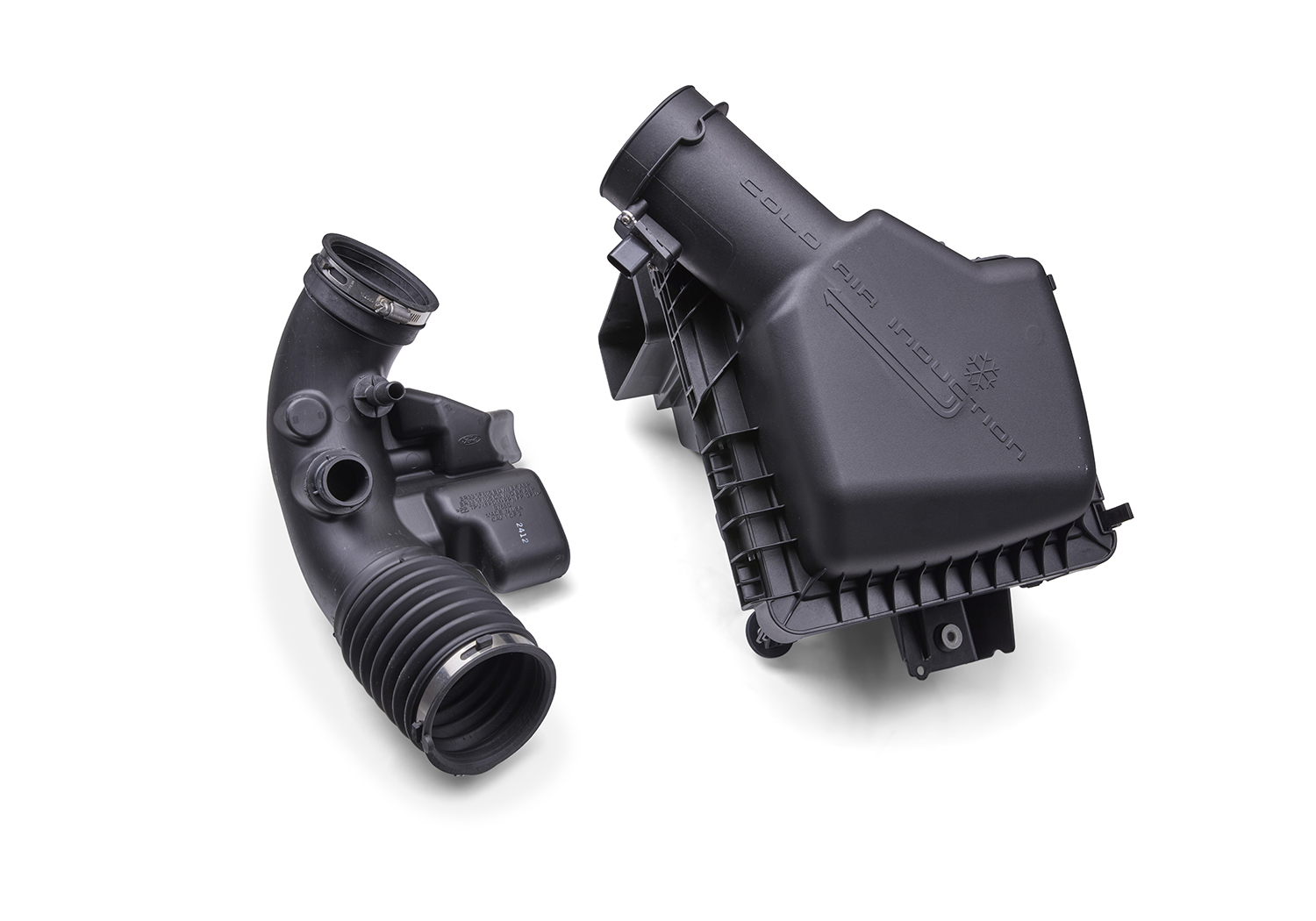

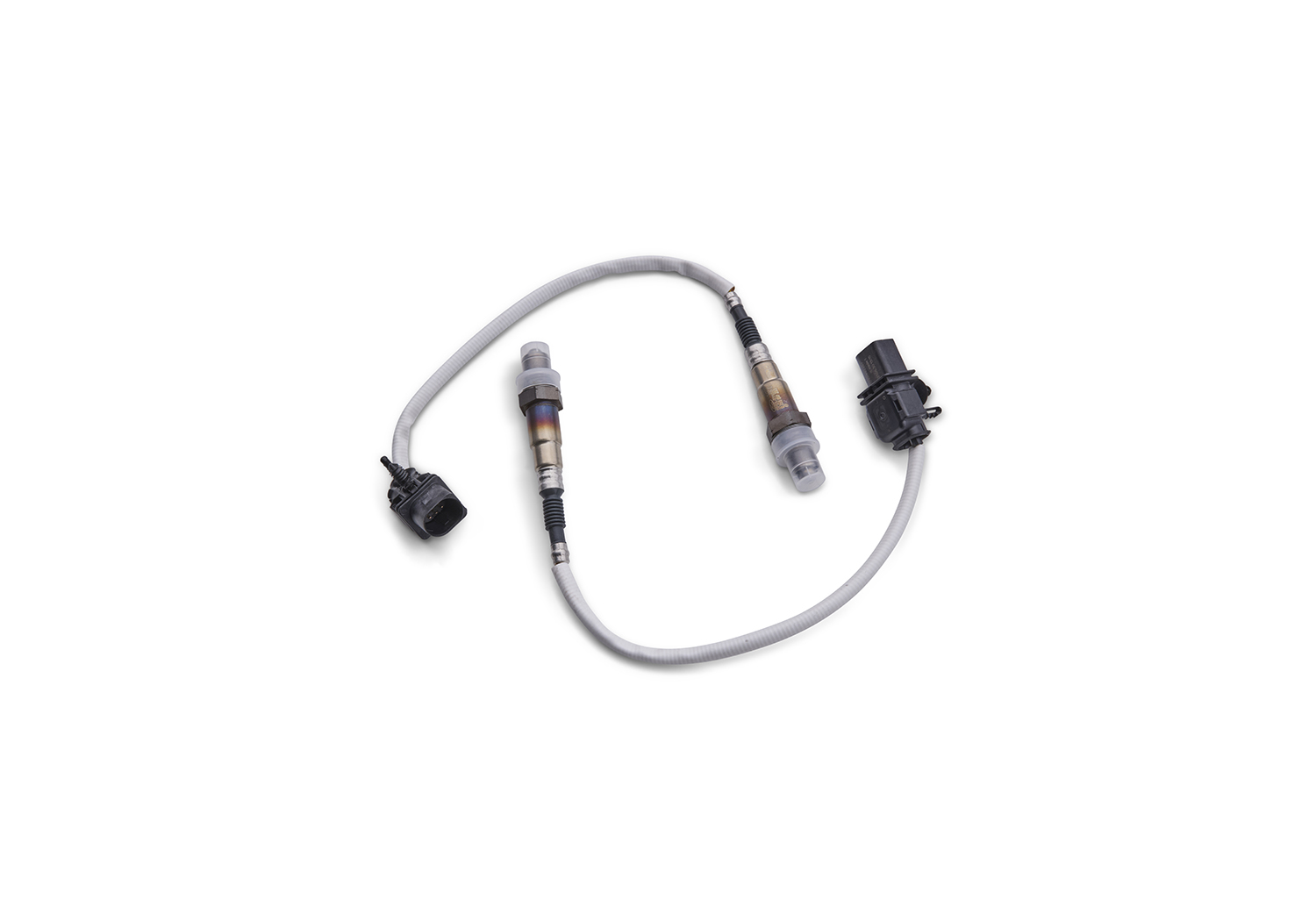

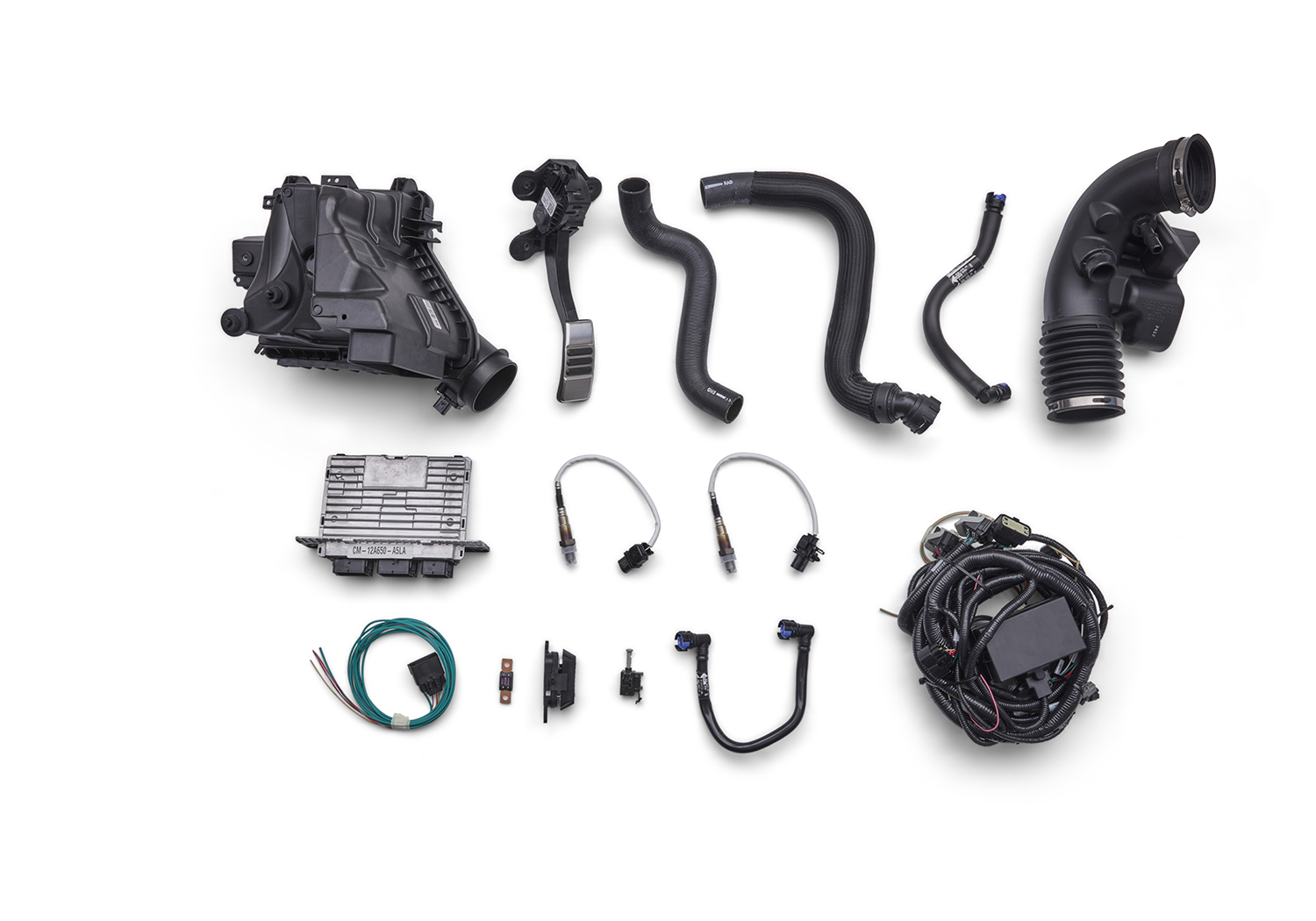

Includes power distribution module, air box, air inlet tube, MAF sensor, upper and lower radiator hoses, PCV hoses and HEGO sensors
-
PCM with Ford Performance calibration requires return type fuel system, will not work with returnless fuel system
-
NOTE: Installation of this PCM in a 2011-2014 Mustang GT will result in a no-start condition.
Part Type
Electrical: Microprocessors
Instruction Sheet
Warranty Availability
Package Dimensions
15" x 14.25" x 31.25"
Package Weight
22.75 lb(s)
UPC Code
756122009260
Country of Origin
United States
