CONTROL PACK - 2018-2023 COYOTE 5.0L MANUAL TRANSMISSION
M-6017-M50B
Retail
$2,650.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
-
Take the complexity and mystery out of wiring a late model, 2018 - 2023 5.0L Mustang Coyote engine!
- Designed to run Ford Performance M-6007-M50C 5.0L Mustang Coyote engines
- Will also work with 2018-2023 5.0L Mustang Coyote engines with manual transmission
- NOTE: Not for use with 2018 and newer F-150 Engines

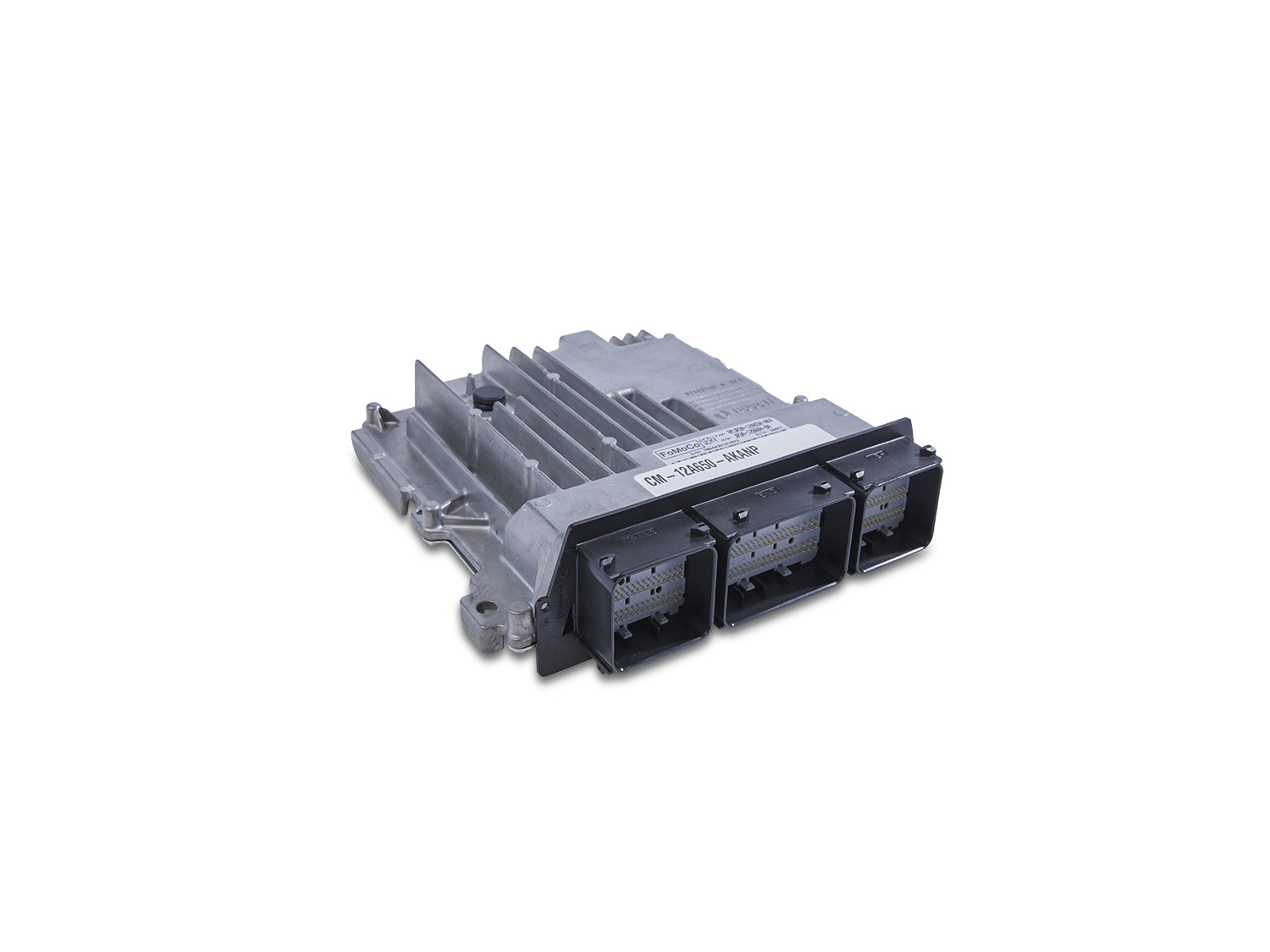

- Includes PCM with Ford Performance calibration

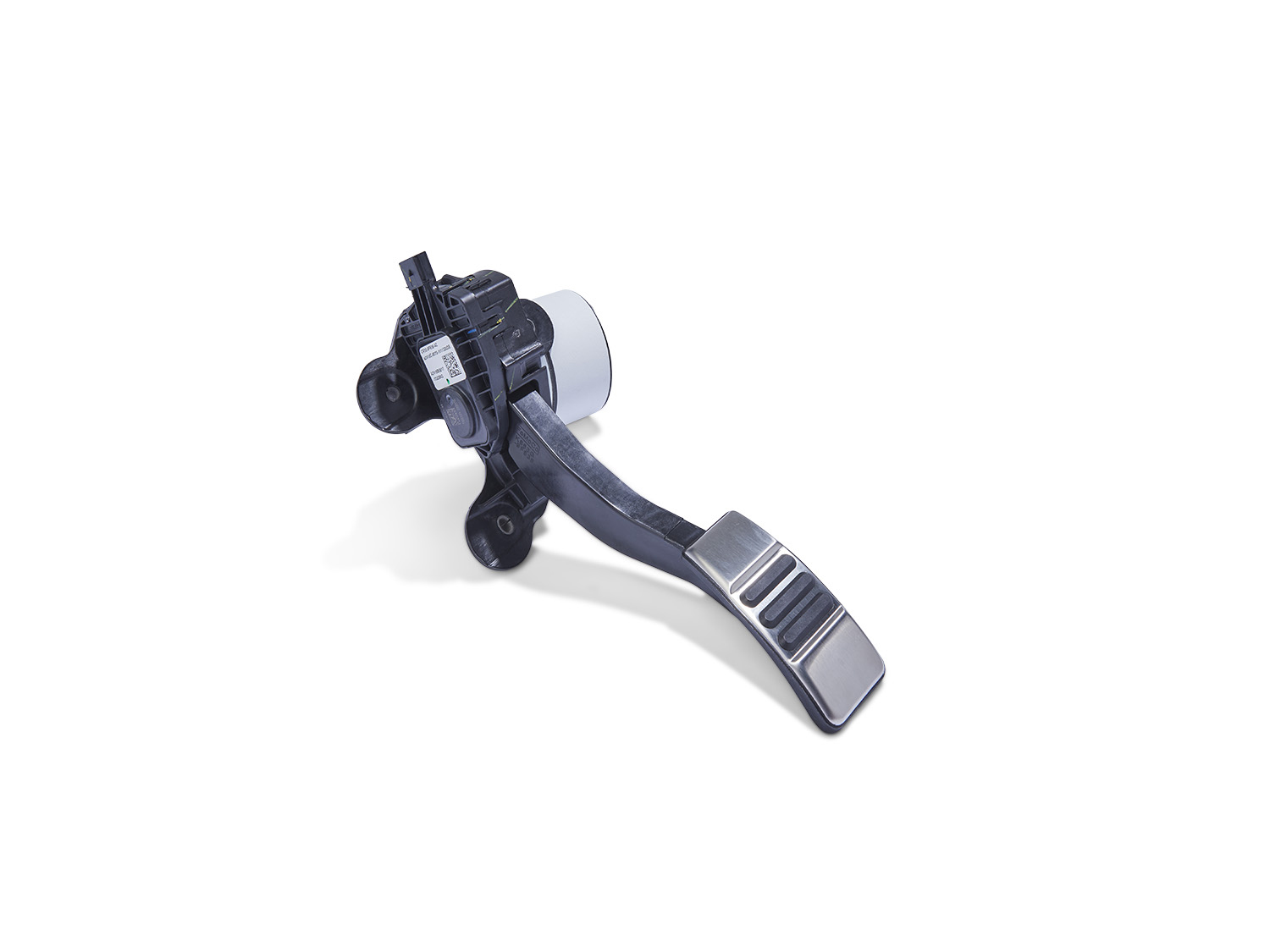

- Includes Electronic Throttle Control accelerator pedal which eliminates throttle cable routing problems
- Unique control pack harness replaces stock body harness and is designed for custom vehicle builds
- Features OBD-II diagnostic port to assist in vehicle calibration upload and problem diagnosis

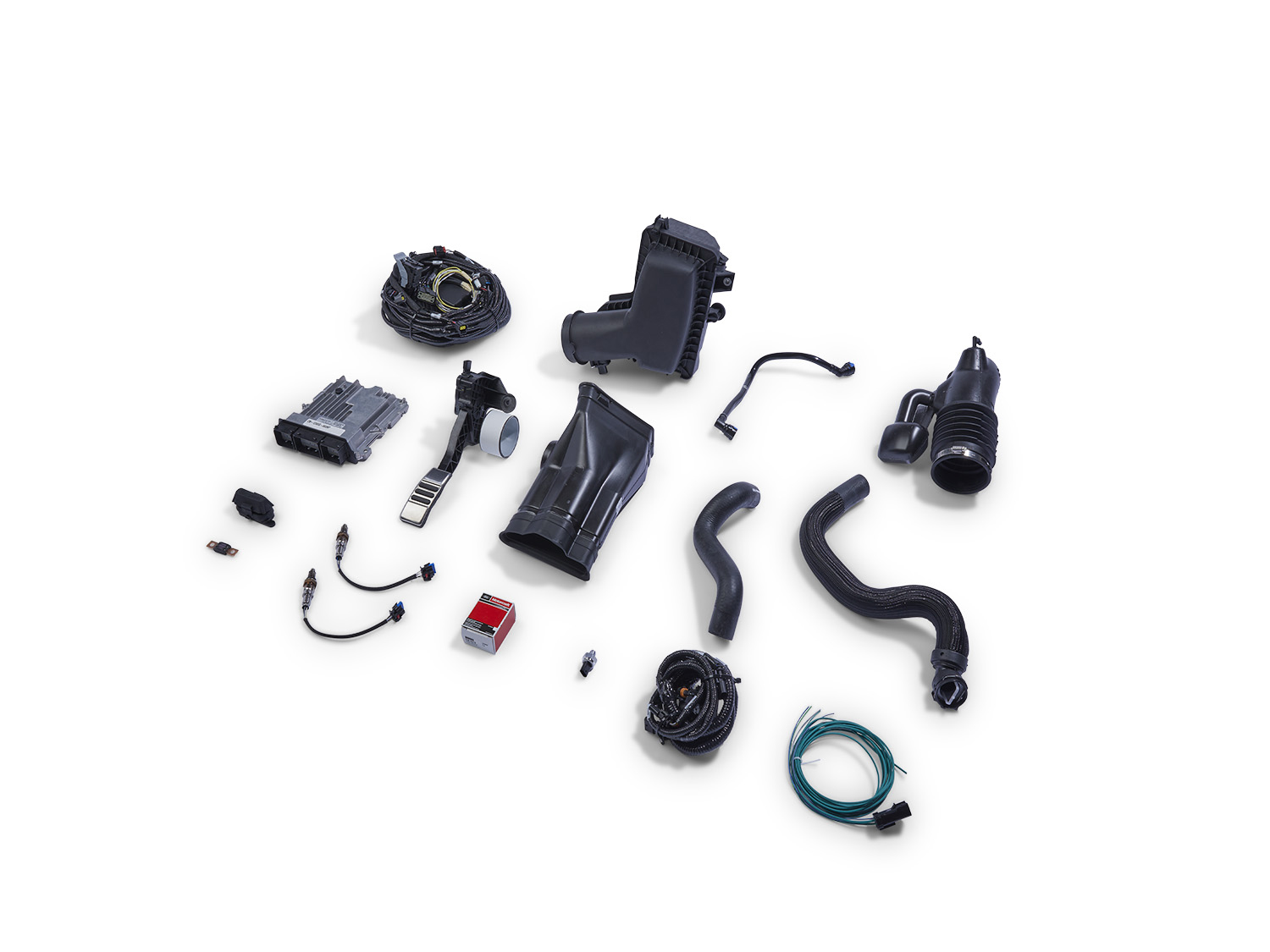

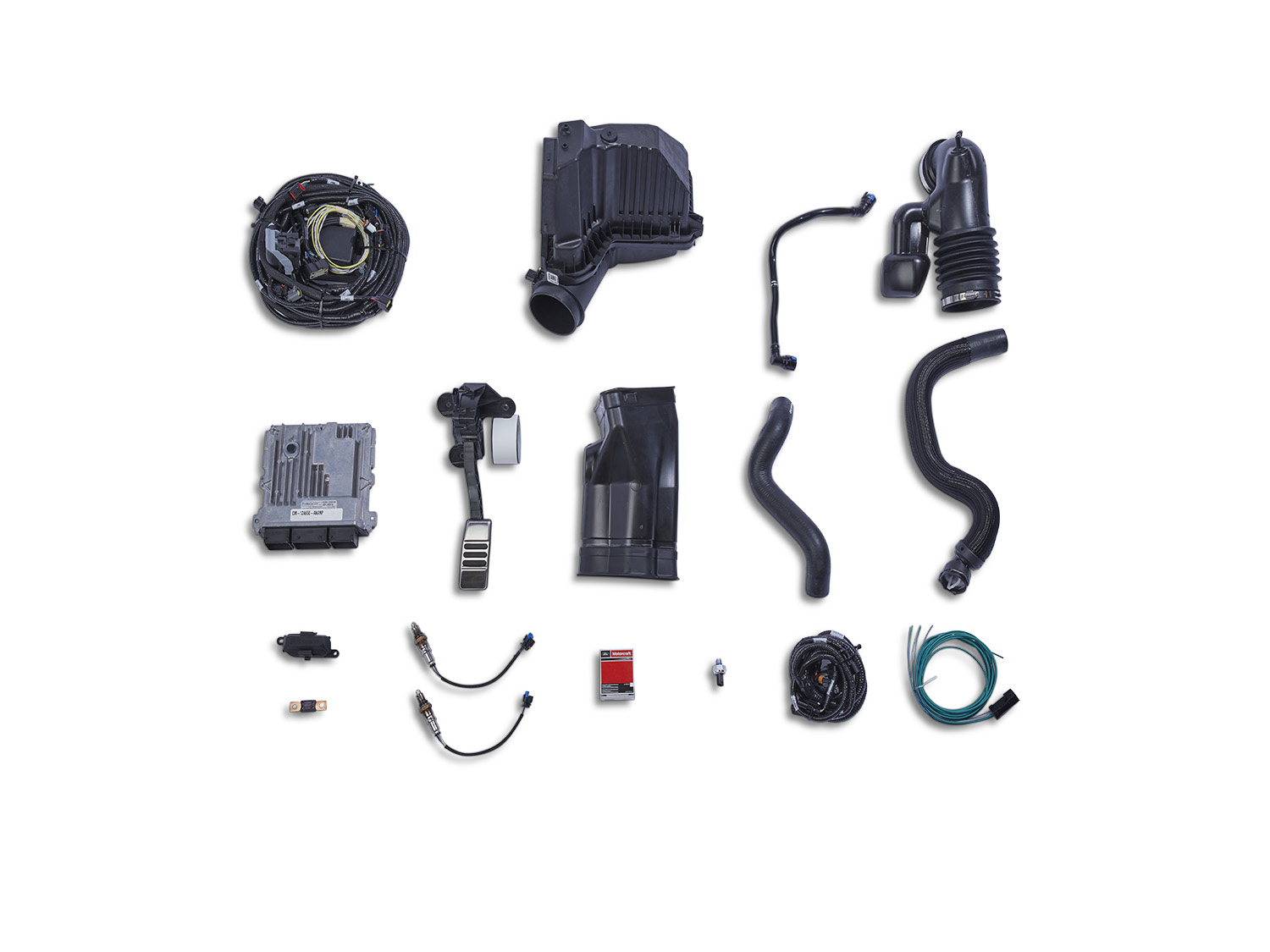

- Includes power distribution module, air box, air inlet tube, MAF sensor, upper and lower radiator hoses and HEGO sensors
- PCM with Ford Performance calibration requires return type fuel system, will not work with returnless fuel system
- For 2011-2014 engines use controls pack M-6017-A504VA
- For 2015-2017 manual transmission version control pack use M-6017-504V
- For 2015-2017 automatic transmission version control pack (which works in conjunction with 6R80 transmission) use M-6017-M50A
- NOTES: Supercharged versions, modified engines, and modified applications require custom calibration
- Installation of this PCM in a 2018-2023 Mustang GT will result in a no-start condition
Part Type
Electrical: Microprocessors
Instruction Sheet
Warranty Availability
Package Dimensions
19.75" x 14.5" x 29"
Package Weight
28.6 lb(s)
UPC Code
756122008461
Country of Origin
United States
