CONTROL PACK 2015-2017 COYOTE 5.0L WITH AUTOMATIC TRANSMISSION

Take the complexity and mystery out of wiring a late model 5.0L Coyote engine!

Designed to run 2015-17 5.0L 4V Ti-VCT Coyote auto transmission engines, with 6R80 Mustang GT 6-speed auto transmission. Manual trans engines require engine harness GU5Z-12A581-EF available from your local Ford Dealer.

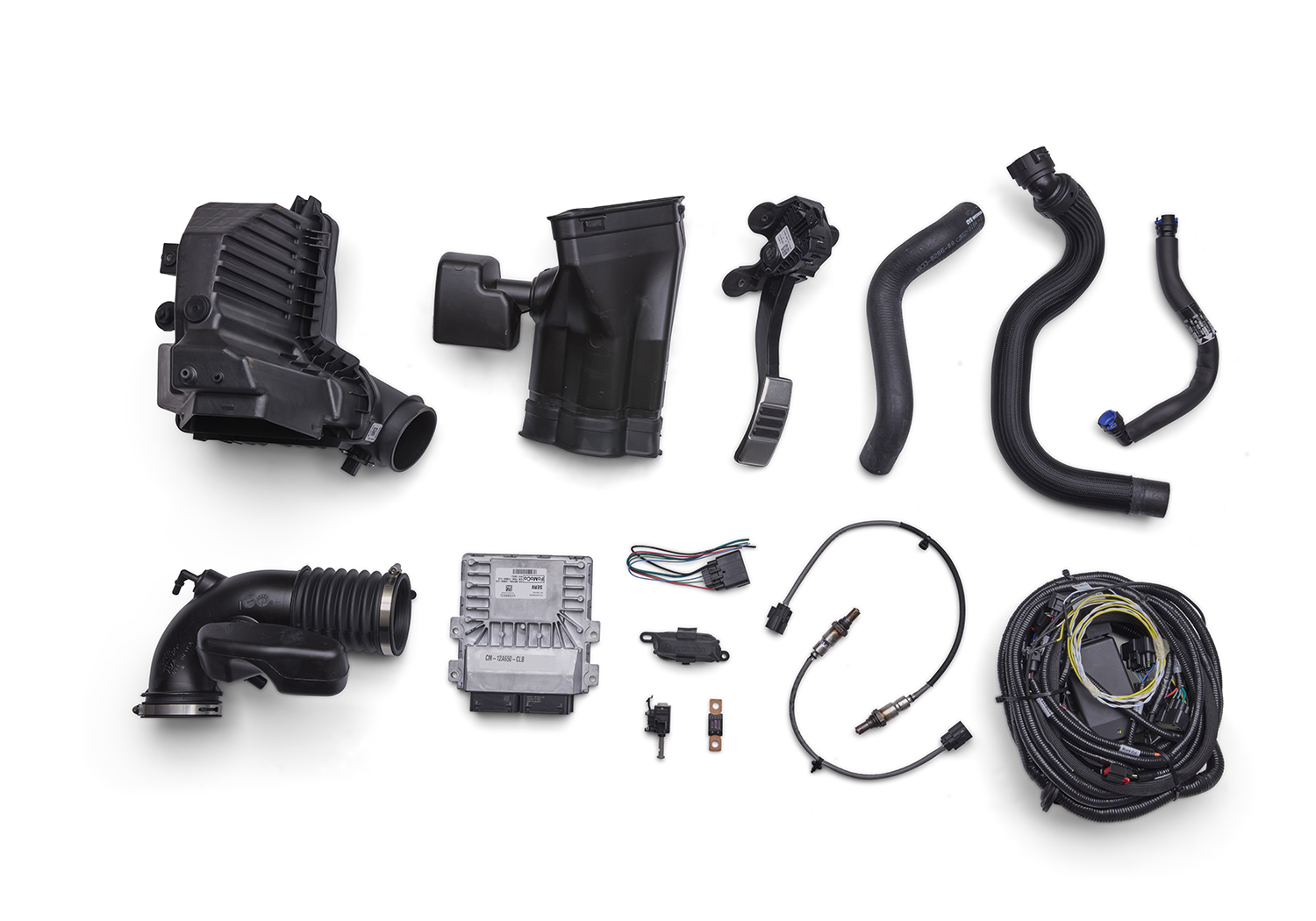

Includes:

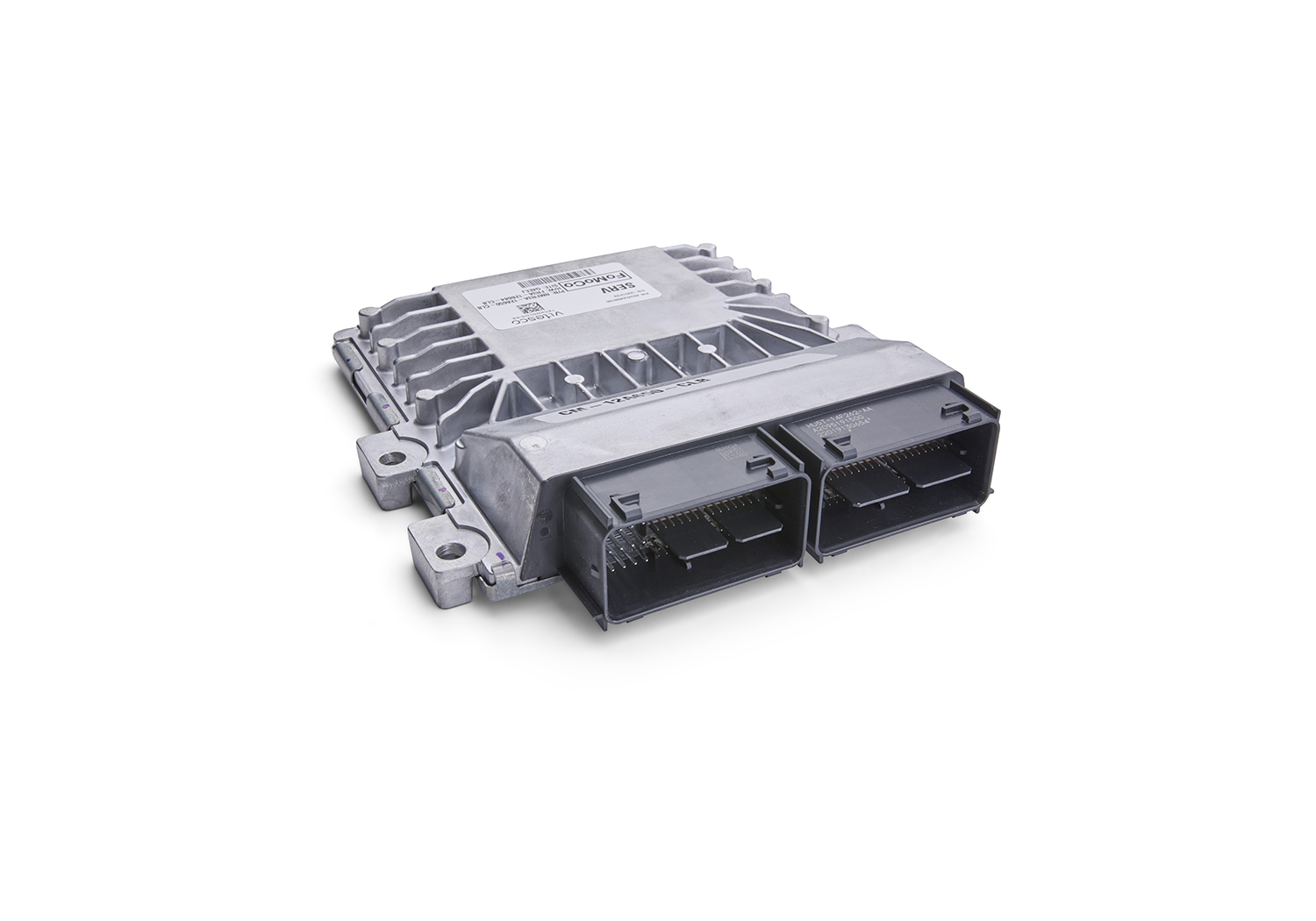

    • PCM with Ford Performance calibration

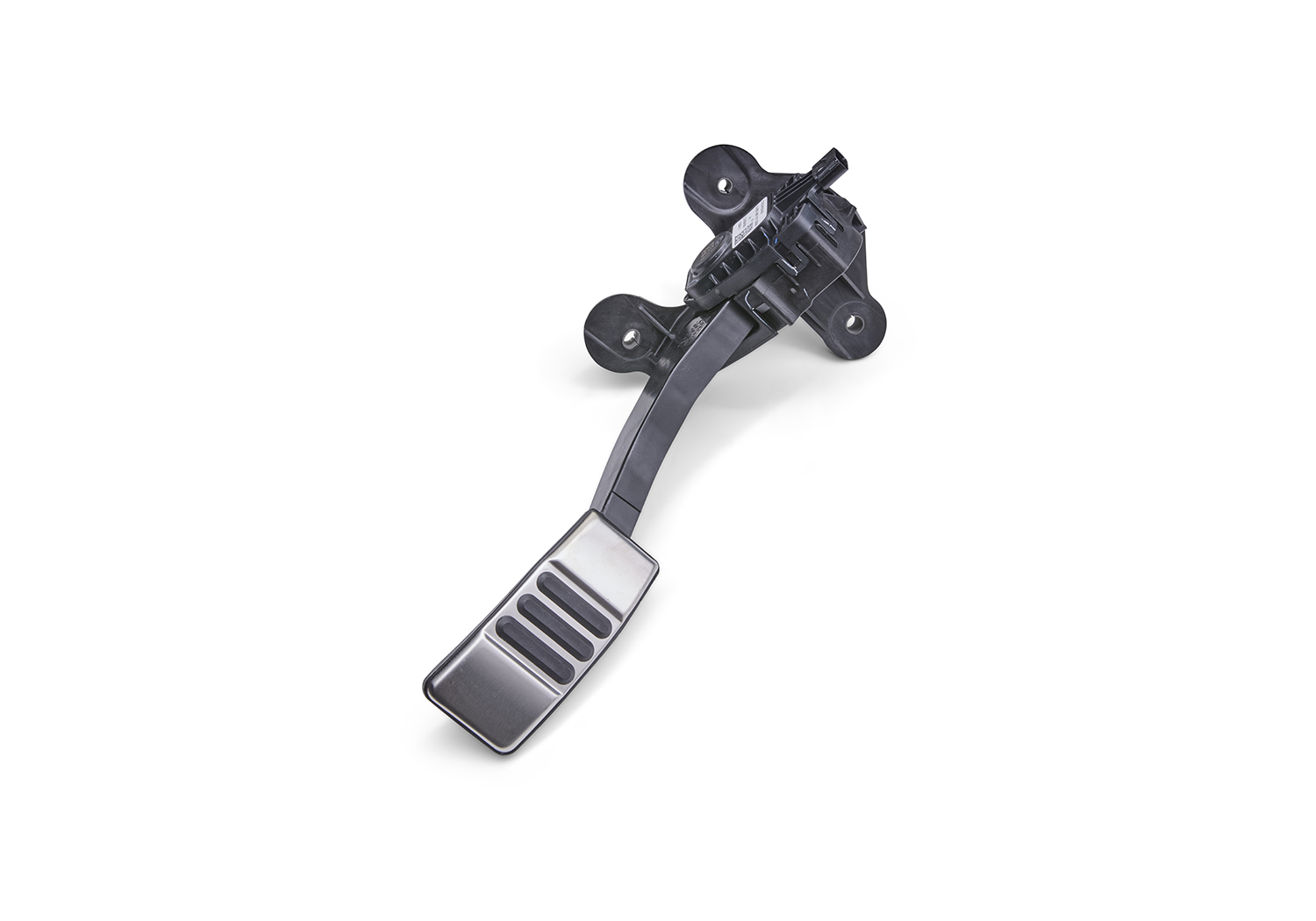

    • Electronic Throttle Control accelerator pedal, eliminating throttle cable routing problems
    • Unique control pack harness, which replaces the stock body harness and is designed for custom vehicle builds
    • OBD-II diagnostic port to assist in vehicle calibration upload and problem diagnosis
    • Power distribution module

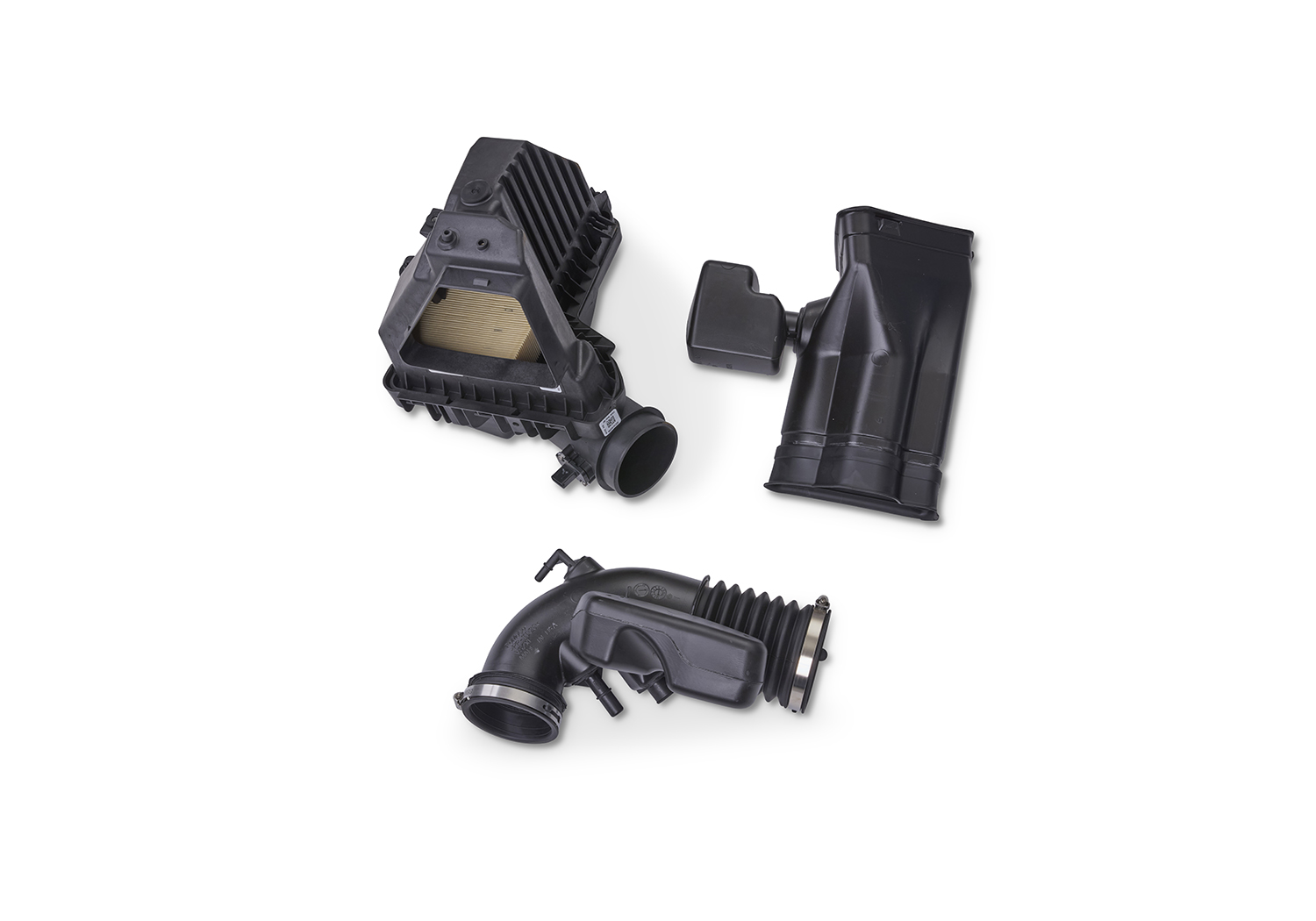

    • Air box
    • Air inlet tube
    • MAF sensor
    • Upper and lower radiator hoses

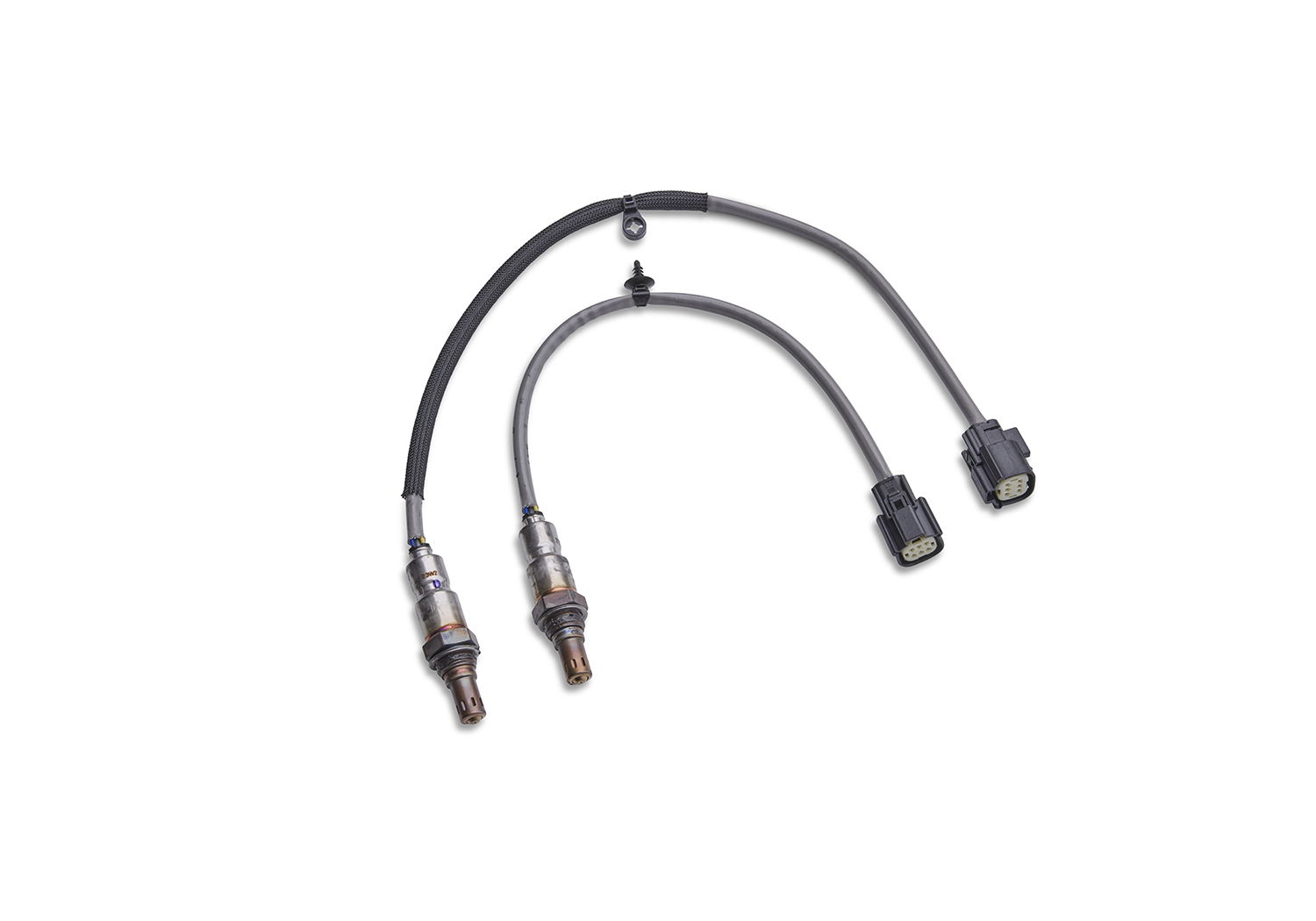

    • HEGO sensors
    • PCM with Ford Performance calibration requires return type fuel system, will not work with returnless fuel system
  • NOTE: Installation of this PCM in a 2015-17 Mustang GT will result in a no-start condition.
  • NOTE: Not for use with a 2015-2017 F150 5.0L Coyote engine.

Part Type
Electrical: Air Metering
Instruction Sheet
Warranty Availability
Not Available
Packaged Dimensions
14" x 20" x 29
Packaged Weight
24.2 lb(s)
UPC Code
756122005200
Catalog Page Number
213
Country of Origin
United States
