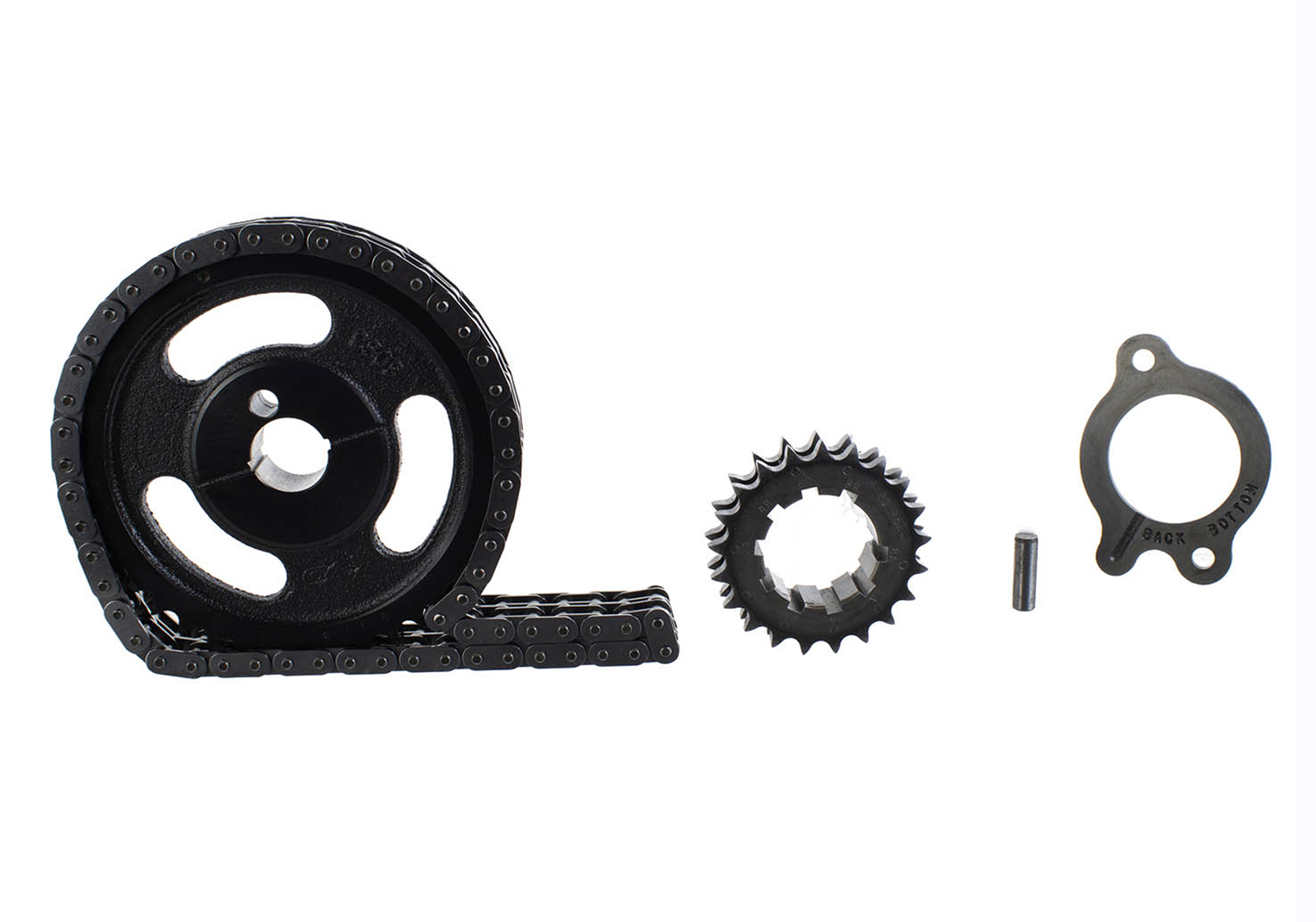

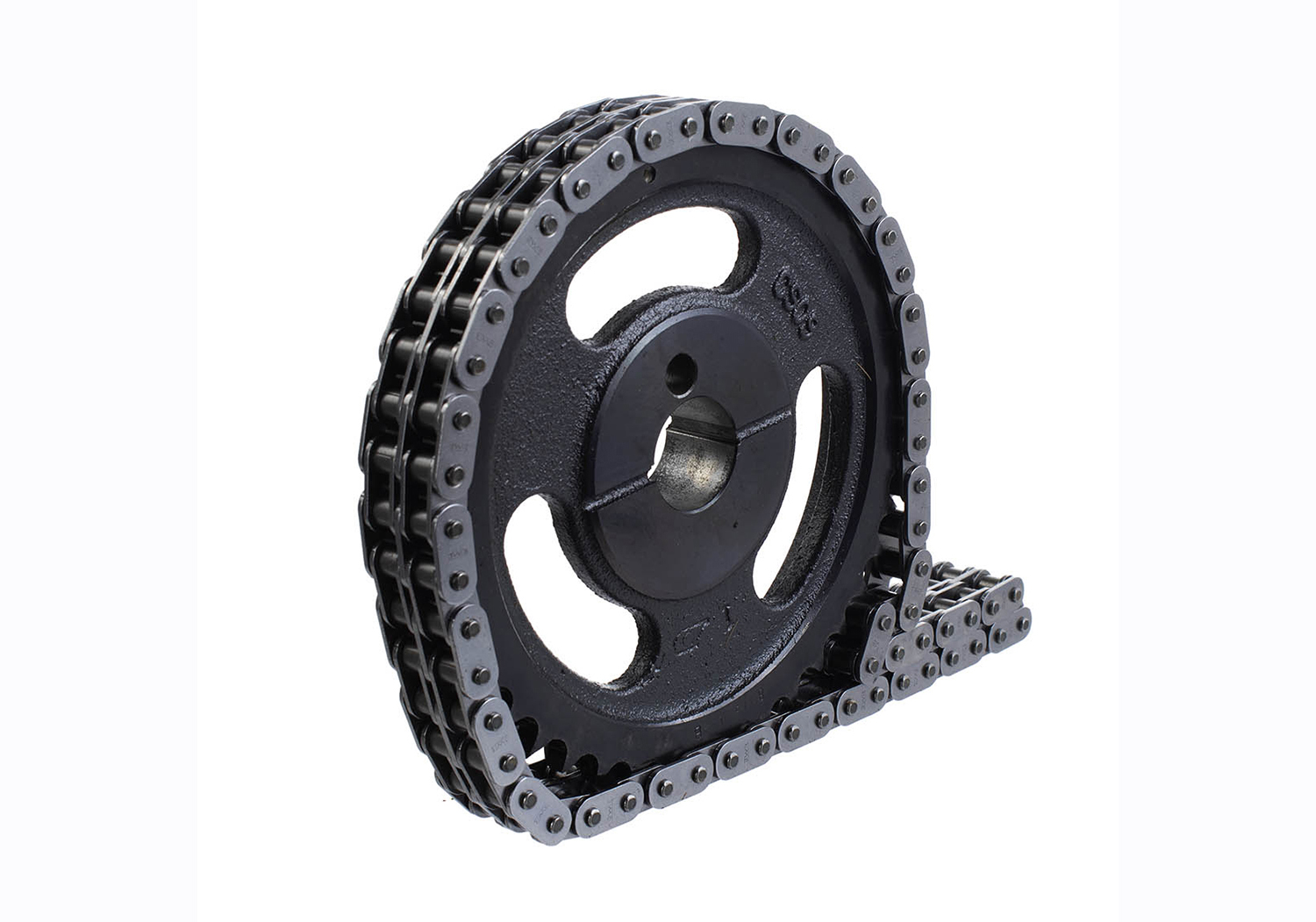

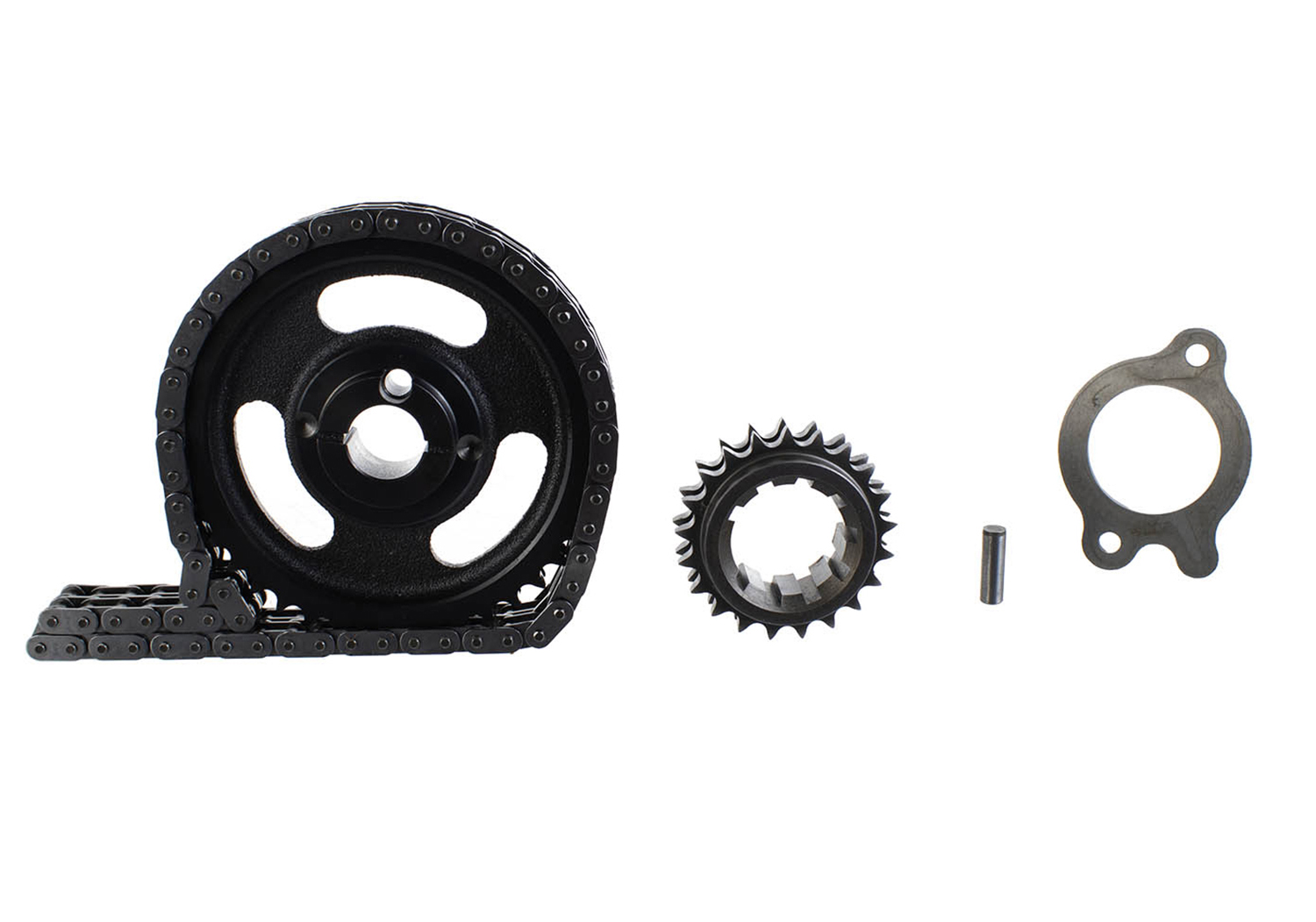

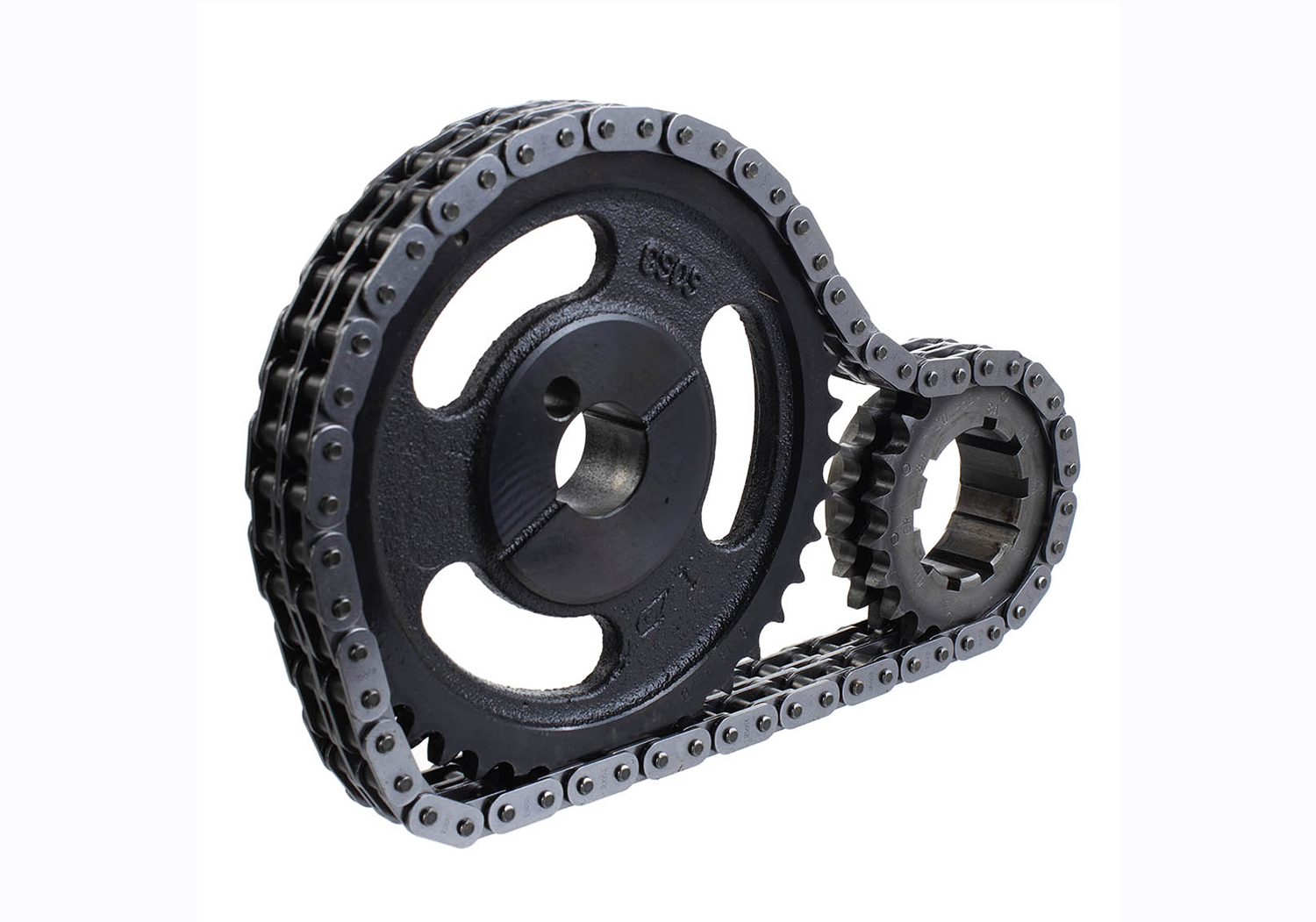

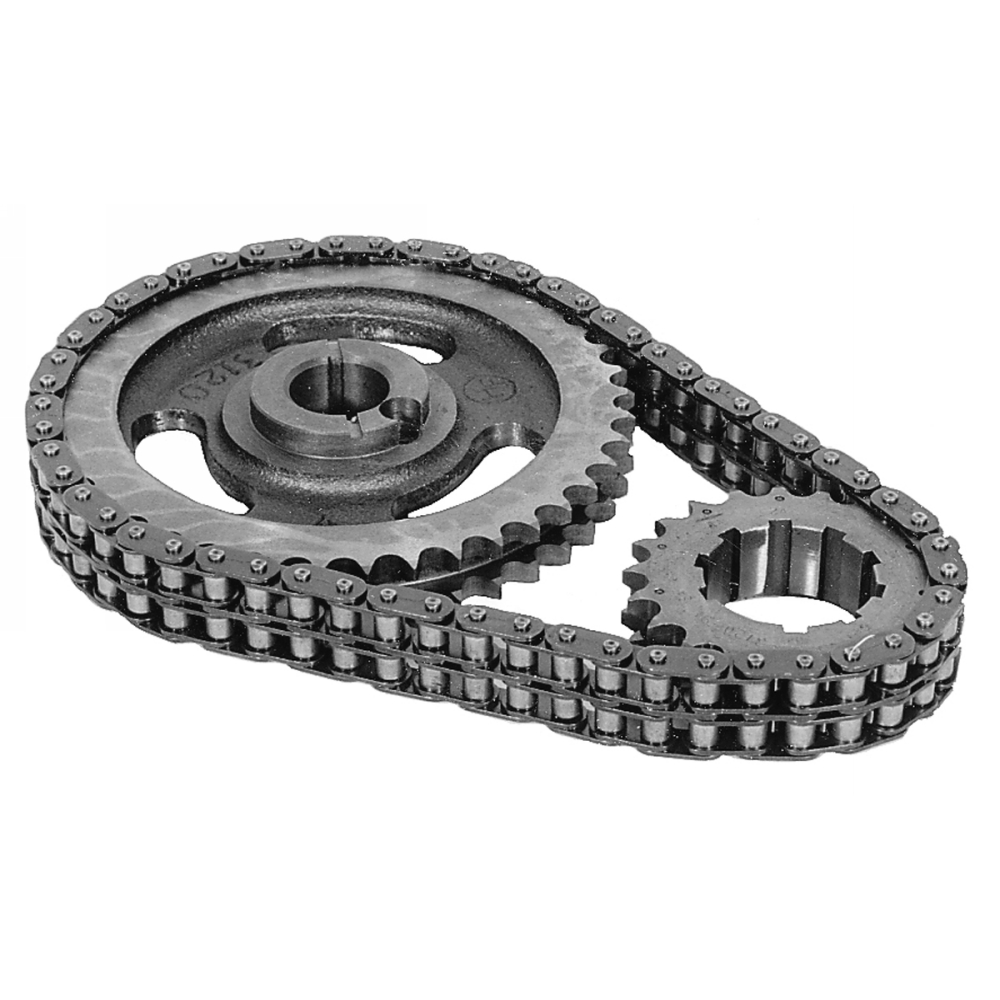

302/351W DOUBLE ROLLER TIMING CHAIN SET - CAST IRON GEAR

302/351W DOUBLE ROLLER TIMING CHAIN SET - CAST IRON GEAR
M-6268-A302
Retail
$155.00
Sold in Units of
Each (1)
Instruction Sheet

Proudly Made in the USA


  • Fits:289/302/351W
  • Full roller chain with 9-position multi-index crank sprocket.  The crank sprocket has 2 degree increments for timing adjustment of up to 8 degrees retarded, 8 degrees advanced, or straight-up (no advance or retard).

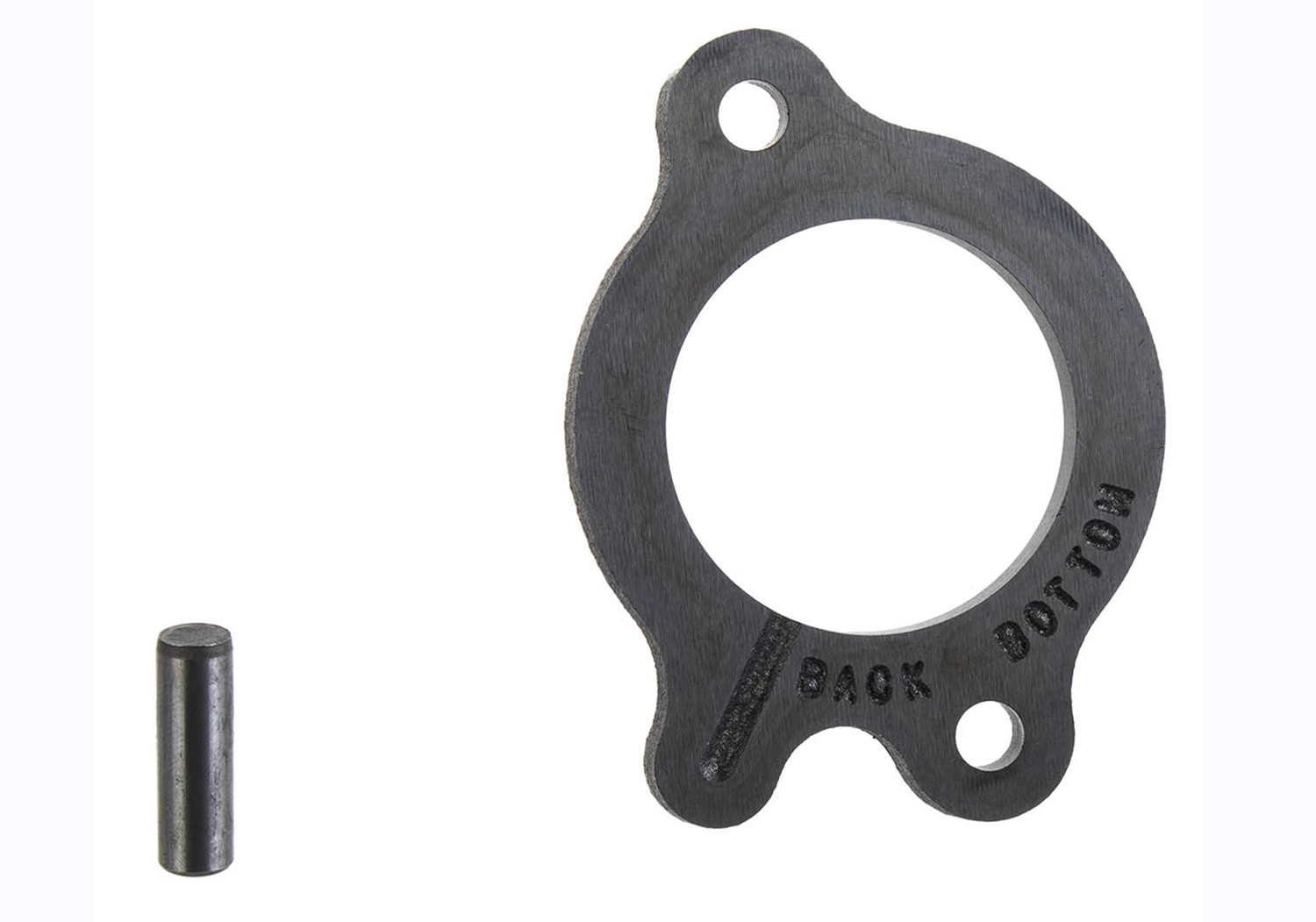

  • Includes thrust plate M-6269-A302 and 1 inch camshaft dowel pin.
  • Cam sprocket is made from cast iron. Crank sprocket is made from induction-hardened, billet steel

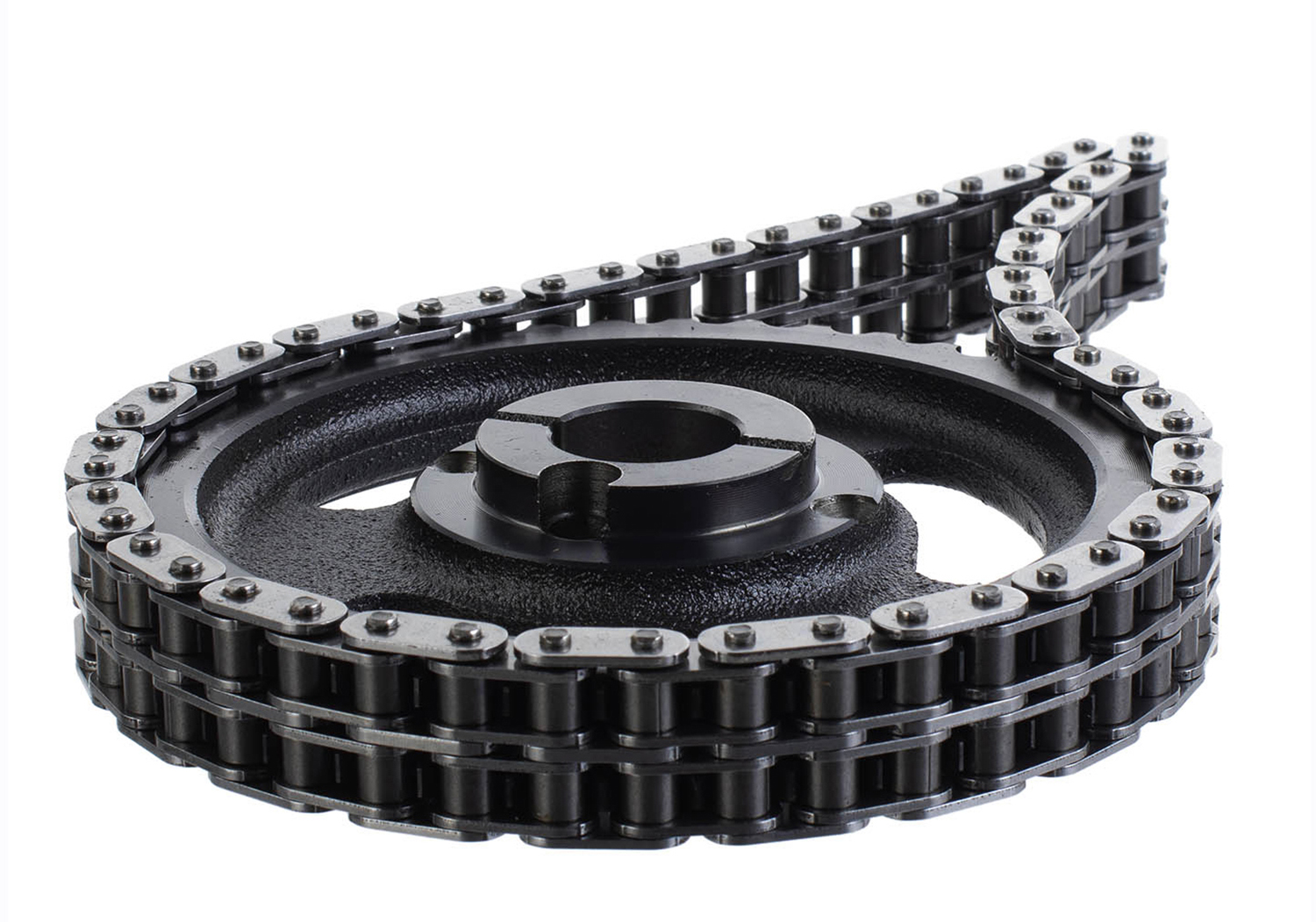

  • Chain is rugged, double-row type with oversized 0.250 inch rollers that deliver long life and reliability
  • Compatible with one-piece fuel pump eccentric M-6287-B302. Depending on camshaft manufacturer and application, other dowel pin length may be required. Not compatible with two-piece fuel pump eccentric
Part Type
Engine: Cam/Tappets/Pushrods
Instruction Sheet
Warranty Availability
Not Available
Packaged Dimensions
7.75" x 2" x 7.75
Packaged Weight
3.8 lb(s)
Part Type
Engine: Cam/Tappets/Pushrods
UPC Code
756122626016
Country of Origin
United States
California Executive Order
No
