COYOTE 5.2L SEMI-FINISHED CRANKSHAFT
M-6303-M52P
Retail
$140.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

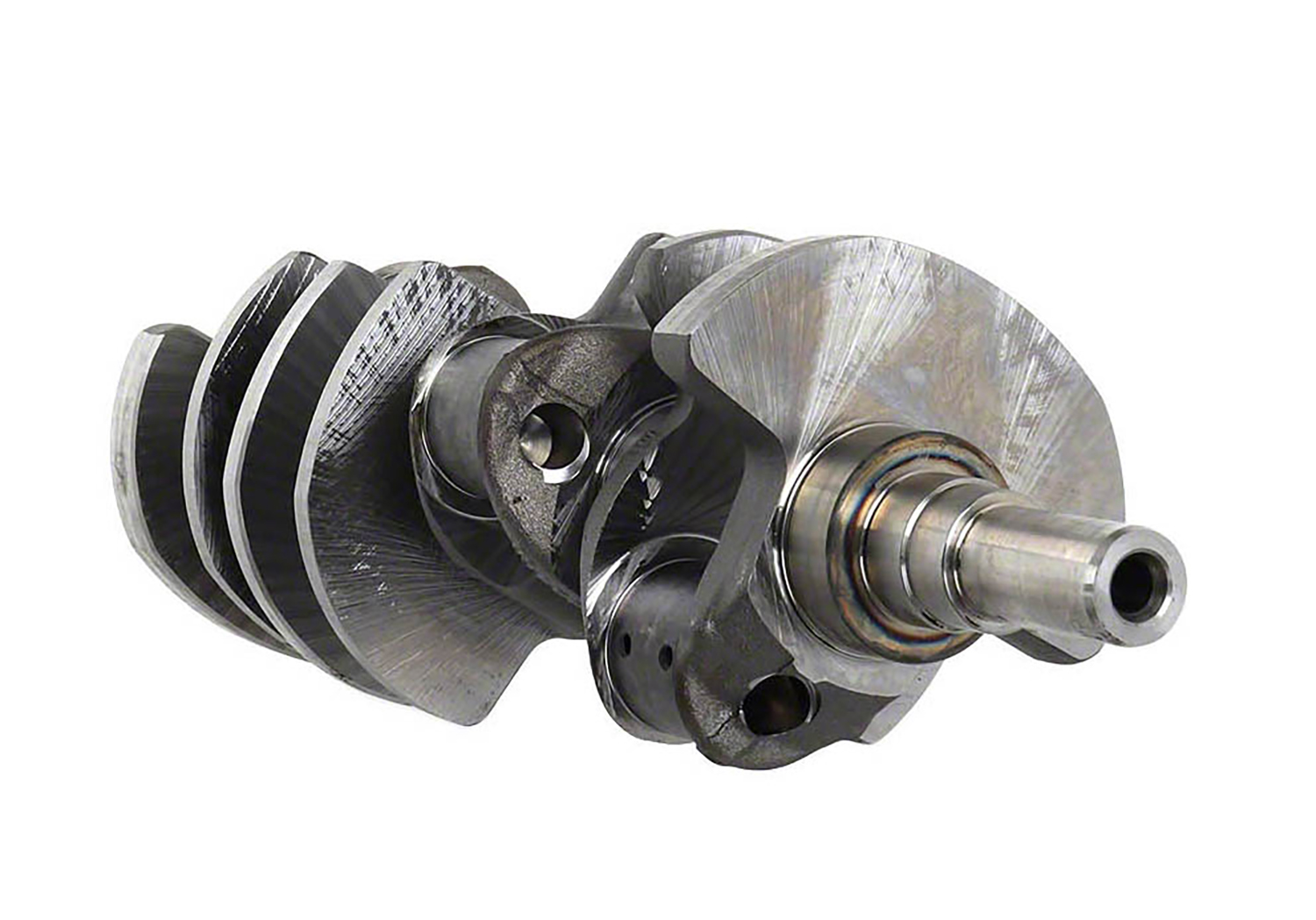

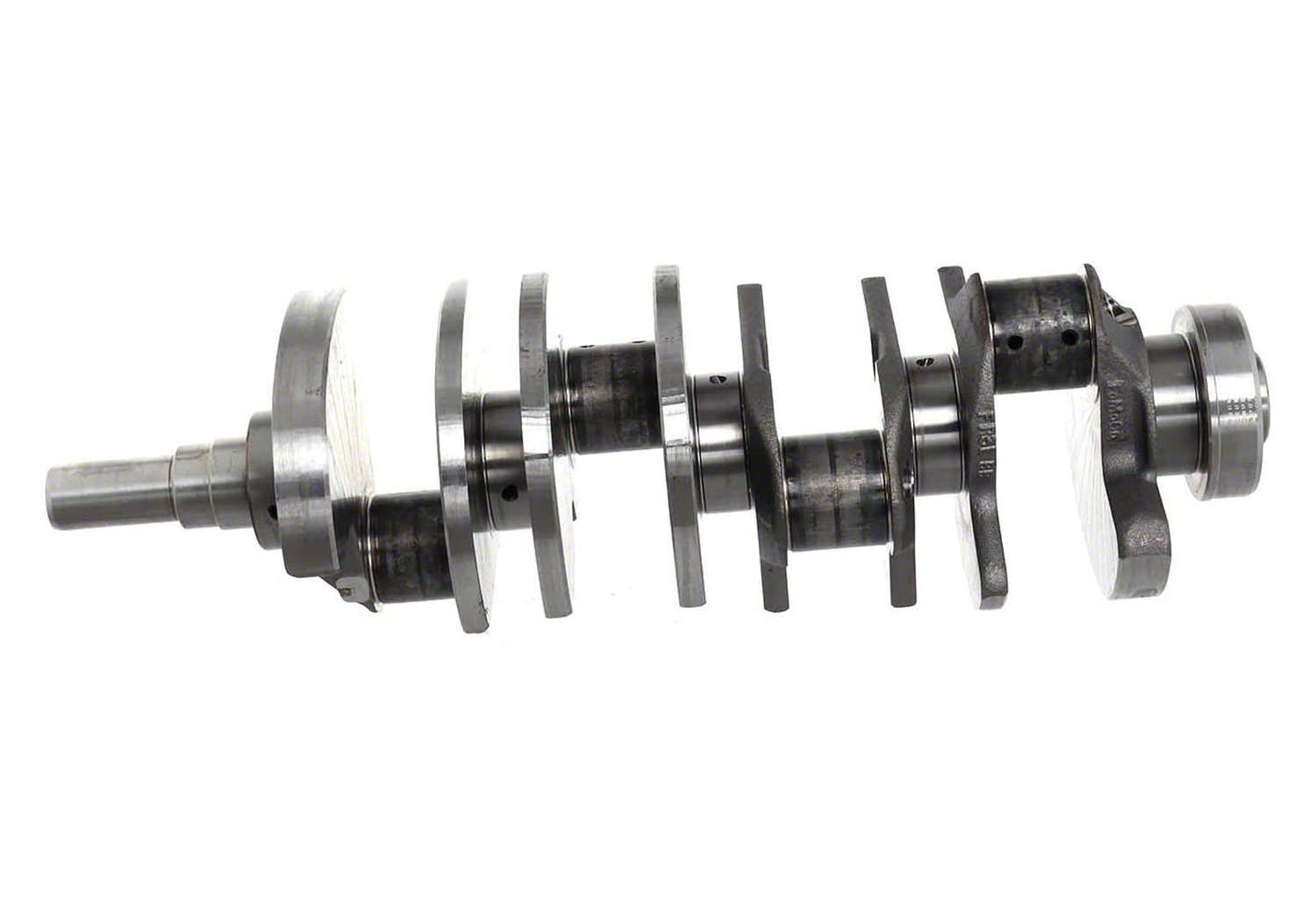

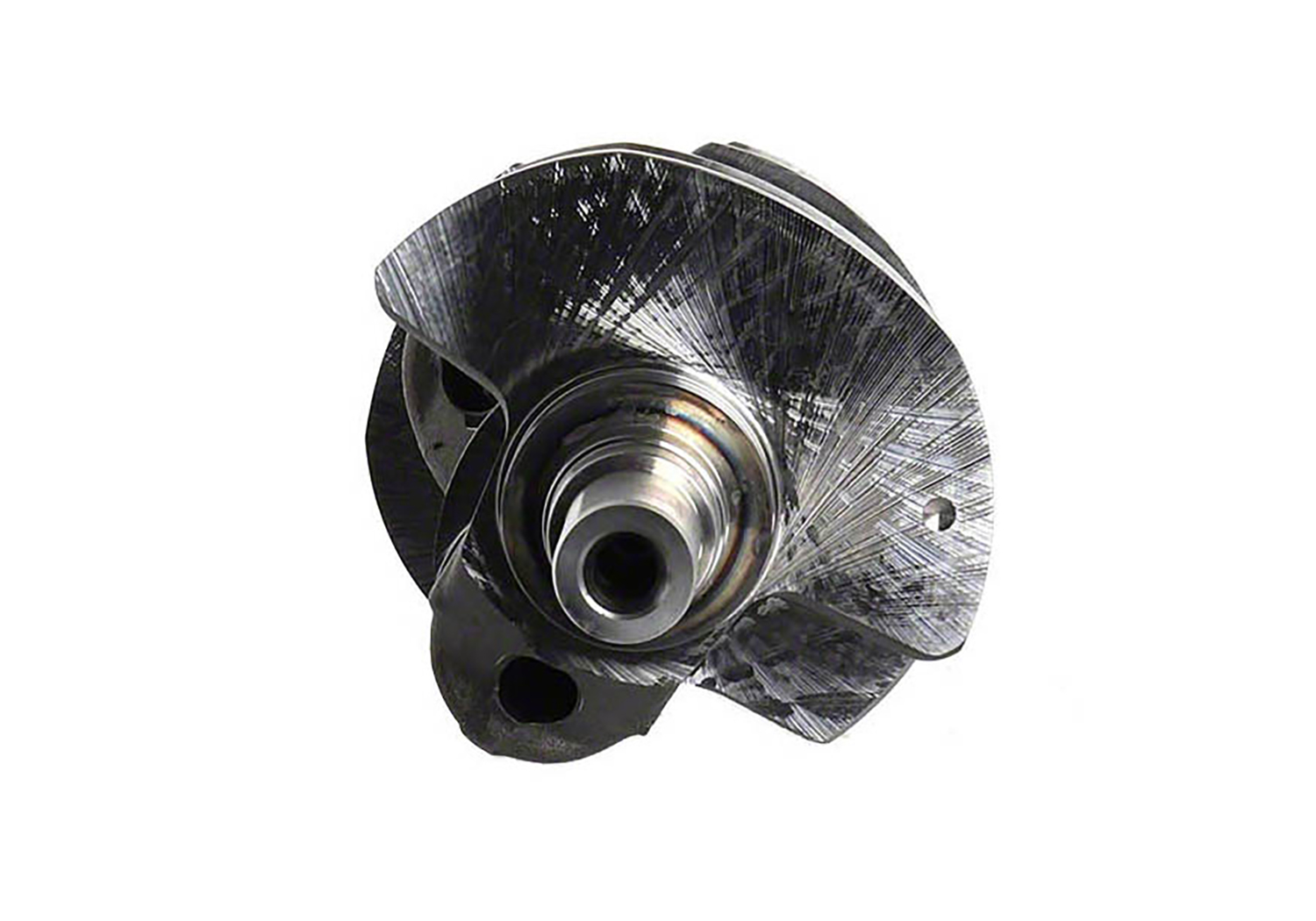

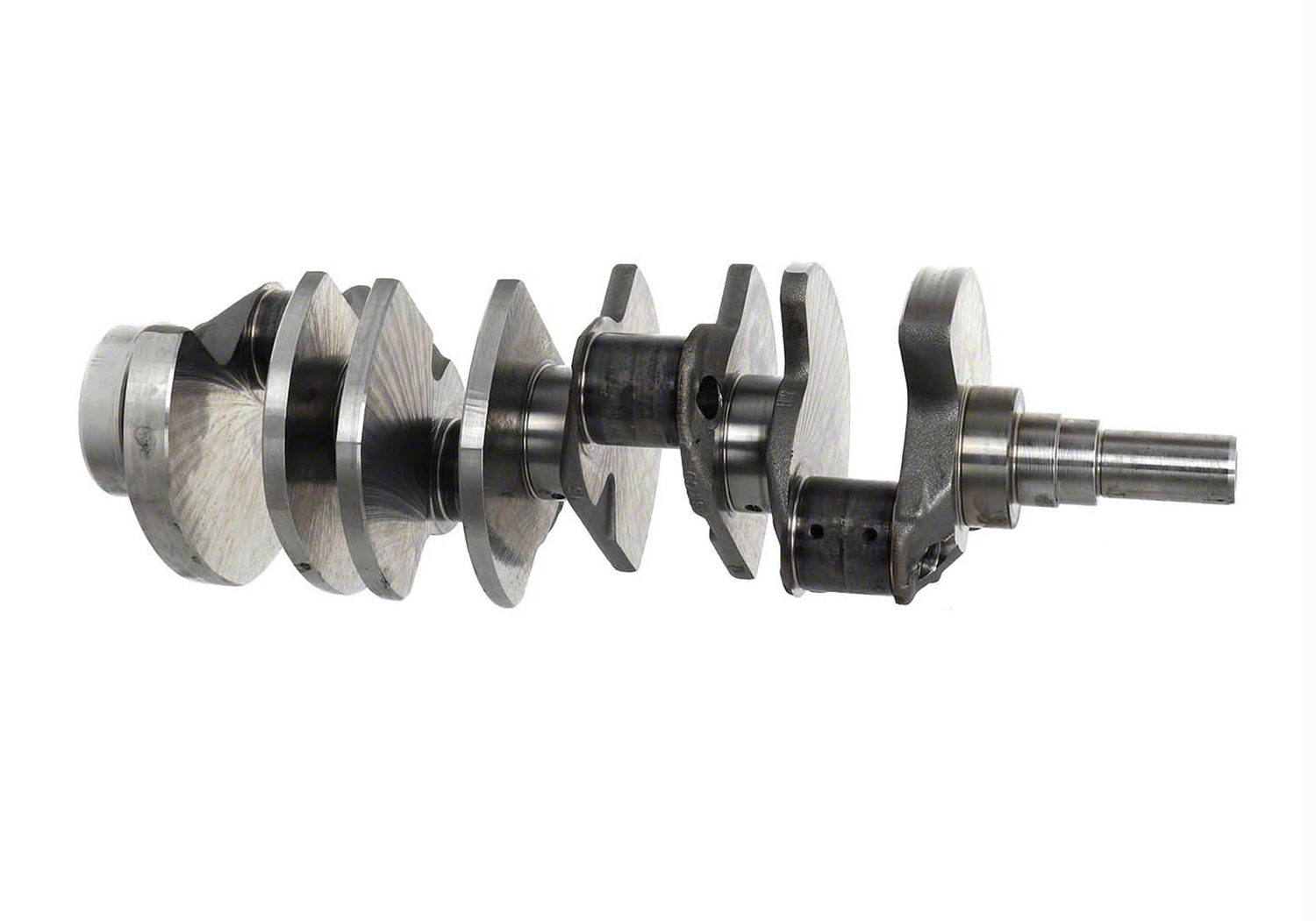

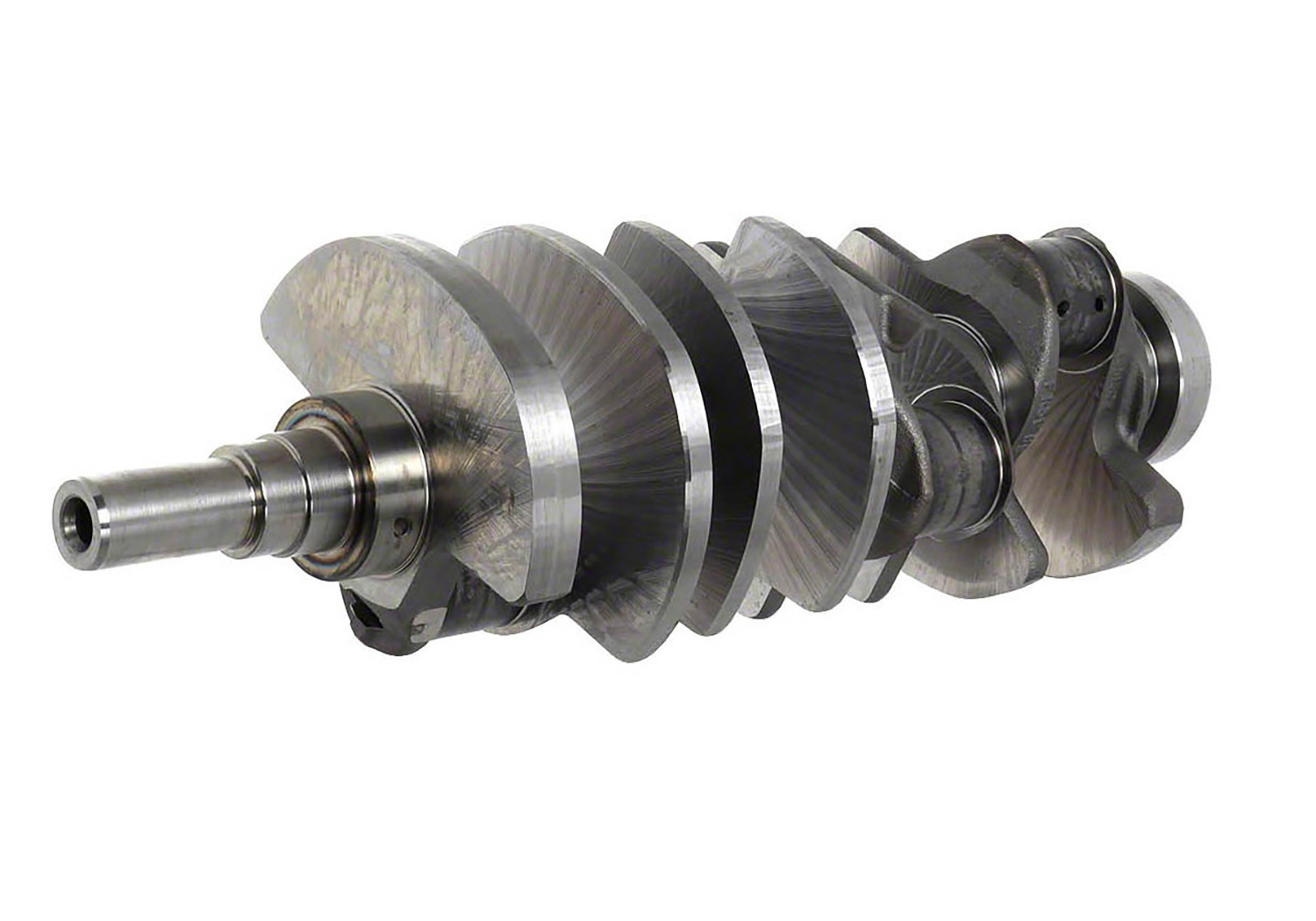

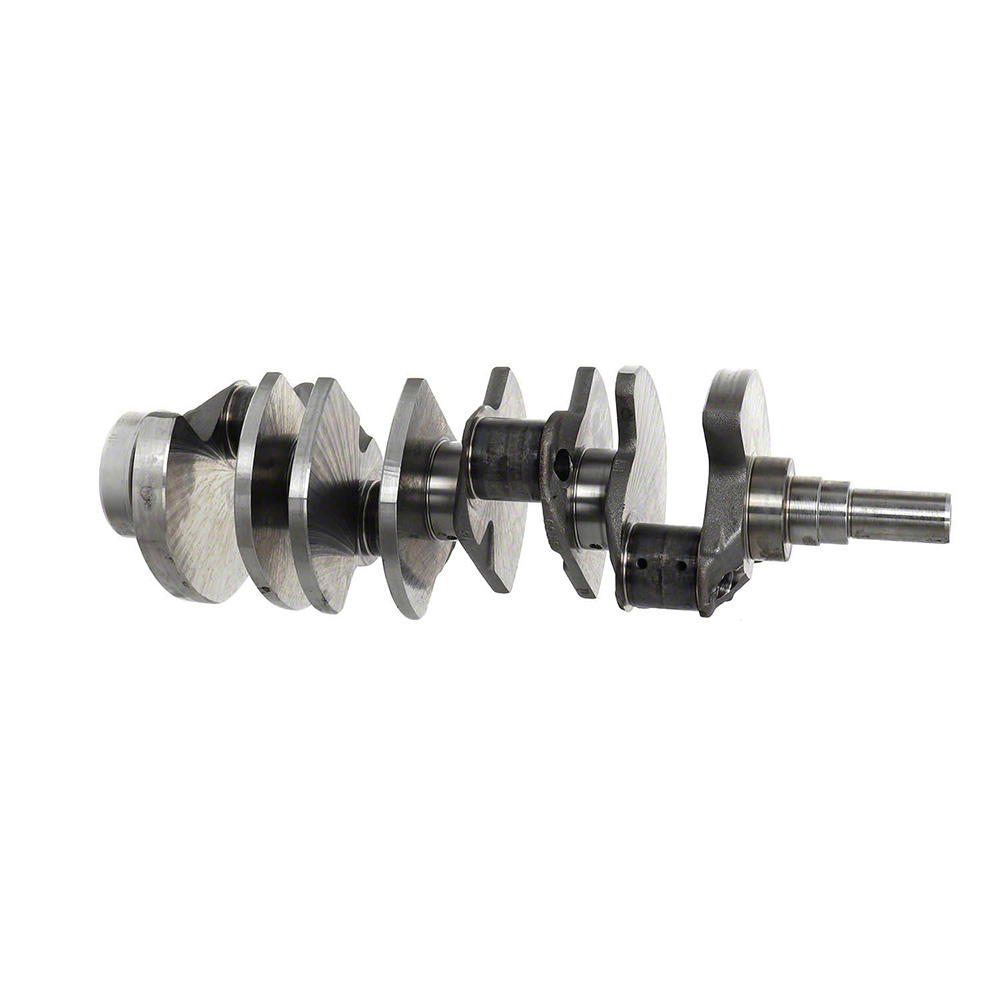

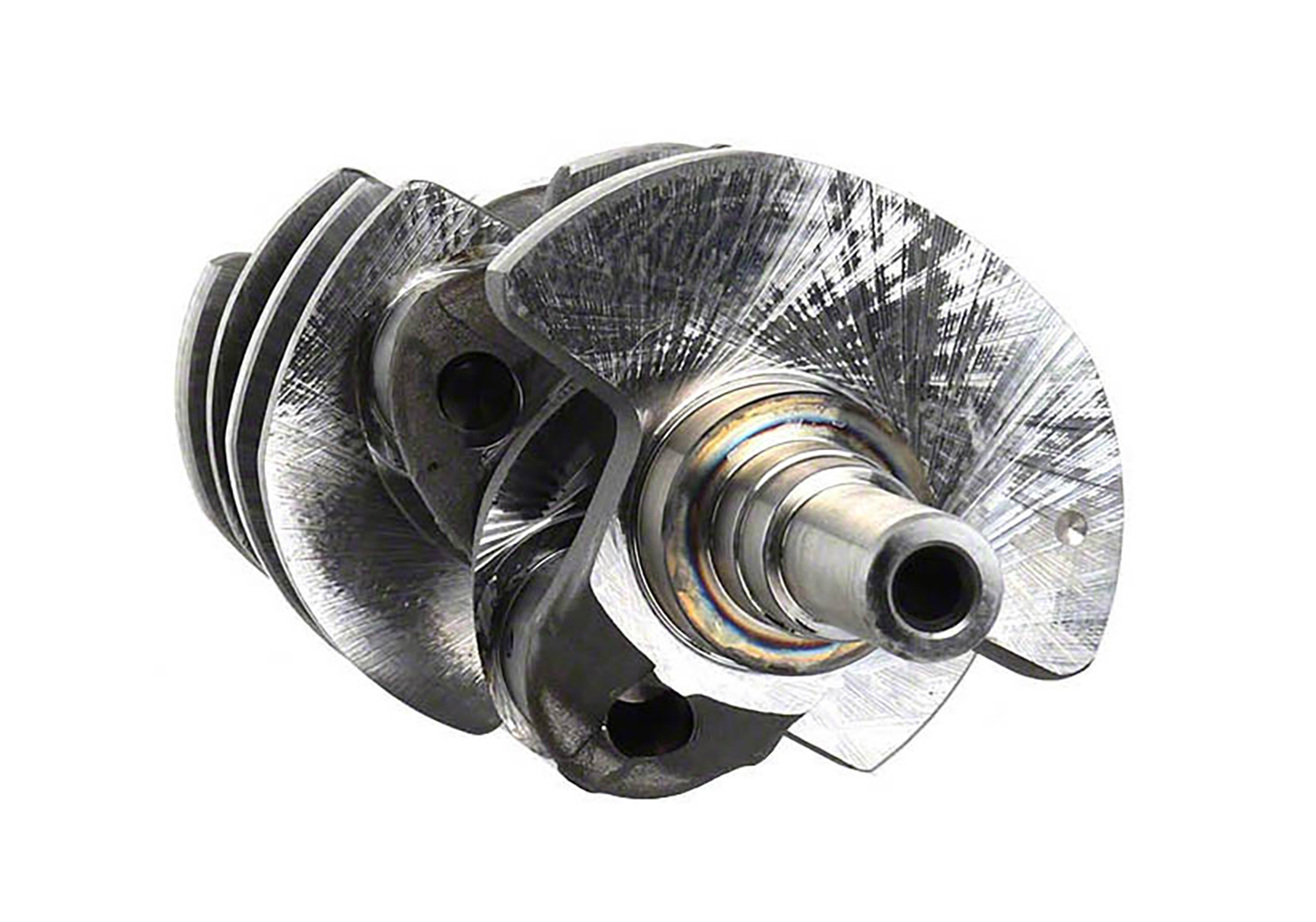

Semi-finished 5.2L Coyote crankshaft great for engine builds and race cars
- For finished machined version, see M-6303-M52B
The following features are machined on this crankshaft:

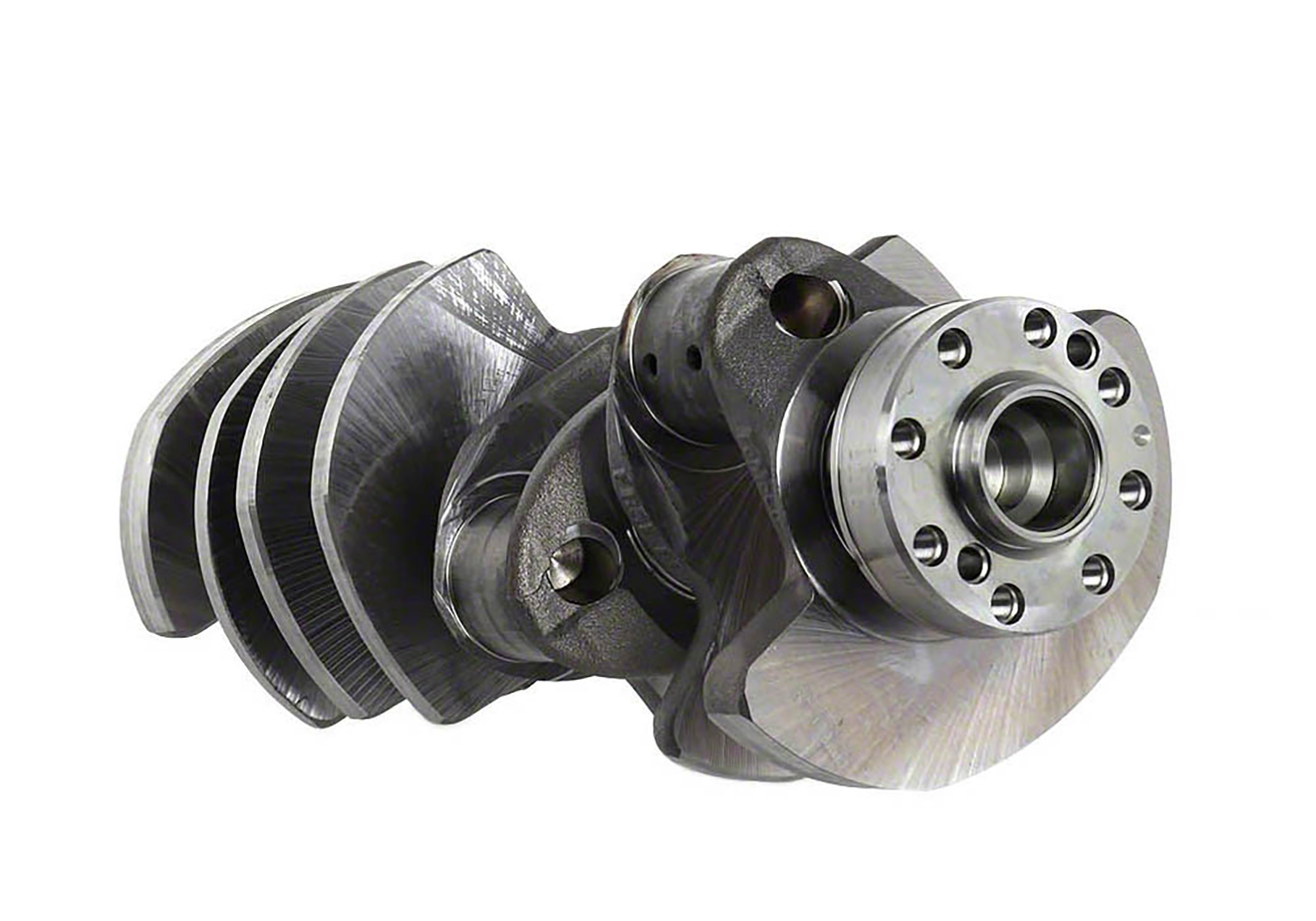

- Front post and rear flange machined and tapped
- All oiling holes machined and chamfered
- Pin lightening holes machined
- Main journals and rod journals induction hardened
- All fillets rolled and undercut
- Mains finished machined
- Rod journals are left semi-finished to allow altering the throw or stroke dimensions
- Snout and rear seal surface are also semi-finished - needs final finishing
- Current stroke is 92.7mm (3.650"), and is capable of 95.25mm (3.750") with 2" rod journal
Part Type
Engine: Crankshafts
Warranty Availability
Not Available
Package Dimensions
8.5" x 10" x 25.5"
Package Weight
54.95 lb(s)
UPC Code
756122011706
Country of Origin
Canada
