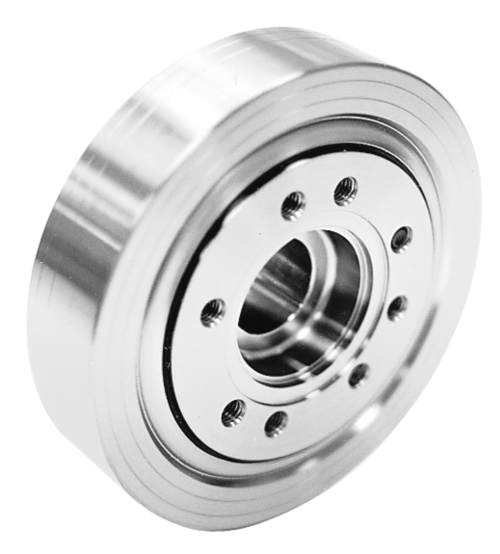

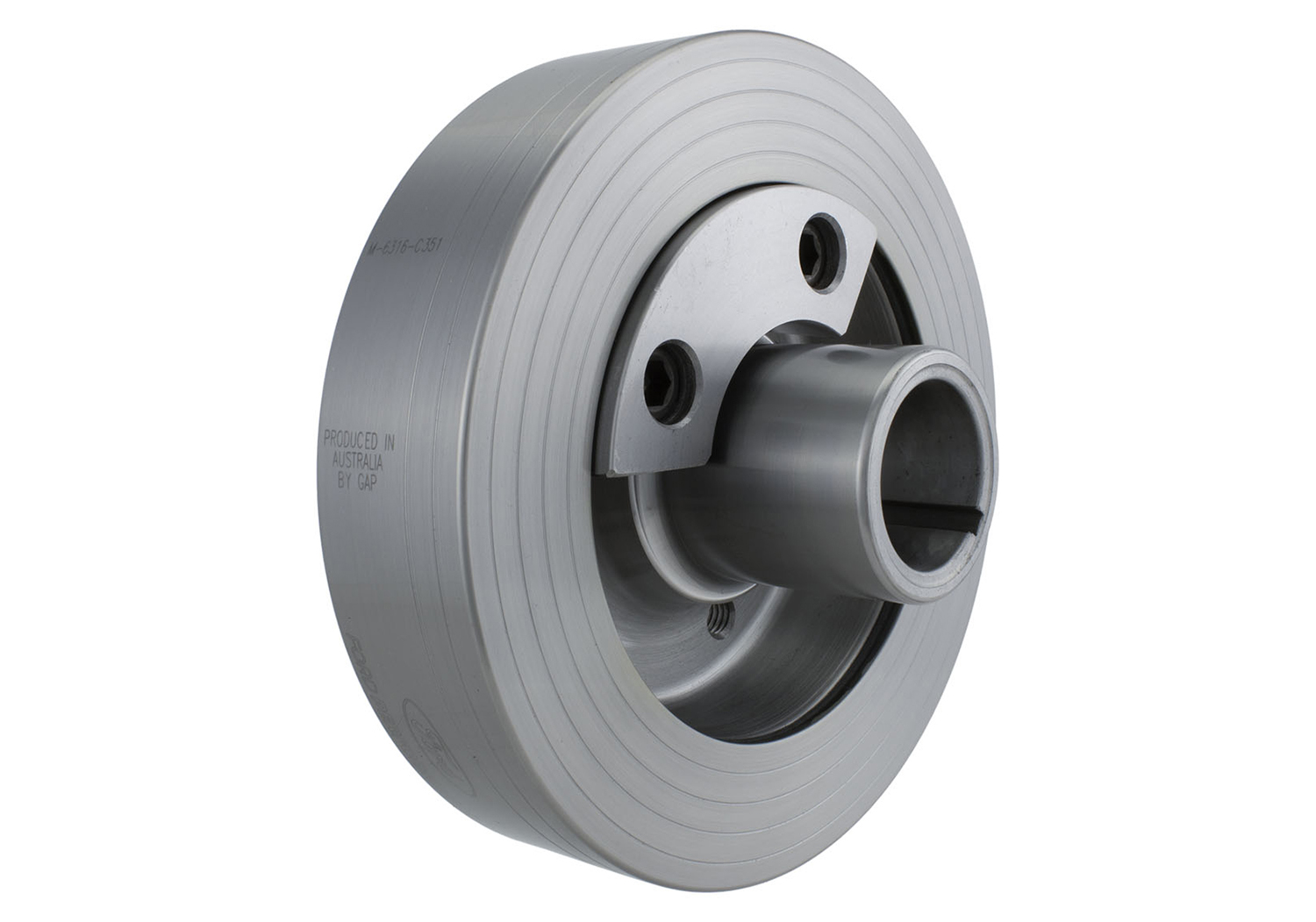

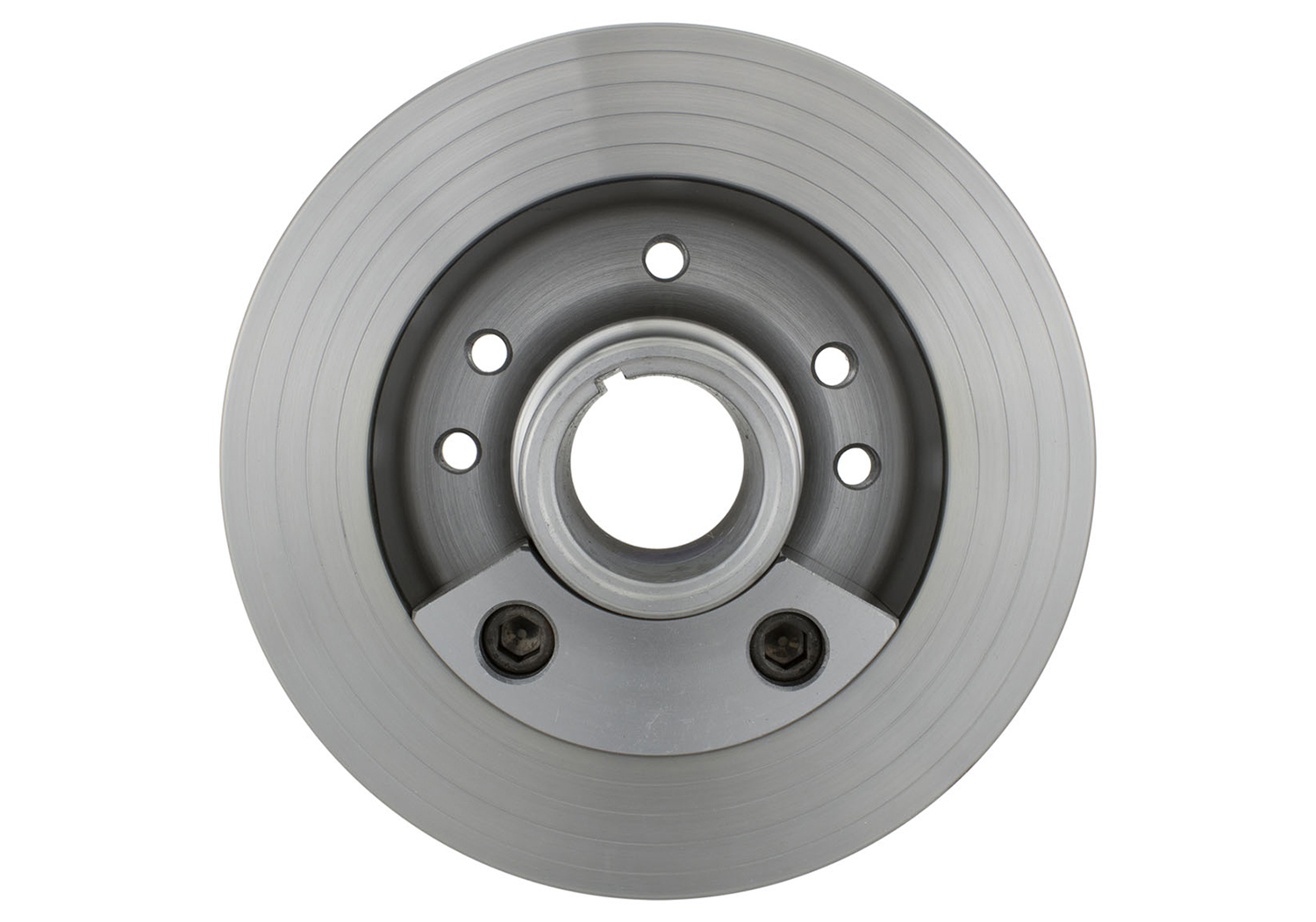

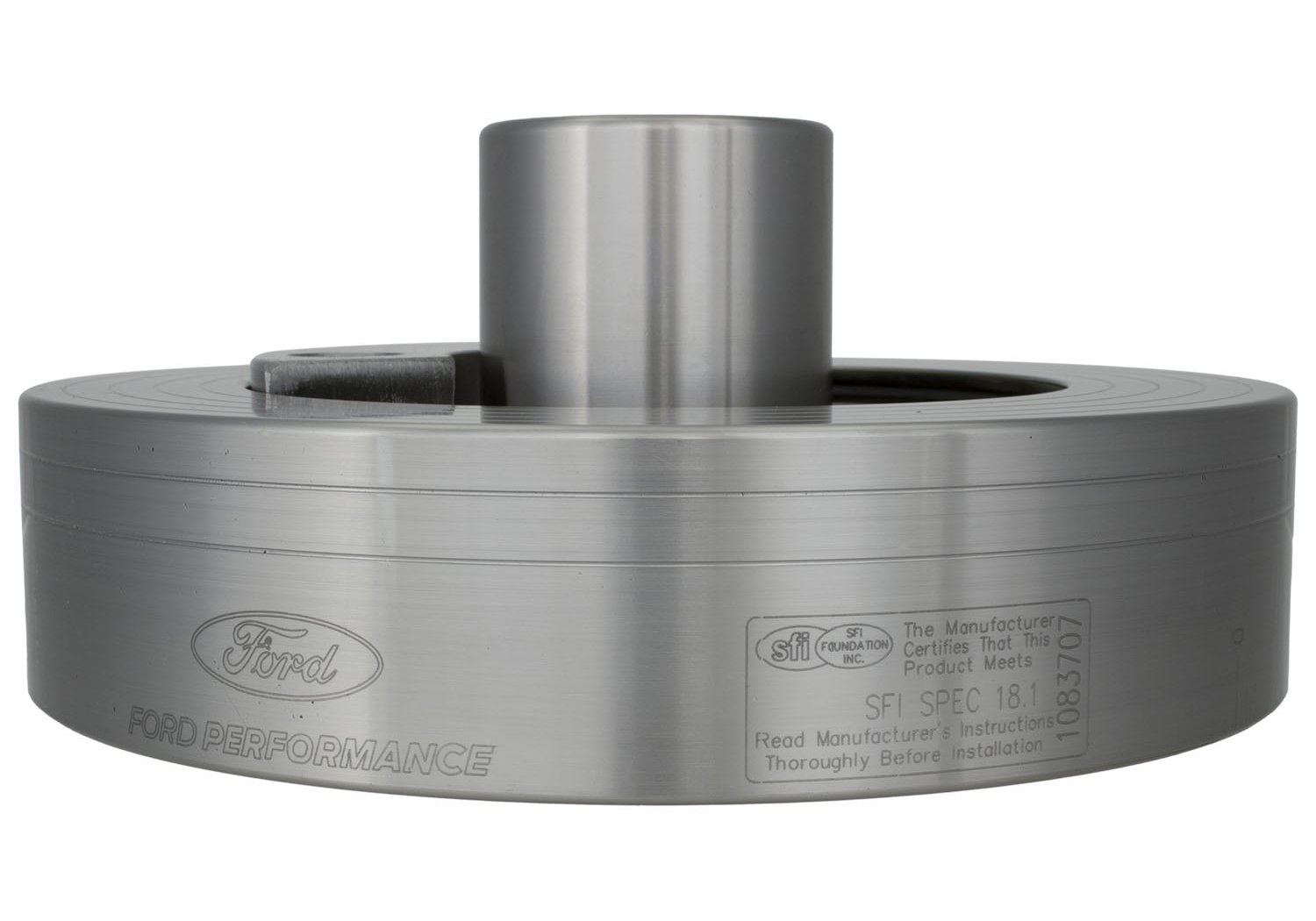

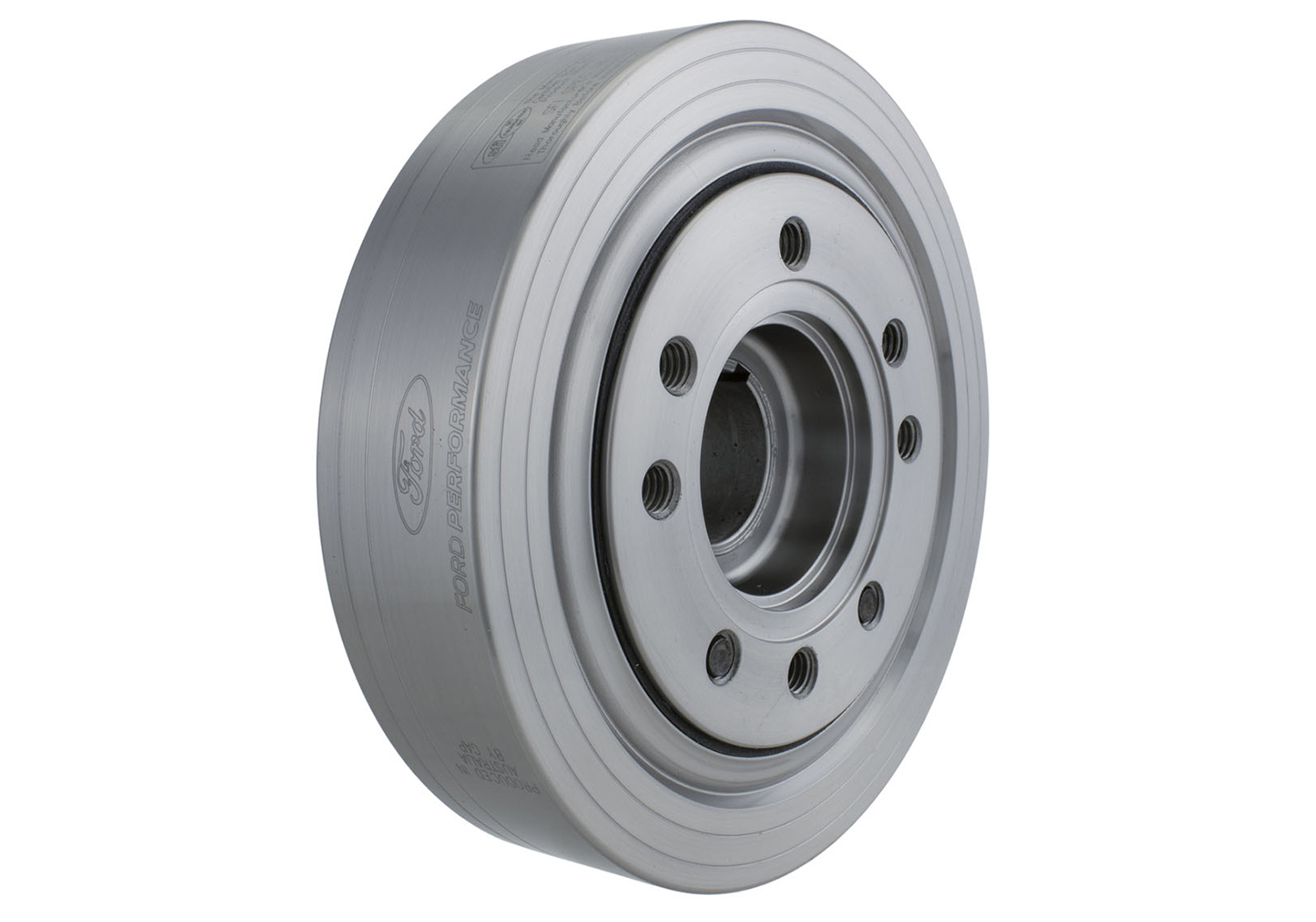

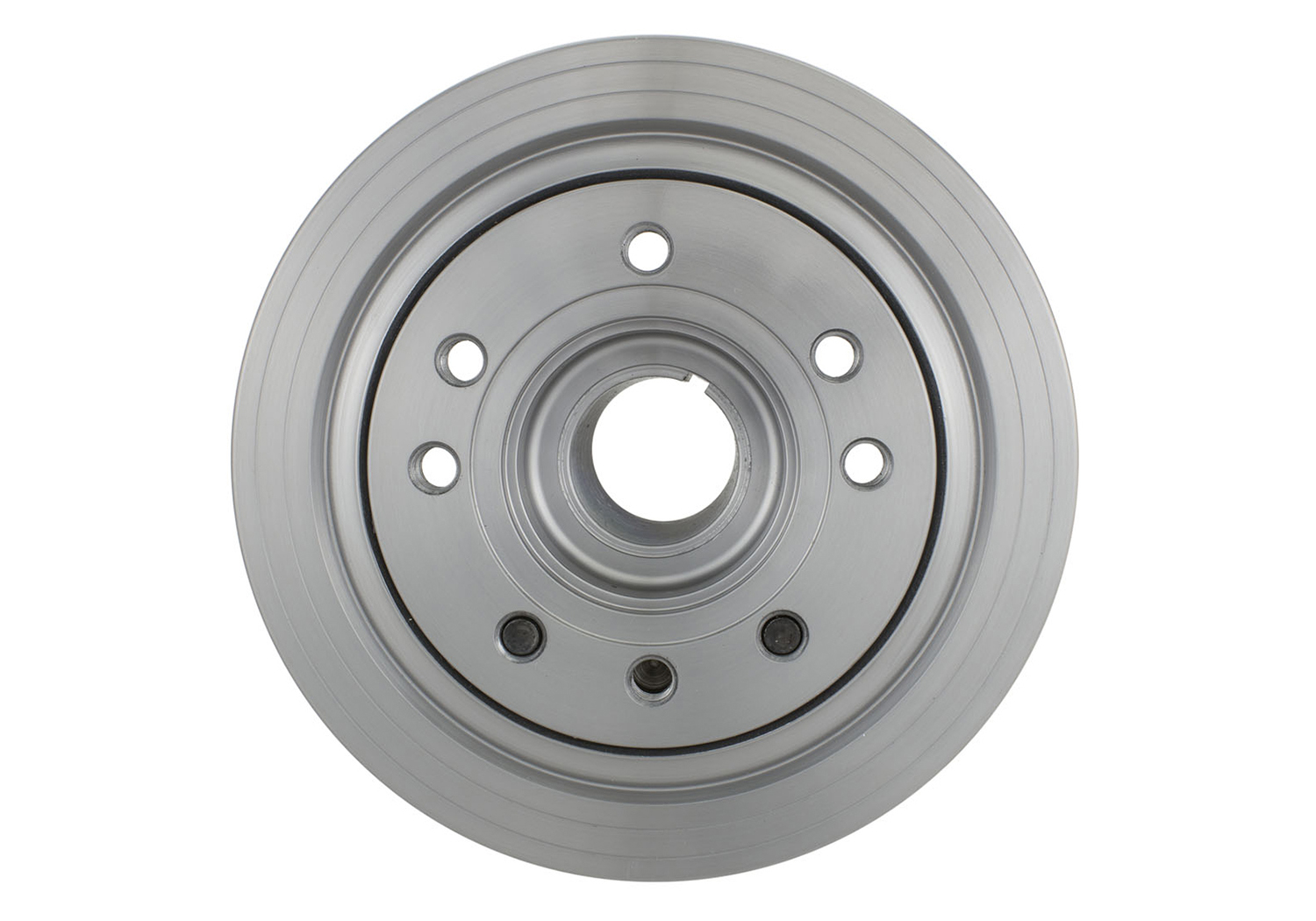

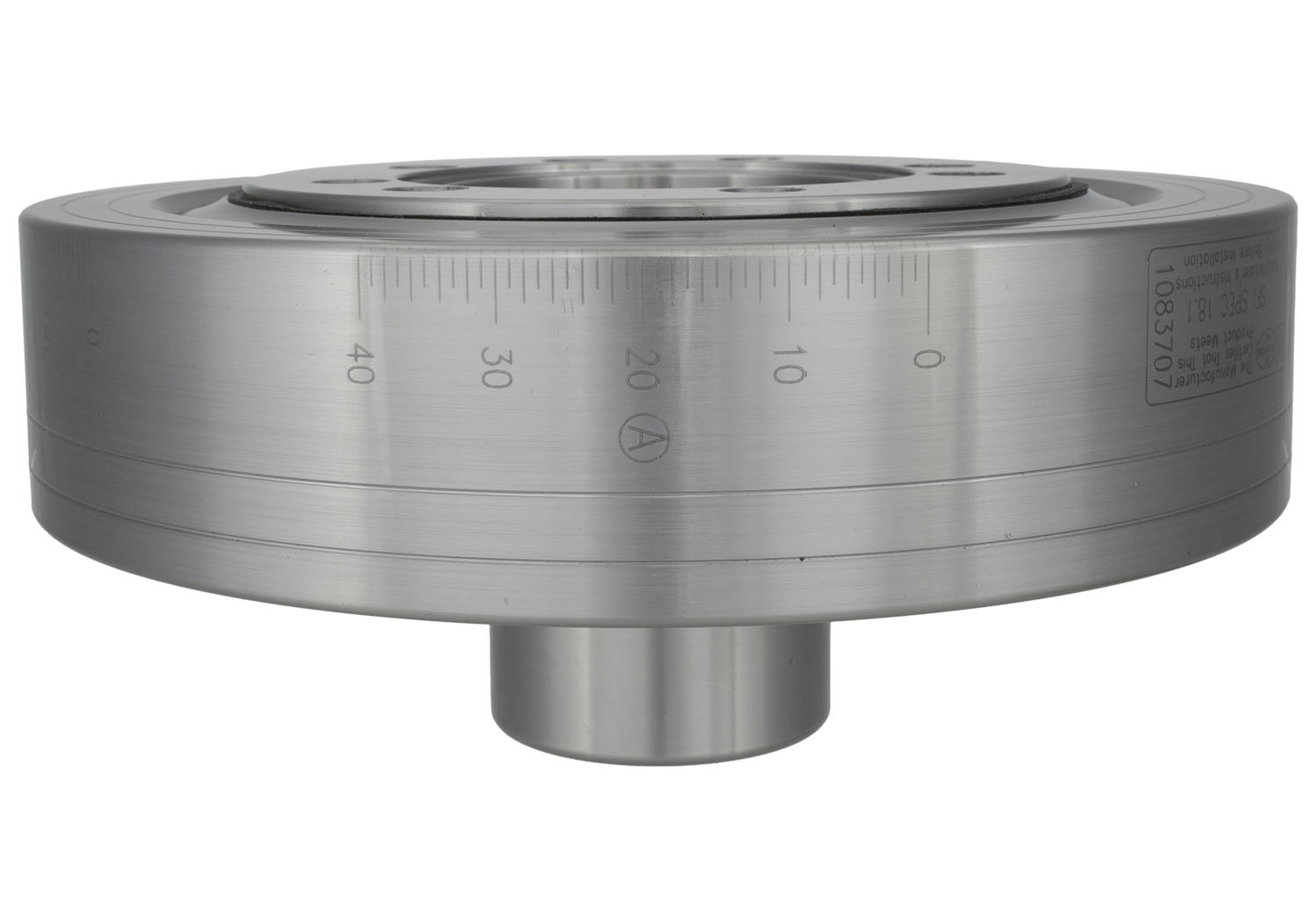

CRANKSHAFT DAMPER

CRANKSHAFT DAMPER
M-6316-C351
Retail
$365.00
Sold in Units of
Each (1)
Instruction Sheet

PART NUMBER ENGINE BALANCE NOTES MASS (LBS)
M-6316-A50**
302 (1981-93) 50 oz.-in. Meets SFI 18-1 1,2,3,5 12.1
M-6316-C351*
302/351W
28.2 oz.-in. Meets SFI 18-1 1,2,3,6 11.5
M-6316-A460*
429/460 Neutral Meets SFI 18-1 10.1
M-6316-A521*
514/521 Neutral Meets SFI 18-14 10.1
M-6316-D302*
302/351W Neutral Meets SFI 18-13,6 10.6

NOTES: 1 Damper has removable weight that allows use as a neutral balance unit for internally balanced crankshafts. 1994-01 Mustang and Explorer requires modification. 2 Does not clear early timing chain cover with rear installed seal. 3 3.000-inch. overall length 4 Tuned for use on 521 crate engine. 5 Passenger side 11-o'clock timing marks only. 6 Passenger side 11-o'clock timing marks and drivers side 2-o'clock timing marks

Part Type
Engine: Crankshafts
Instruction Sheet
Warranty Availability
Not Available
Packaged Dimensions
8" x 4" x 8
Packaged Weight
10.5 lb(s)
Part Type
Engine: Crankshafts
UPC Code
756122631065
Catalog Page Number
162
Country of Origin
Australia
California Executive Order
No
