CONTROL PACK - 2011-2014 COYOTE 5.0L 4V MANUAL TRANS WITH SPEED DIAL

This part is no longer available.
CONTROL PACK - 2011-2014 COYOTE 5.0L 4V MANUAL TRANS WITH SPEED DIAL
M-6017-A504VA
Instruction Sheet
Available (PDF)
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
  • This Control Pack has been replaced by PN M-6017-M504VB
  • Take the complexity and mystery out of wiring a late model 5.0L 4V Ti-VCT engine!
  • Replaces M-6017-A504V Control Pack - adds wiring for Speed Dial M-4209ADPT-AC   to pickup transmission output speed
  • Designed to run 2011-2014 5.0L 4V Coyote engines, M-6007-M50 and M-6007-A50NA 5.0L 4V Coyote crate engines with manual transmission
  • M-6007-A50SC, M-6007-A50XS, M-6007-M50B (BOSS 302) and F-150 truck engines require modifications, call the Ford Performance Tech Line at 800-367-3788 for more information
  • Includes PCM with Ford Performance calibration. Supercharged, M-6007-A50SC, M-6007-A50XS, M-6007-M50B (BOSS 302) and F-150 truck engines require custom calibration
  • Includes Electronic Throttle Control accelerator pedal, eliminating throttle cable routing problems
  • Unique control pack harness replaces stock body harness and is designed for custom vehicle builds
  • Features OBD-II diagnostic port to assist in vehicle calibration upload and problem diagnosis

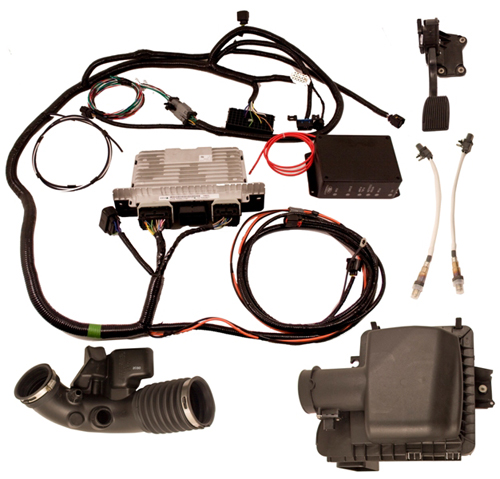

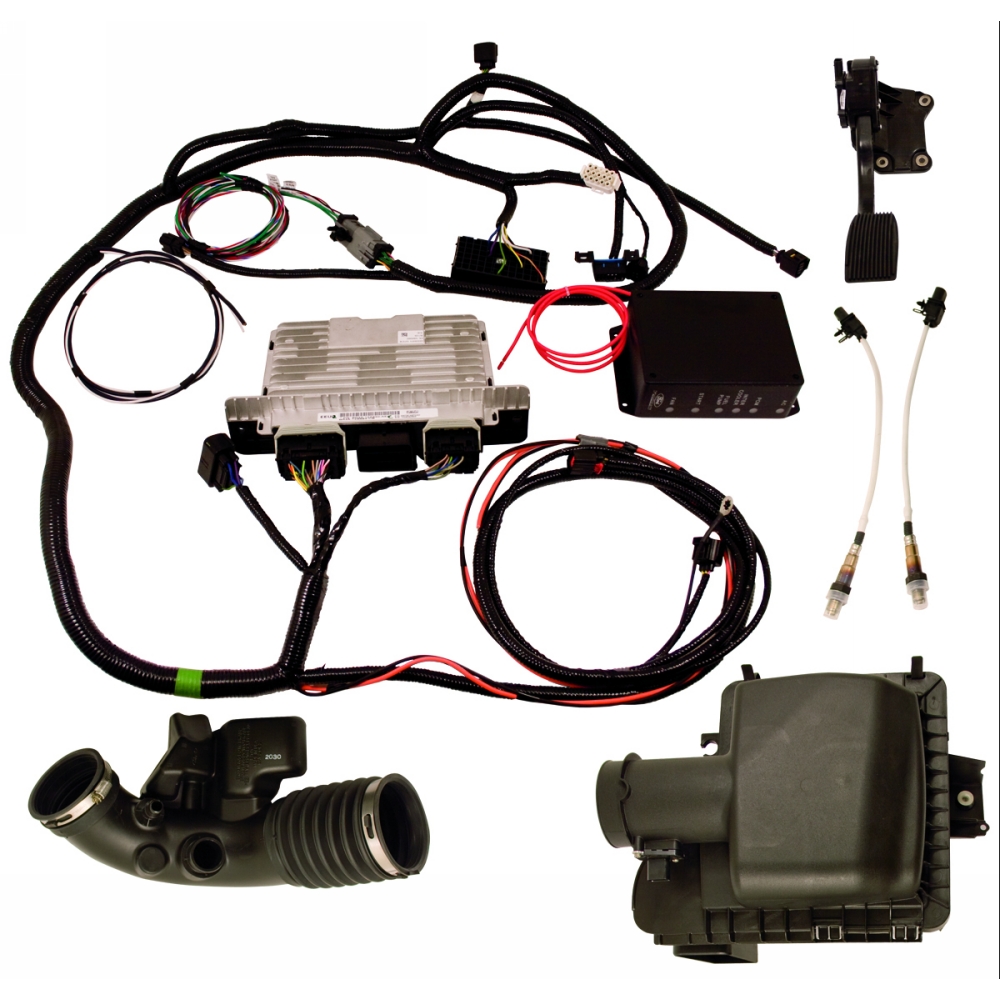

  • Includes power distribution module, air box, air inlet tube, MAF sensor, upper and lower radiator hoses, PCV hoses and HEGO sensors
  • PCM with Ford Performance calibration requires return type fuel system, will not work with returnless fuel system
  • NOTE: Installation of this PCM in a 2011-2014 Mustang GT will result in a no-start condition.
Part Type
Electrical: Microprocessors
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
15" x 13.25" x 13.5"
Package Weight
23.4 lb(s)
UPC Code
756122002353
Country of Origin
United States
