351 FRONT T-SUMP RACING OIL PAN

351 FRONT T-SUMP RACING OIL PAN
M-6675-FT351
Retail
$599.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available

Proudly Made in the USA

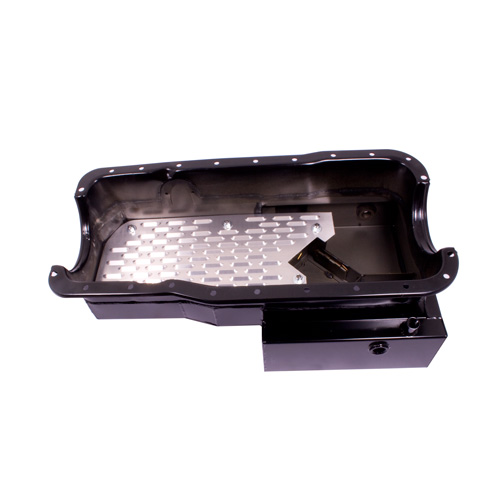

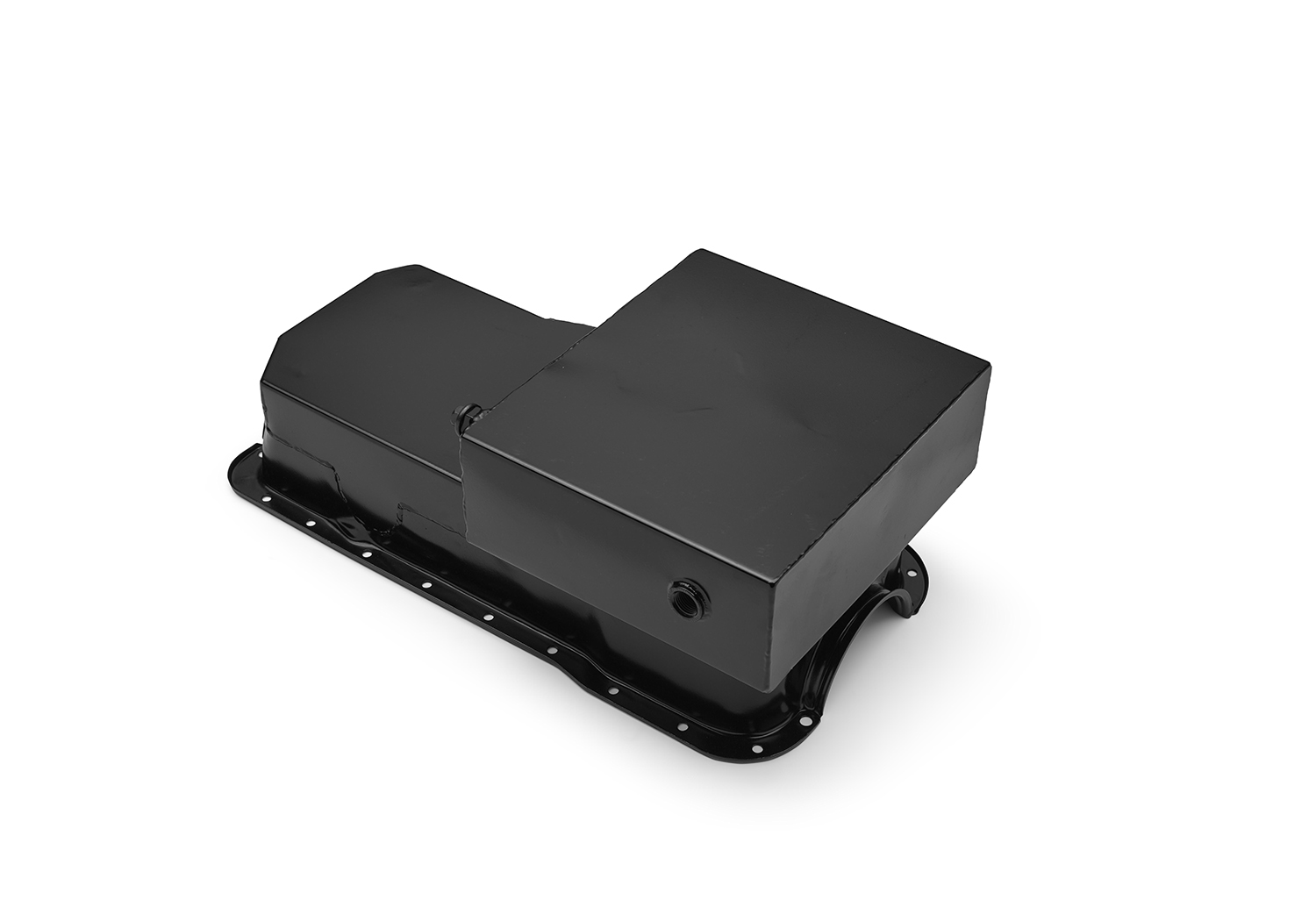

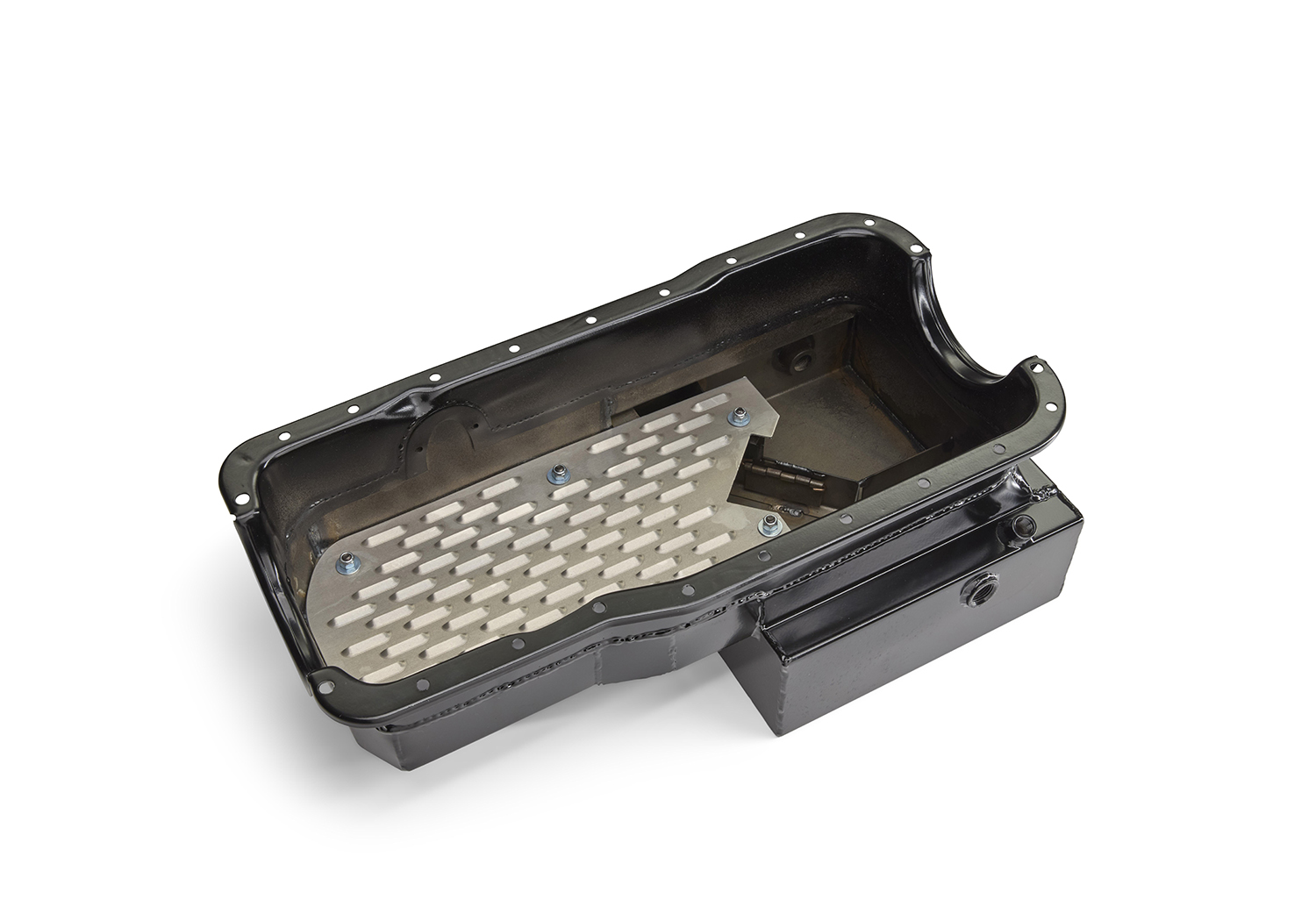

Designed by Ford Racing for use on its crate engines, the M-6675-FT351 oil pan is constructed to deliver power and durability.

Features include:

  • Full length scraper to direct oil away from the crankshaft and return ot to the sump

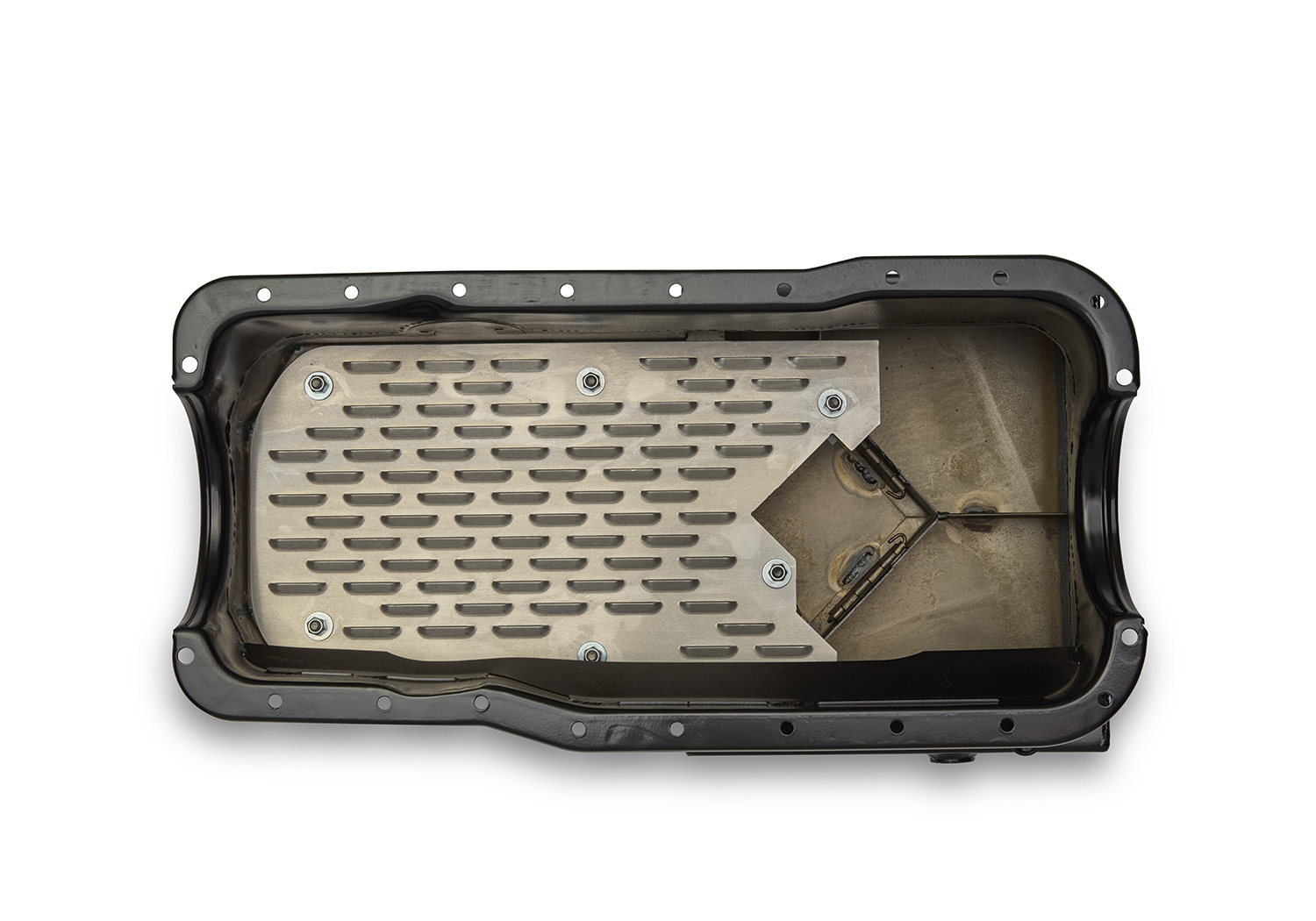

  • Full length bolt in aluminum louvered windage tray to control oil

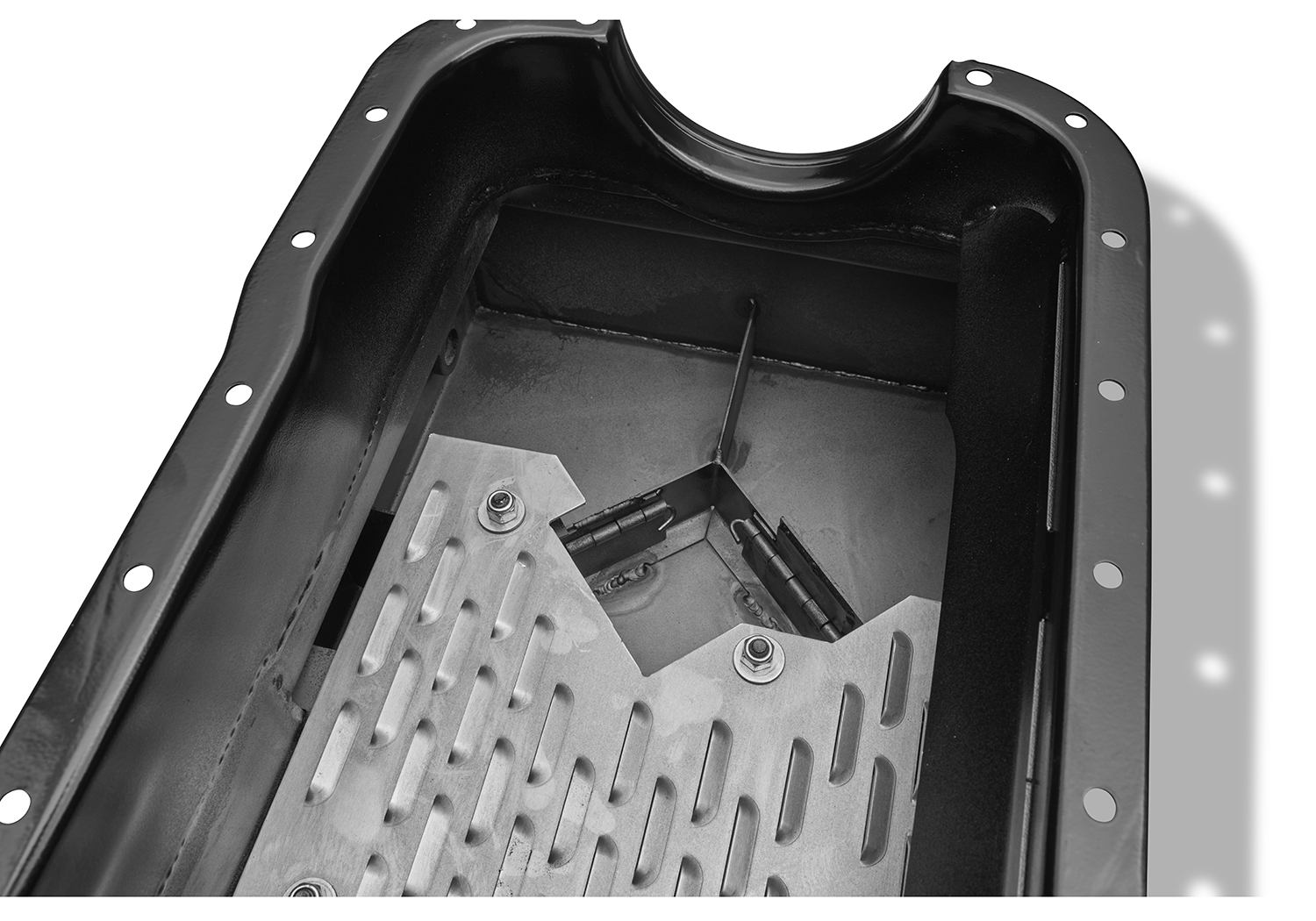

  • Baffling and trap doors in the sump to keep the pickup submerged during performance driving
  • 9 quart capacity
  • Sump depth is 8.1" – T-Sump width is 12.15" – T-Sump length from the front of the pan is 10.4"
  • Includes 3/8" NPT bung to mount an oil temperature sending unit
  • Includes 3/8" NPT access hole to adjust oil pump spring pressure
  • Fits standard 351 Windsor block oil pan bolt pattern
  • Designed to clear 4-bolt main cap Ford Racing BOSS 351 blocks
  • Semi-gloss black powder coat finish
  • Laser cut and TIG welded in precision fixtures for consistent OEM level fit
  • Used on FRPP M-6007-Z427FFT Crate Engine
  • Use pickup M-6622-FT351
  • See oil pan dimension chart attached below.
Part Type
Engine: Oil Pumps/Pans
Warranty Availability
Not Available
Packaged Dimensions
24" x 10" x 17.5
Packaged Weight
18.5 lb(s)
Part Type
Engine: Oil Pumps/Pans
UPC Code
756122130469
Country of Origin
United States
California Executive Order
No
