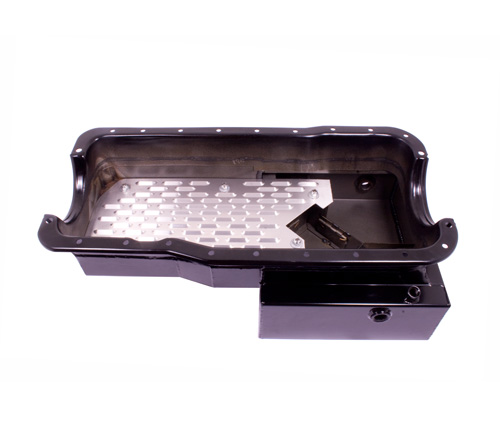

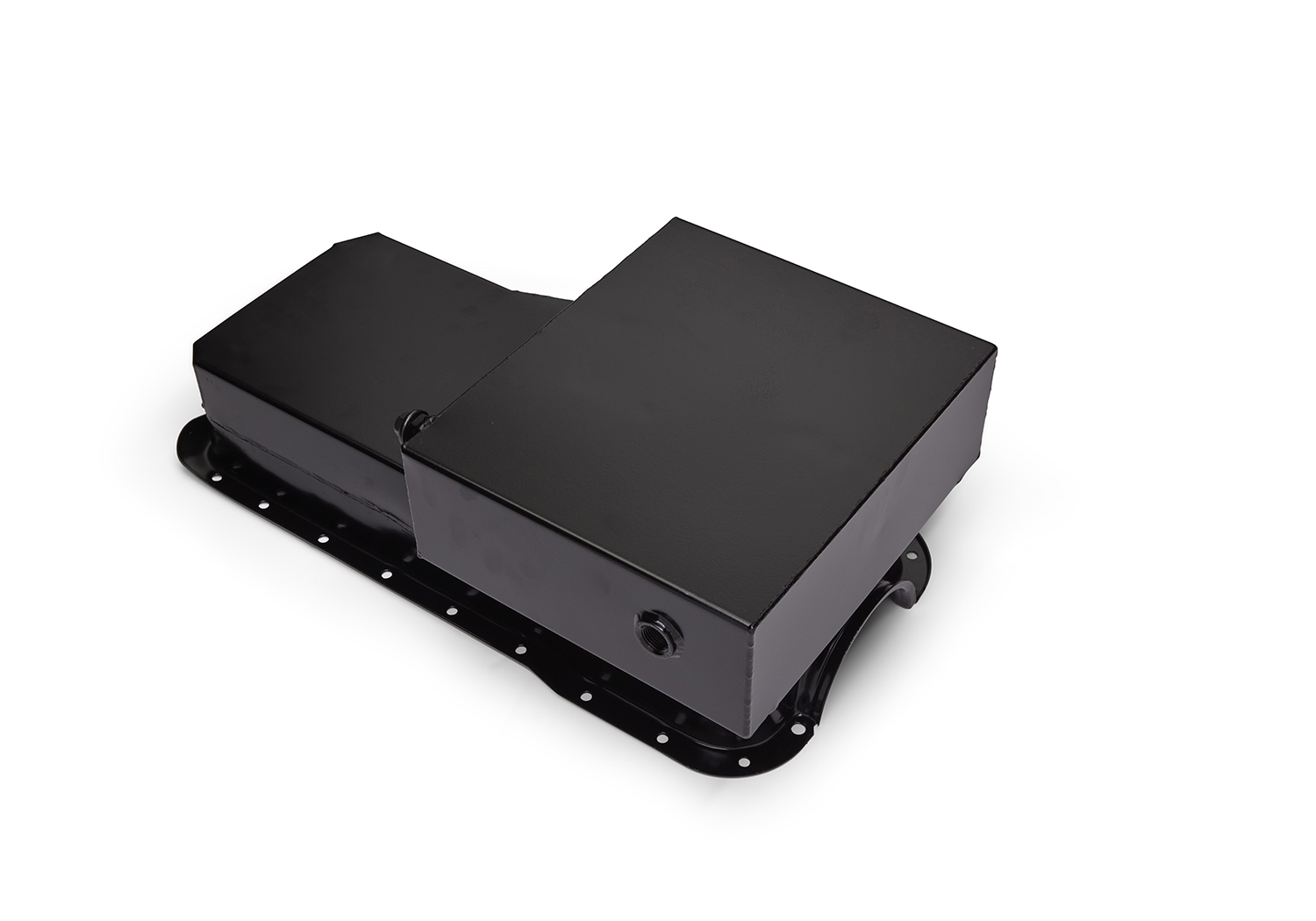

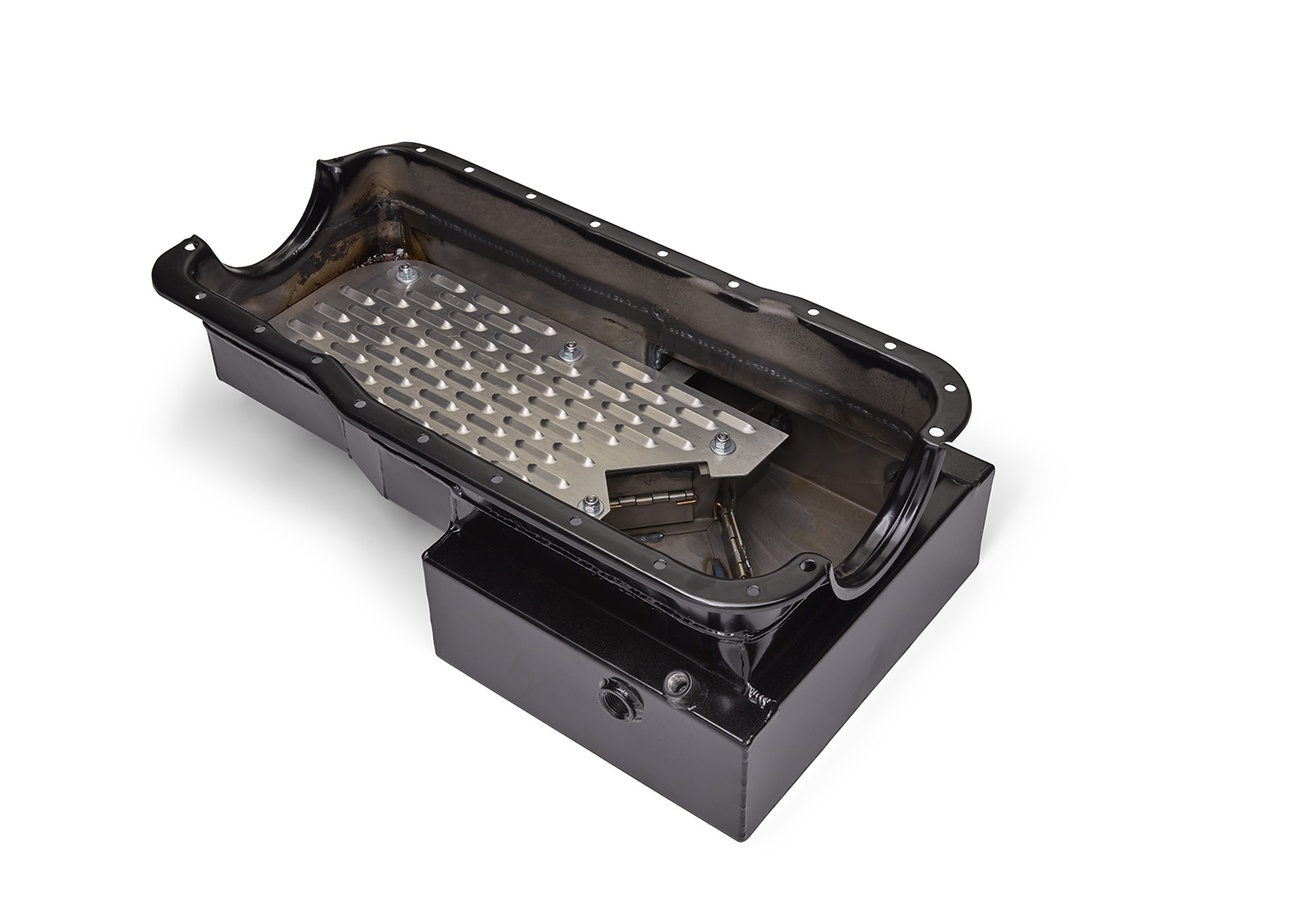

302 FRONT T-SUMP RACING OIL PAN

302 FRONT T-SUMP RACING OIL PAN
M-6675-FT302
Retail
$585.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available

Proudly Made in the USA

Designed by Ford Racing for use on its crate engines, the M-6675-FT302 oil pan is constructed to deliver power and durability.

Features include:

  • Full length scraper to direct oil away from the crankshaft

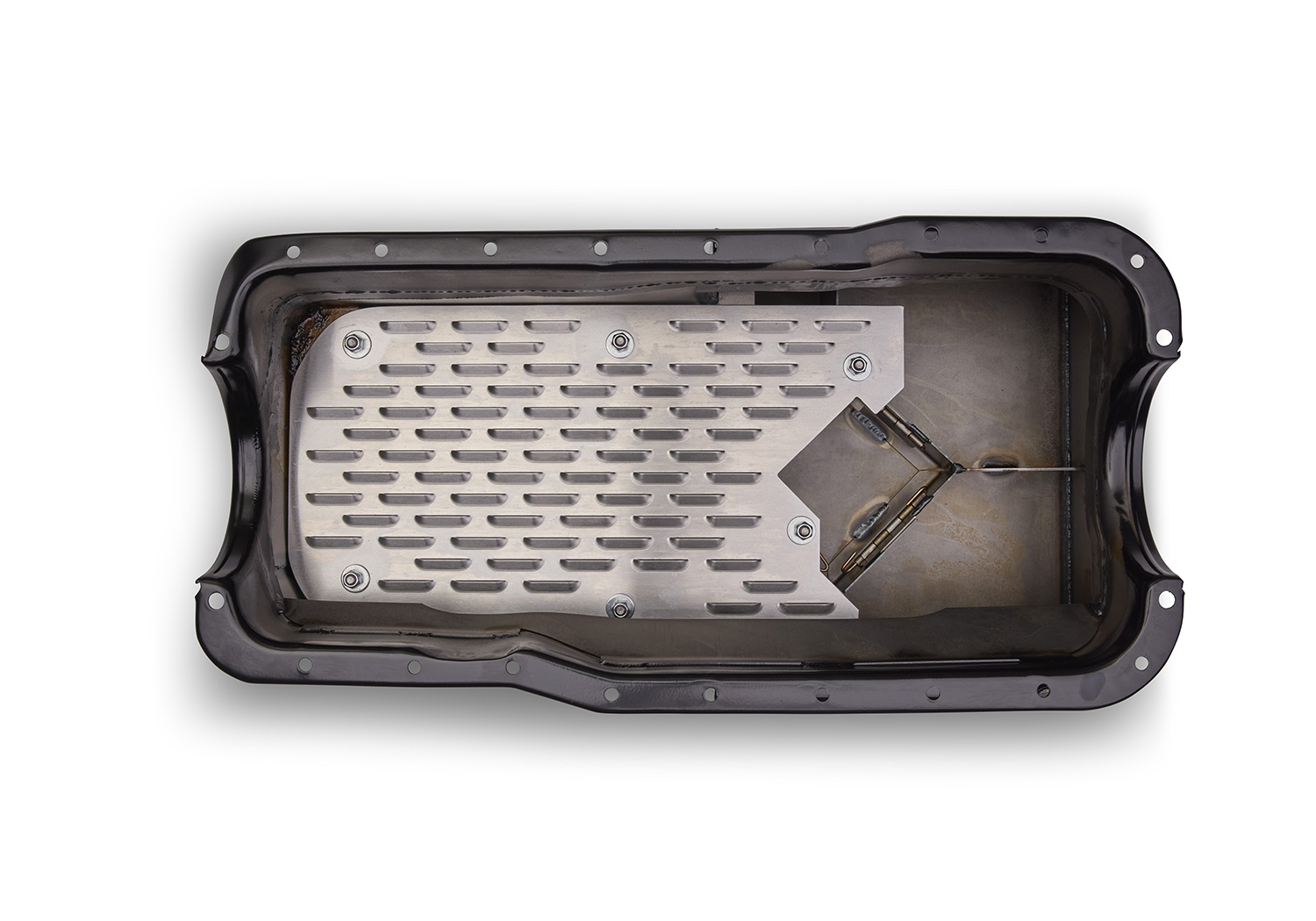

  • Full length bolt in louvered windage tray to control oil

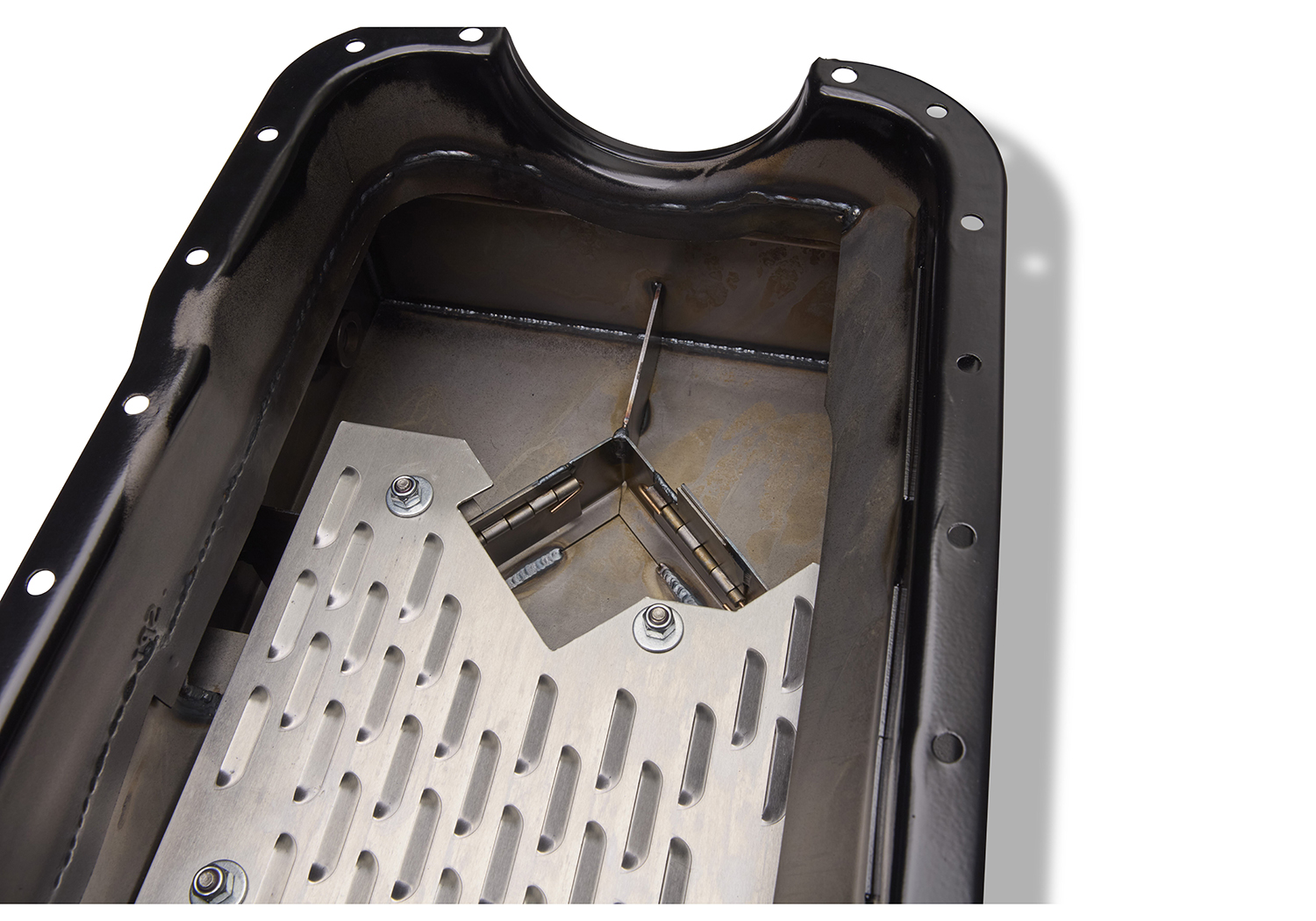

  • Baffling and trap doors in the sump to keep the pickup submerged during performance driving
  • 7 quart capacitySump depth is 7.5" – T-Sump width is 12.1" – T-Sump length from the front of the pan is 10.6"
  • Includes 3/8" NPT bung to mount an oil temperature sending unit
  • Includes 3/8" NPT access hole to adjust oil pump spring pressure
  • Fits standard 302 Windsor block oil pan bolt pattern
  • Designed to clear 4-bolt main cap Ford Racing BOSS 302 blocks
  • Semi-gloss black powder coat finish
  • Laser cut and TIG welded in precision fixtures for consistent OEM level fit
  • Used on FRPP M-6007-Z363FT Crate Engine
  • Use pickup M-6622-FT302
  • See oil pan dimension chart attached below.
Part Type
Engine: Oil Pumps/Pans
Warranty Availability
Not Available
Packaged Dimensions
24" x 9.75" x 17.25
Packaged Weight
18.3 lb(s)
Part Type
Engine: Oil Pumps/Pans
UPC Code
756122130483
Country of Origin
United States
California Executive Order
No
