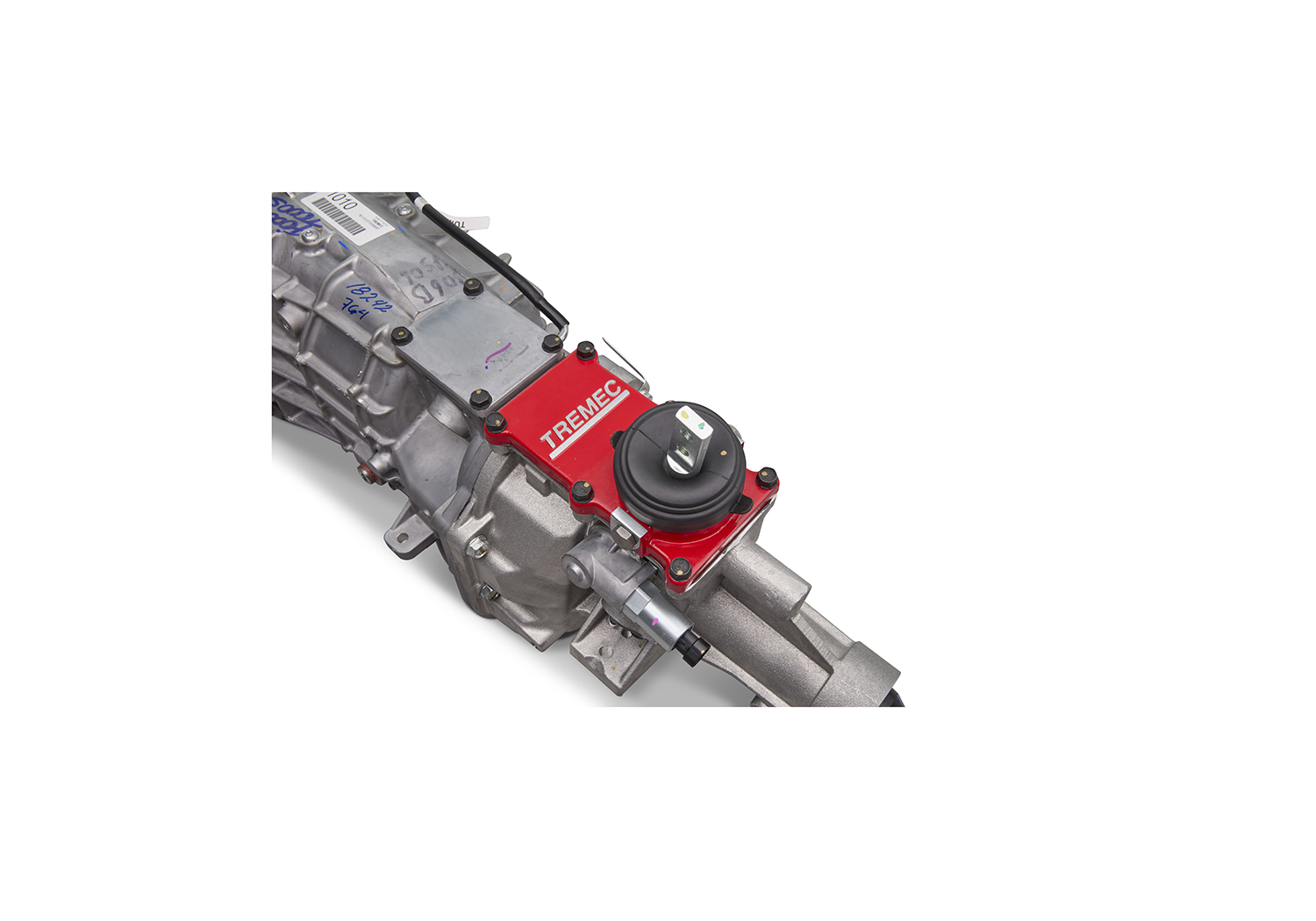

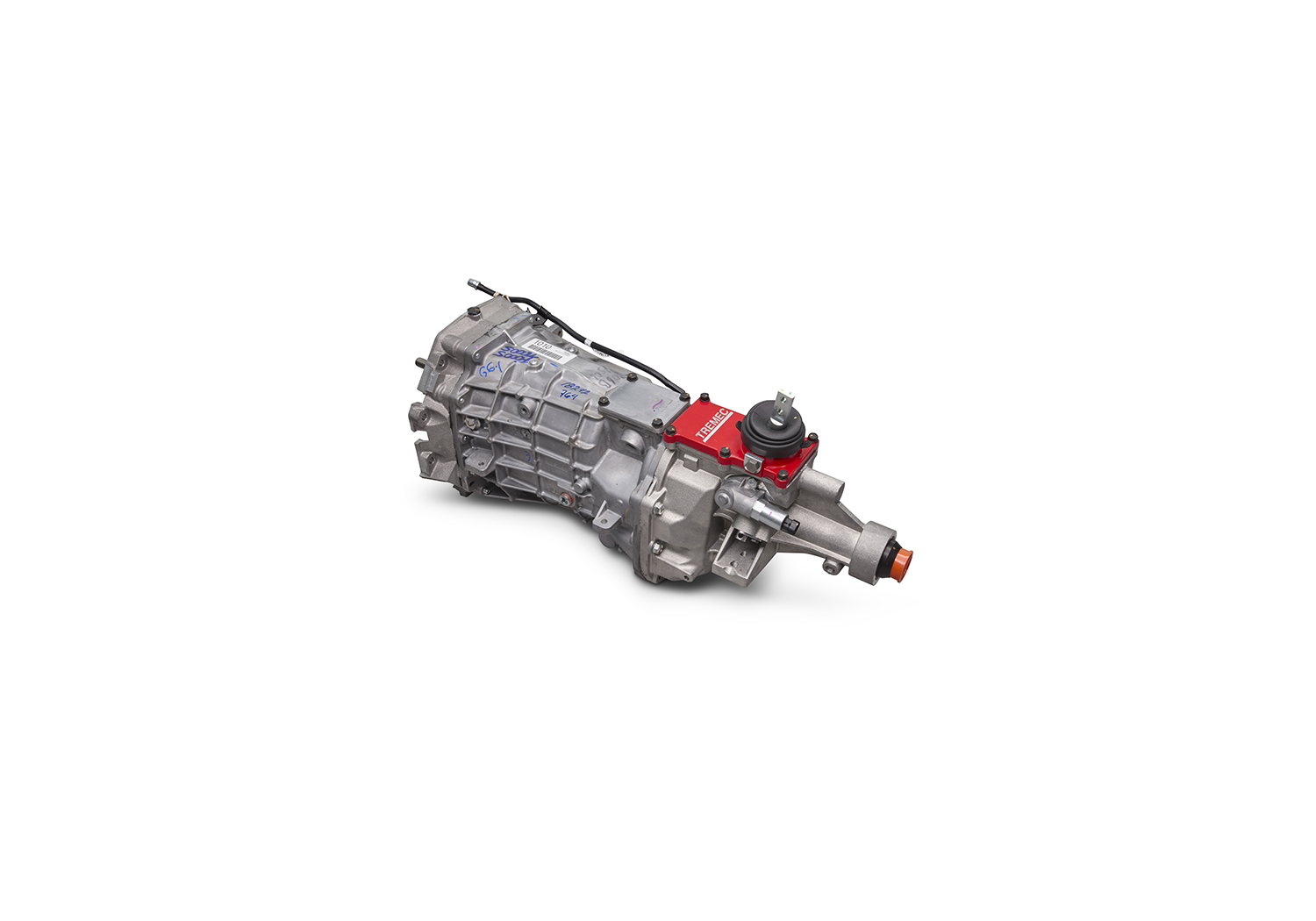

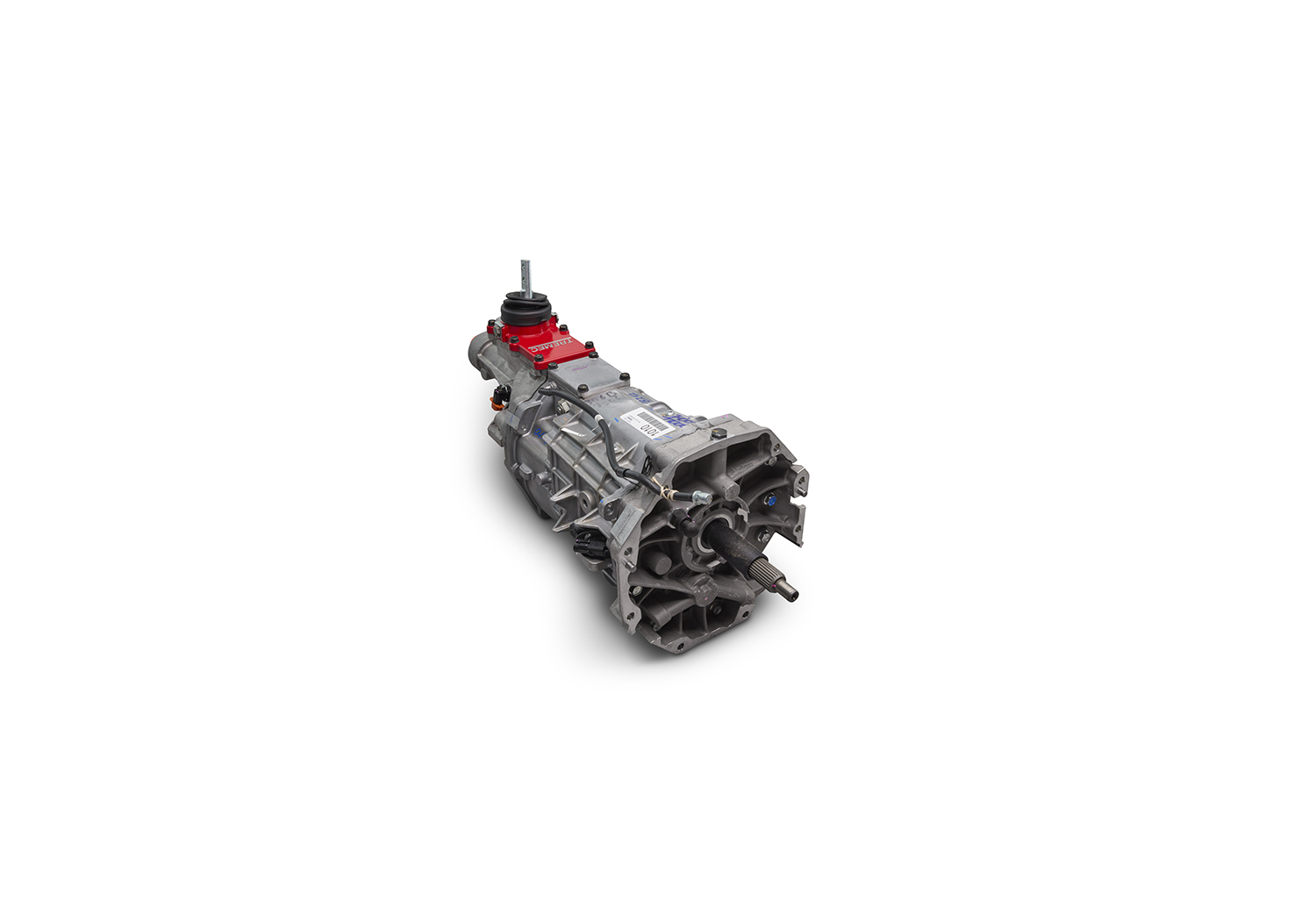

TREMEC 6-SPEED TRANSMISSION (2.66 1ST GEAR/26 SPLINE)

  • Fits: SBF, 4.6L SOHC/DOHC and 5.0L Ti-VCT engines
  • Can be used in 1999-2004 Mustangs and Cobras
  • For SBF 302/351 use Quicktime bellhousing part # 8031, For modular 4.6L/5.0L/5.4L use Quicktime bellhousing part # 8080
  • May require shorter driveshaft, modified crossmember/trans mount and other minor modifications
  • 700 lbs./ft. torque capacity
  • Gear ratios: 1st 2.66, 2nd 1.78, 3rd 1.30, 4th 1.00, 5th 0.80, and 6th 0.63

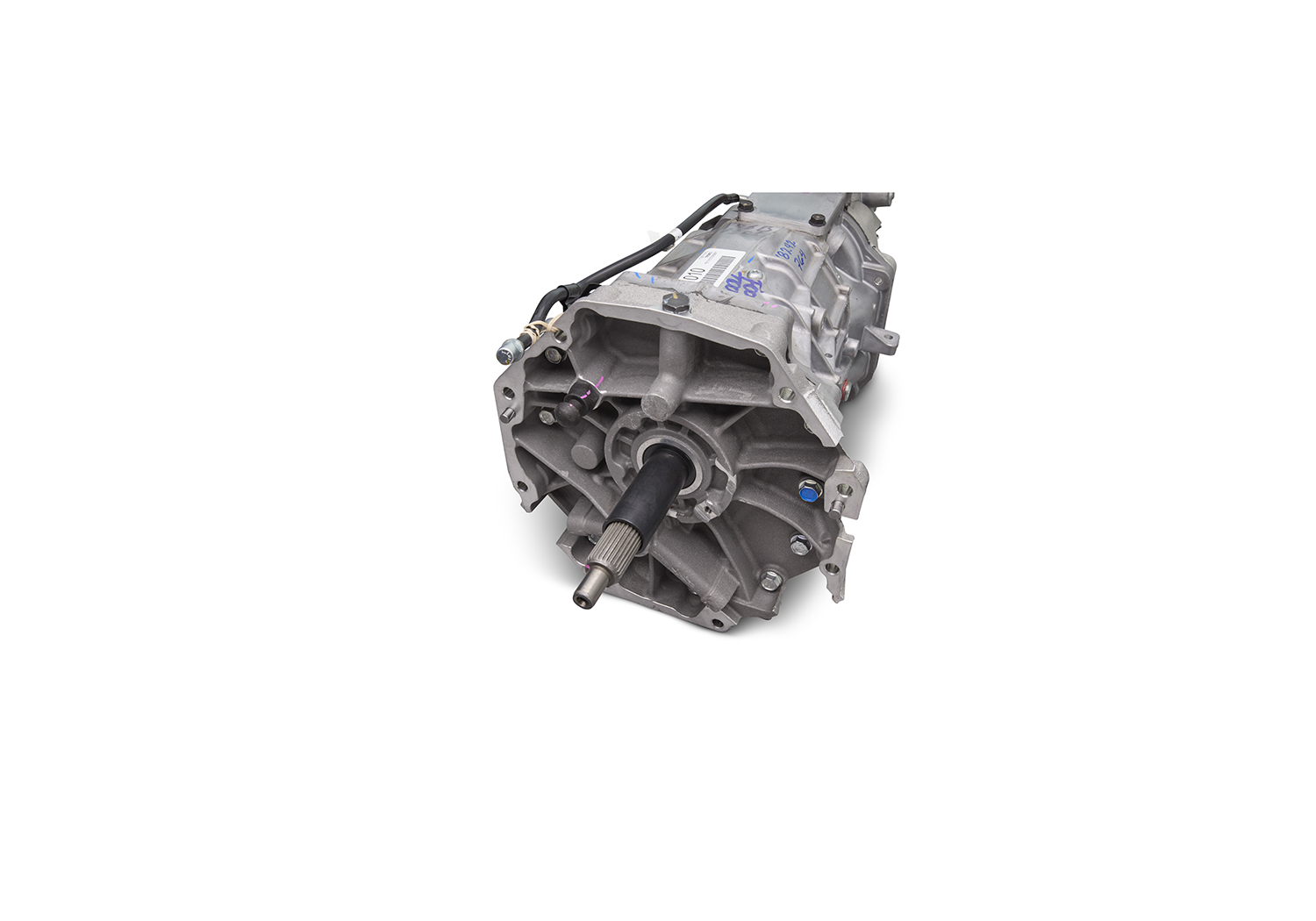

  • Input shaft is 26 spline; output shaft is 31 spline
  • Provision for both mechanical and electronic speedometer
  • Mechanical speedometer drive gear has 7 teeth
  • Electronic speedometer rotor has 12 positions



Part Type
D-Line: Manual Trans
Warranty Availability
Not Available
Packaged Dimensions
18.25" x 9.75" x 36.5
Packaged Weight
162 lb(s)
UPC Code
756122224403
Catalog Page Number
229
Country of Origin
Mexico
