SUPER COBRA JET MECHANICAL THROTTLE BODY

This part is no longer available.
SUPER COBRA JET MECHANICAL THROTTLE BODY
M-9926-SCJM
Instruction Sheet
Not Available
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
 For those enthusiasts who want to run a late model engine with an aftermarket ECU that requires a mechanical linkage, Ford Racing offers throttle bodies to make the conversion easy. All mechanical linkage throttle bodies feature a 2003-2004 Cobra style linkage and throttle cable connection. Throttle cable and cable stop plate are not included and must be custom fabricated.

Our mechanical throttle bodies are legal for NHRA competition on the Mustang Cobra Jet, check www.NHRA.com for a full list of throttle bodies for the 2008-2012 Cobra Jet

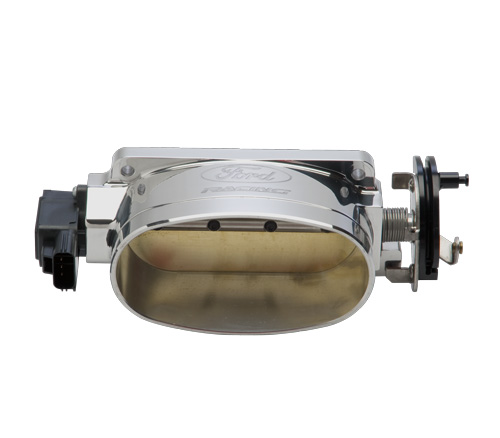

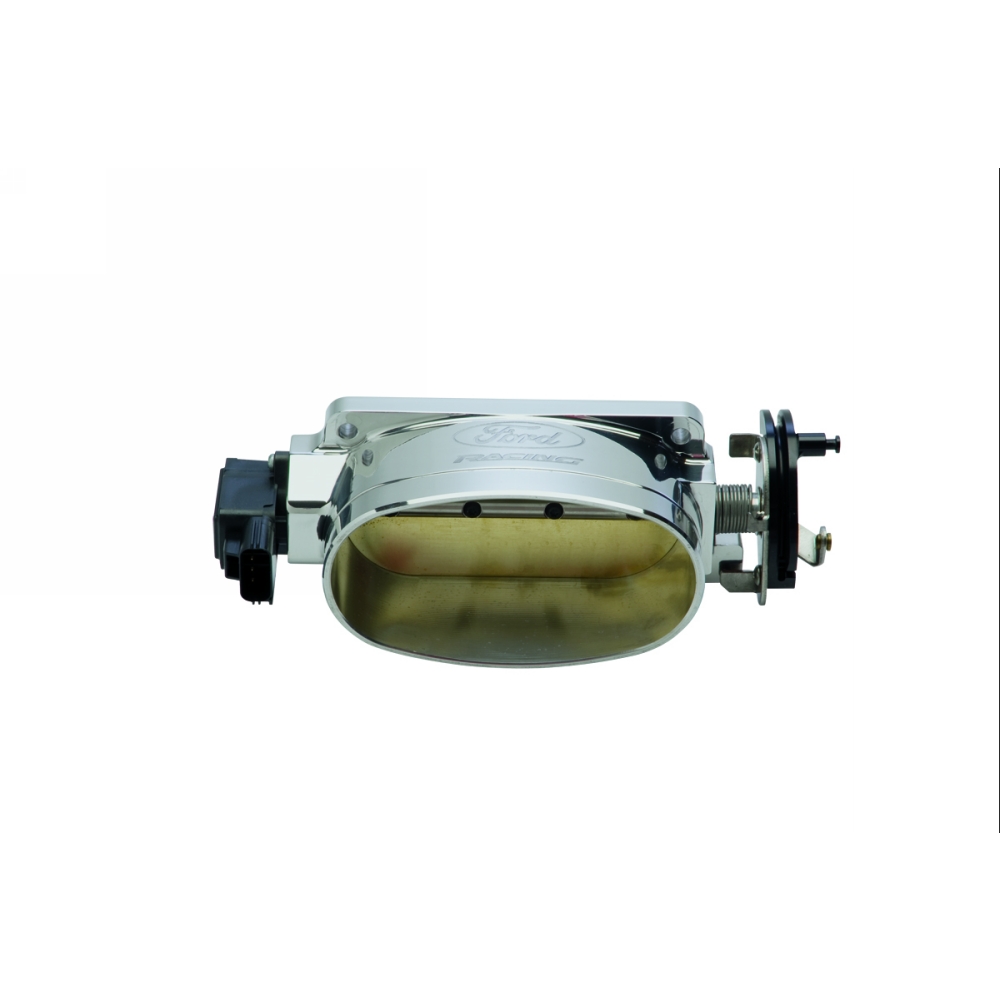

M-9926-SCJM SUPER COBRA JET MECHANICAL THROTTLE BODY
  • Billet aluminum mono-blade throttle body
  • Used for 2010 Super Cobra Jet engine applications running aftermarket engine control unit
  • Note- Requires aftermarket engine control system
Part Type
Engine: Intake Related
Warranty Availability
Not Available
Package Dimensions
5.5" x 5" x 12"
Package Weight
2.8 lb(s)
UPC Code
756122119884
Country of Origin
United States
