9MM SPARK PLUG WIRE SETS - "FORD RACING"

9MM SPARK PLUG WIRE SETS - "FORD RACING"
M-12259-C302
Retail
$55.95
Sold in Units of
Each (1)
Instruction Sheet
Not Available

WARNING:
This part has been designed and is intended for off-highway application only. Installation of this part on a vehicle that is driven on public roads may violate U.S. and Canadian laws and regulations relating to emission requirements and motor vehicle safety standards.
    9MM SPARK PLUG WIRE SETS - "FORD RACING"

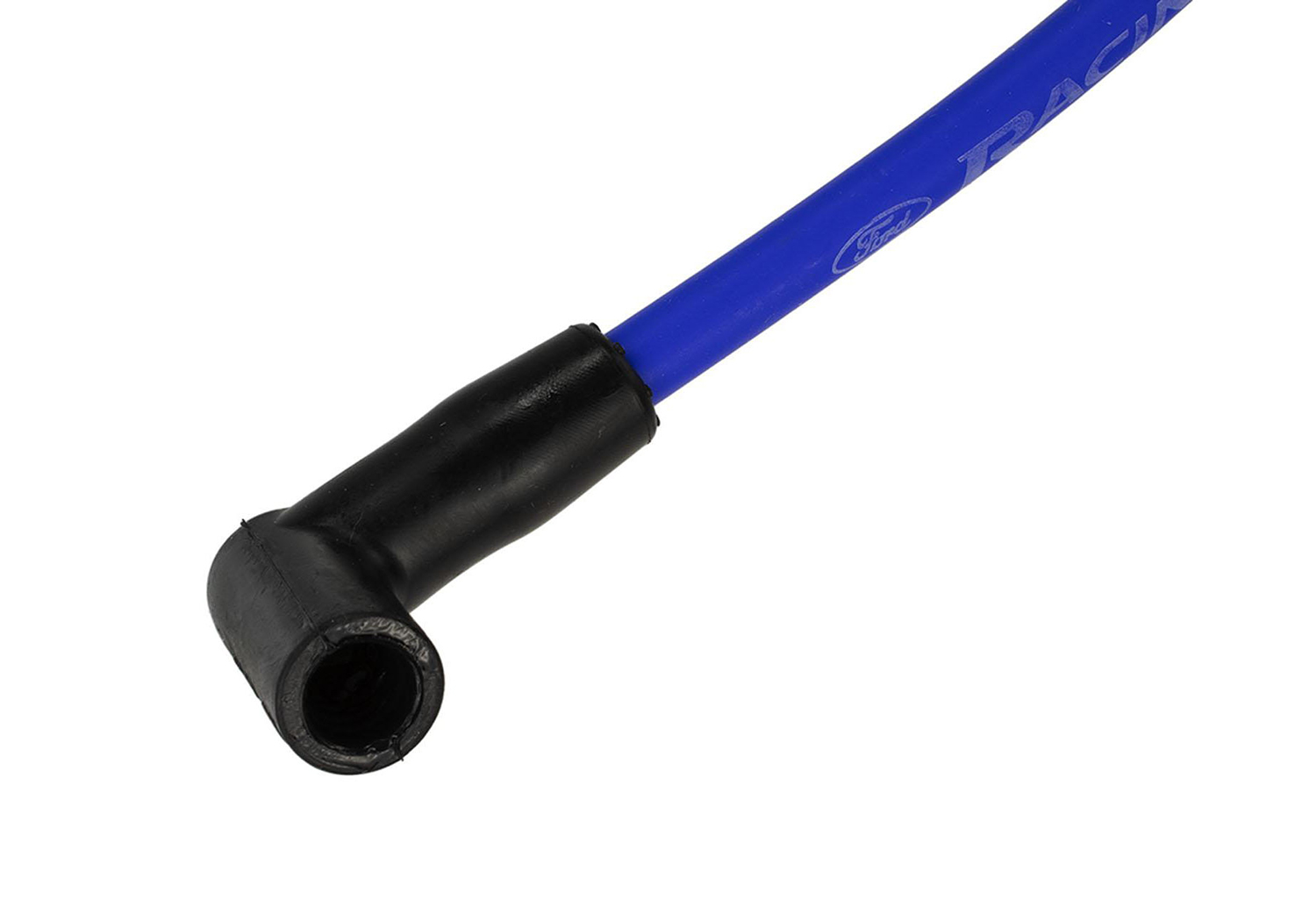

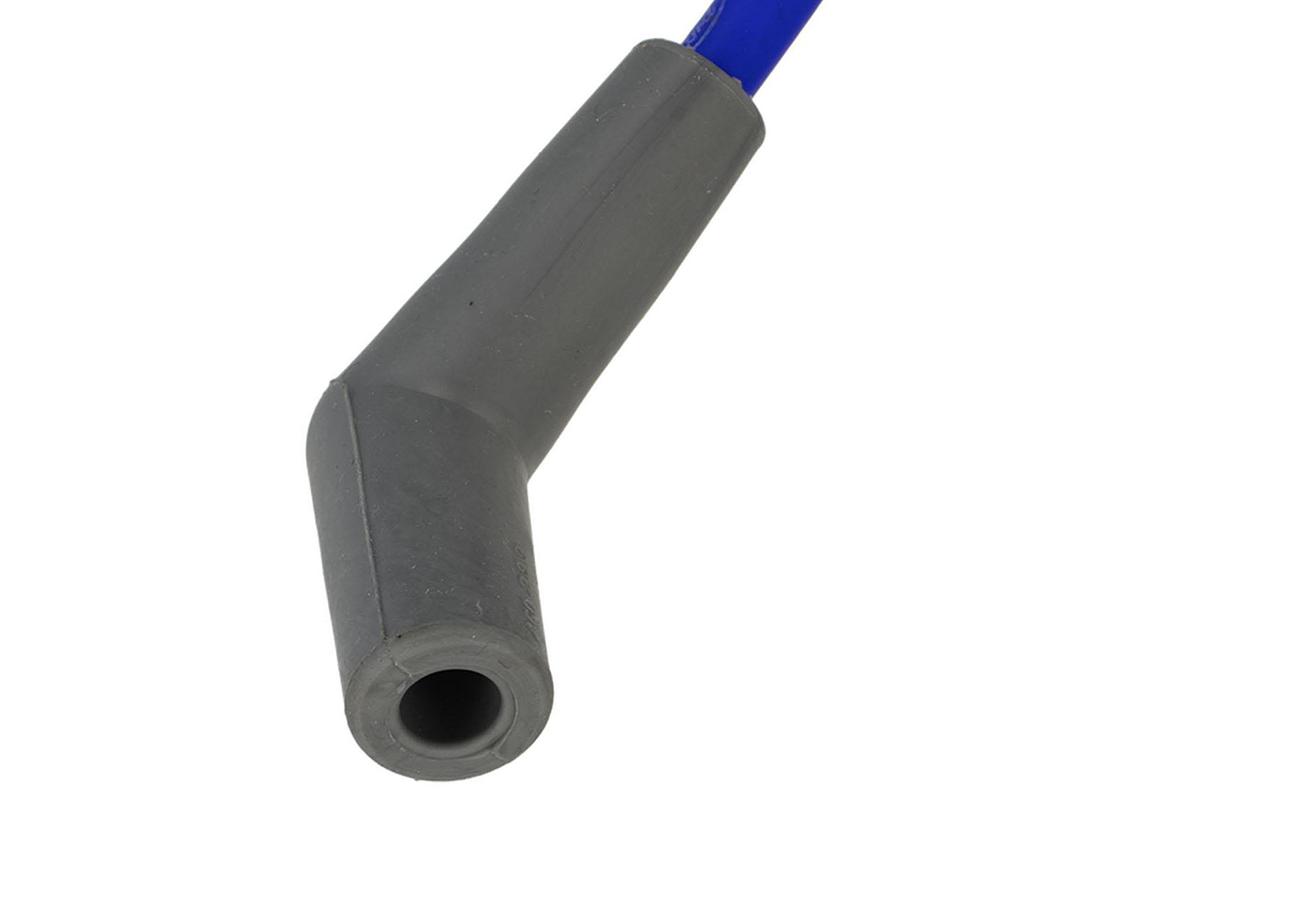

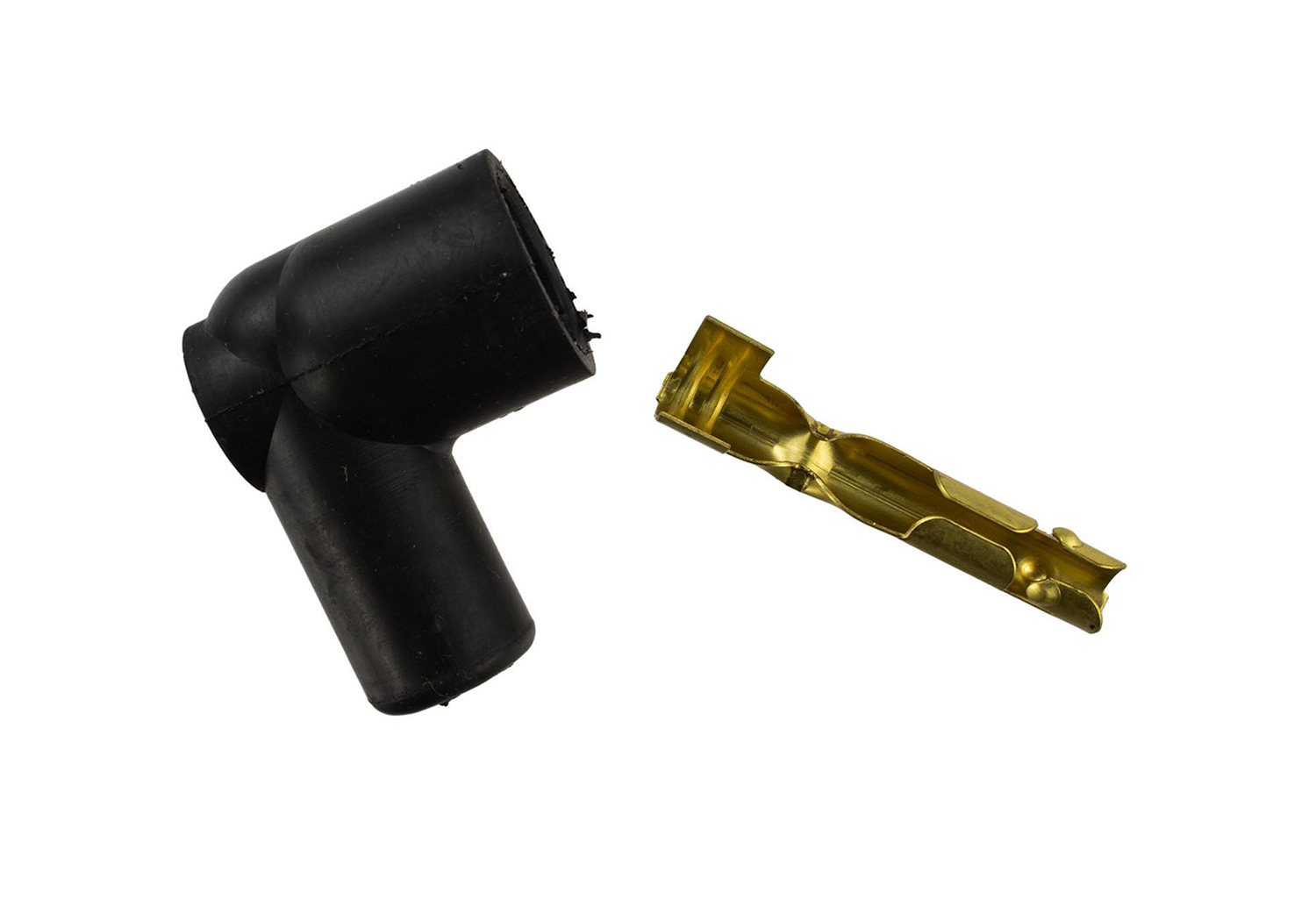

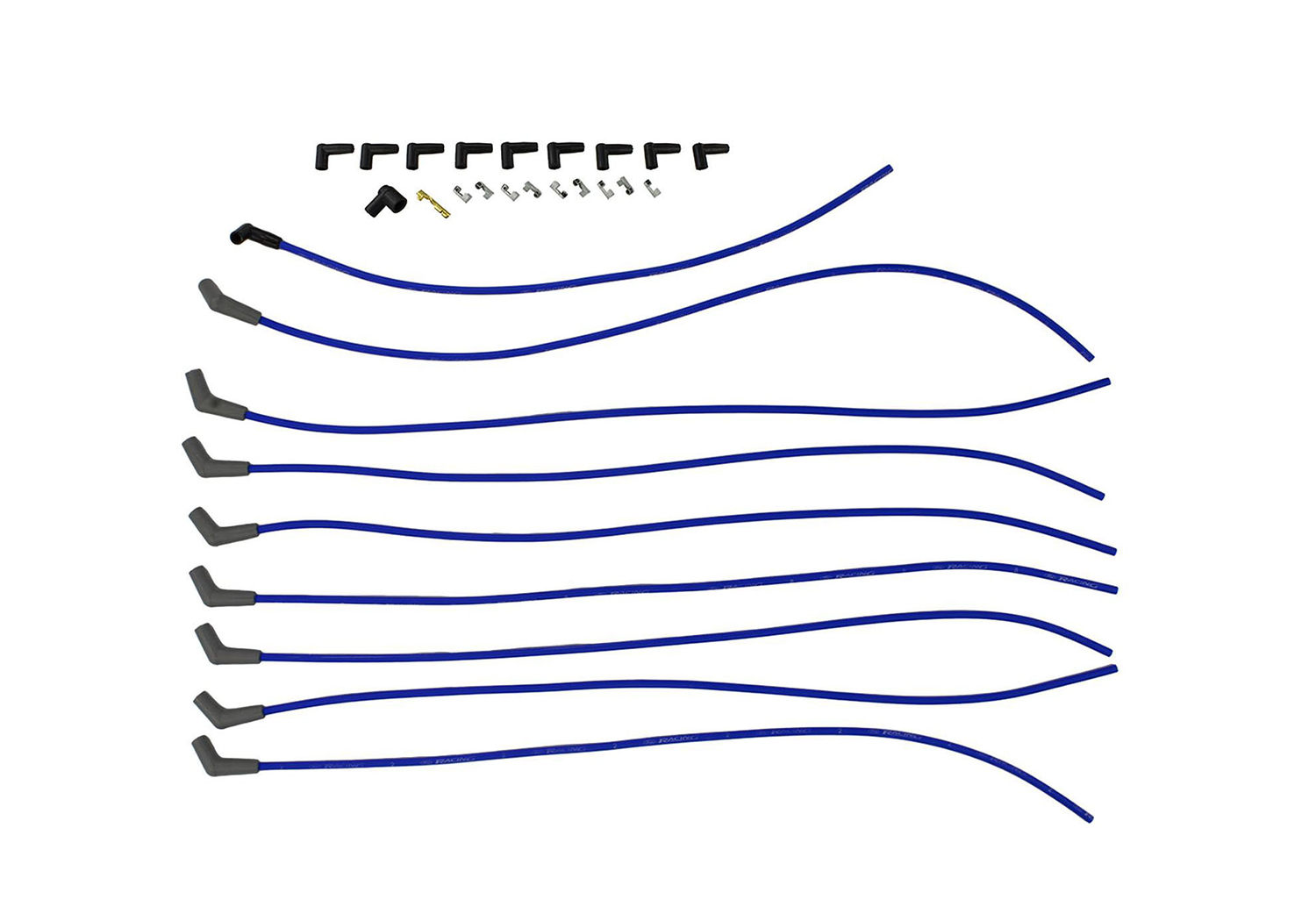

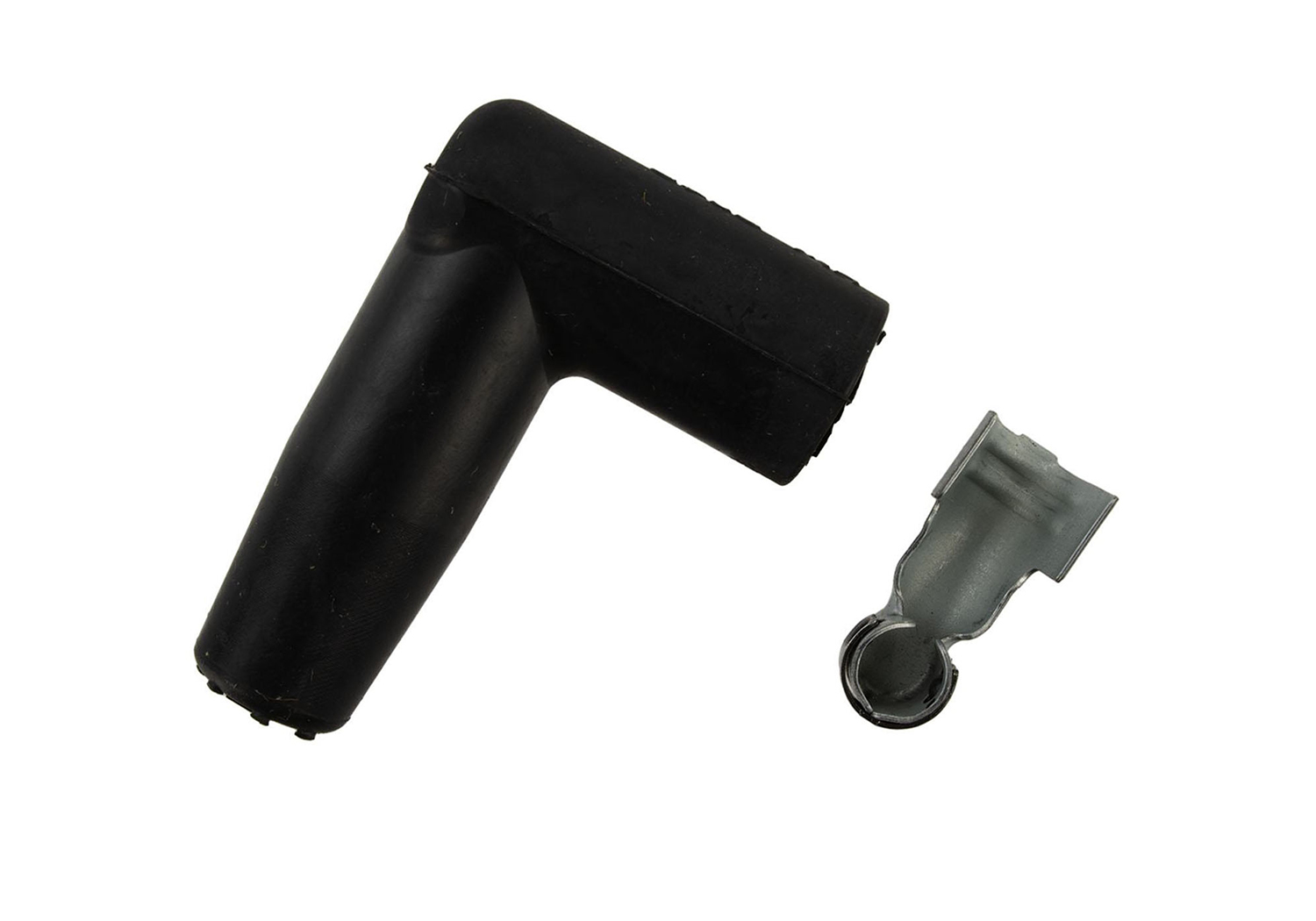

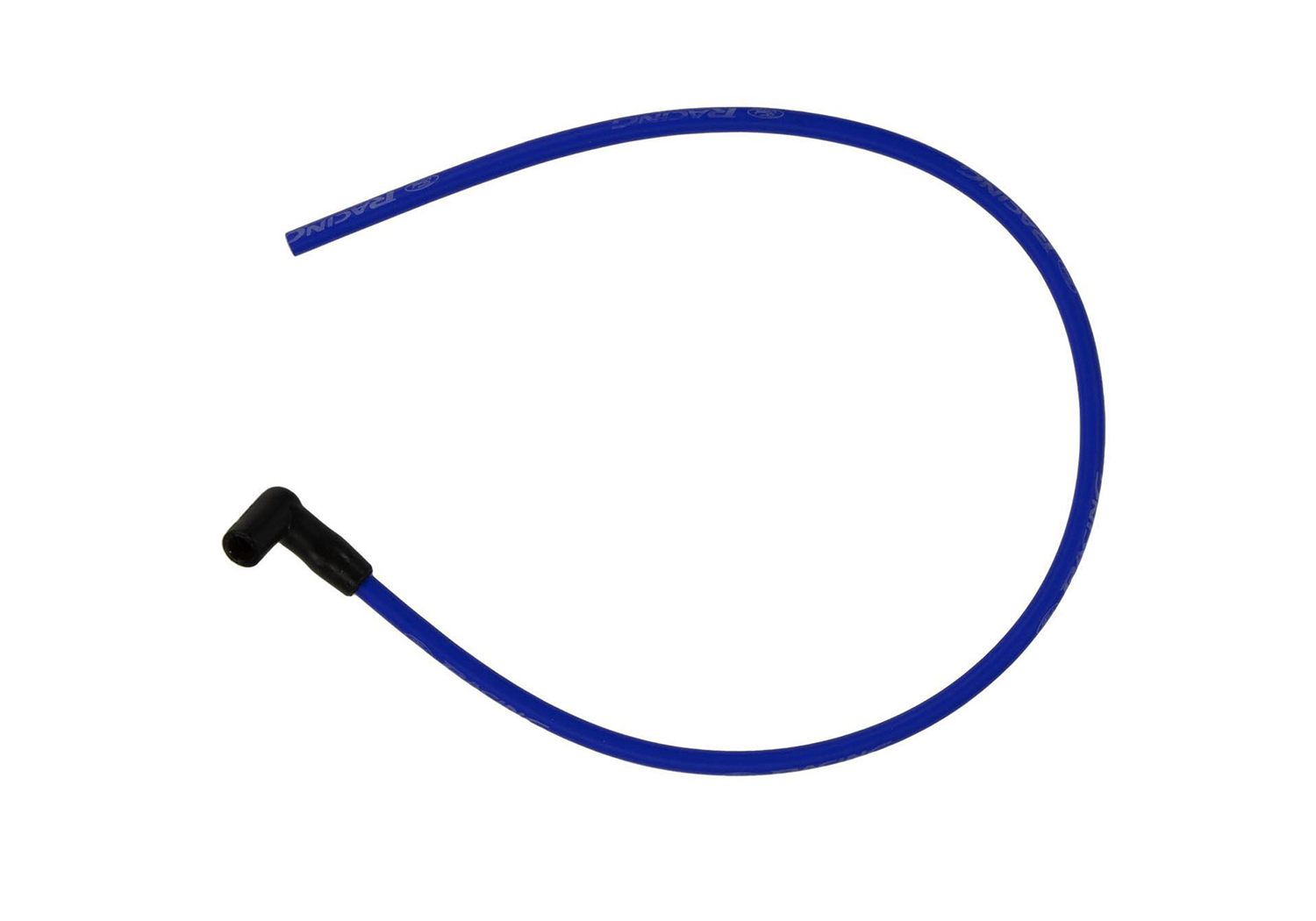

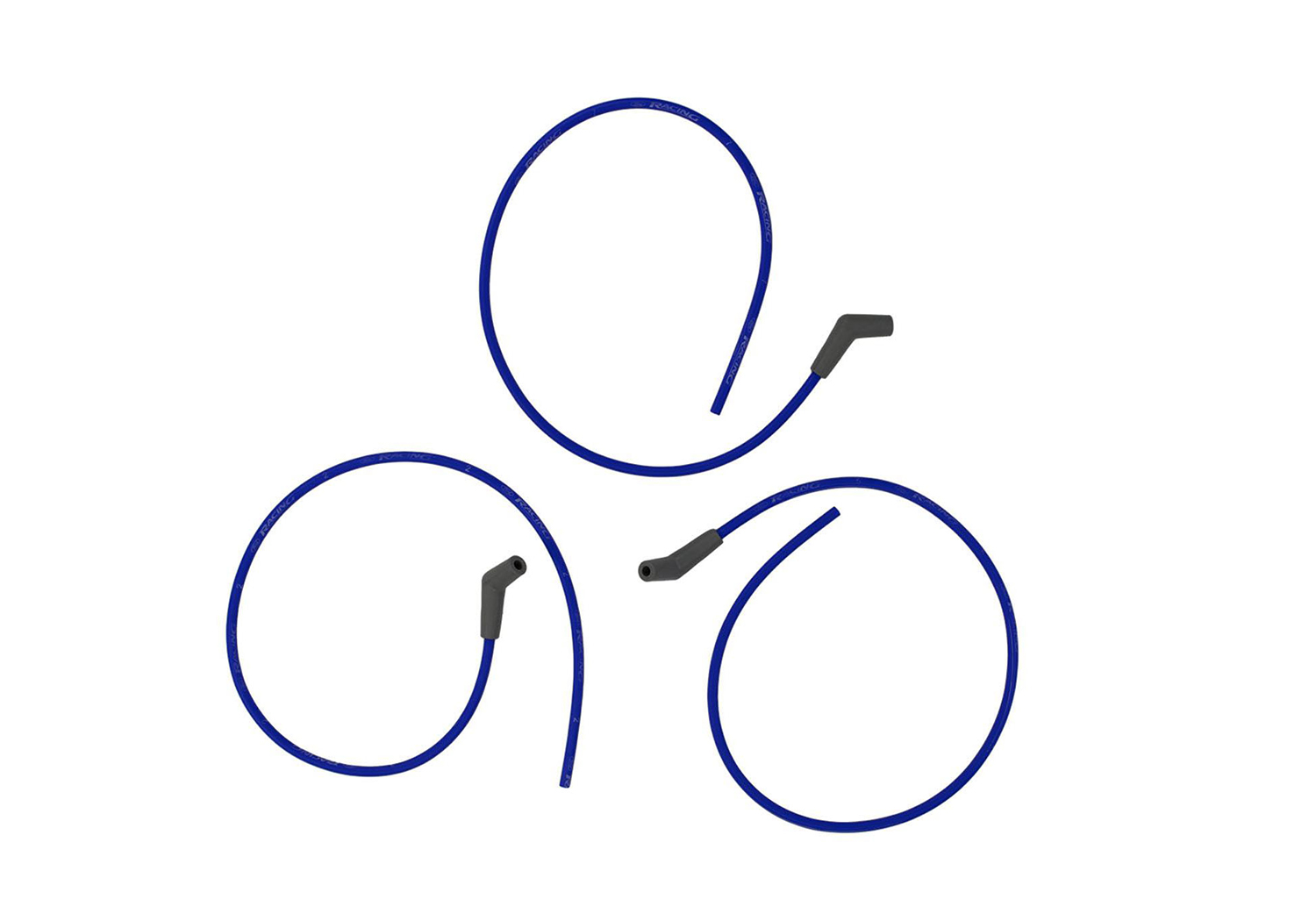

    Wire-wound custom ignition wire sets feature low resistance for minimum spark loss. Silicone insulation and boots withstand high temperatures and voltage loss for minimum cross-fire and are highly resistant to fuels, oils and solvents. Long-life, tough stainless steel terminals for “post” type distributor caps. Includes coil wire for socket-type coil and “Ford Racing” identification. Cylinder number appears on each wire.

    NEW AND IMPROVED Spark plug wires feature high quality 9mm wire available in 4 colors: blue, black, yellow and red.
    PART NUMBERAPPLICATIONWIRE COLOREND CONFIG.
    M-12259-C301**5.0/5.8L V-8 EngineBlue45° Boot
    M-12259-R301**5.0/5.8L V-8 EngineRed45° Boot
    M-12259-M301**5.0/5.8L V-8 EngineBlack45° Boot
    M-12259-Y301**5.0/5.8L V-8 EngineYellow45° Boot
    M-12259-C460**7.0/7.5L V-8 EngineBlue45° Boot
    M-12259-R460**7.0/7.5L V-8 EngineRed45° Boot
    M-12259-C302**V-6 & V-8 UniversalBlue45° Boot
    M-12259-M302**V-6 & V-8 UniversalBlack45° Boot
    M-12259-C462**4.6L 2V MustangBlue45° Long Boot
    M-12259-R462**4.6L 2V MustangRed45° Long Boot
    M-12259-C464**4.6L 4V MustangBlue45° Long Boot
    M-12259-R464**4.6L 4V MustangRed45° Long Boot
    M-12259-T462**4.6L 2V F-150 TruckBlue45° Long Boot

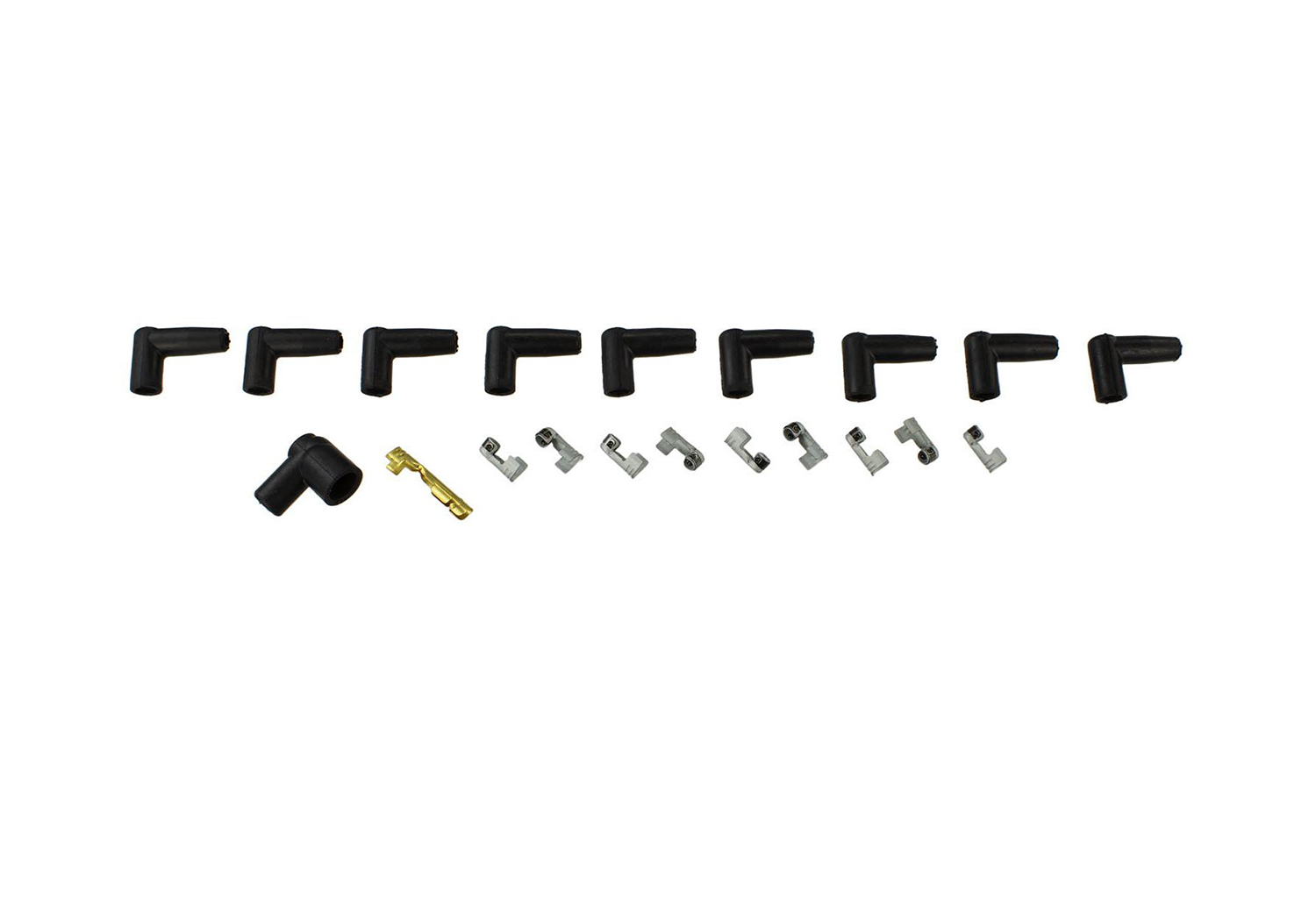

    NOTES: Universal sets can be cut to length with a crimping tool. Includes terminals for post and socket type coils, plus easy to follow instructions.
    Wire sets M-12259-C301/R301/M301/Y301/C302/M302 do not fit distributorless ignition system (DIS) 5.0L/302 Explorer engines. The universal wire sets do not fit distributorless ignition system (DIS).
Part Type
Electrical: Ignition Related
Warranty Availability
Not Available
Packaged Dimensions
7.75" x 3.25" x 11.25
Packaged Weight
2.9 lb(s)
Part Type
Electrical: Ignition Related
UPC Code
756122122310
Country of Origin
Mexico
California Executive Order
No
