9MM SPARK PLUG WIRE SETS - "FORD RACING"
M-12259-R301
This part is in your Wish List
This part has been added to your Wish List
ATTENTION:
This part is intended as a replacement part for use only in the application(s)
identified in the product description. Installation of this part in a vehicle for
which it is not intended may violate U.S. and Canadian laws and regulations related
to motor vehicle emissions.
Rev up your engine's power with the striking red 9MM Ford Racing Ignition Wire Set. Engineered for peak performance, these durable wires minimize spark loss and resist high temperatures, guaranteeing a smooth, reliable drive every time.
-

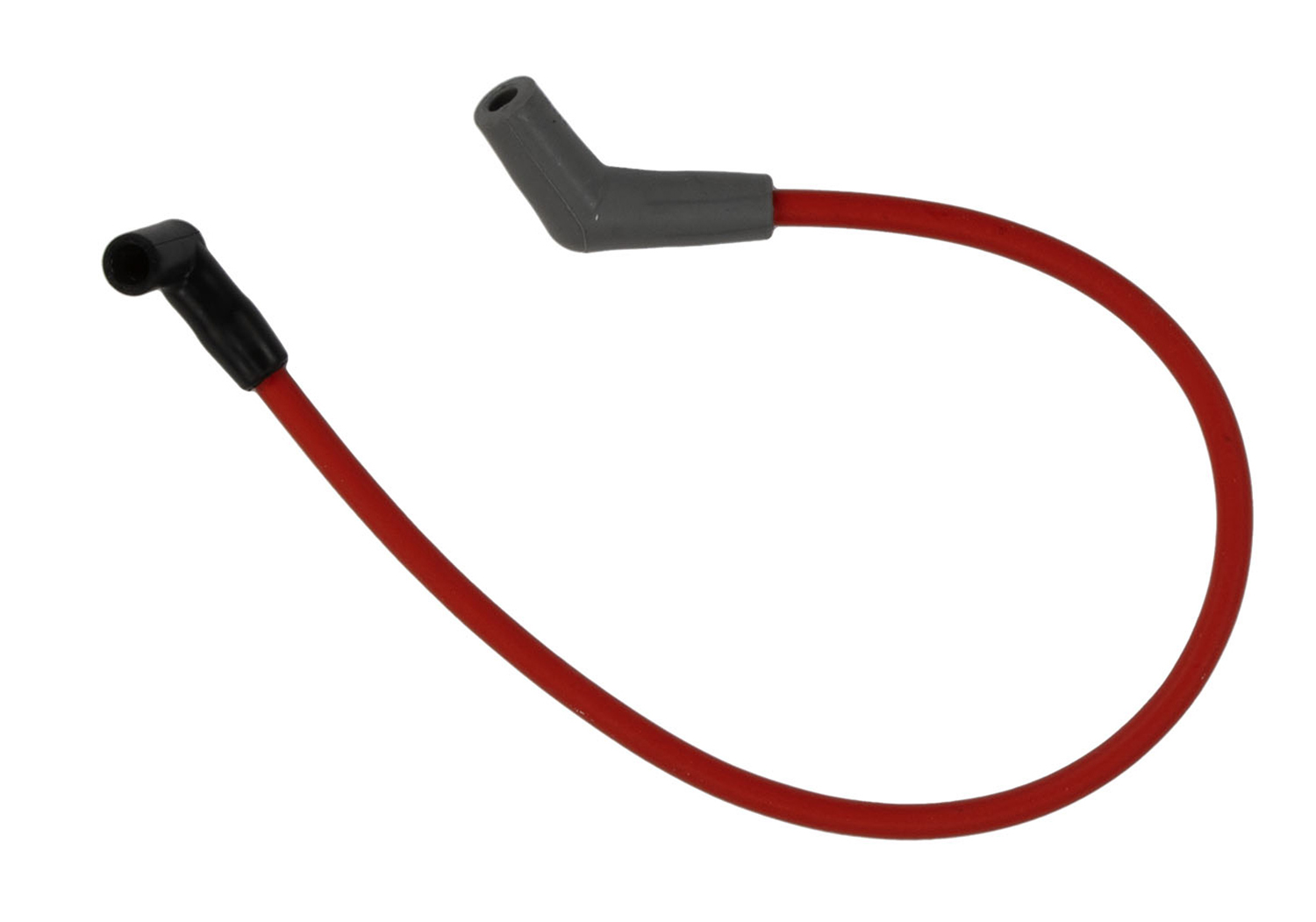

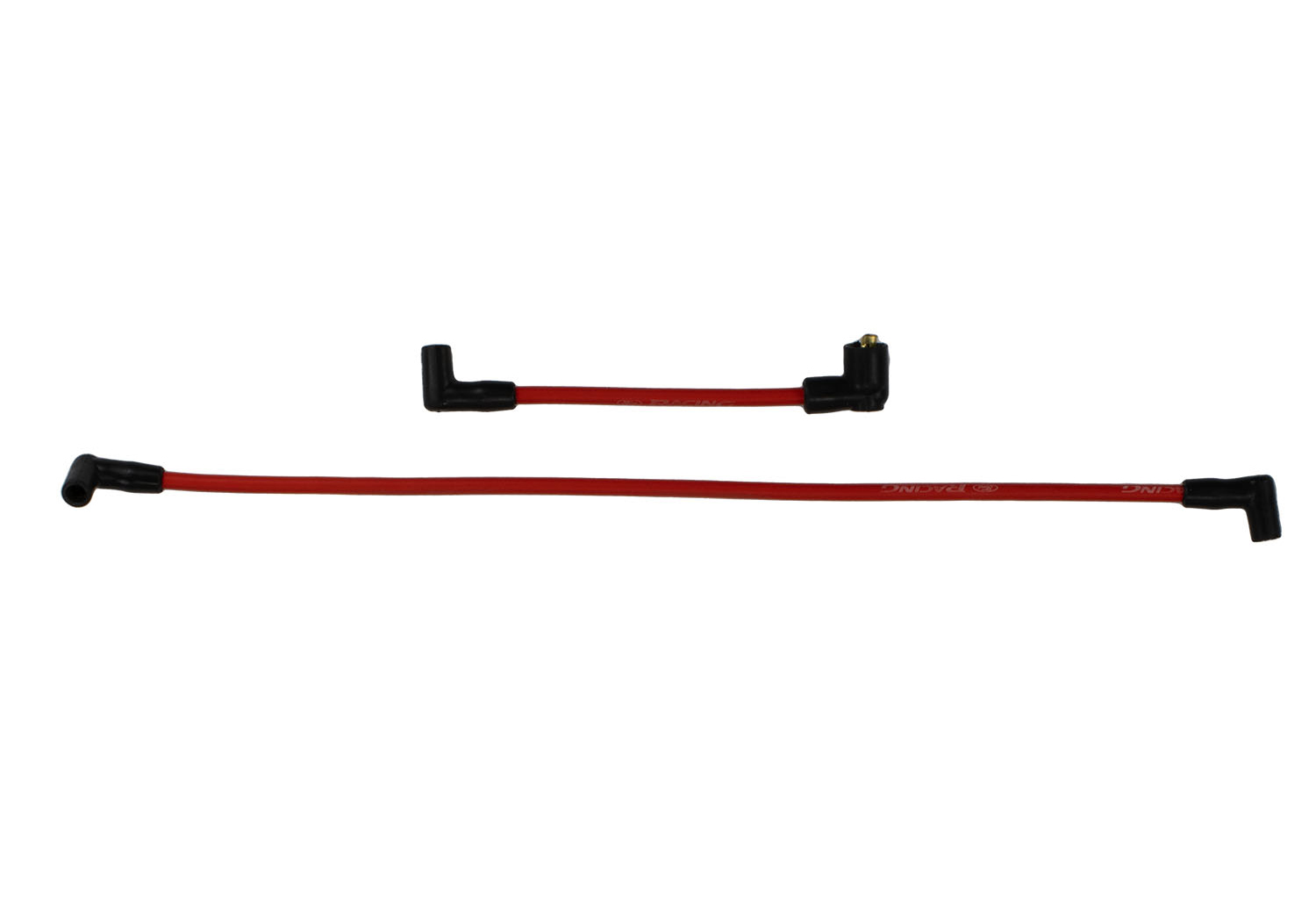

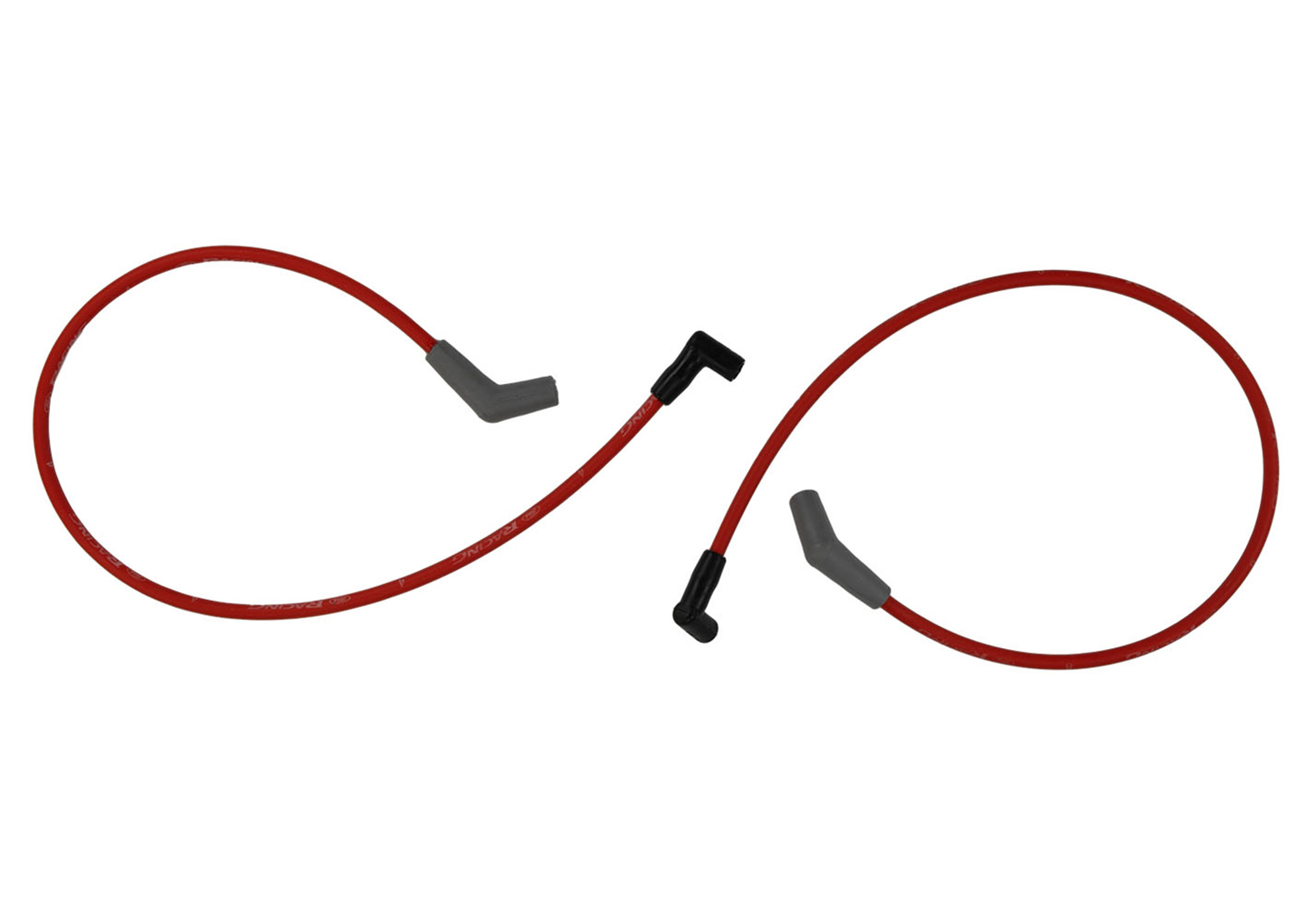

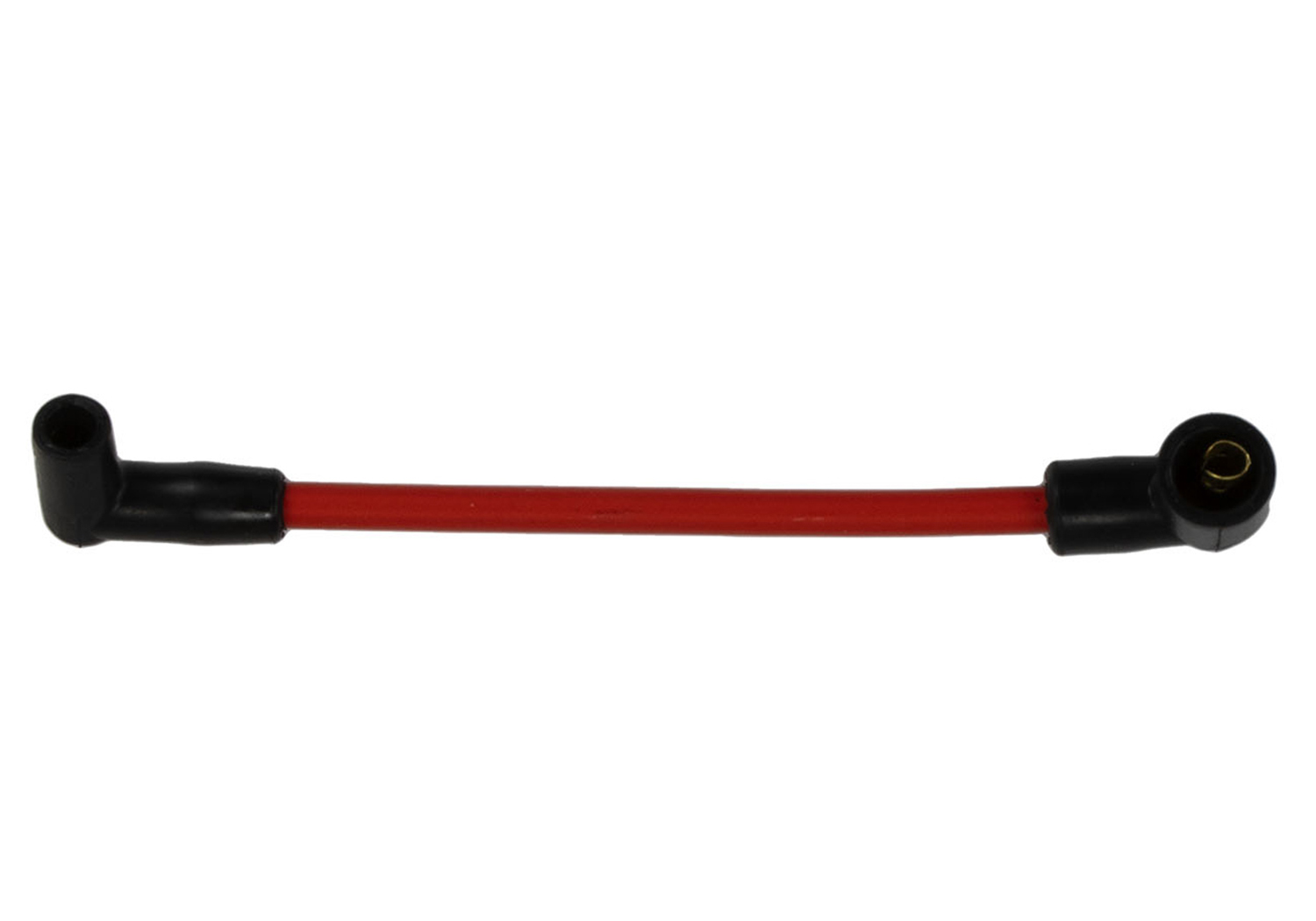

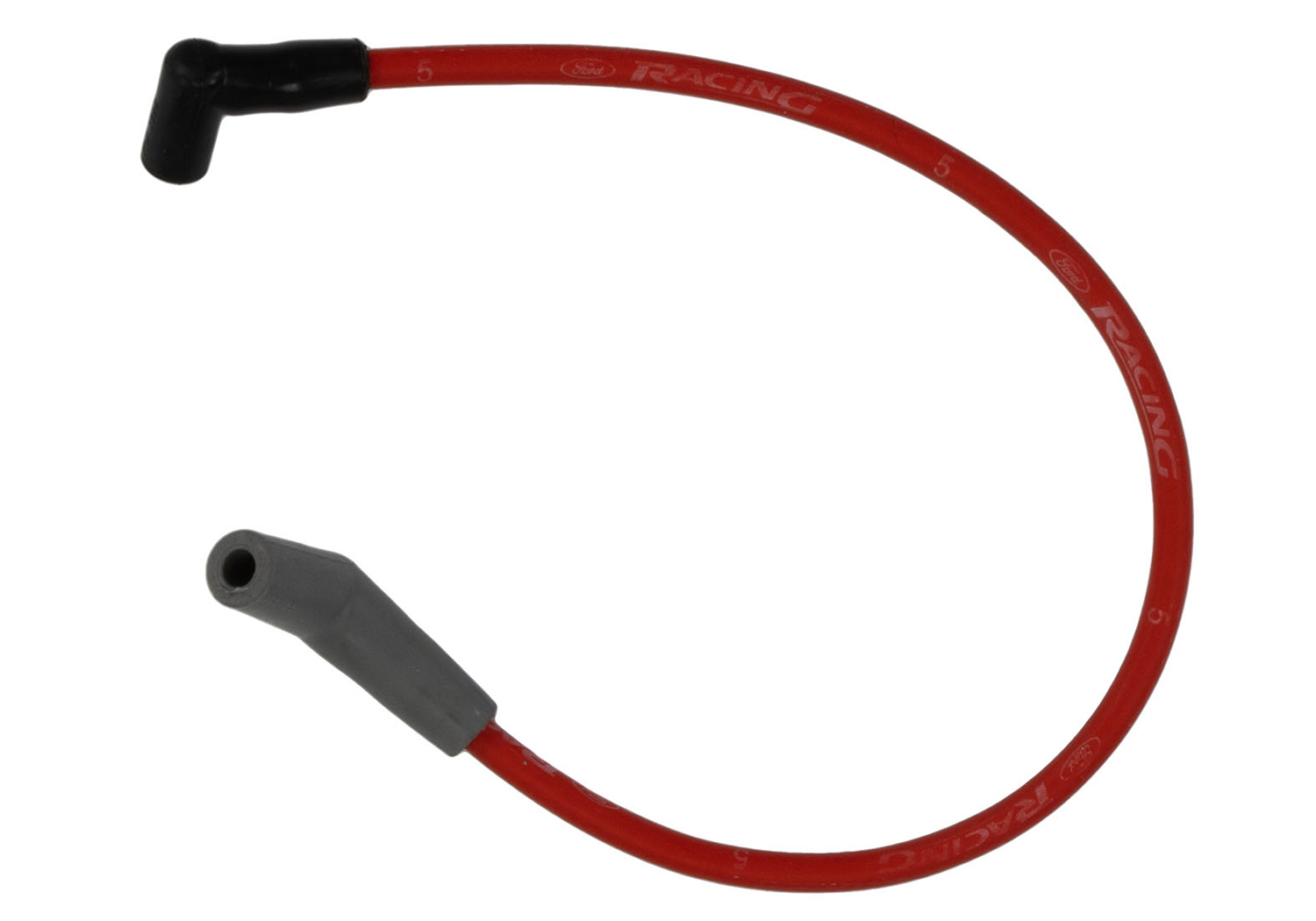

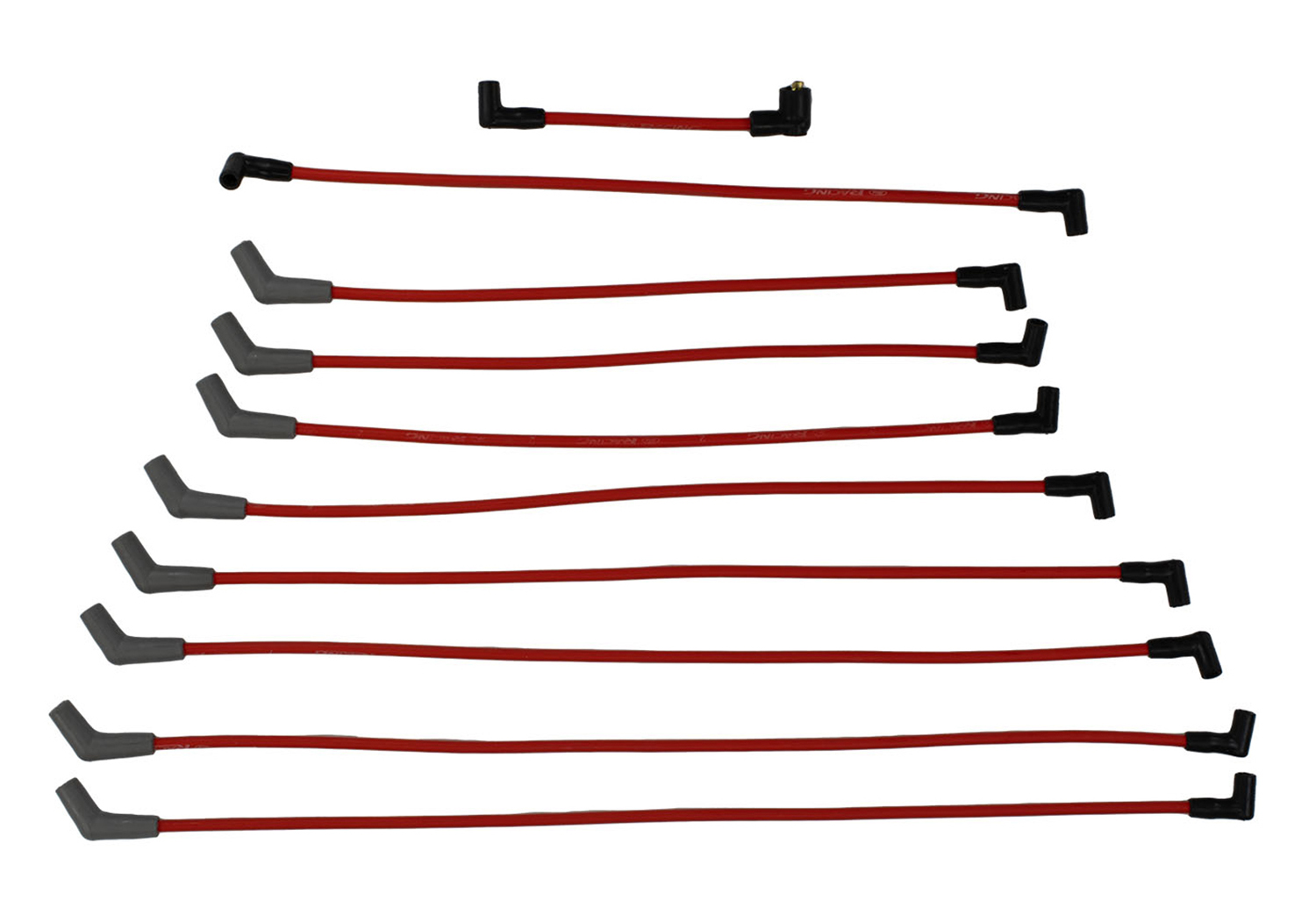

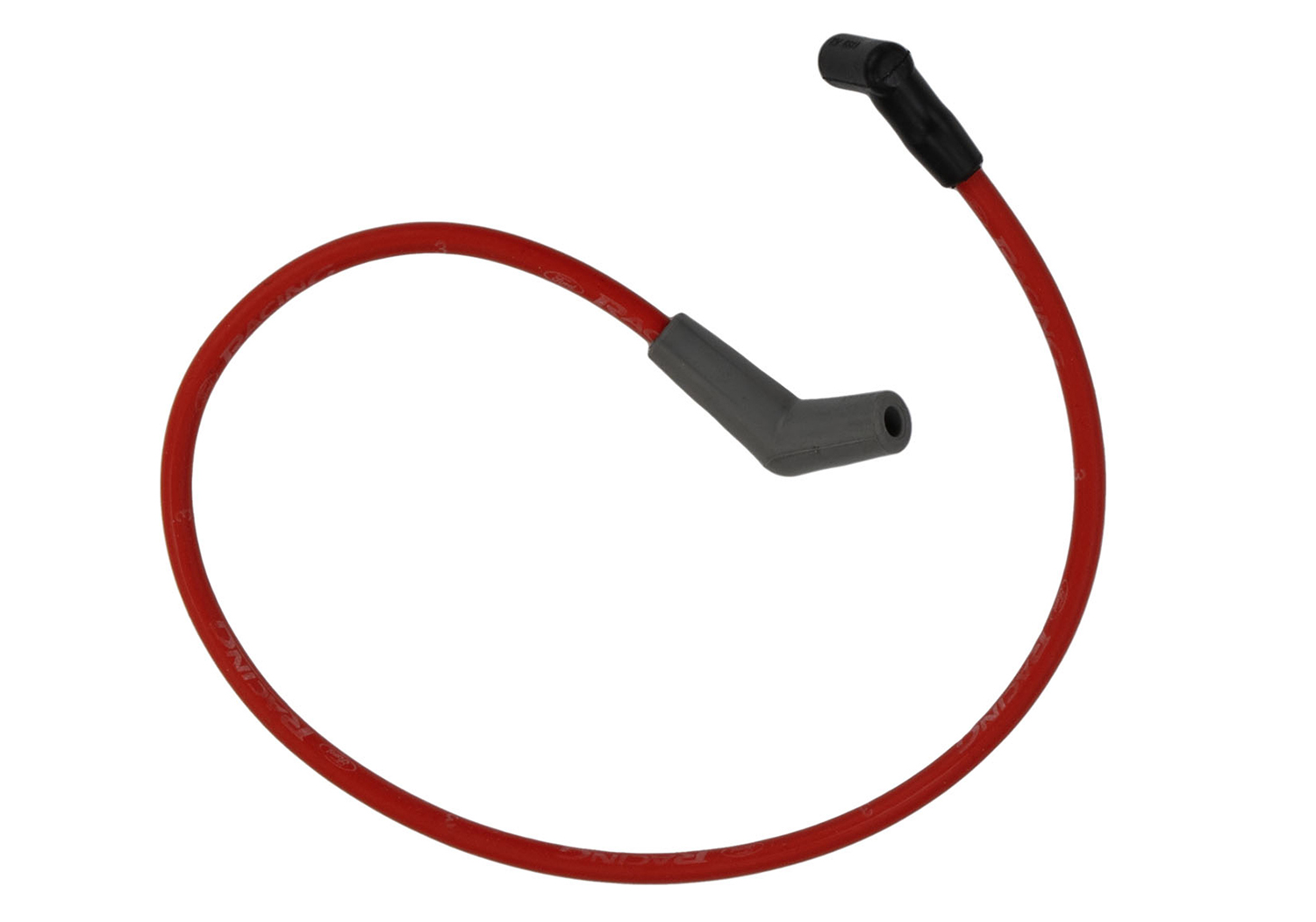

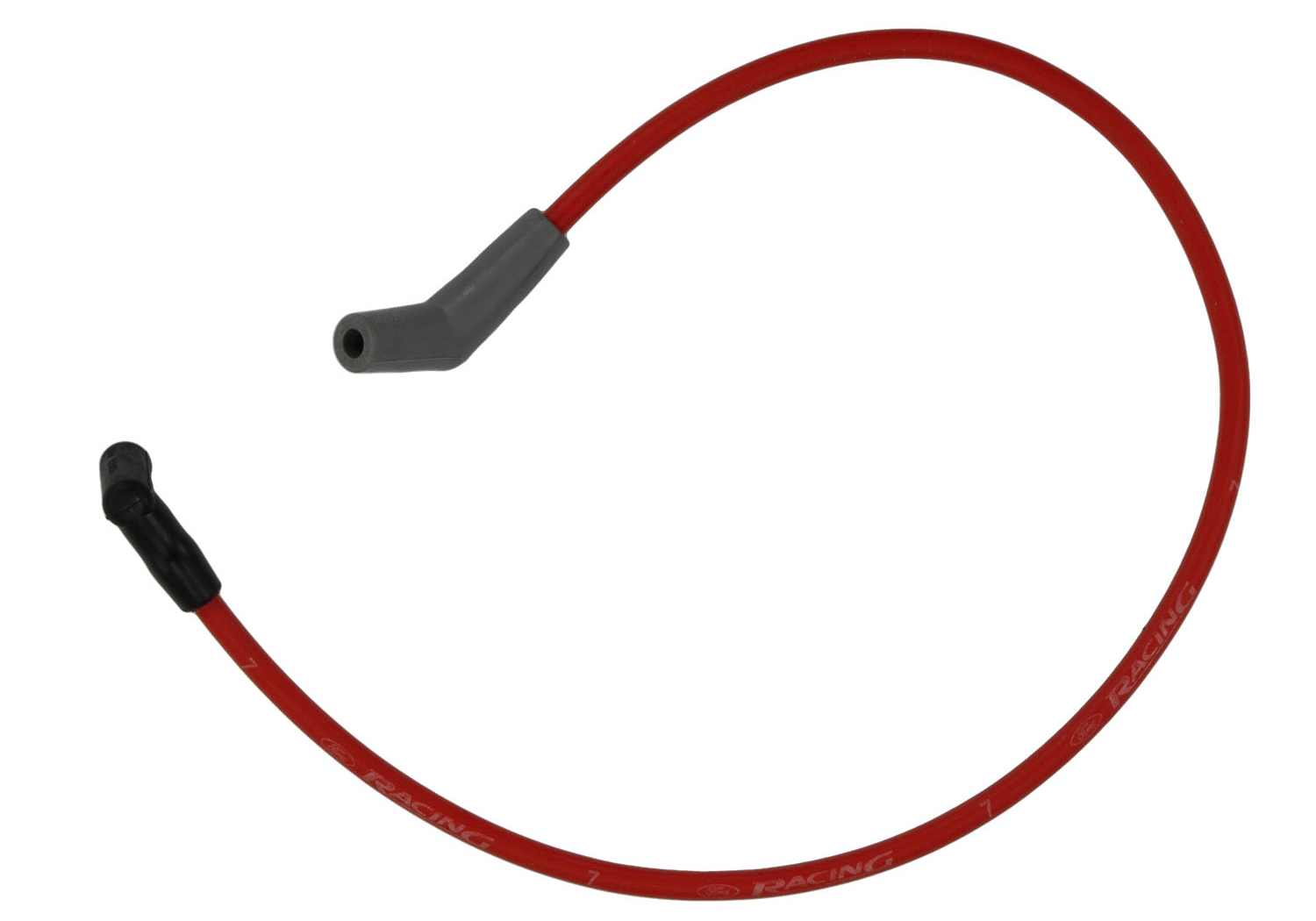

9MM FORD RACING SPARK PLUG WIRE SETS
Wire-wound custom 9MM ignition wire sets feature low resistance for minimum spark loss. Silicone insulation and boots withstand high temperatures and voltage loss for minimum cross-fire and are highly resistant to fuels, oils and solvents. Long-life, tough stainless steel terminals for “post” type distributor caps. Includes coil wire for socket-type coil and “Ford Racing” identification. Cylinder number appears on each wire and is available in 4 colors: blue, black, yellow and red.
| PART NUMBER | APPLICATION | WIRE COLOR | END CONFIG. |
| M-12259-C301** | 5.0/5.8L V-8 Engine | Blue | 45° Boot |
| M-12259-R301** | 5.0/5.8L V-8 Engine | Red | 45° Boot |
| M-12259-M301** | 5.0/5.8L V-8 Engine | Black | 45° Boot |
| M-12259-Y301** | 5.0/5.8L V-8 Engine | Yellow | 45° Boot |
| M-12259-C460** | 7.0/7.5L V-8 Engine | Blue | 45° Boot |
| M-12259-R460** | 7.0/7.5L V-8 Engine | Red | 45° Boot |
| M-12259-C302** | V-6 & V-8 Universal | Blue | 45° Boot |
| M-12259-M302** | V-6 & V-8 Universal | Black | 45° Boot |
| M-12259-C462** | 4.6L 2V Mustang | Blue | 45° Long Boot |
| M-12259-R462** | 4.6L 2V Mustang | Red | 45° Long Boot |
| M-12259-C464** | 4.6L 4V Mustang | Blue | 45° Long Boot |
| M-12259-R464** | 4.6L 4V Mustang | Red | 45° Long Boot |
| M-12259-T462** | 4.6L 2V F-150 Truck | Blue | 45° Long Boot |
Wire sets M-12259-C301/R301/M301/Y301/C302/M302 do not fit distributorless ignition system (DIS) 5.0L/302 Explorer engines. The universal wire sets do not fit distributorless ignition system (DIS).
Part Type
Electrical: Ignition Related
Warranty Availability
Package Dimensions
7.75" x 3.25" x 9"
Package Weight
2.4 lb(s)
UPC Code
756122122365
Country of Origin
Mexico
