VAVLE SPRINGS

This part is no longer available.

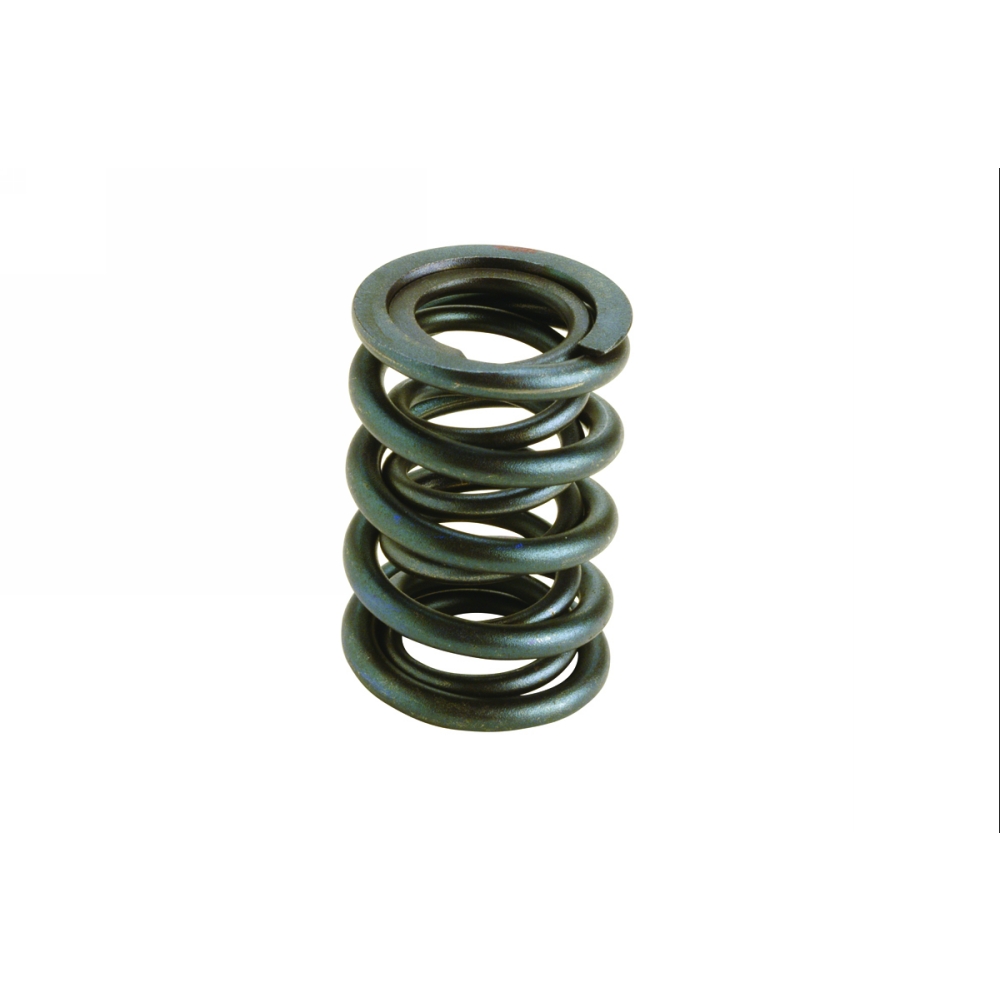

VAVLE SPRINGS
M-6513-A351
Instruction Sheet
Not Available
    VALVE SPRINGS 1 2
    PART NUMBER APPLICATION TYPE I.D. O.D. MINIMUM LOADS -
    CLOSED    		 NEW SPRINGS
    OPEN    		 COILBIND
    M-6513-A50 289/302/351W
    with Ford Racing,
    GT-40 cylinder heads.
    (pkg. of 16) 5 6 7    		 Single 3 .970" 1.500" 123 lbs. @ 1.800" 303 lbs. @ 1.250" 1.150"
    M-6513-A351 289/302/351W/460 6 Dual 4 0.800" 1.460" 135 lbs. @ 1.850" 365 lbs. @ 1.250" 1.050"
    M-6513-BH M-6049-Z304DA
    Ford Racing
    Cylinder Heads    		 Single
    BeehiveTM
    Conical    		 0.656"
    0.885"    		 1.055"
    1.290"    		 130 lbs. @ 1.800" 318 lbs. @ 1.200" 1.150
    VALVE SPRING NOTES: 1 Valve springs with the same load rating (but with different color-coded stripes) may be packaged together. 2 1977 and later 302 engines have different installed heights for intake and exhaust valves. 3 With damper. 4 Requires nylon valve stem seal. 5 For use on production heads (see page 82) valve spring retainer chart and notes. 6 Sold in pkg. of 16. 7 Not recommended with stock rocker arm, may have interference.


Part Type
Engine: Valves / Springs
Warranty Availability
Not Available
Package Dimensions
5.75" x 4.5" x 8.75"
Package Weight
4.6 lb(s)
UPC Code
756122651100
Country of Origin
United States
