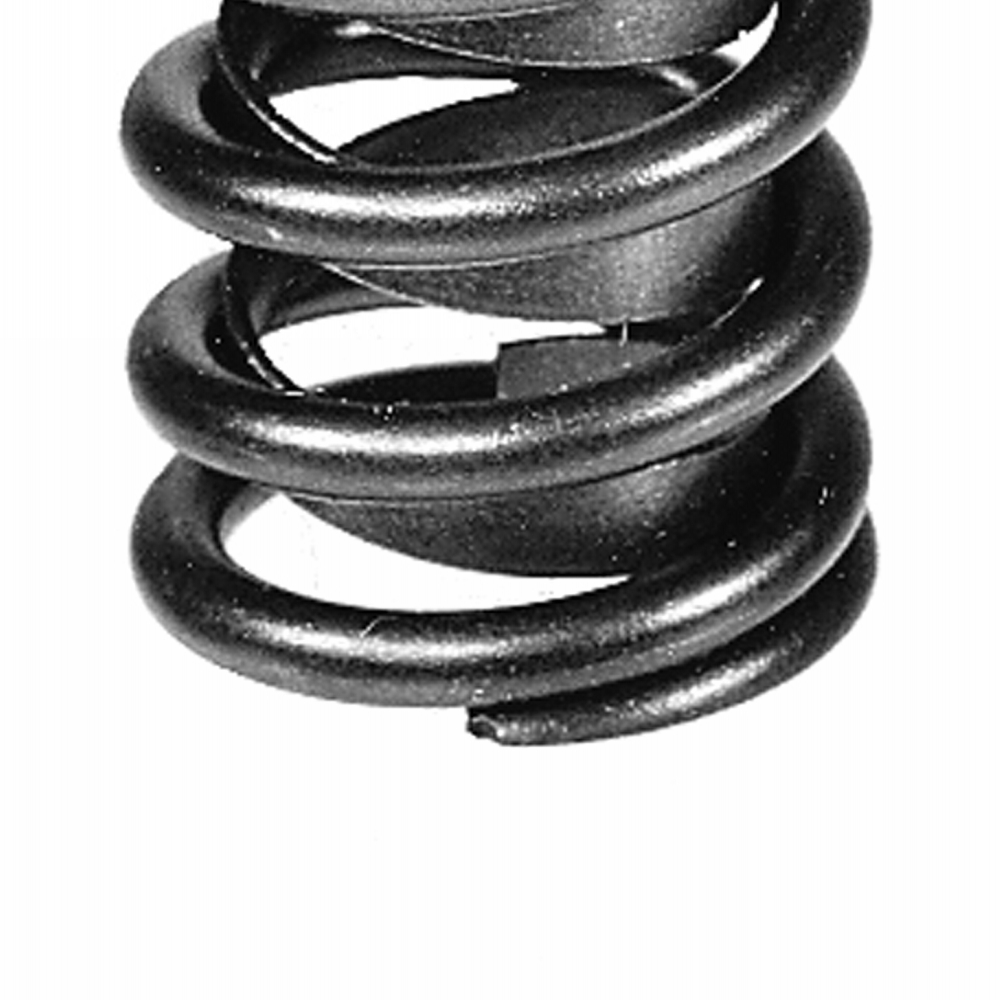

VALVE SPRINGS

This part is no longer available.
VALVE SPRINGS
M-6513-A50
Instruction Sheet
Not Available
    M-6513-A50
    VALVE SPRINGS 1 2
    PART NUMBERAPPLICATIONTYPEI.D.O.D.MINIMUM LOADS -
    CLOSED
    NEW SPRINGS
    OPEN
    COILBIND
    M-6513-A50289/302/351W
    with Ford Racing,
    GT-40 cylinder heads.
    (pkg. of 16) 5 6 7
    Single 3.970"1.500"123 lbs. @ 1.800"303 lbs. @ 1.250"1.150"
    M-6513-A351289/302/351W/460 6Dual 40.800"1.460"135 lbs. @ 1.850"365 lbs. @ 1.250"1.050"
    M-6513-BHM-6049-Z304DA
    Ford Racing
    Cylinder Heads
    Single
    BeehiveTM
    Conical
    0.656"
    0.885"
    1.055"
    1.290"
    130 lbs. @ 1.800"318 lbs. @ 1.200"1.150
    VALVE SPRING NOTES: 1 Valve springs with the same load rating (but with different color-coded stripes) may be packaged together. 2 1977 and later 302 engines have different installed heights for intake and exhaust valves. 3 With damper. 4 Requires nylon valve stem seal. 5 For use on production heads (see page 82) valve spring retainer chart and notes. 6 Sold in pkg. of 16. 7 Not recommended with stock rocker arm, may have interference.
Part Type
Engine: Valves / Springs
Warranty Availability
Not Available
Package Dimensions
5" x 4.5" x 10.25"
Package Weight
4 lb(s)
UPC Code
756122651117
Country of Origin
United States
