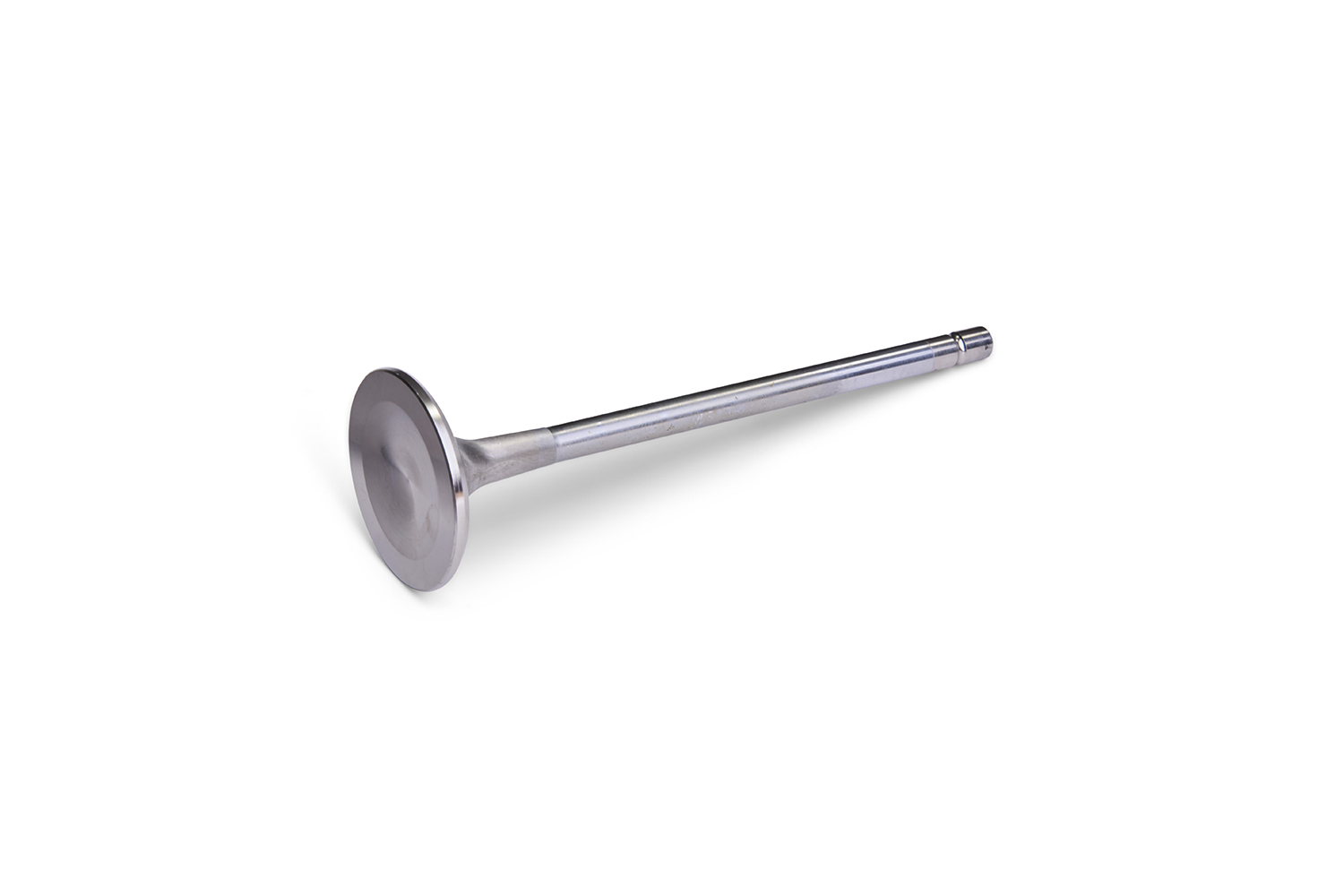

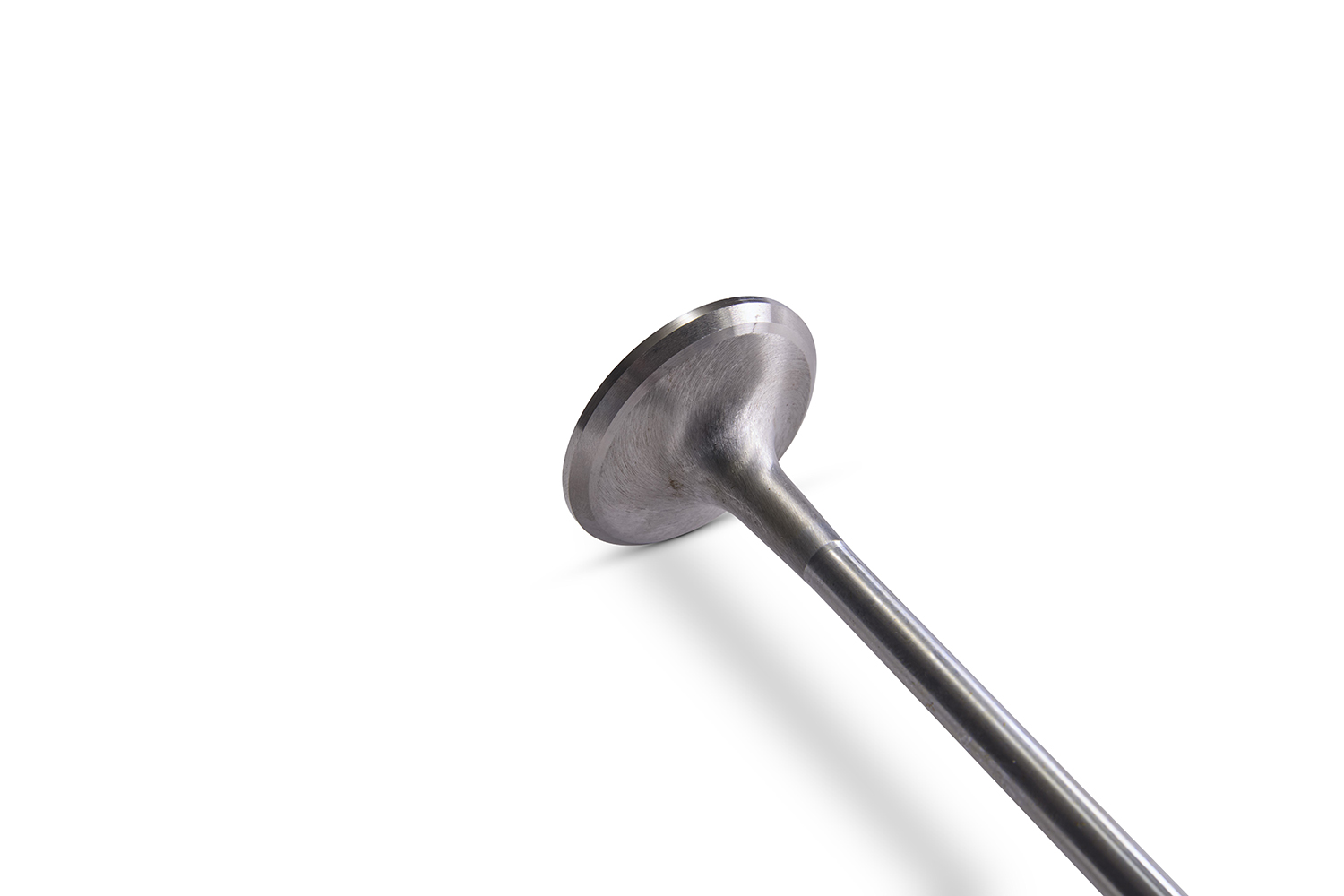

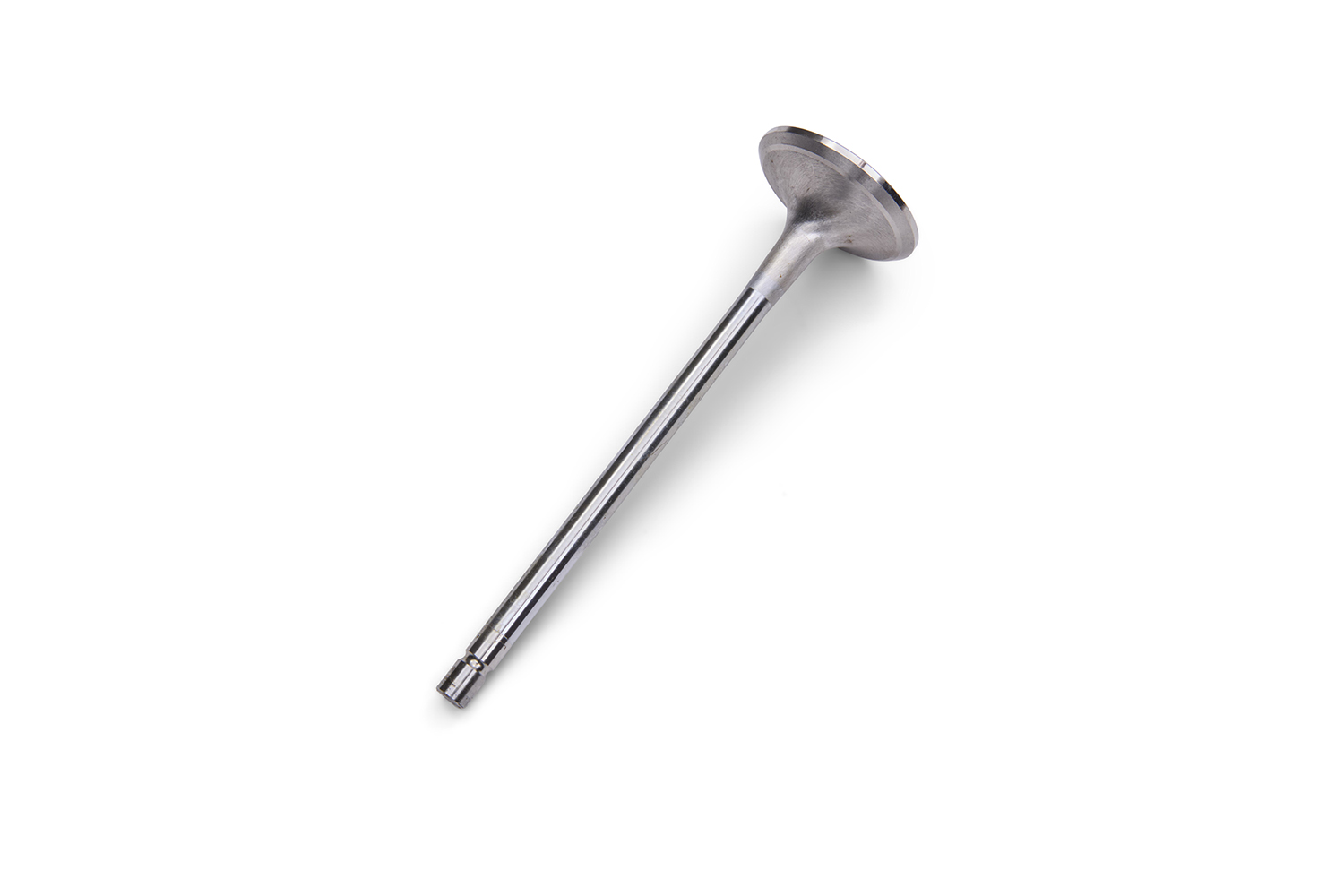

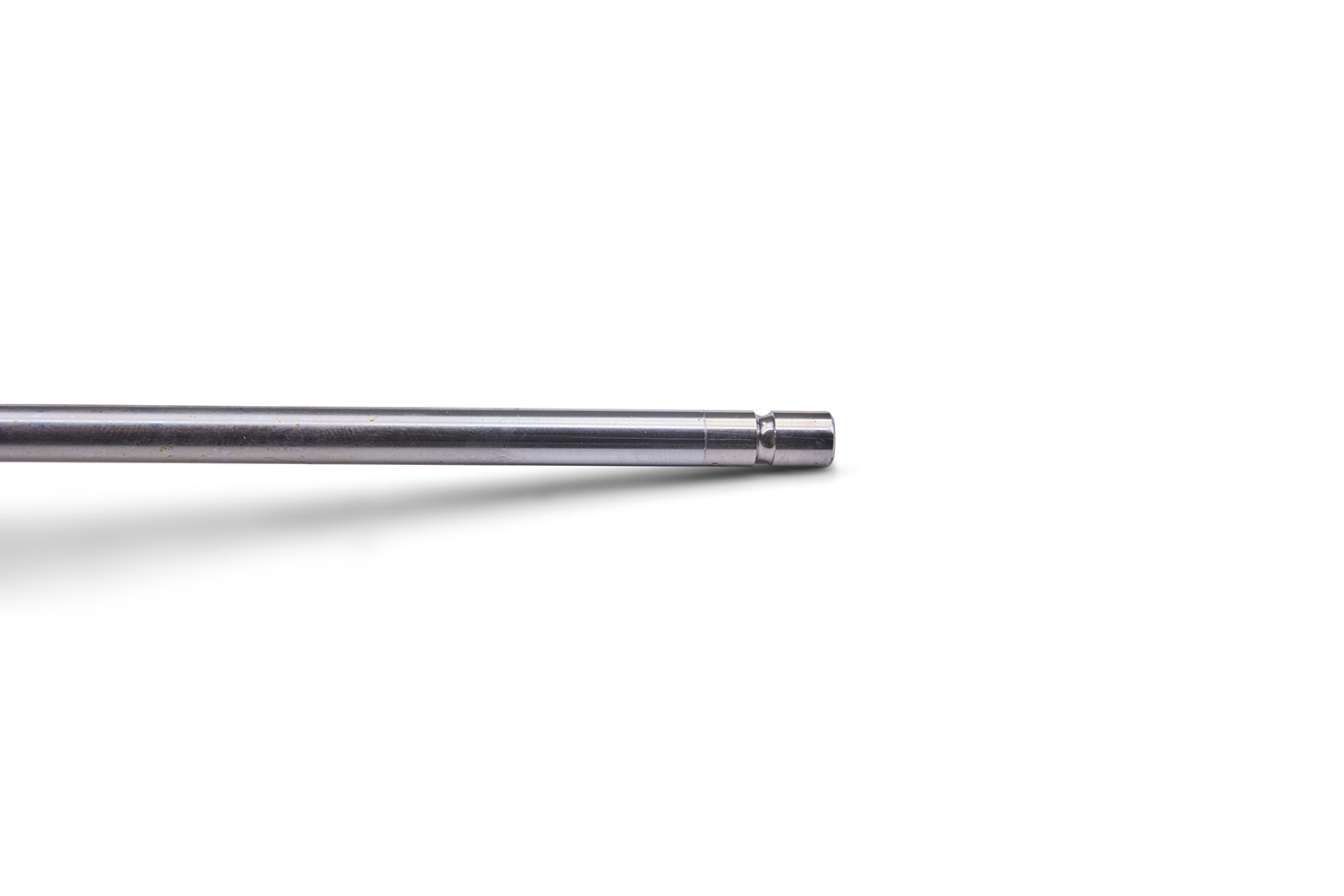

EXHAUST VALVE 7MM

EXHAUST VALVE 7MM
M-6505-D3047
Retail
$18.50
Sold in Units of
Each (1)
Instruction Sheet
Not Available

WARNING:
This part has been designed and is intended for off-highway application only. Installation of this part on a vehicle that is driven on public roads may violate U.S. and Canadian laws and regulations relating to emission requirements and motor vehicle safety standards.
EXHAUST VALVES - SINGLE GROOVE (SOLD INDIVIDUALLY)
PART NUMBERAPPLICATIONHEAD
DIAMETER
TIP
LENGTH
TOTAL
LENGTH
STEM
DIAMETER
GROOVE
TYPE
VALVE
WEIGHT
DESCRIPTION
M-6505-G302*GT-40 Iron Head
M-6049-L302/303
Ford Racing Aluminum Head M-6049-X306/X307
1.540"0.383"5.078"11/32"Square Cut120Premium stainless steel, swirl polished, under-cut stem.
M-6505-B304*M-6049-Z304D/Z304DA1.600"0.290"5.365"11/32"Square Cut120Premium stainless steel and swirl polished.
M-6505-D3047*M-6049-Z304DA71.600"0.340"5.365"7 MMBead lock95.4 gramsPremium stainless steel and swirl polished.
M-6505-A351*M-6049-N351/R3511.600"0.250"5.140"11/32"Square CutNAPremium stainless steel.
M-6505-A429*CJ/SCJ Aluminum
M-6049-A429/B429/C429,
M-6049-SCJ/SCJA/SCJB
1.760"0.250"5.050"11/32"Square Cut122.1 gramsPremium stainless steel.
Part Type
Engine: Valves / Springs
Warranty Availability
Not Available
Packaged Dimensions
2" x 2" x 7
Packaged Weight
0.3 lb(s)
Part Type
Engine: Valves / Springs
UPC Code
756122234150
Catalog Page Number
168
Country of Origin
Argentina
California Executive Order
No
