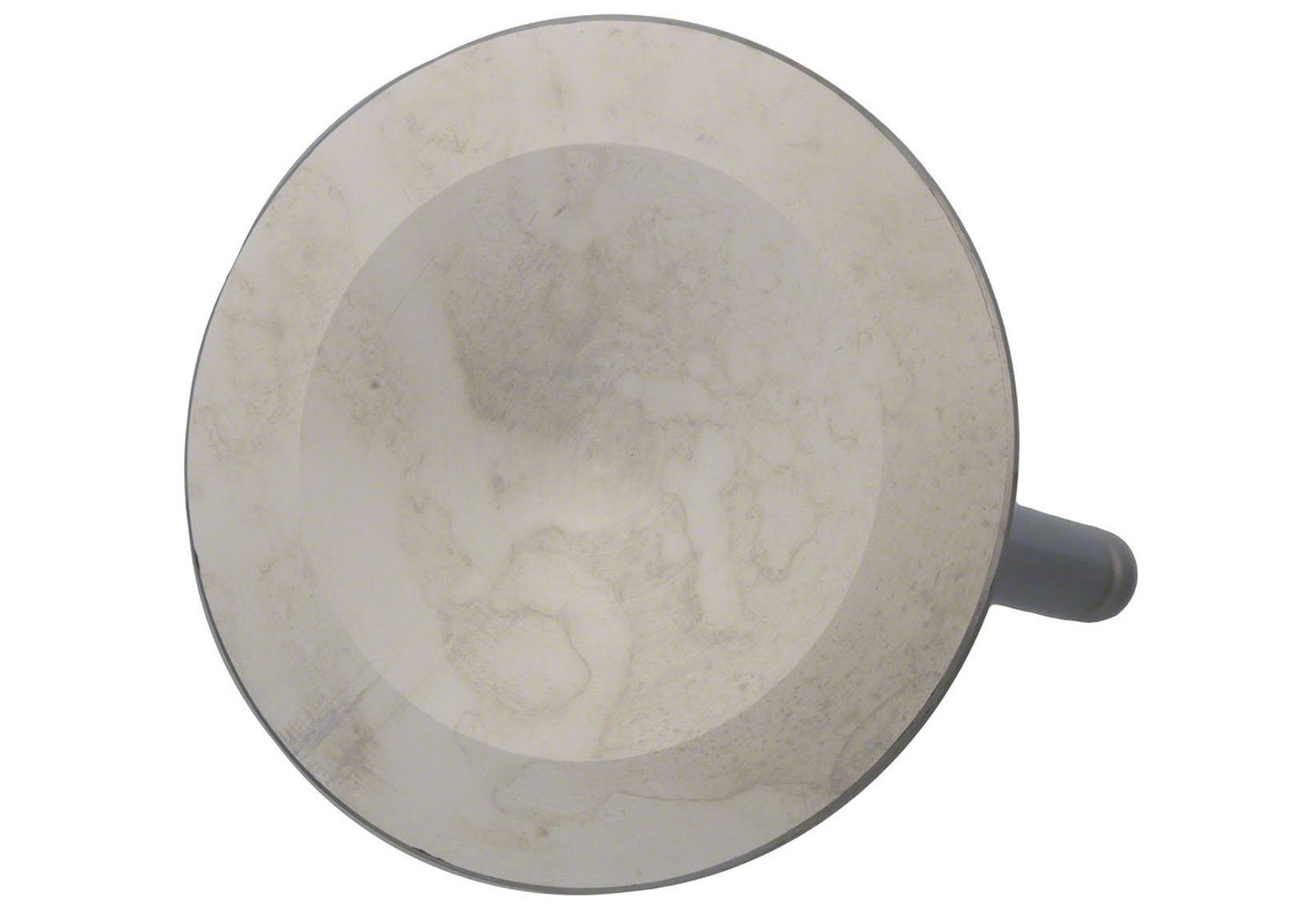

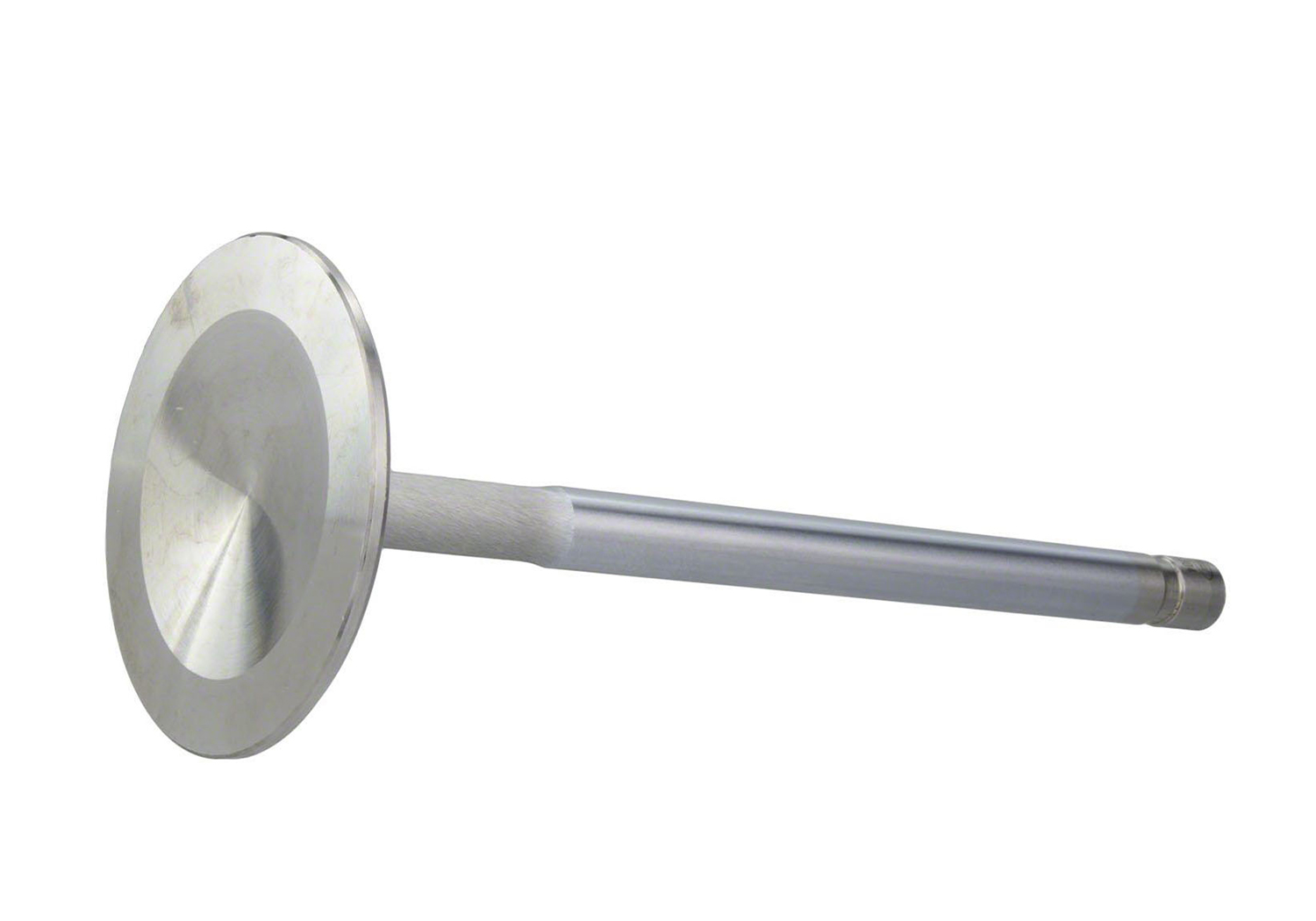

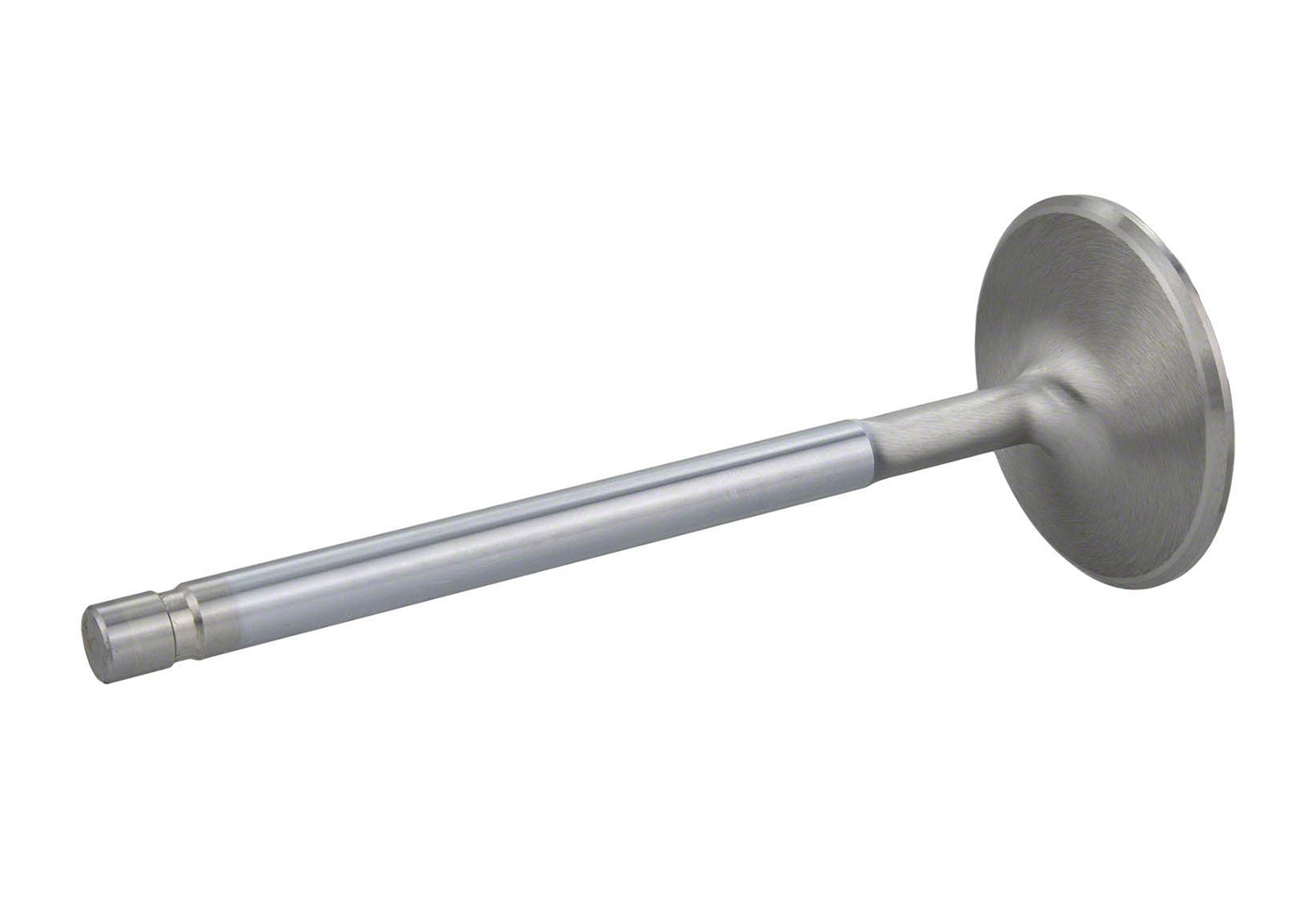

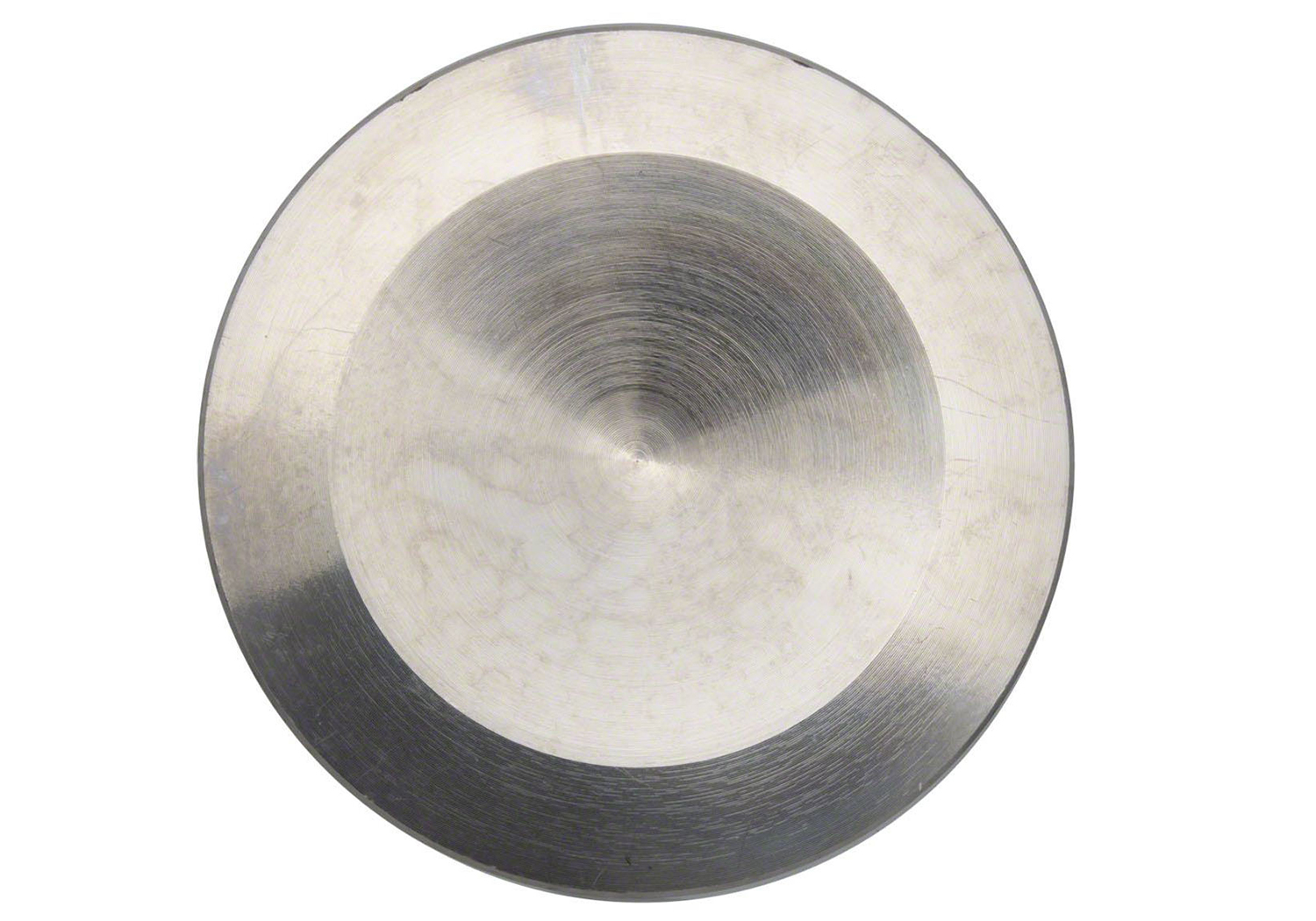

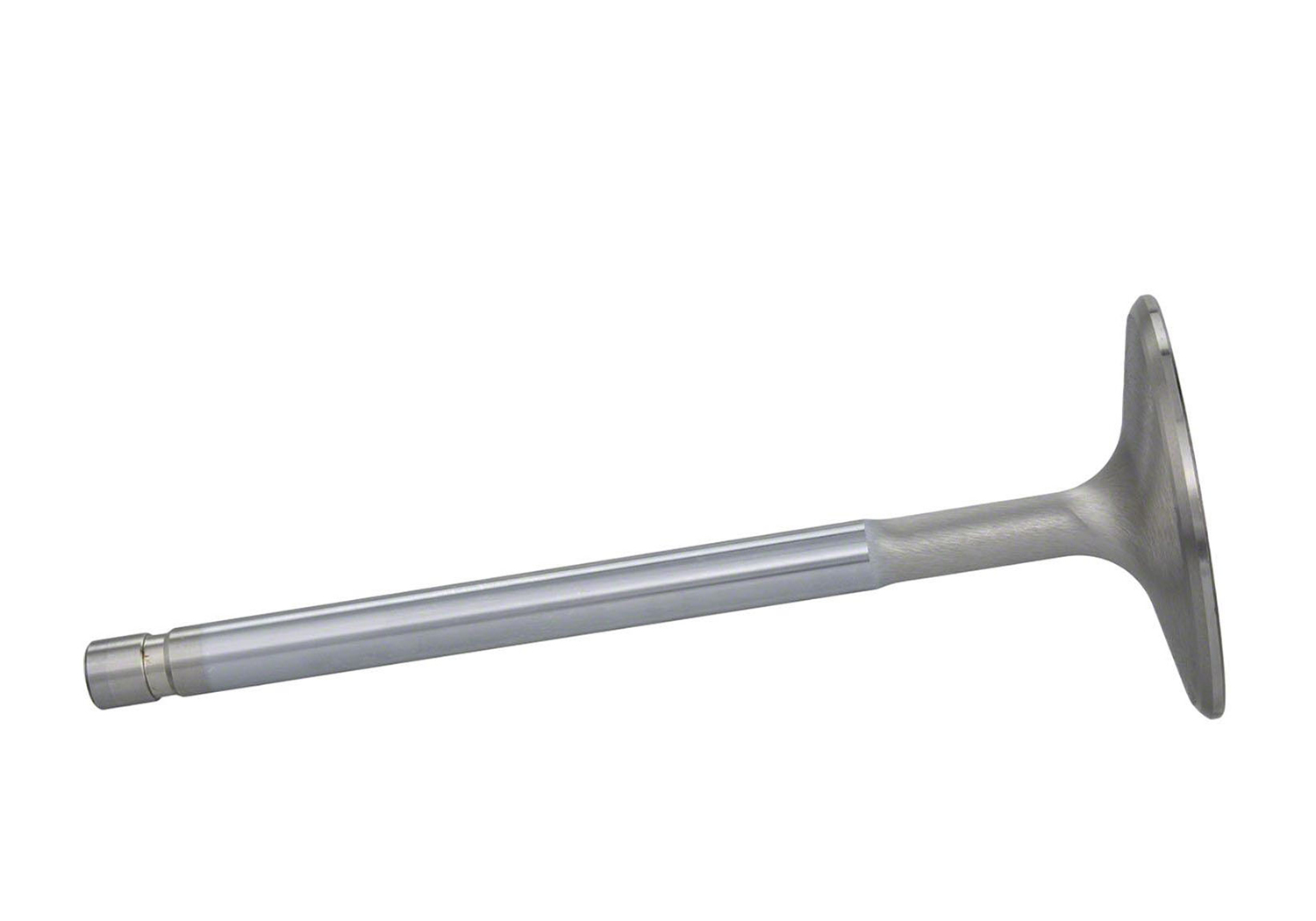

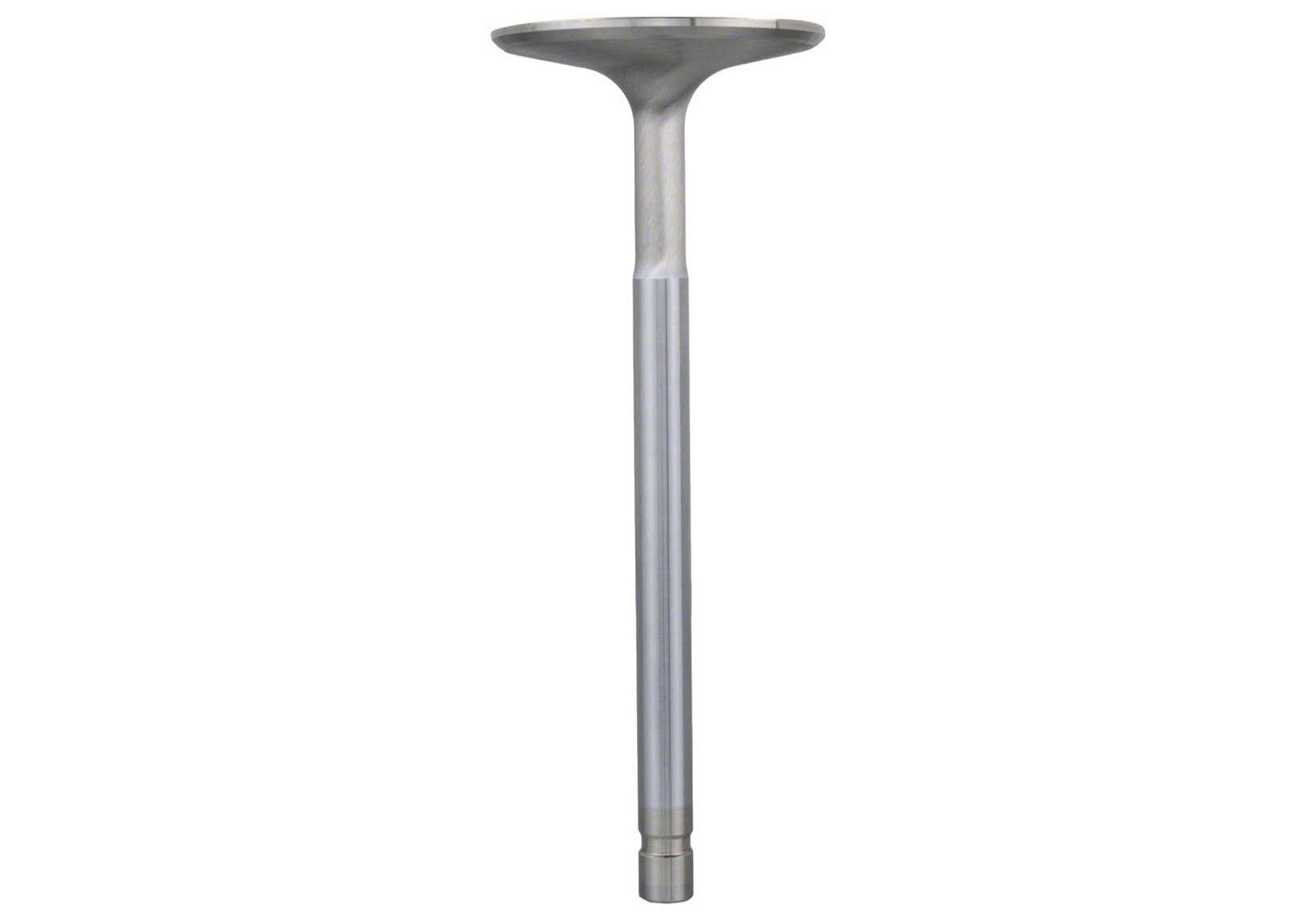

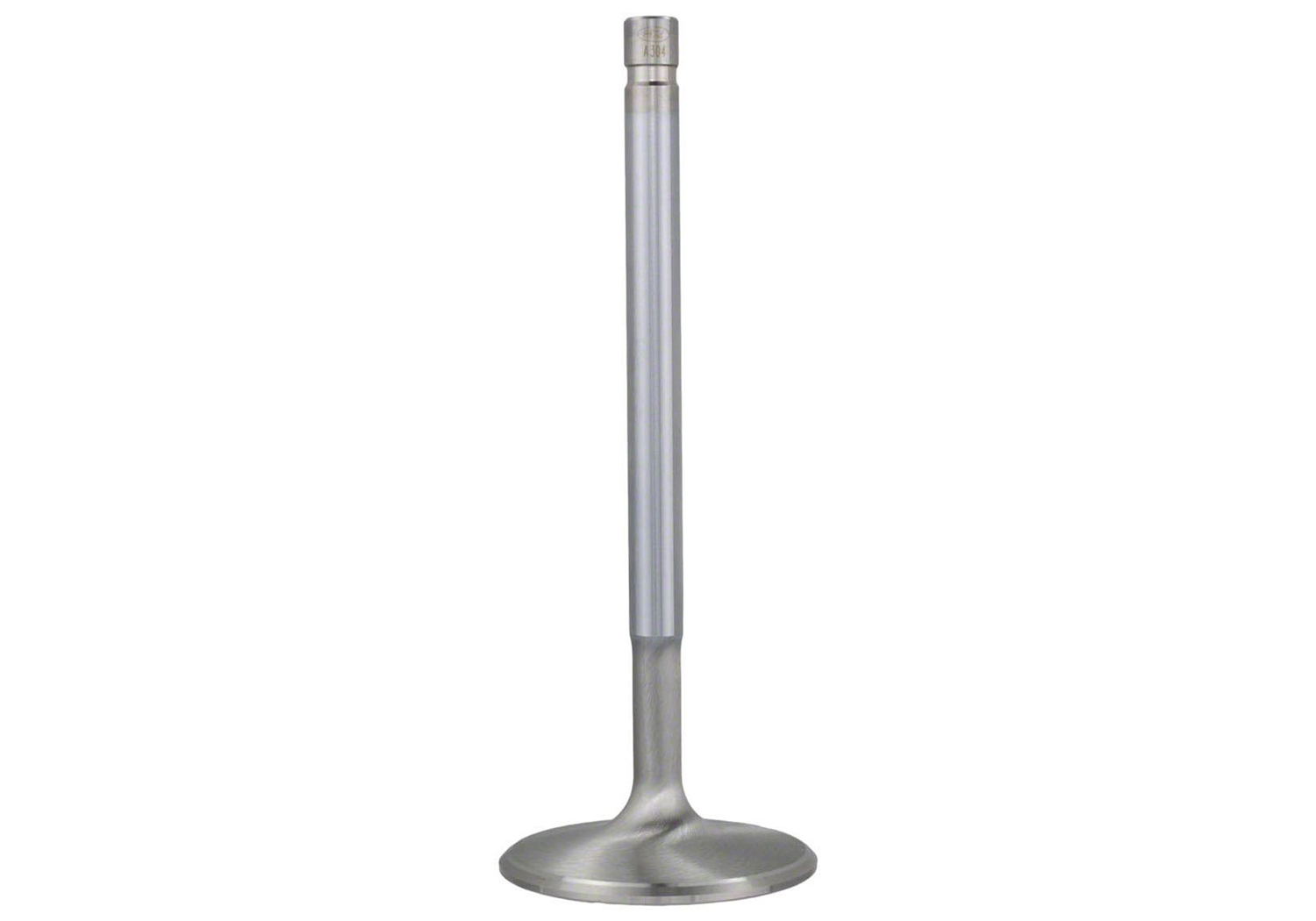

INTAKE VALVE

INTAKE VALVE
M-6507-A304
Retail
$18.50
Sold in Units of
Each (1)
Instruction Sheet
Not Available

WARNING:
This part has been designed and is intended for off-highway application only. Installation of this part on a vehicle that is driven on public roads may violate U.S. and Canadian laws and regulations relating to emission requirements and motor vehicle safety standards.
Proudly Made in the USA

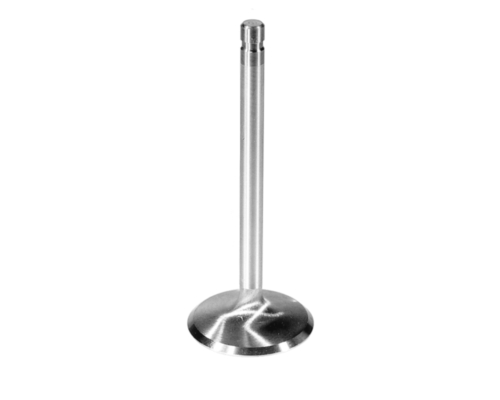

INTAKE VALVES - SINGLE GROOVE (SOLD INDIVIDUALLY)
PART NUMBER APPLICATION HEAD
DIAMETER
TIP
LENGTH
TOTAL
LENGTH
STEM
DIAMETER
GROOVE
TYPE
VALVE
WEIGHT
DESCRIPTION
M-6507-J302* GT-40 Aluminum Head
M-6049-Y302/Y303/X302//X303/X304/X305/X306/X307
1.940" 0.383" 5.078" 11/32" Square Cut 113.2 Premium stainless steel, swirl polished, under-cut stem.
M-6507-A304* M-6049-Z304/Z304D/Z304DA 2.020" 0.290" 5.340" 11/32" Square Cut 122 Premium stainless steel and swirl polished.
M-6507-D3047* M-6049-Z304DA7 2.020" 0.325" 5.34" 7 MM Bead lock 103.0 grams Premium stainless steel and swirl polished.
M-6507-A351* M-6049-N351/R351 2.020" 0.250" 5.140" 11/32" Square Cut NA Premium stainless steel.
M-6507-B429* 429/460 Wedge
SCJ Aluminum M-6049-SCJ/SCJA/SCJB
2.200" 0.250" 5.265" 11/32" Square Cut 143.7 grams Premium stainless steel.
Part Type
Engine: Valves / Springs
Warranty Availability
Not Available
Packaged Dimensions
2" x 3" x 7
Packaged Weight
0.3 lb(s)
Part Type
Engine: Valves / Springs
UPC Code
756122058954
Country of Origin
United States
California Executive Order
No
