2.3L ECOBEAST™ SHORT BLOCK

This part is no longer available.
2.3L ECOBEAST™ SHORT BLOCK
2.3L ECOBEAST™ SHORT BLOCK
2.3L ECOBEAST™ SHORT BLOCK
2.3L ECOBEAST™ SHORT BLOCK
M-6009-23EB
Instruction Sheet
Not Available
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

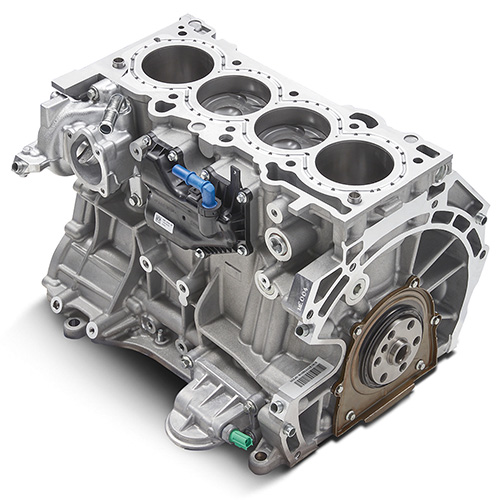

The Ford Performance 2.3L EcoBeast™ shortblock is an excellent starting point for a Mustang EcoBoost or Focus RS engine build-up.
  • Focus RS block w/Mustang motor mount bosses (can be removed for RS installation)
  • Deck cooling jacket insert for additional bore strength
  • Callies lightened forged crankshaft (9 lbs lighter than stock) - Cryogenic stress relieved w/added keyway
  • Callies Compstar H-beam connecting rods w/ARP2000 rod bolts
  • Mahle forged 2618 pistons - 9.5:1 compression ratio

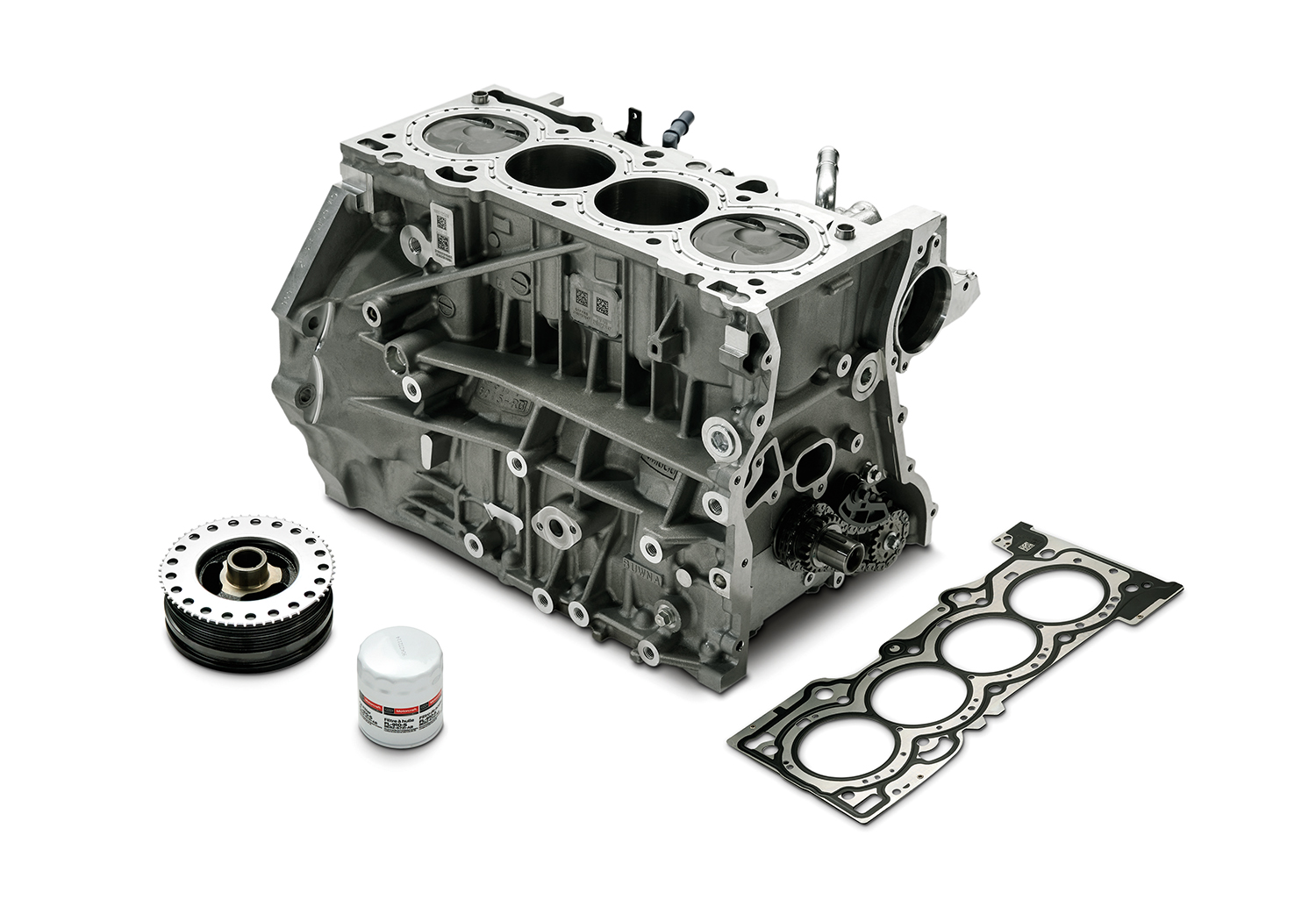

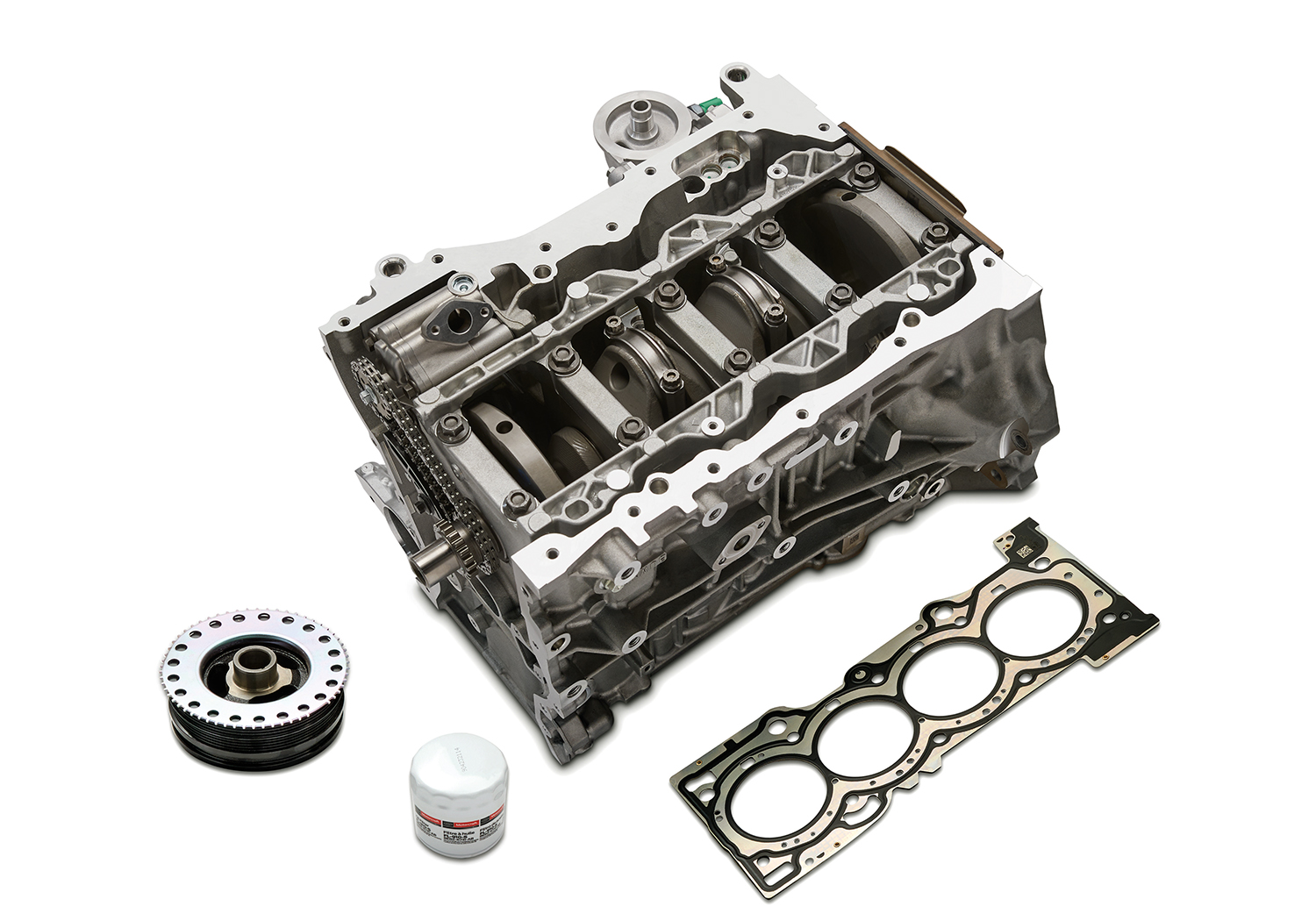

  • Includes: oil pump and chaindrive, damper w/keyway, damper bolt, oil filter, head gasket
  • Tested to 500hp and 415 ft/lb of torque
  • Fits 2015-2022 Mustang 2.3L and 2016-2018 Focus RS
Recommended oil pick-up tubes/oil pan:
  • Mustang - LR3Z-6622-A pick-up tube / FR3Z-6675-B oil pan
  • Focus RS - EJ7Z-6622-A pick-up tube / G1FZ-6675-B oil pan
Part Type
Engine: Short Blocks
Warranty Availability
Not Available
Package Dimensions
32" x 21" x 22"
Package Weight
147 lb(s)
UPC Code
756122014462
Country of Origin
United States
