5.3L MODULAR STROKER SHORTBLOCK

5.3L MODULAR STROKER SHORTBLOCK
M-6009-B53
Retail
$6,900.00
Sold in Units of
Each (1)
Instruction Sheet
WARNING:
This part is designed and intended for competition use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

Proposition 65 Warning for Residents of the State of California

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

For more information visit www.p65warnings.ca.gov.

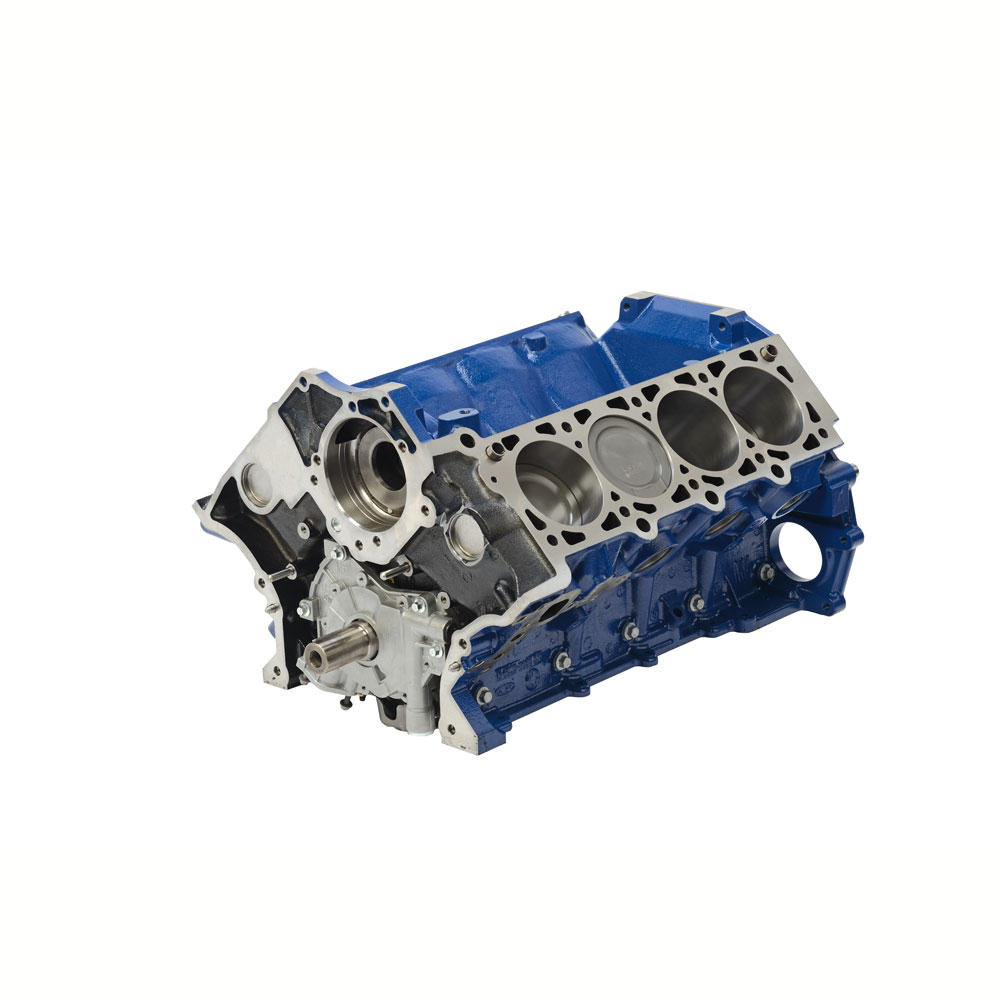

Build BIG Modular Power. The Ford Performance 5.3L Modular Stroker short block is a great way to build modular power - from mild to wild - naturally aspirated or supercharged - 2 valve - 3 valve or 4 valve.

Ford Performance Engineers have taken care of the toughest part of building a new engine by designing a strong and durable shortblock that offers a wide range of power possibilities. Ford Performance uses only the best parts, starting with the BOSS Modular block, and adding forged Eagle steel crankshaft, forged Eagle H-beam connecting rods with floating piston pins, and forged Mahle pistons. Bored and stroked to 5.3 liters, this short block is precision internal balanced and ready to be finished to your specific application.

  • Engine type:   4.6L based Modular short block
  • Displacement (Liters/cu in):  5.3L/323 cubic inches
  • Bore x stroke (in): 3.701" bore x 3.750" stroke
  • Block: Ford Performance M-6010-BOSS50 Cast Iron performance block
  • Crankshaft: Eagle® 3.750-inch stroke forged steel crankshaft with 8 bolt flywheel pattern
  • Connecting Rods: Eagle® 5.850-inch forged steel "H" beam rods with ARP® 2000 bolts
  • Pistons: Mahle® forged aluminum pistons – with a dish that is compatible with 2, 3 or 4 valve heads
  • New high pressure oil pump
  • Neutral balance rotating assembly
  • Designed for 2, 3 or 4 valve cylinder head combinations (piston to valve check required depending on camshaft)
  • Assembled and ready for your heads, cam, and timing set
  • Note-2005-2010 Mustang 3V applications will need motor mount adapter part number M-6031-BOSS50
Part Type
Engine: Short Blocks
Instruction Sheet
Warranty Availability
Not Available
Packaged Dimensions
21.5" x 14.25" x 22.5
Packaged Weight
265 lb(s)
UPC Code
756122001882
Catalog Page Number
145
Country of Origin
United States
