460 CUBIC INCH BOSS SHORT BLOCK - WINDSOR SB BASED
M-6009-460
Retail
$7,800.00
Sold in Units of
Each (1)
Instruction Sheet
Available (PDF)
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
WARNING: Cancer http://www.p65warnings.ca.gov.

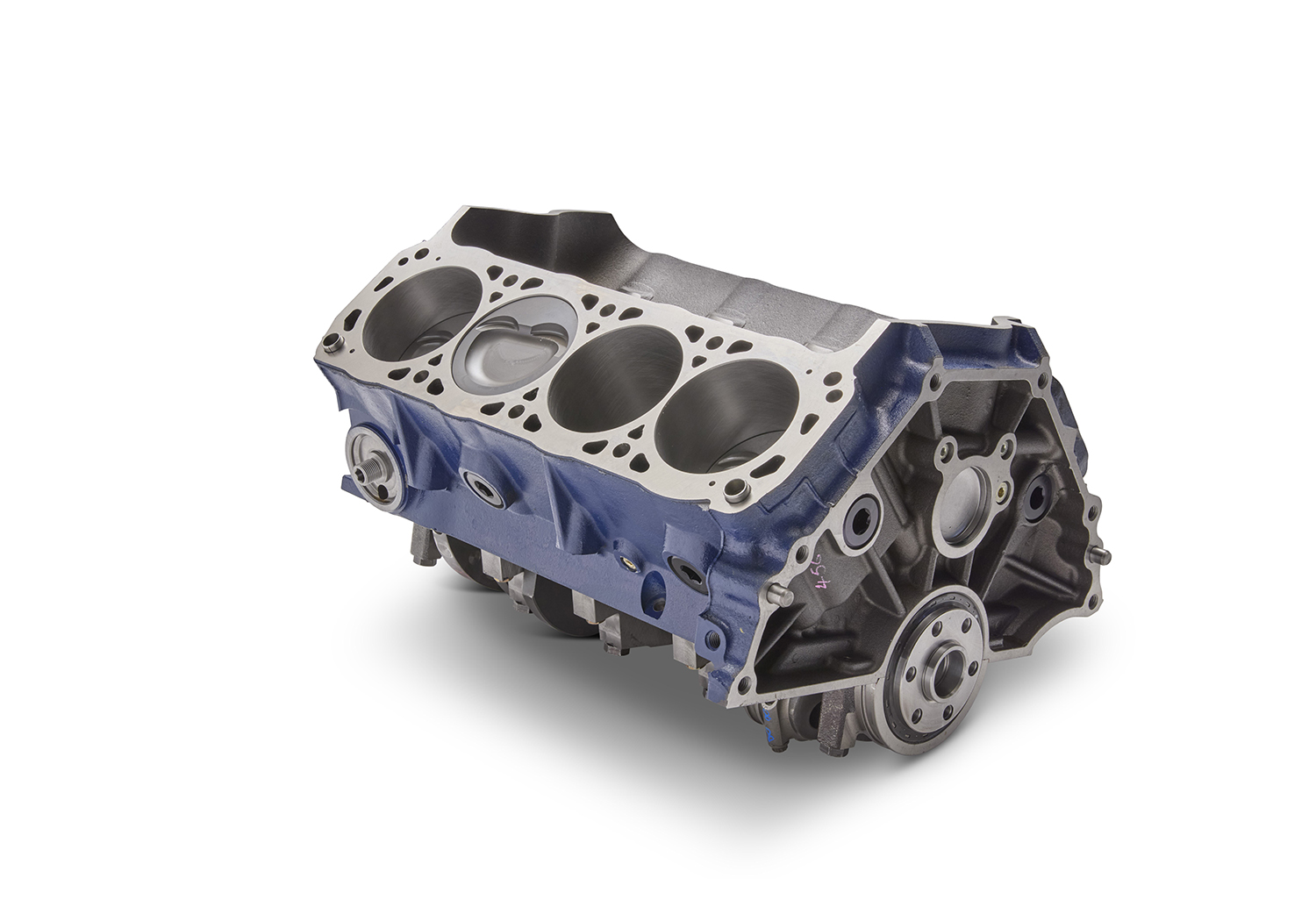

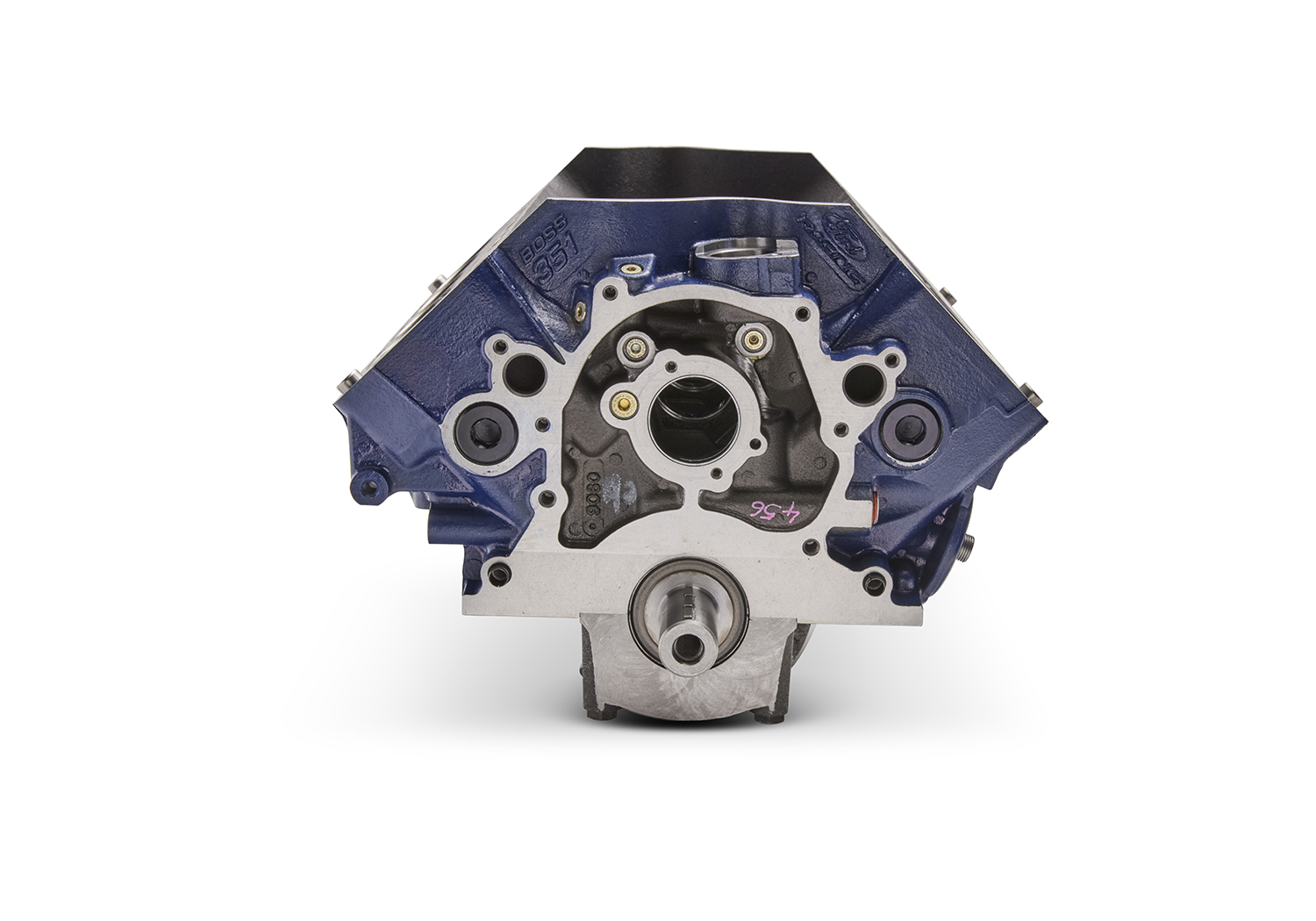

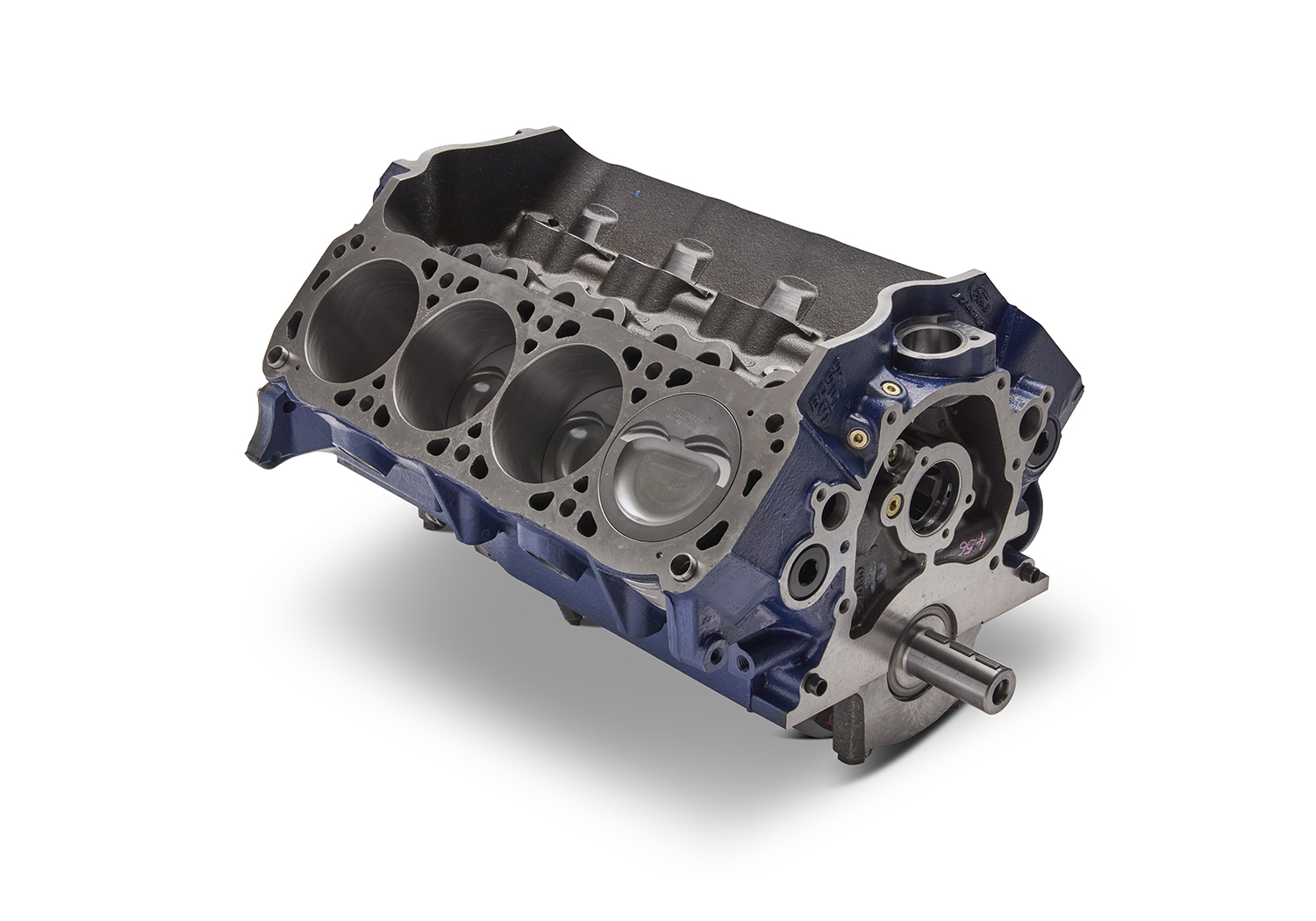

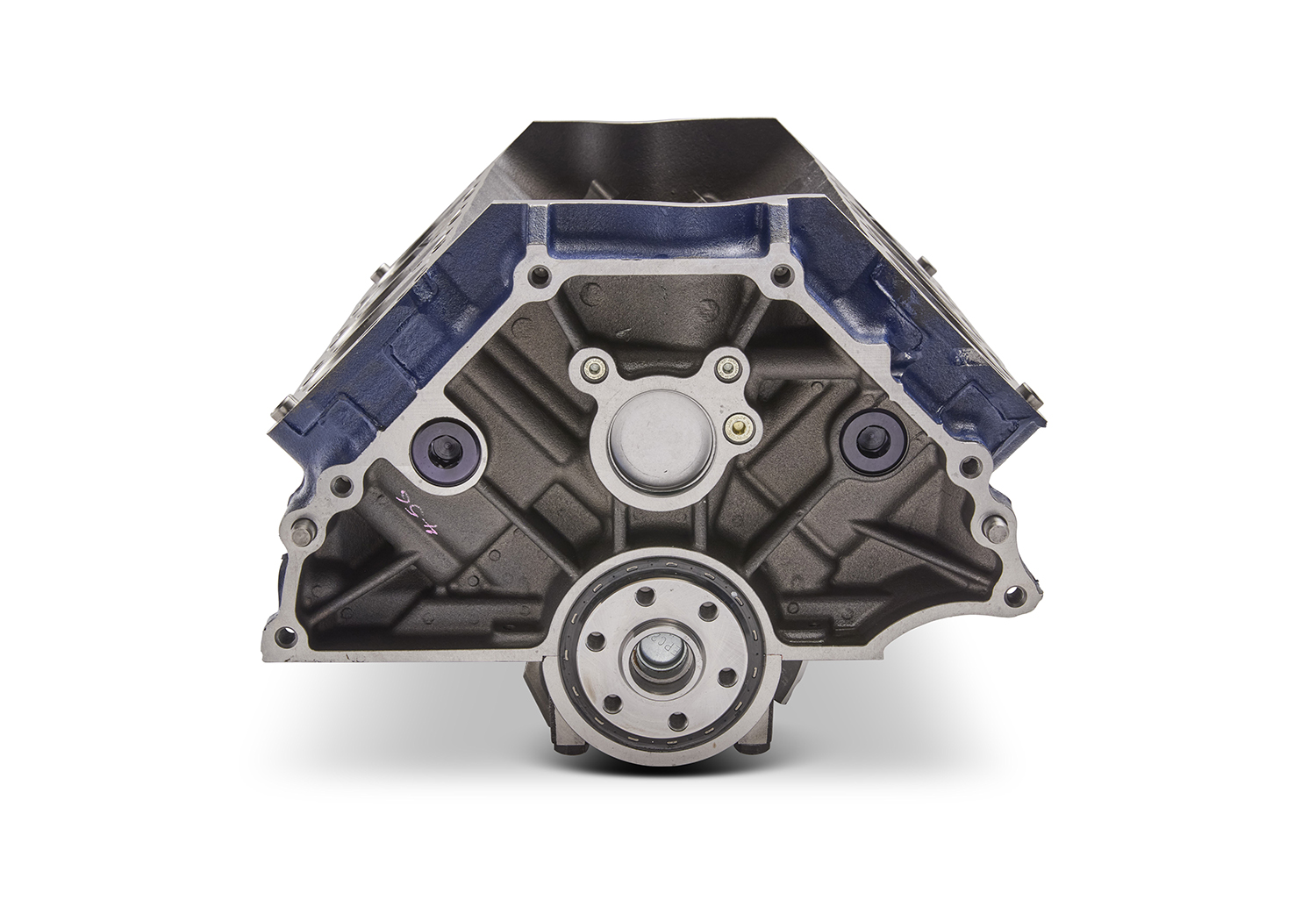

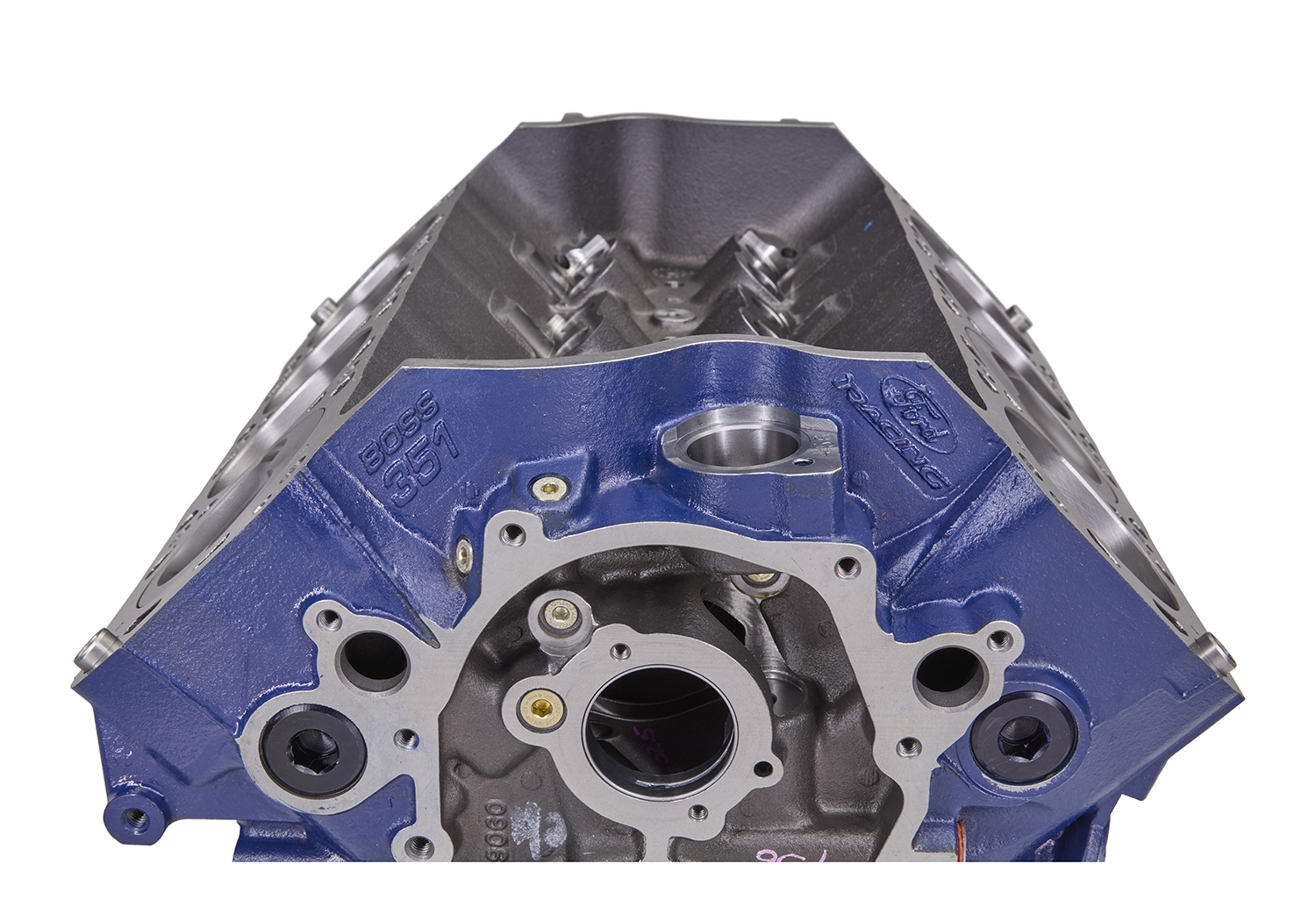

BUILD IT YOUR WAY WITH FORD PERFORMANCE SHORT BLOCKS

Want to build a powerful Ford engine for your vintage muscle car, street rod, Fox-body or late-model Mustang? A Ford Performance short block is the perfect foundation. Ford Performance Engineers have taken care of the toughest part of building a new engine by designing a strong a durable short block that offers a wide range of power possibilities. We use only the best parts for our short blocks, like a forged steel crankshaft, forged H-beam connecting rods with floating piston pins, forged Mahle pistons, and the Ford Performance BOSS block. And every Ford Performance short block is hand assembled in the U.S. with performance clearances - these aren't assembly line truck engines made by machines!

  • Engine type:  351 based small block ford
  • Displacement (cu in):  460
  • Bore x stroke (in):  4.150" bore x 4.25" stroke
  • Block: Boss 4-bolt main block M-6010-BOSS35195  9.5" deck height
  • Piston to Deck Height: .005" below piston to deck height (nominal)
  • Crankshaft: SCAT® Forged Steel: 4.250" stroke
  • Connecting rods:  SCAT® forged steel H-beam 6.125” length connecting rods with floating pin and ARP® bolts
  • Pistons:  Mahle® 4.150" bore forged, with reliefs for Z304D, Z304P, N351, and other inline valve Windsor cylinder heads.  30 cc piston dish.  Check piston to valve clearance.
  • Hydraulic roller camshaft compatible
  • Internally balanced
  • Recommended cylinder head fasteners M-6065-BOSS head bolts or M-6014-BOSS studs depending on application
  • Most aftermarket performance cylinder heads are compatible with this short block.  Ford Performance short blocks are built with pistons designed for 20 degree valve angle heads and will fit stock or spread valve guide centerlines.
  • Works well with Ford Performance cylinder heads M-6049-Z2 and M-6049-X2
  • Designed for M-6049-X306/X307/Z304DA cylinder heads. Not designed for production 302/351W or M-6049-Y302/Y303/X302/X303/X304/X305 cylinder heads
  • Assembled and ready for your heads, cam and timing chain set
  • Requires head gaskets M-6051-R351
  • 351W bolt pattern, oil pan and timing cover
  • High-performance harmonic balancer M-6316-D302 is recommended
  • Built with all NEW PARTS
  • Photo and specs may vary
Part Type
Engine: Short Blocks
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
25" x 24" x 31"
Package Weight
300 lb(s)
UPC Code
756122239445
Country of Origin
United States
