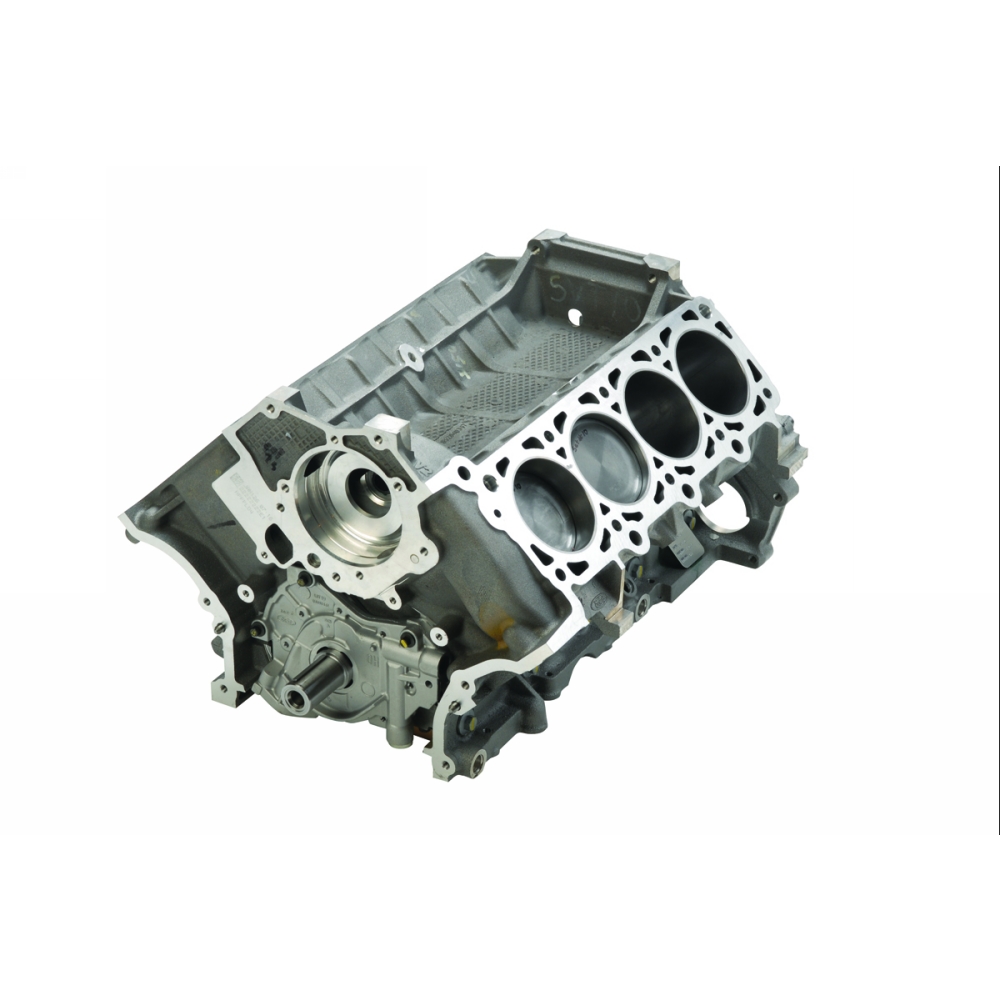

4.6L 2V/4V ALUMINATOR SHORTBLOCK FOR SUPERCHARGED APPLICATIONS

This part is no longer available.
4.6L 2V/4V ALUMINATOR SHORTBLOCK FOR SUPERCHARGED APPLICATIONS
M-6009-A46SC
Instruction Sheet
Not Available
  • 4.6L (281 cubic inches)
  • Direct bolt in for 2003-2004 Mustang Cobras
  • Cobra rotating assembly with forged steel 8-bolt crank
  • Front timing cover holes machined to replace 4.6L iron block. To replace aluminum block application use M-6009-A46SCB
  • Low compression forged pistons with 16.0 cc dish
  • H-beam connecting rods
  • New oil pump
  • Uses M-6010-A46SC block, the knock sensors are removed and the block is modified to accept the 2003-2004 Cobra front cover
  • Approximately 8.5:1 compression ratio when used with 50cc heads
  • Front cover bolt pattern same as 4.6L iron blocks
  • Built with all NEW PARTS
  • Requires 8-bolt flywheel
  • See our Aluminator Accessory Drive Kit M-8600-A46SC to complete your engine
Part Type
Engine: Short Blocks
Warranty Availability
Not Available
Packaged Dimensions
31.5" x 22" x 25
Packaged Weight
357 lb(s)
UPC Code
756122095706
Country of Origin
United States
