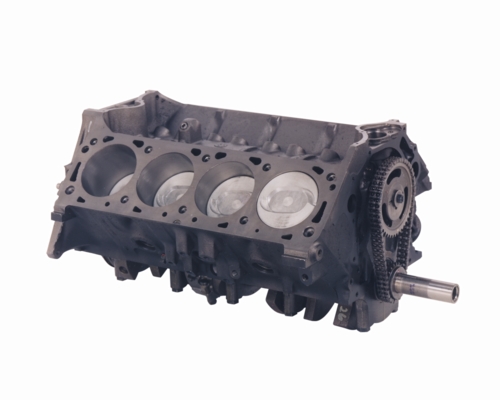

460 FORD RACING PERFORMANCE SHORT BLOCK ENGINE ASSEMBLY

This part is no longer available.
460 FORD RACING PERFORMANCE SHORT BLOCK ENGINE ASSEMBLY
M-6009-E460
Instruction Sheet
Not Available
    M-6009-E460*THIS HIGH-PERFORMANCE 460 CID 2-BOLT MAIN SHORT BLOCK ASSEMBLY INCLUDES:
  • Remanufactured .030" overbore block
  • Hypereutectic pistons (16cc dish 10.5:1 compression ratio with Ford Racing SCJ head)
  • Heavy-duty forged steel connecting rods
  • Nodular iron crankshaft
  • Our “hot” Ford Racing hydraulic flat tappet camshaft M-6250-C460
  • Roller timing chain
  • Pistons notched for Ford Racing SCJ heads
  • Engine is externally balanced. Requires C-6 automatic flywheel M-6375-B460 or manual transmission flywheel M-6375-Z460
  • Requires front counterweight M-6359-D460
  • Same short block used to build the 550 horsepower M-6007-F460 crate motor
  • Photo and specs may vary
  • Remanufactured blocks have a clean-up cut to the cylinder head deck, align honed main bearing bore, bottom tapped holes (no heli-coils), new freeze plugs and cam bearingsNOTE: May require machining pistons for valve clearance when used with performance heads and camshafts.
Part Type
Engine: Short Blocks
Warranty Availability
Not Available
Packaged Dimensions
31.5" x 22" x 25
Packaged Weight
357 lb(s)
UPC Code
756122066478
Country of Origin
United States
