7.3L MEGAZILLA™ HI-PERFORMANCE CAMSHAFT
M-6250-SD73A
Retail
$1,650.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

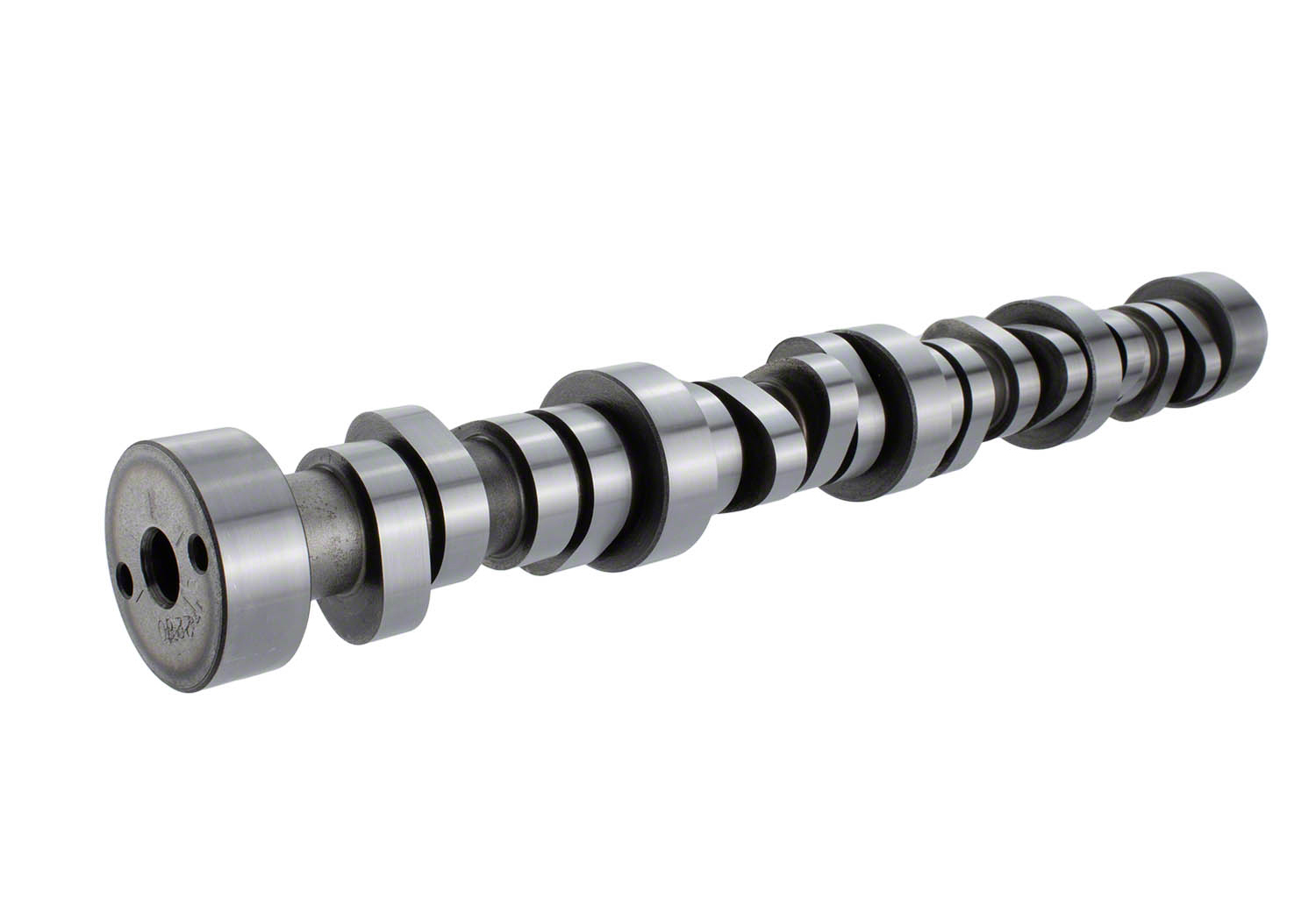

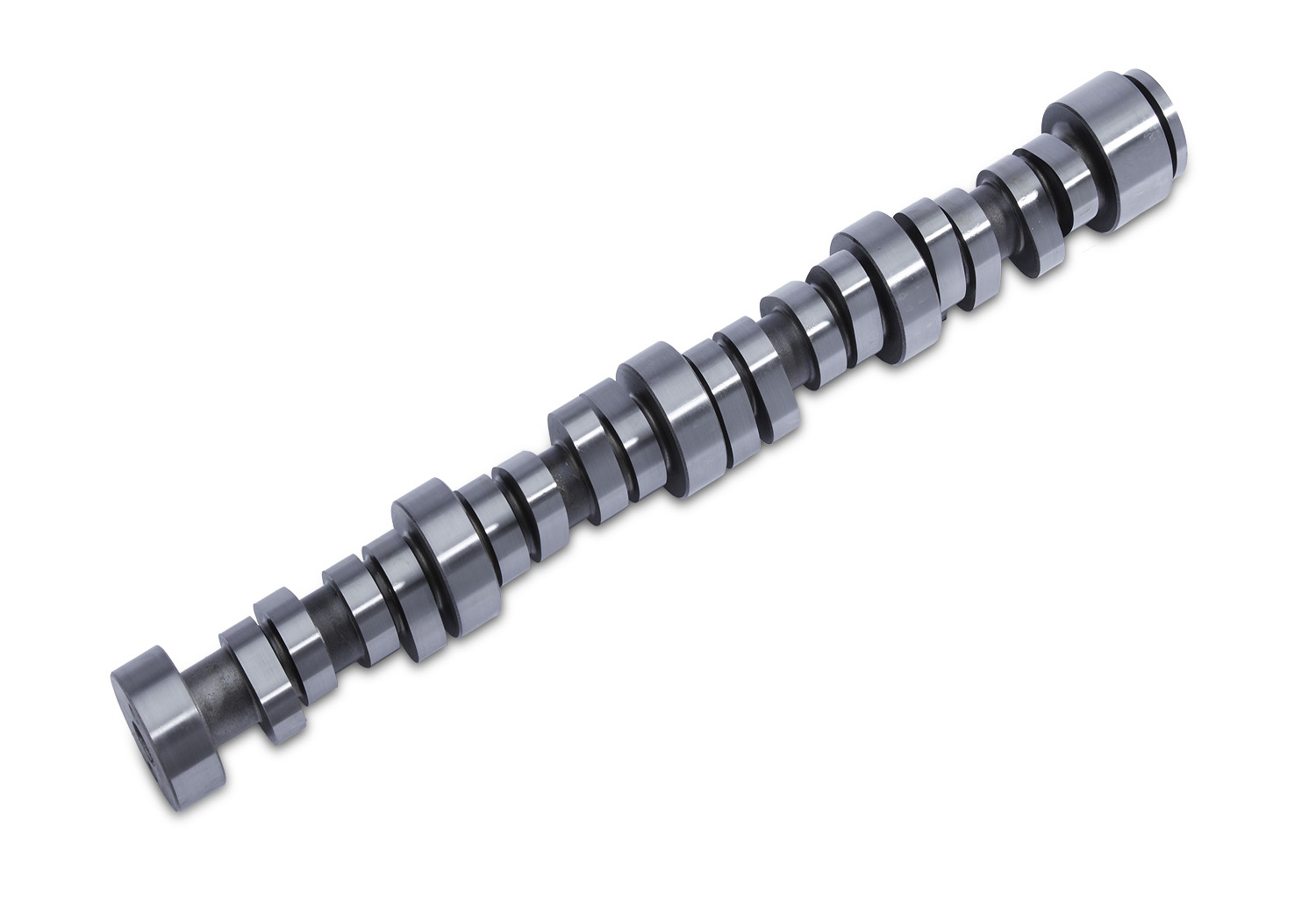

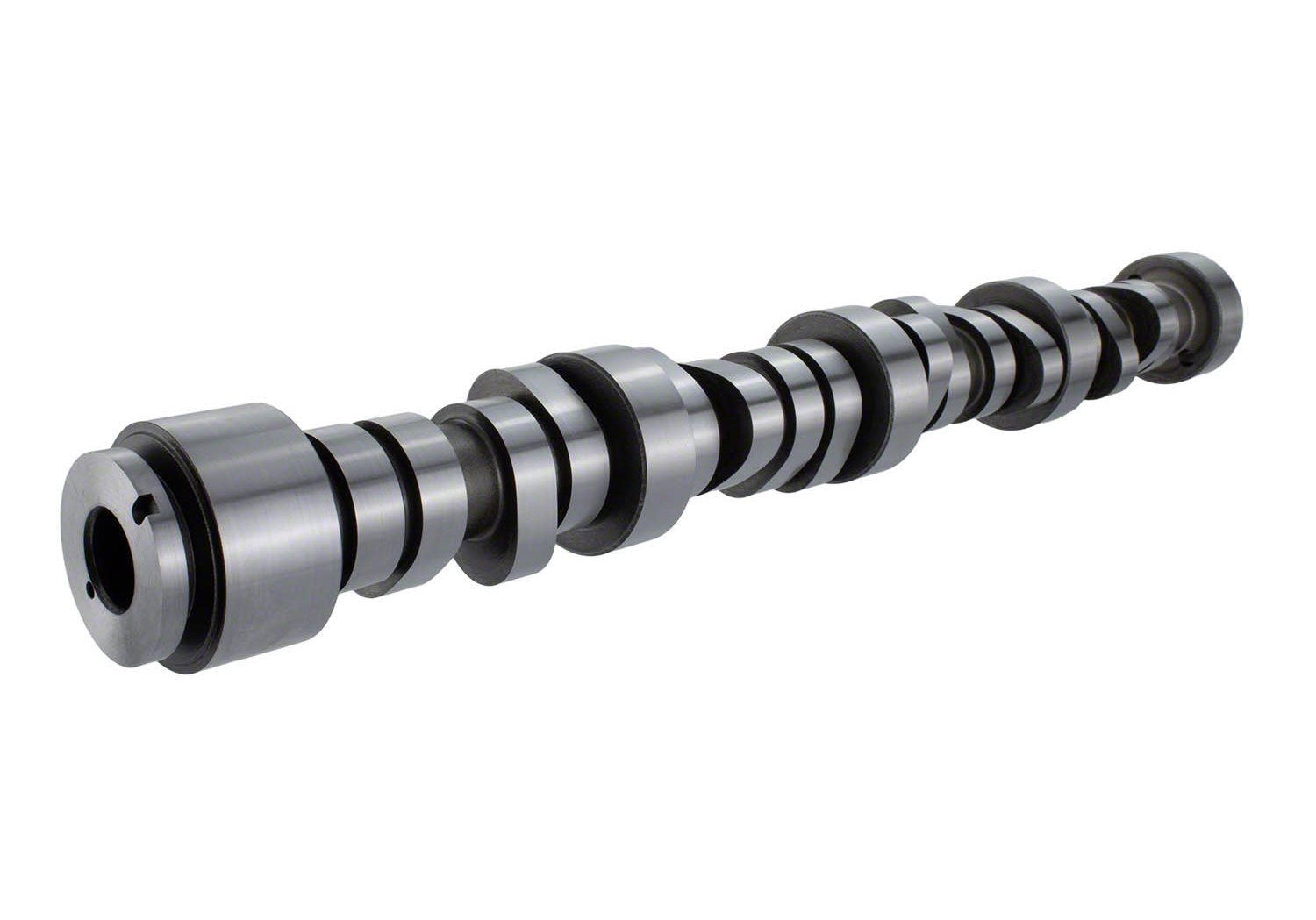

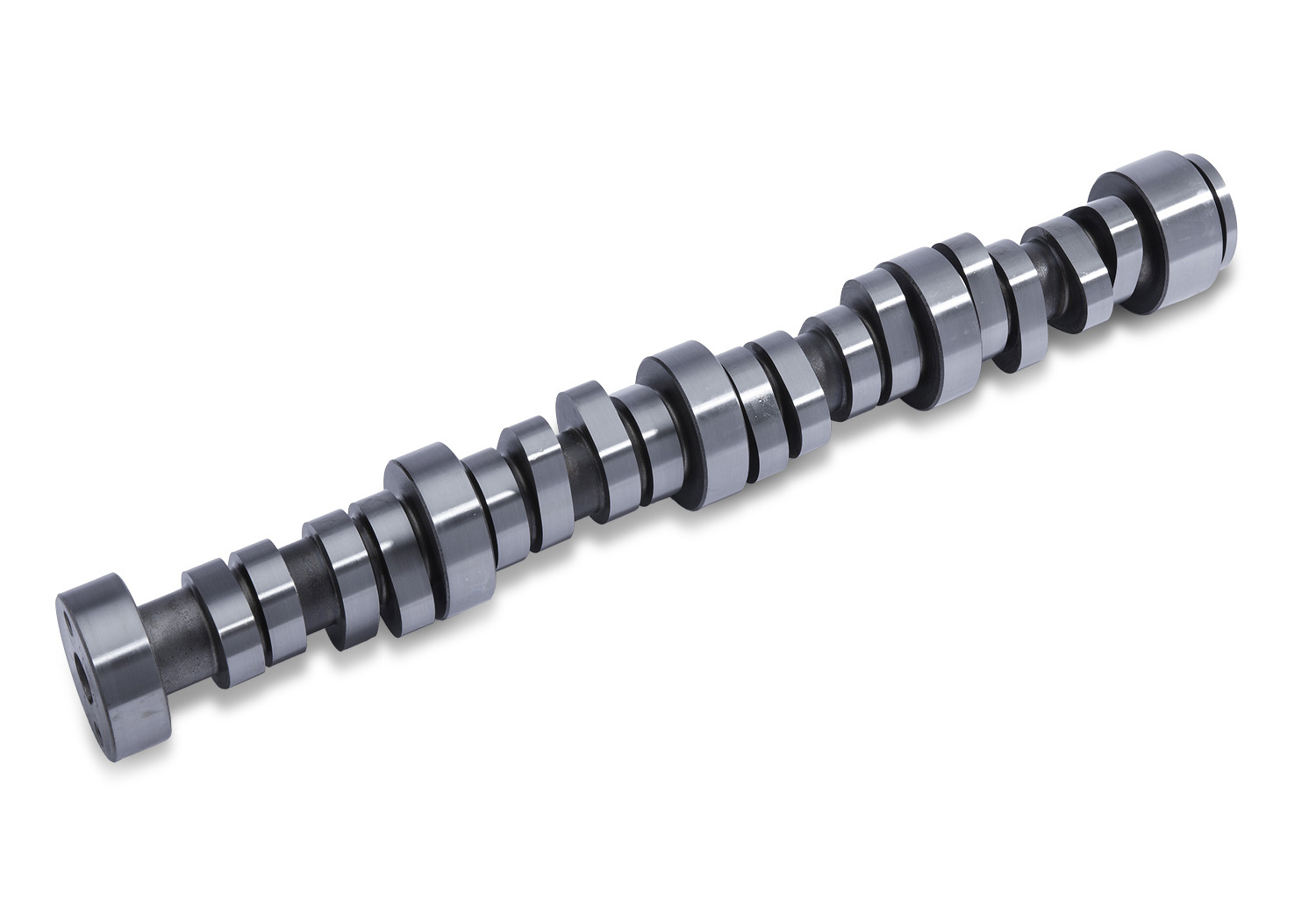

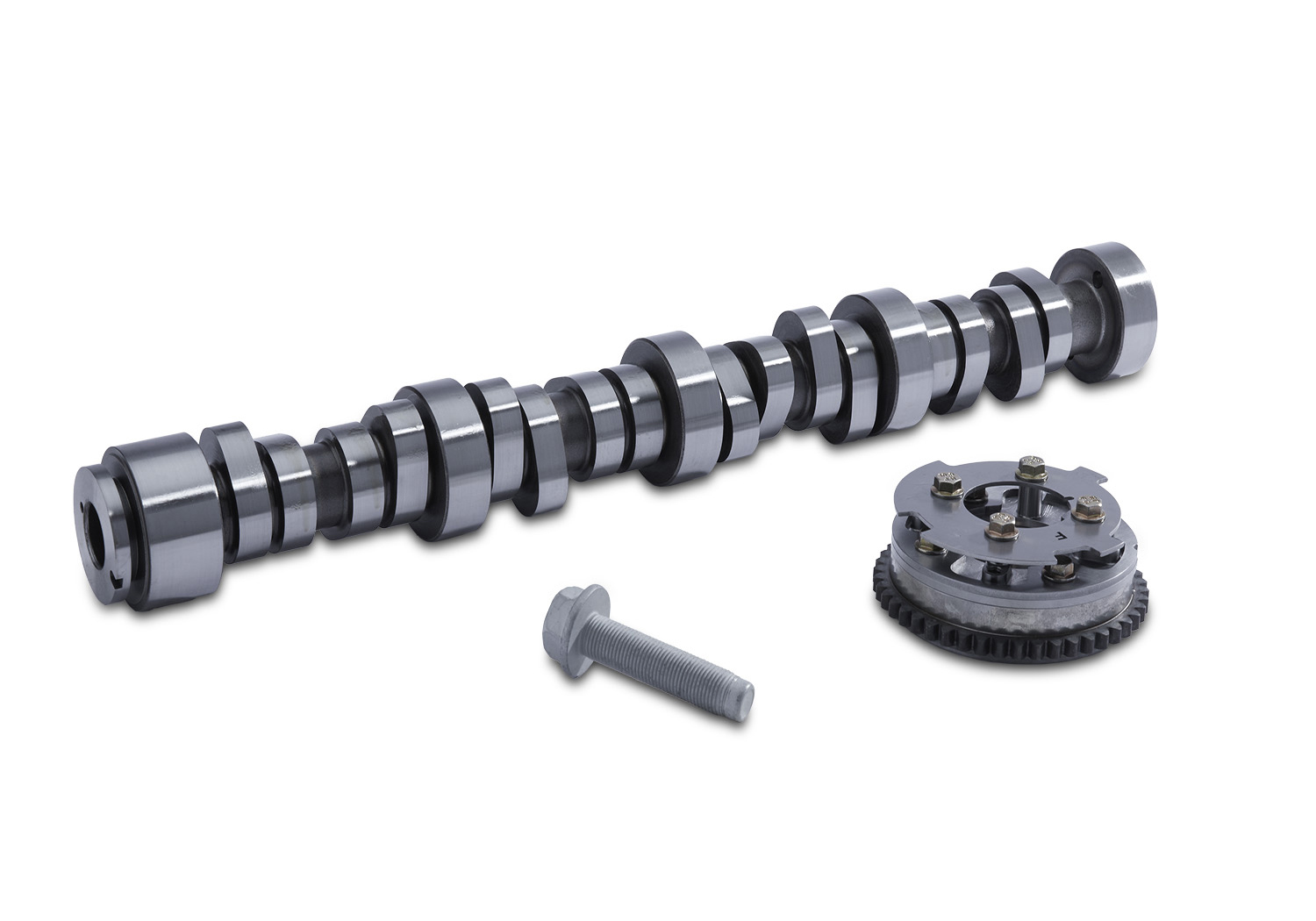

Ford Performance 7.3L hi-performance cam as used in the Megazilla™ crate engine.
- Intake duration: 220 degrees @ .050" / 276 degrees @ .006"
- Exhaust duration: 226 degrees @ .050" / 282 degrees @ .006"
- Intake lift: .350"
- Exhaust lift: .345"
- Intake centerline: 105 degrees ATDC
- Exhaust centerline: 117 degrees BTDC
- Lobe separation: 111 degrees

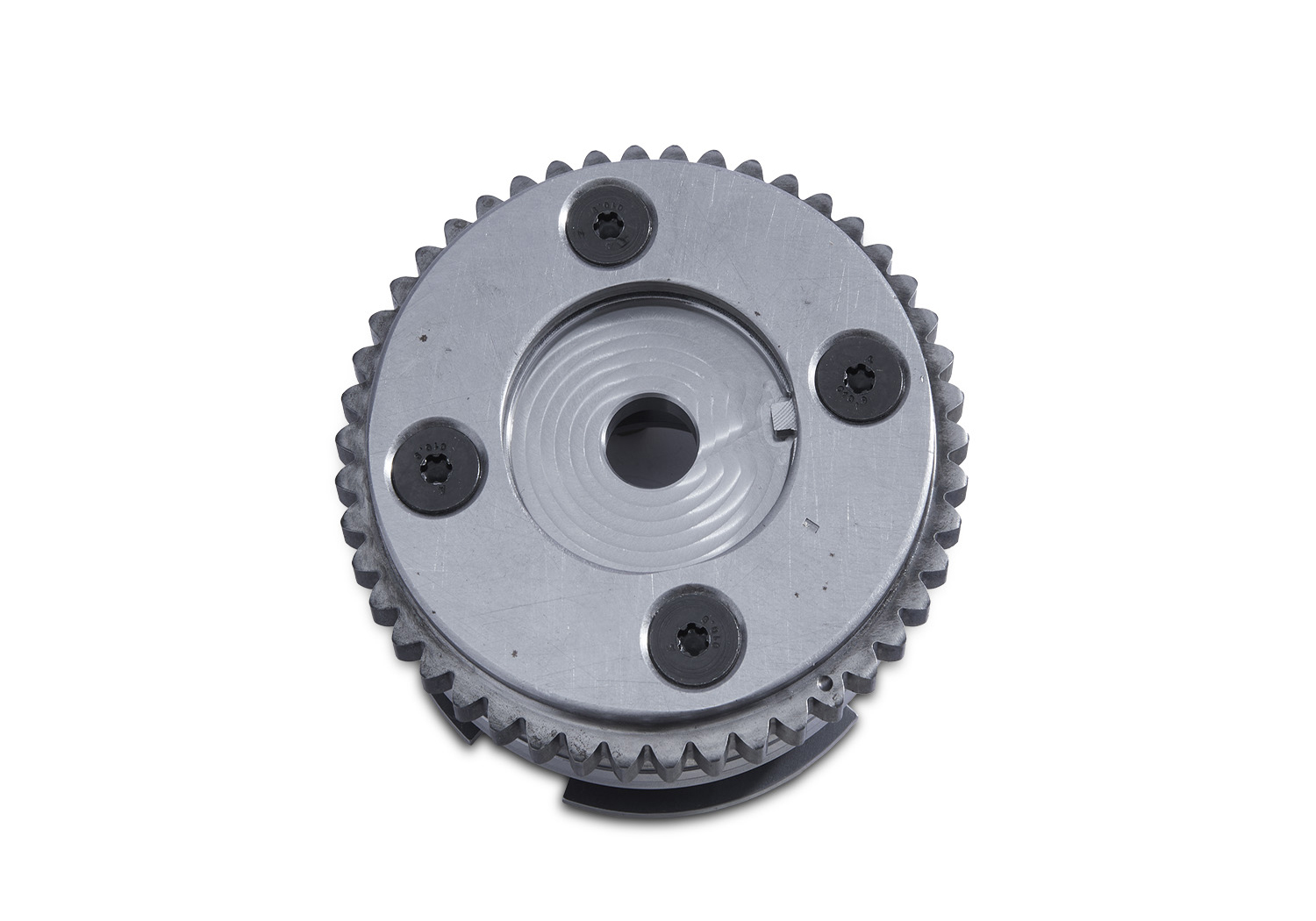

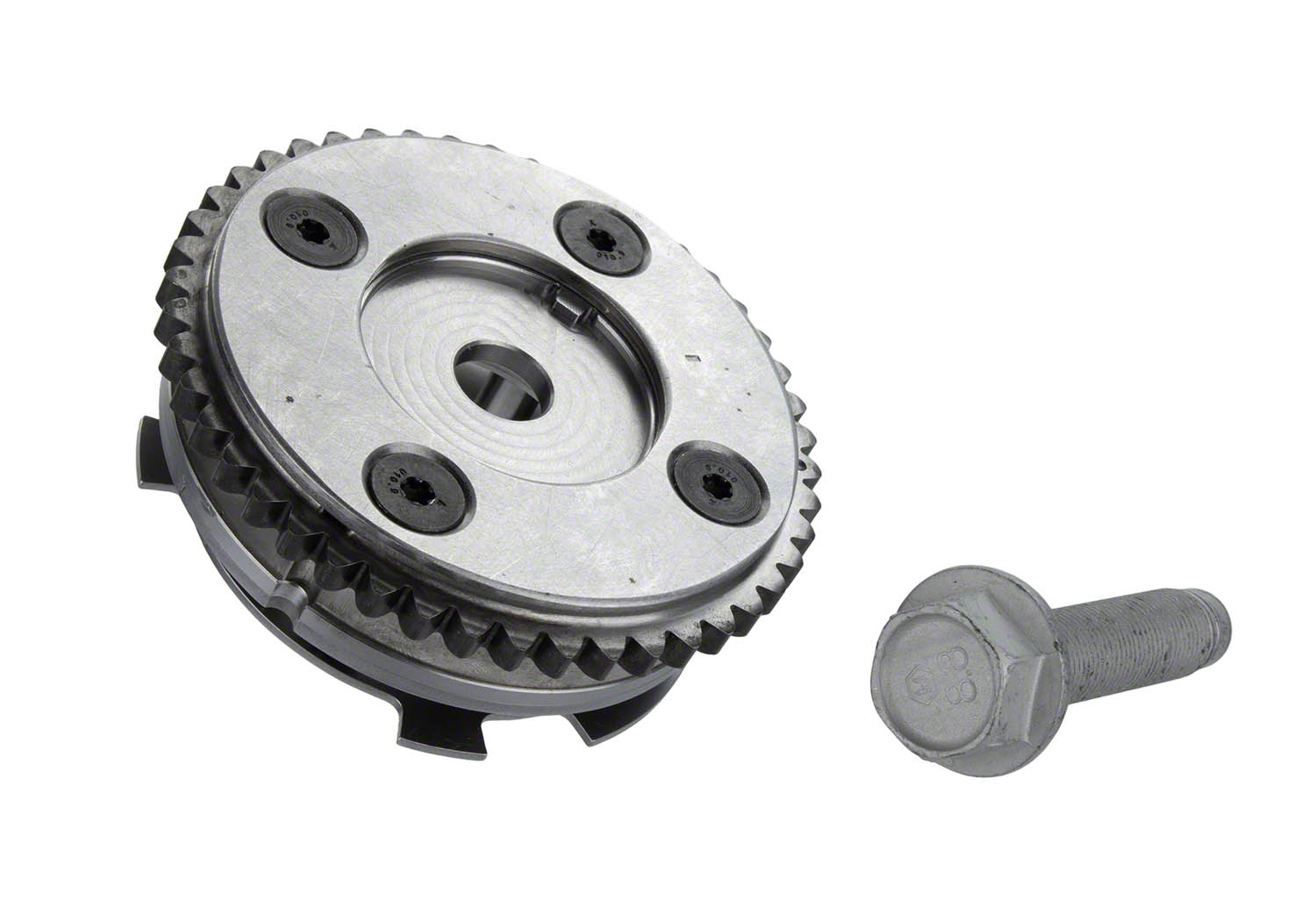

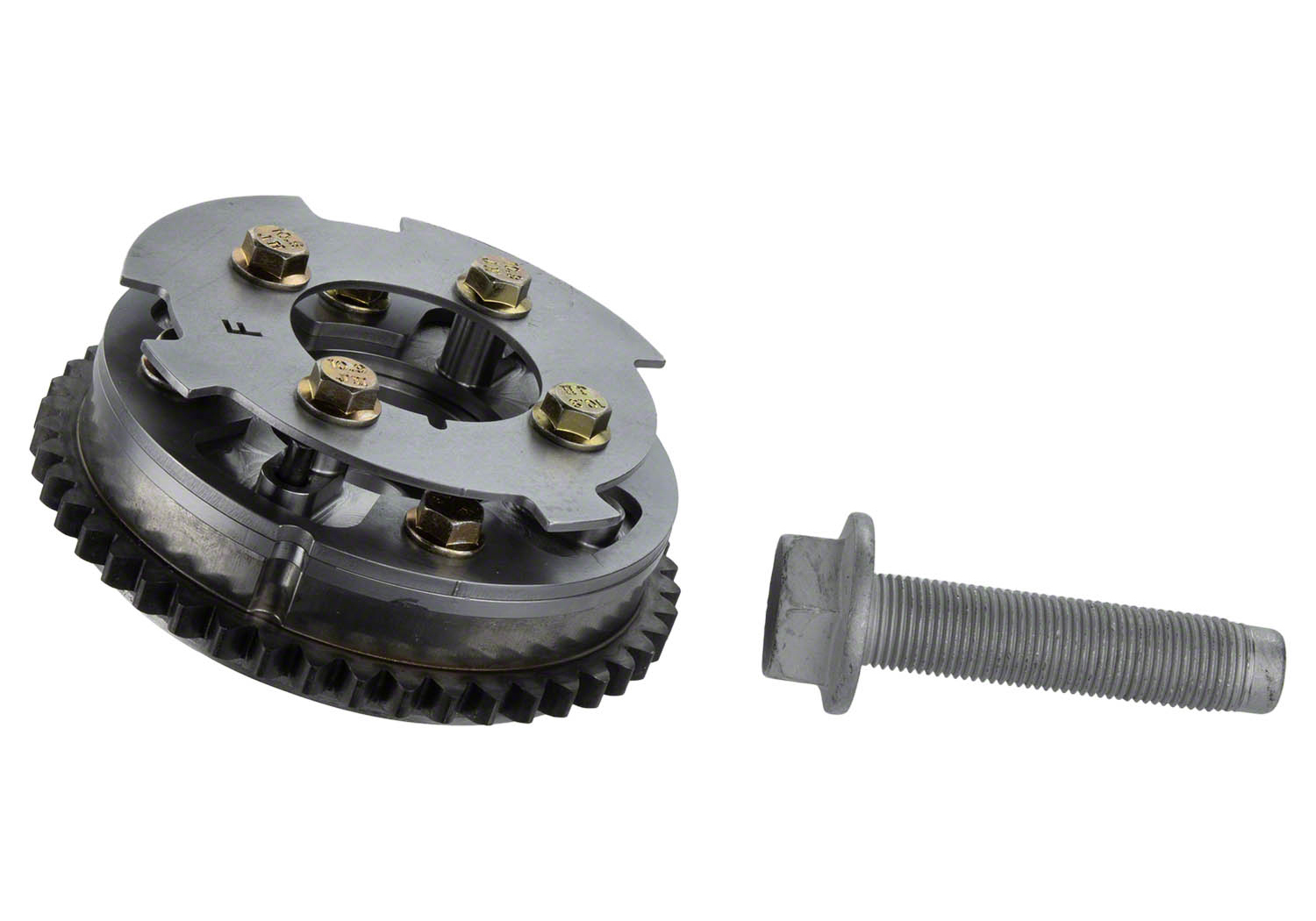

- Variable cam timing lockout gear/bolt included (torque to 55 lb-ft + 50 degrees)
- Upgraded valve springs required - PAC 1282LX or equivalent recommended
Part Type
Engine: Cam/Tappets/Pushrods
Warranty Availability
Not Available
Package Dimensions
15" x 11" x 27.5"
Package Weight
18 lb(s)
UPC Code
756122019771
Country of Origin
United States
