CAMSHAFT BEARINGS - ROLLER (SOLD IN ENGINE SETS)

CAMSHAFT BEARINGS - ROLLER (SOLD IN ENGINE SETS)
M-6261-D351
Retail
$89.00
Sold in Units of
Set
Instruction Sheet
Not Available

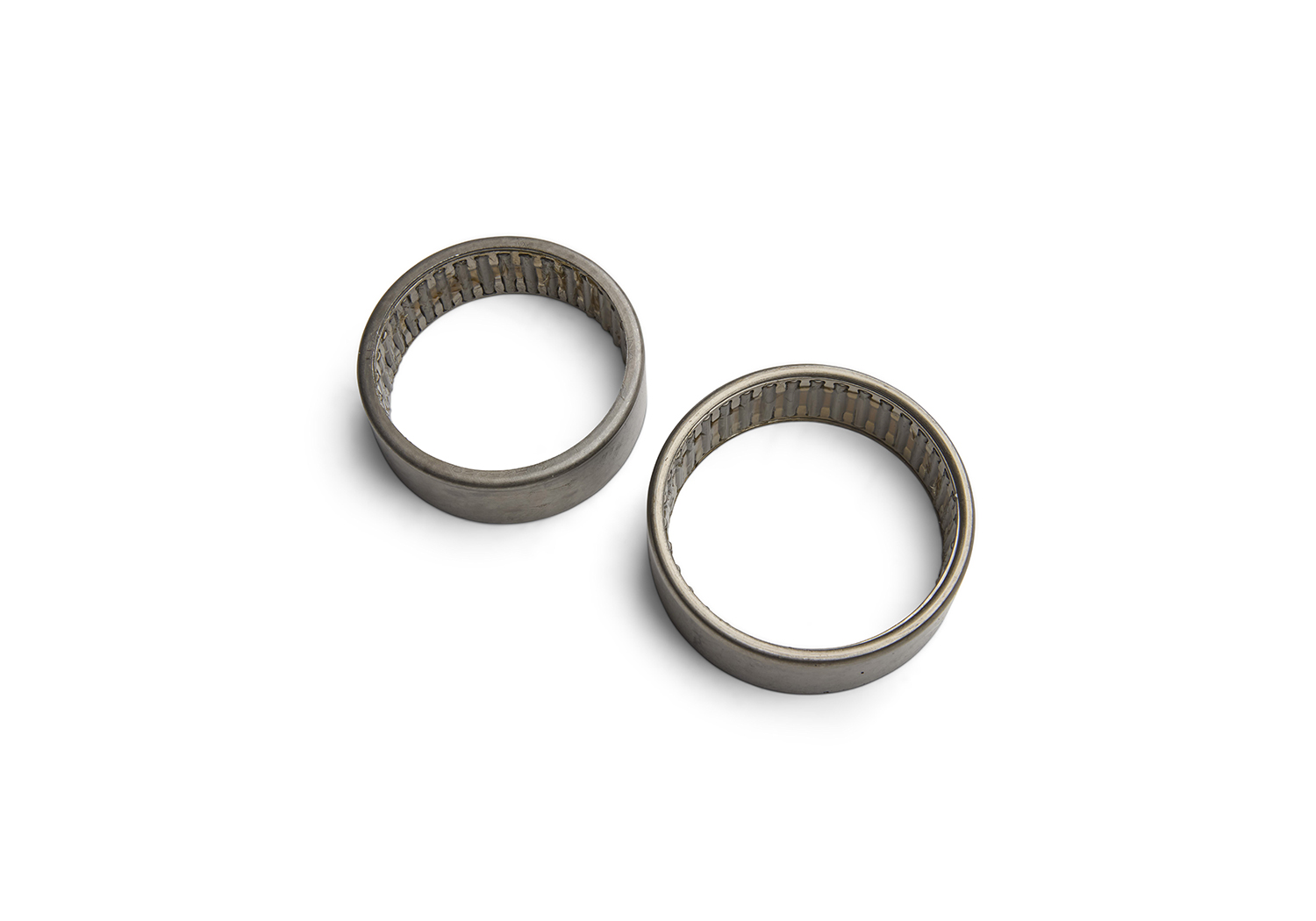

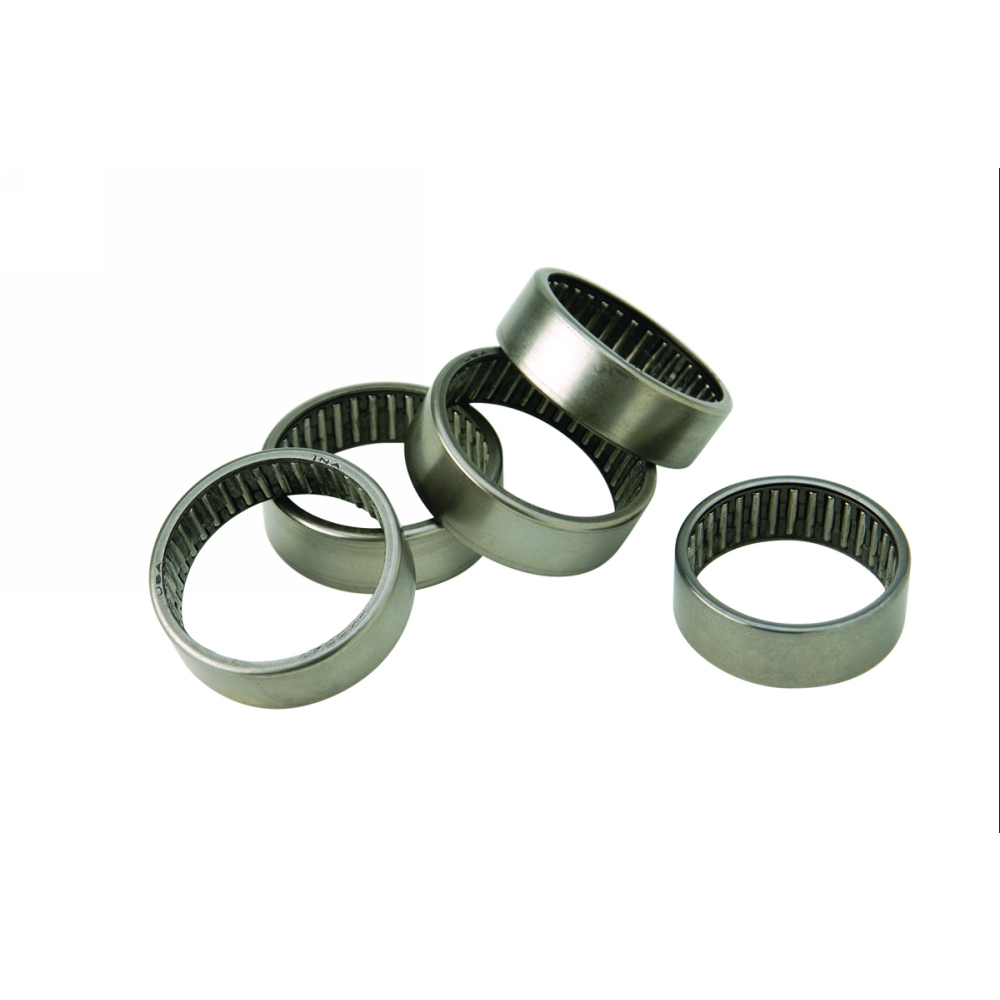

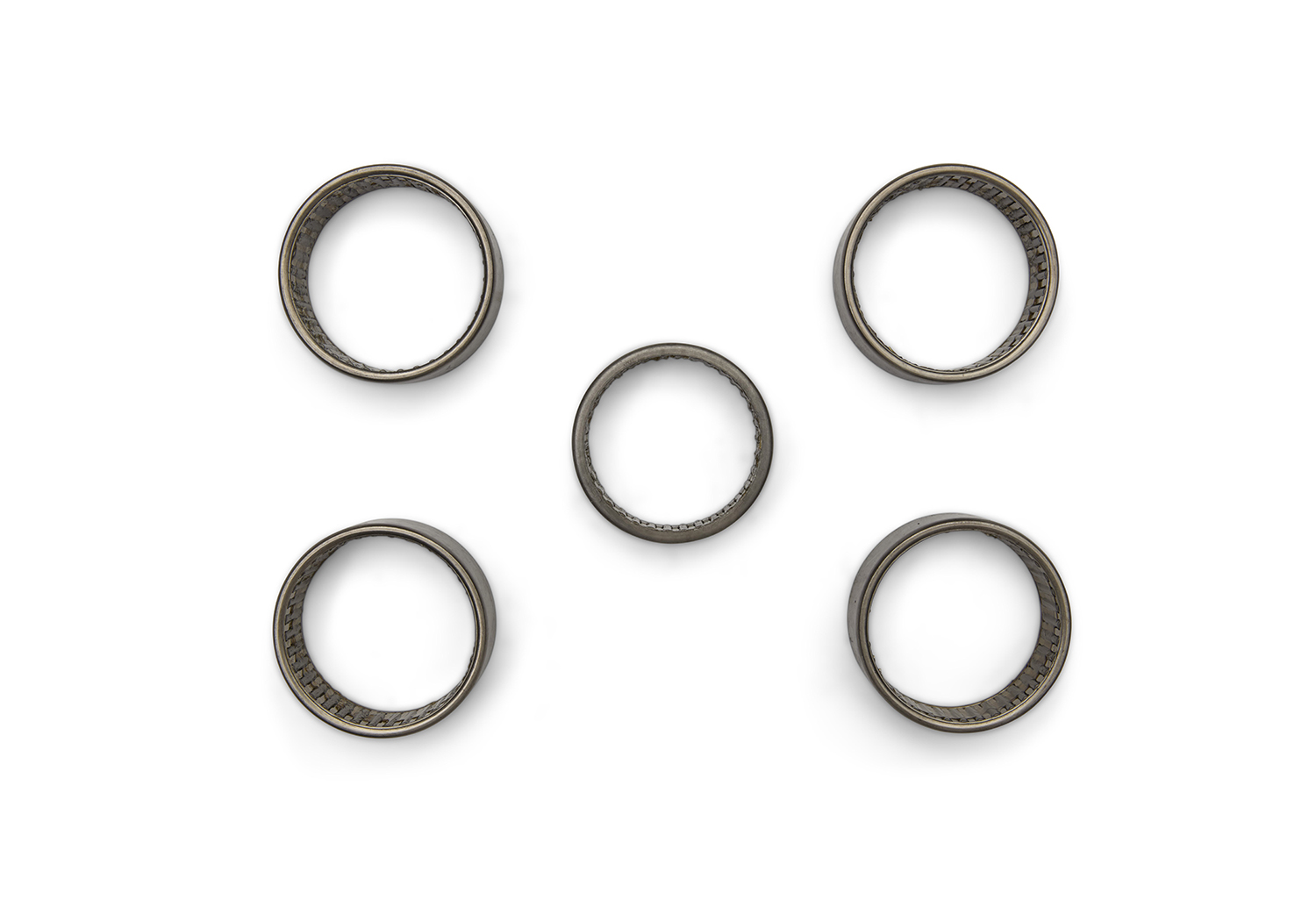

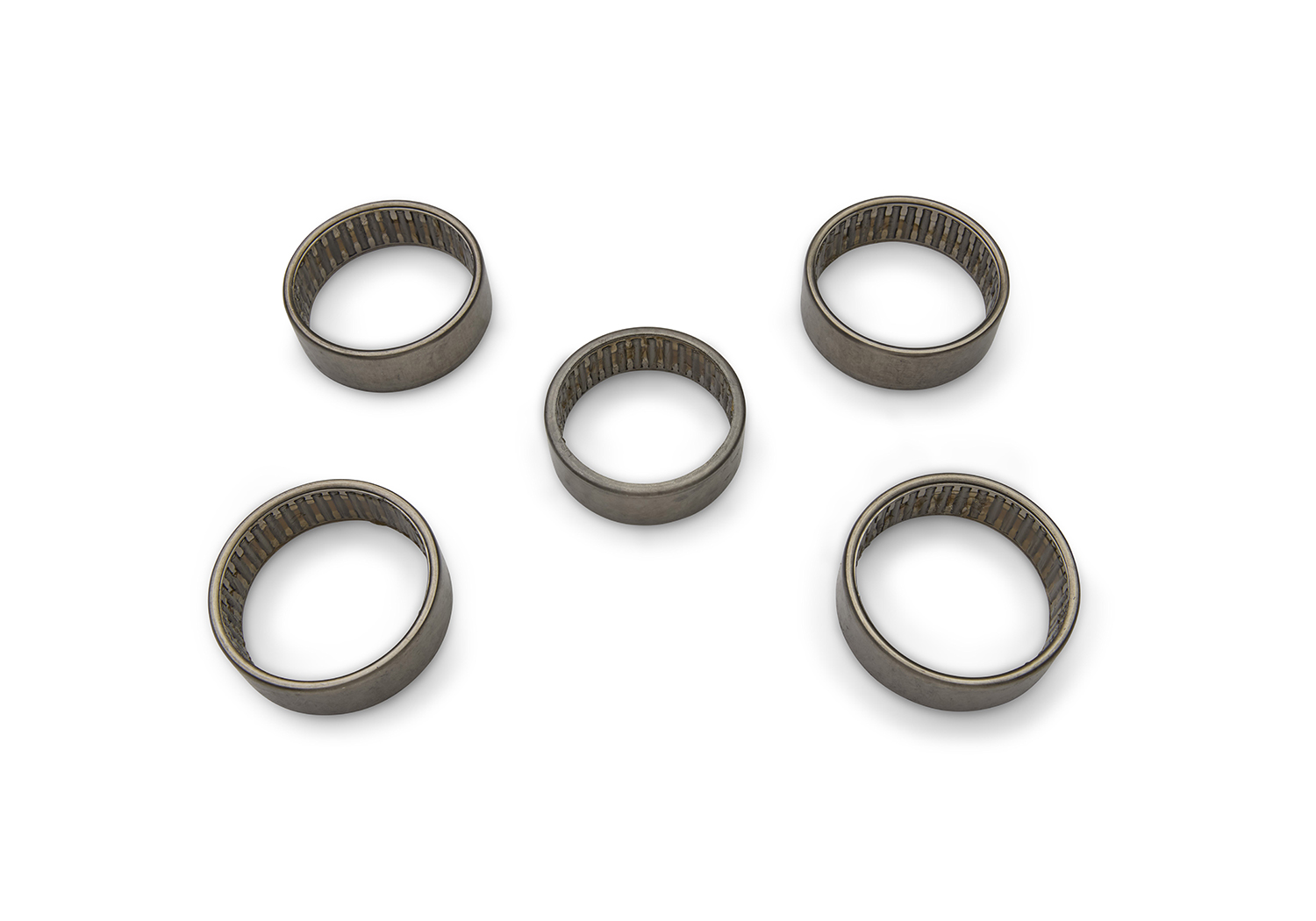

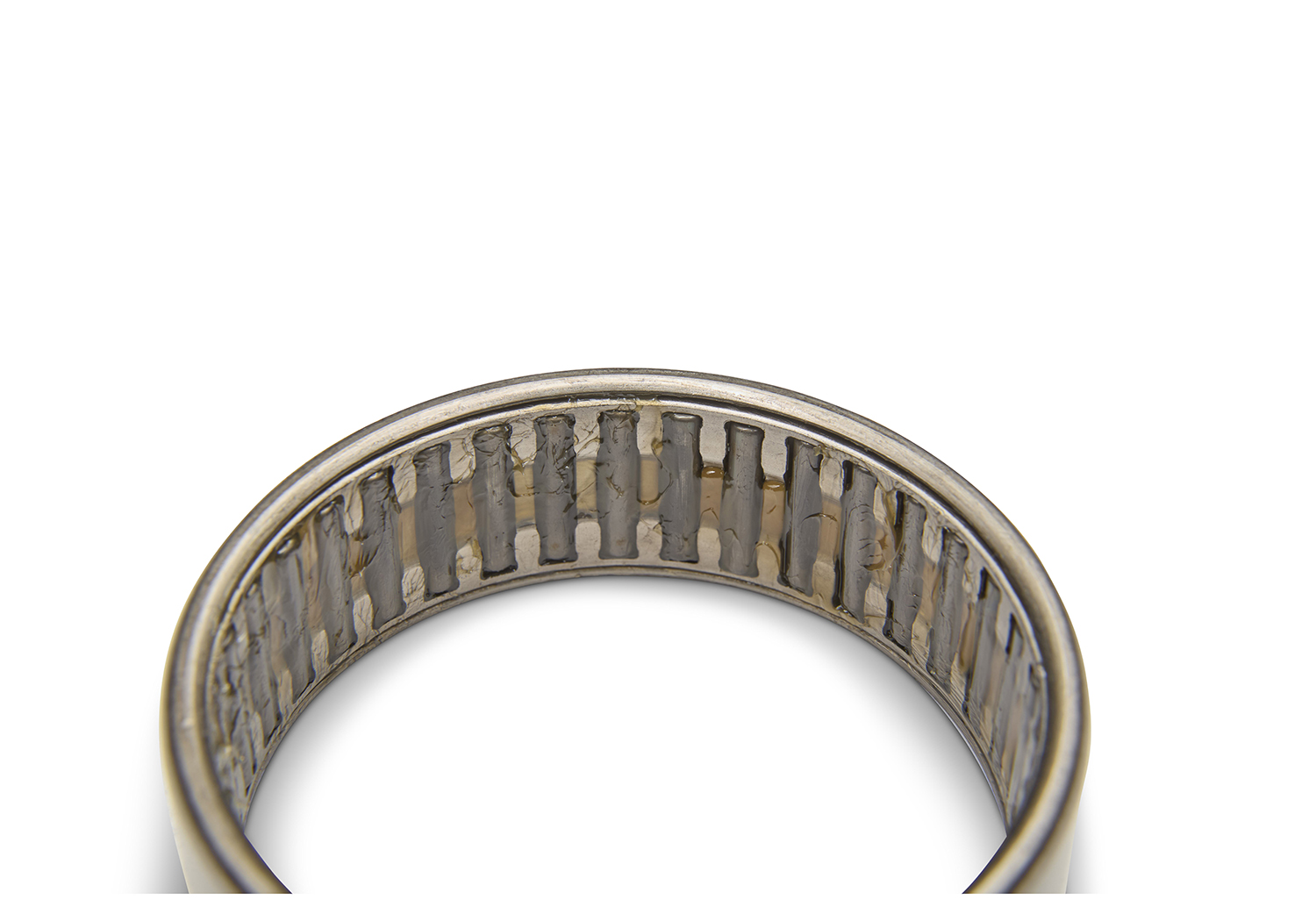

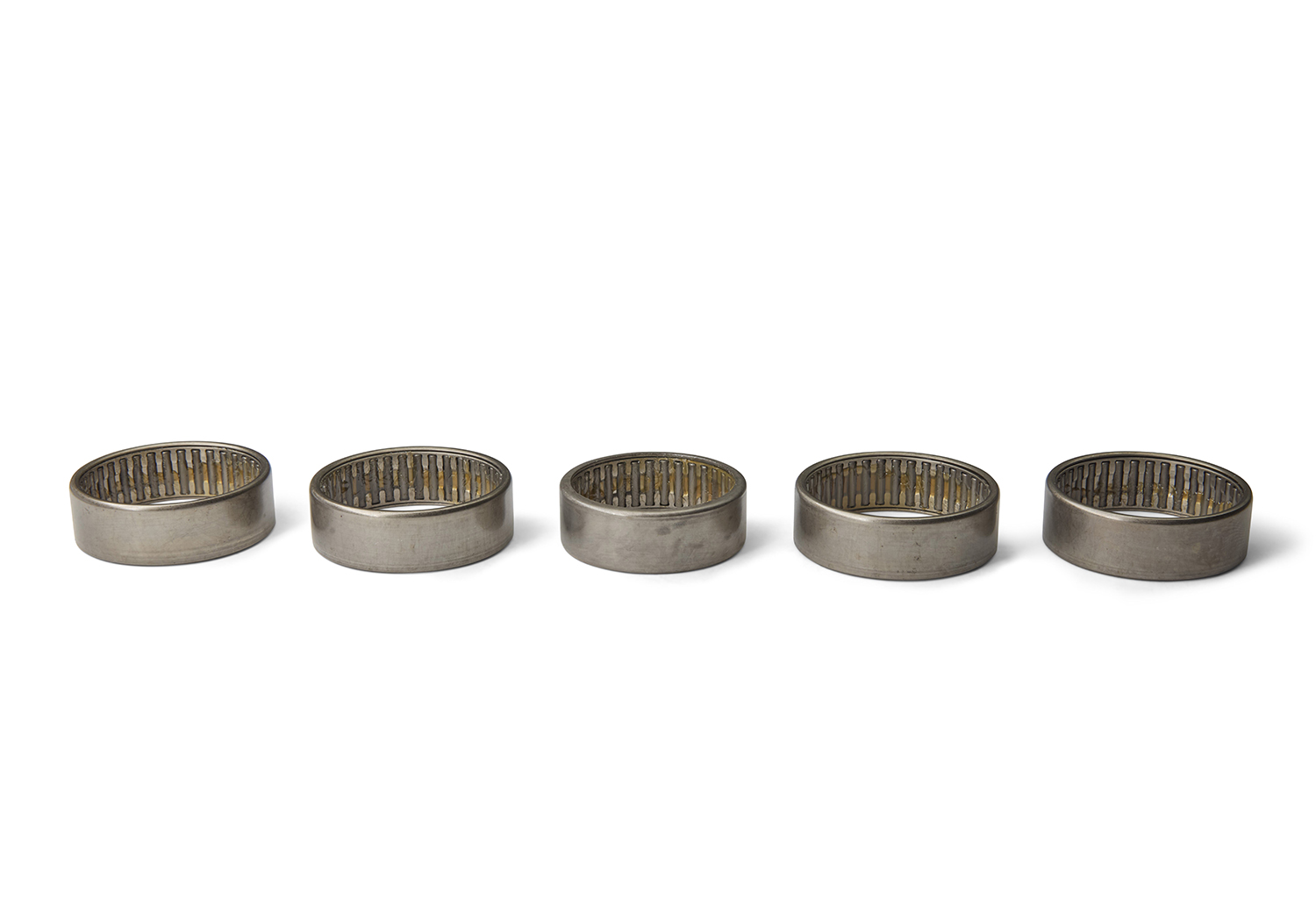

    CAMSHAFT BEARINGS - ROLLER (SOLD IN ENGINE SETS) These low-friction, roller camshaft bearings only require oil "splash" lubrication. Oil feed holes can be totally blocked off, to reduce oil aeration and windage losses. Engine block must be machined to accept bearing size shown in chart. NOTE: The 351 cam journals are NOT production dimensions. The 429-460 dimensions are production. These roller bearings require an SAE 8620 steel camshaft.
    PART NUMBERAPPLICATIONO.D. DESCRIPTIONI.D. DESCRIPTIONLENGTH





    M-6261-A460*429/460 Wedge2.500"2.125"0.625"
    M-6261-D351* 1351 Ford(1-4) 2.48"
    (5) 2.28"
    (1-4) 2.165"
    (5) 1.969"
    0.787"
    NOTE: 1 Requires camshaft retainer plate modifications.
Part Type
Engine: Cam/Tappets/Pushrods
Warranty Availability
Not Available
Packaged Dimensions
4" x 2.75" x 6
Packaged Weight
0.9 lb(s)
UPC Code
756122626290
Catalog Page Number
177
Country of Origin
United States
