ROCKER ARM PEDESTAL SHIM KIT

ROCKER ARM PEDESTAL SHIM KIT
M-6529-B302
Retail
$15.95
Sold in Units of
Each (1)
Instruction Sheet
Not Available
  • Fits 302 and 351 pedestal style cylinder heads like Ford Performance M-6049-X306 and M-6049-X307
  • Use with bolt-on roller rocker arms M-6564-A50, and M-6564-B351 to obtain correct lifter pre-load.

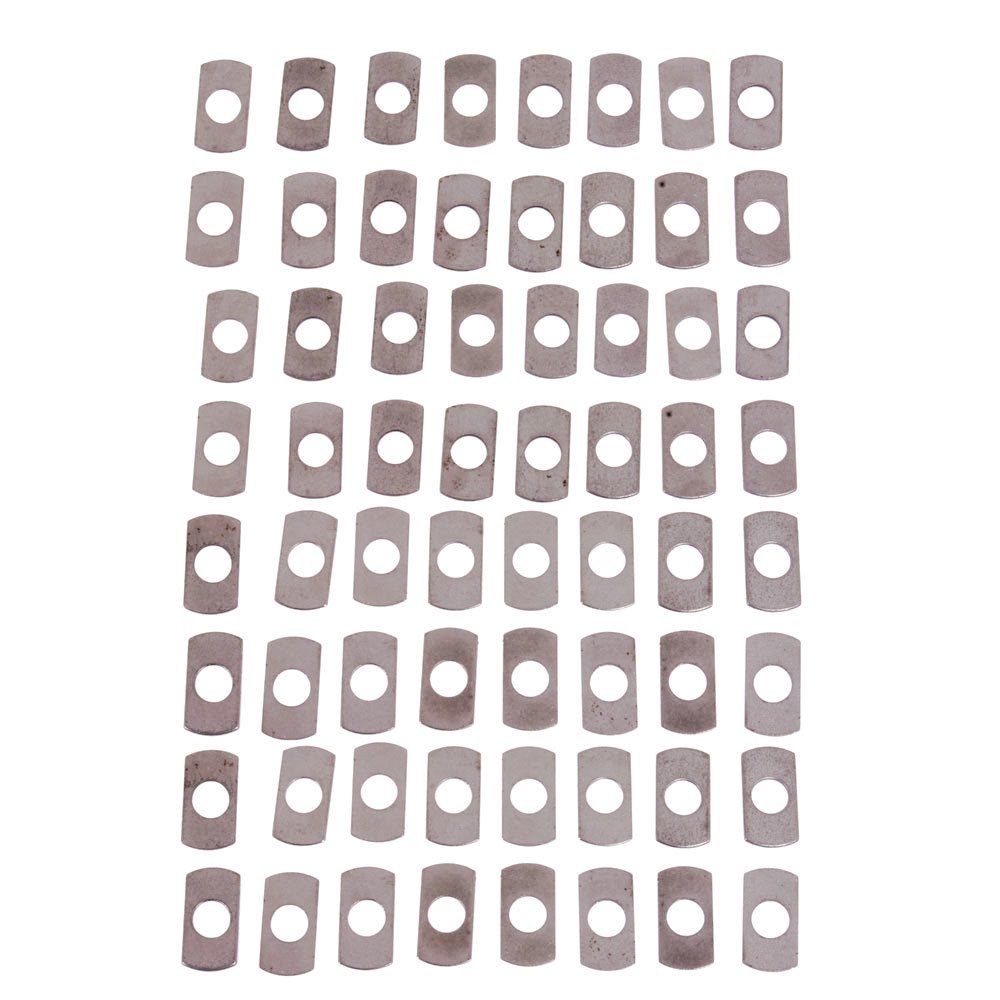

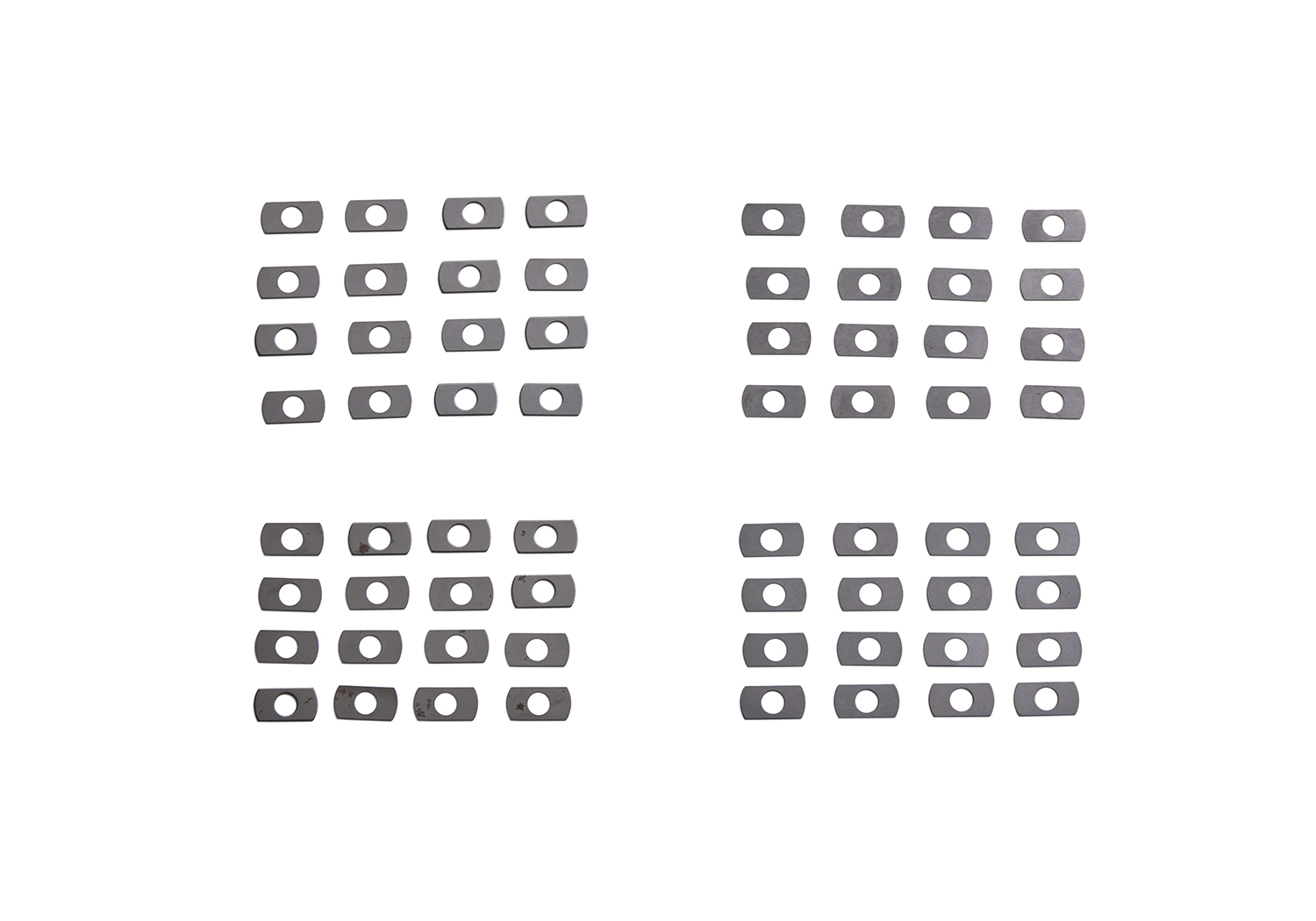

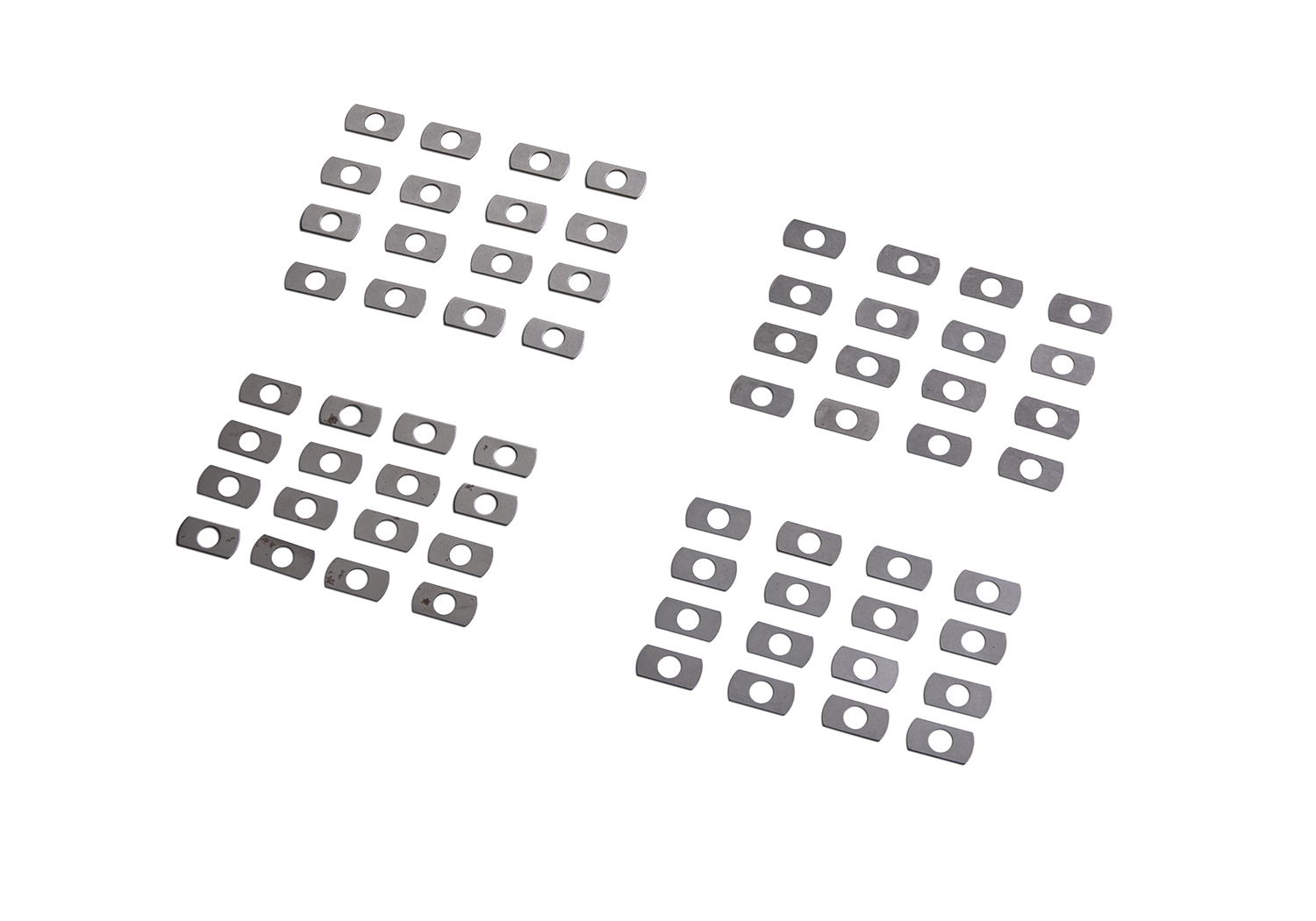

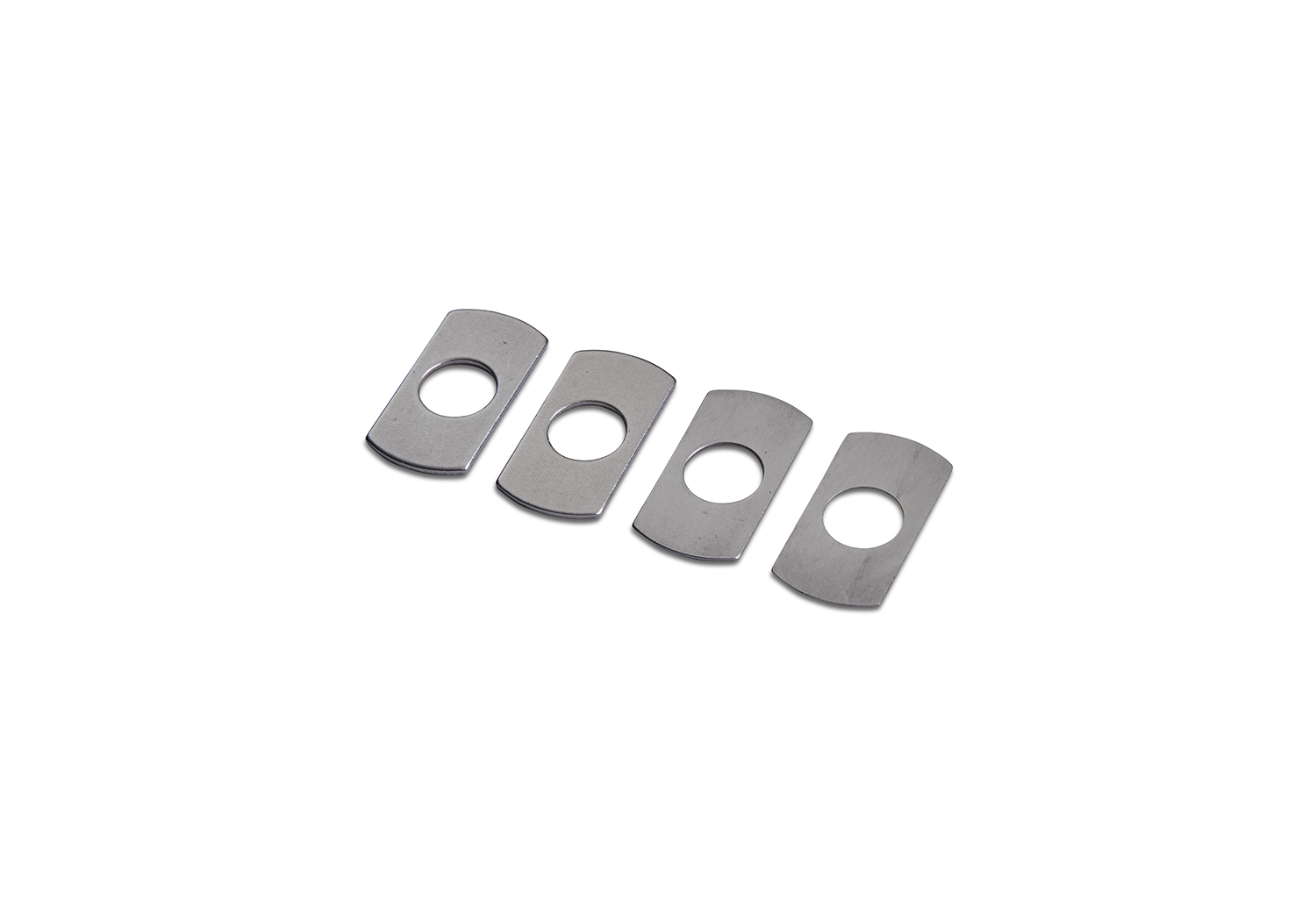

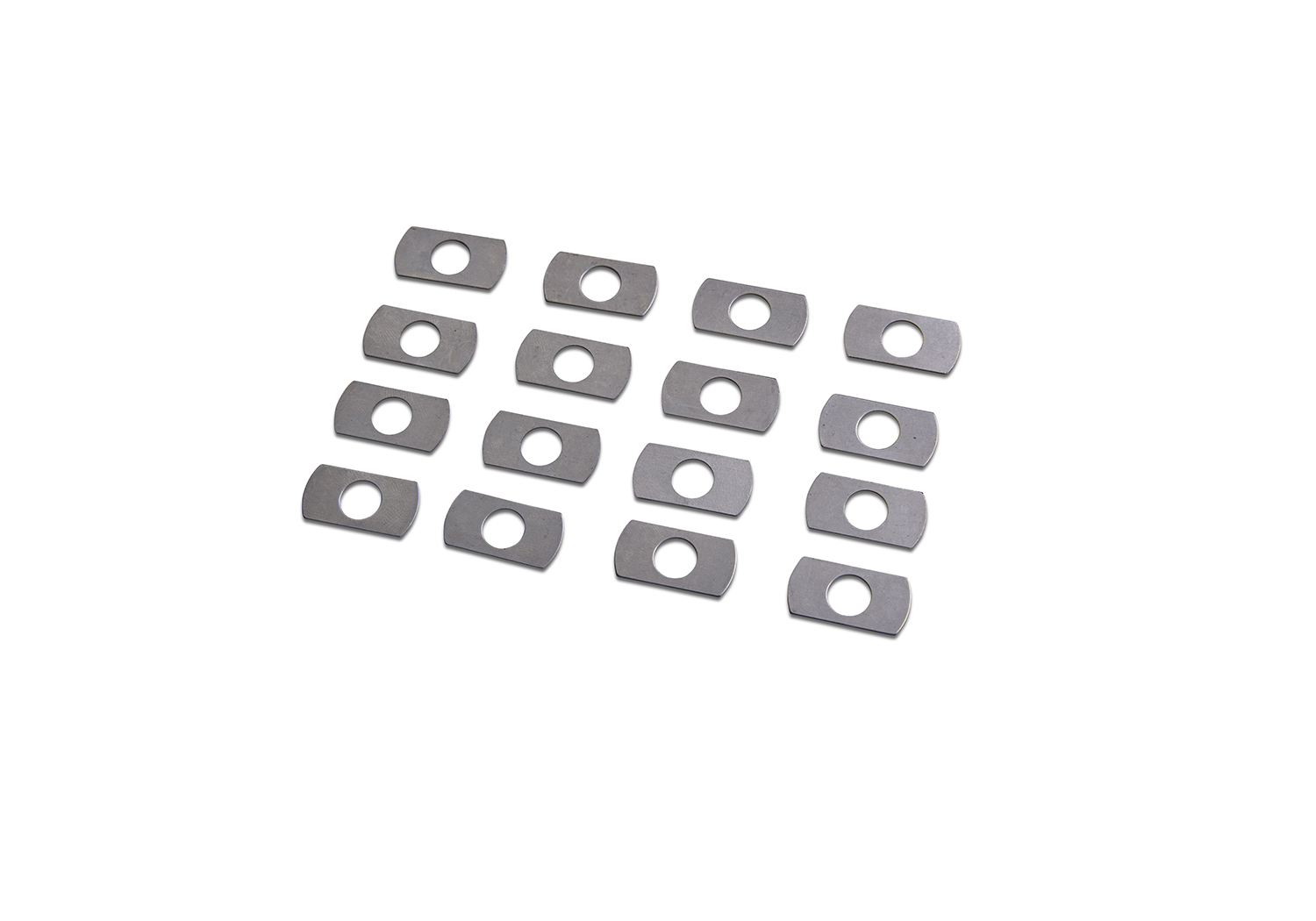

  • Shim kit is used to reduce lifter pre-load and includes 16 each of the following thickness shims:
    • .010"
    • .020"
    • .030"
    • .040"
Part Type
Engine: Cam/Tappets/Pushrods
Warranty Availability
Not Available
Packaged Dimensions
3.25" x 1.5" x 3.25
Packaged Weight
0.03 lb(s)
UPC Code
756122004913
Catalog Page Number
189
Country of Origin
United States
