VALVE SPRING RETAINERS

VALVE SPRING RETAINERS
M-6514-B50
Retail
$66.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available

Proudly Made in the USA

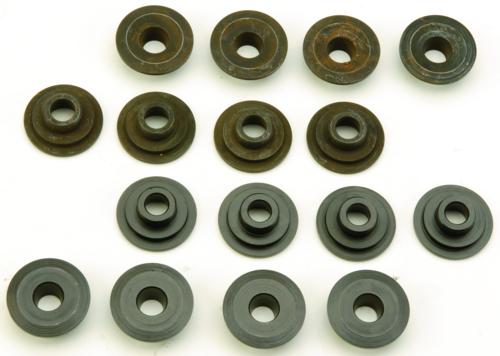

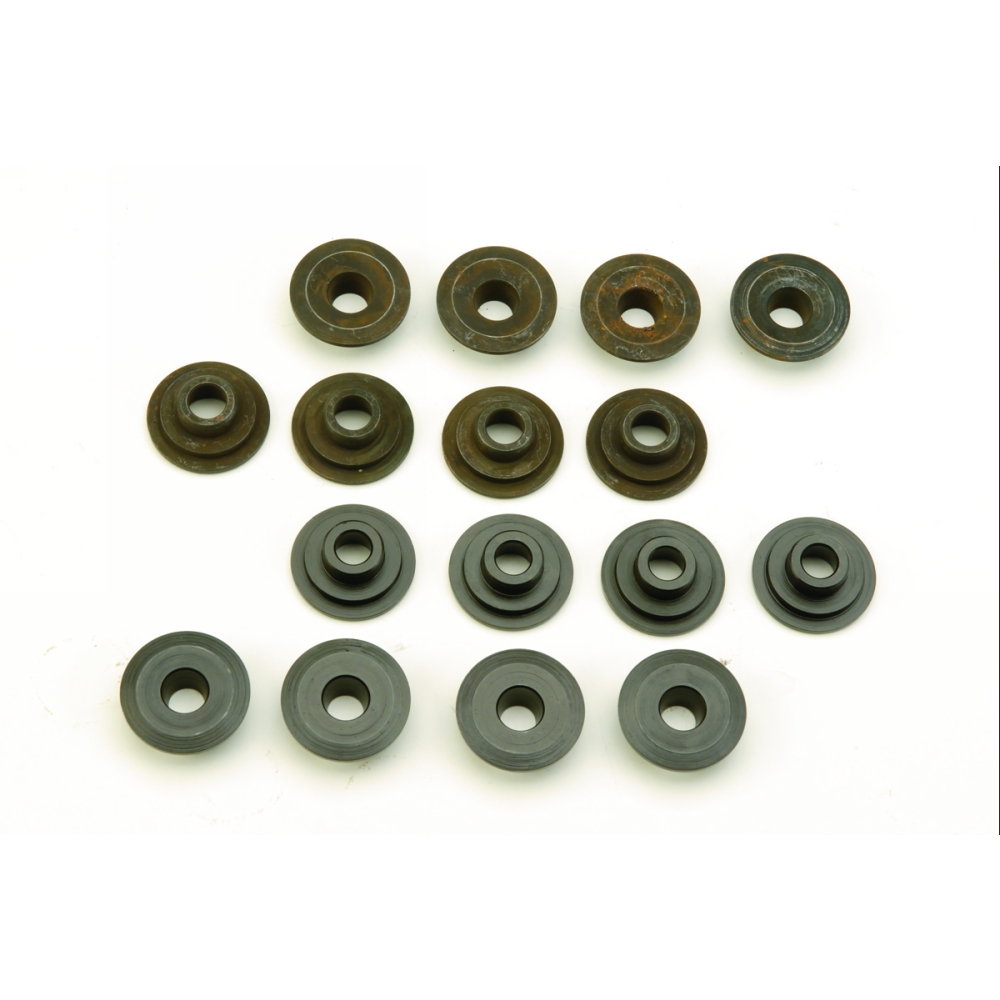

    VALVE SPRING RETAINERS (sold in pkg. of 16)
    PART NUMBERAPPLICATIONDESCRIPTIONSPRING O.D.RETAINER O.D.STEP DIMENSIONS
    VALVESPRING1ST STEP2ND STEP
    M-6514-A50Single lock
    groove.
    11/32" dia.
    stem.
    M-6513-A50
    M-6513-B351
    M-6049-N351
    and all GT 40¹ ²
    7° Machined Steel1.500"1.375"1.060"0.675"
    M-6514-B50Single lock
    groove.
    11/32" dia. stem.
    M-6513-A50²7° Machined Steel1.500"1.375"1.060"0.675"
    M-6514-BHSingle lock
    groove.
    11/32" dia. stem.
    M-6513-BH10° Machined Steel1.055"1.045"0.640"
    NOTES: ¹ Use of M-6514-B50 retainers on 1979-95 production valves of 5.0L (302) HO and production GT-40 engines eliminates exhaust rotators and will result in 1.800" intake and exhaust spring “installed height.” ² With Ford Racing stainless steel valves.
Part Type
Engine: Valves / Springs
Warranty Availability
Not Available
Packaged Dimensions
4" x 4" x 4.25
Packaged Weight
1.2 lb(s)
Part Type
Engine: Valves / Springs
UPC Code
756122651216
Country of Origin
United States
California Executive Order
No
