VALVE SPRING RETAINERS

This part is no longer available.

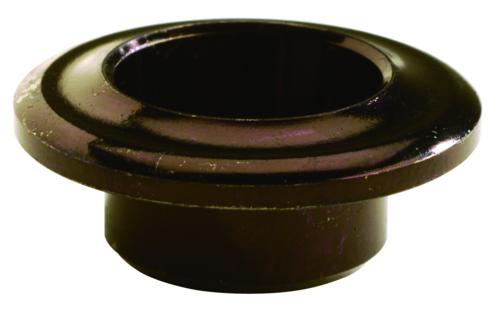

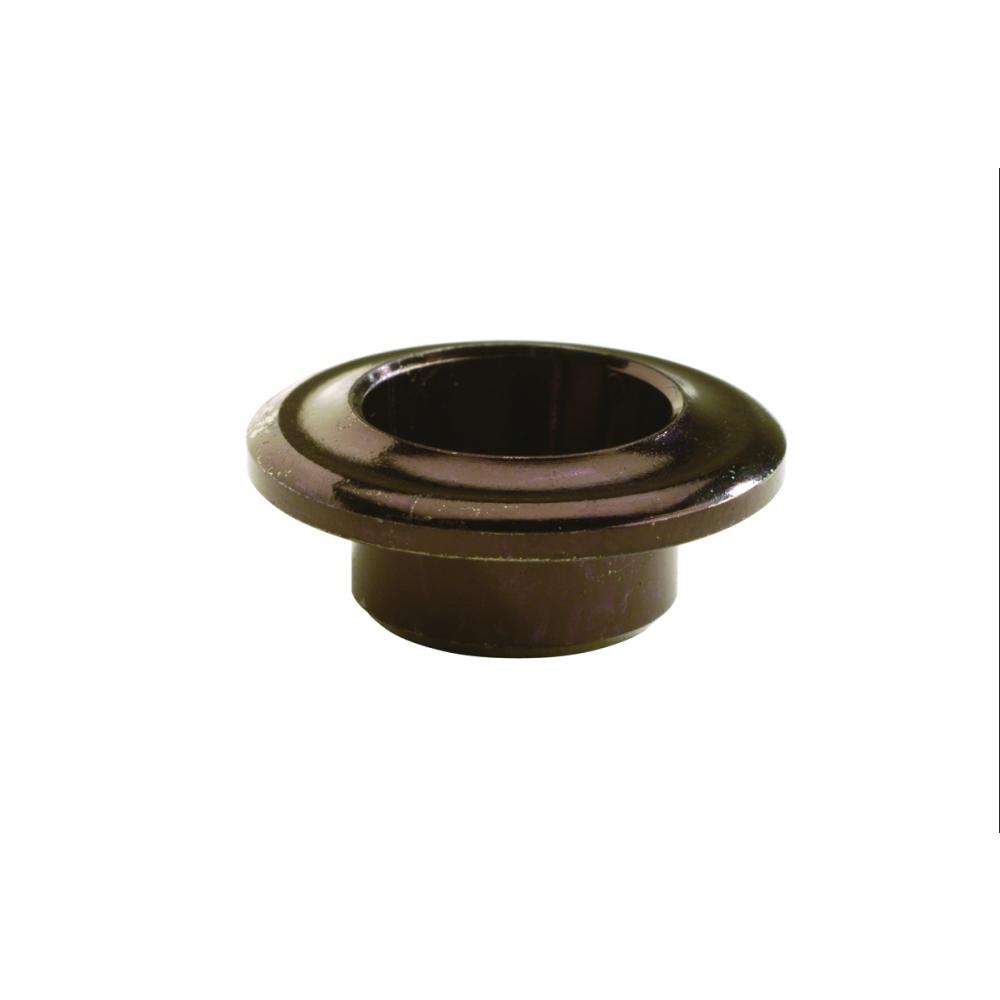

VALVE SPRING RETAINERS
M-6514-BH
Instruction Sheet
Not Available
VALVE SPRING RETAINERS (sold in pkg. of 16)
PART NUMBERAPPLICATIONDESCRIPTIONSPRING O.D.RETAINER O.D.STEP DIMENSIONS
VALVESPRING1ST STEP2ND STEP
M-6514-A50Single lock
groove.
11/32" dia.
stem.
M-6513-A50
M-6513-B351
M-6049-N351
and all GT 40¹ ²
7° Machined Steel1.500"1.375"1.060"0.675"
M-6514-B50Single lock
groove.
11/32" dia. stem.
M-6513-A50²7° Machined Steel1.500"1.375"1.060"0.675"
M-6514-BHSingle lock
groove.
11/32" dia. stem.
M-6513-BH10° Machined Steel1.055"1.045"0.640"
NOTES: ¹ Use of M-6514-B50 retainers on 1979-95 production valves of 5.0L (302) HO and production GT-40 engines eliminates exhaust rotators and will result in 1.800" intake and exhaust spring “installed height.” ² With Ford Racing stainless steel valves.
Part Type
Engine: Valves / Springs
Warranty Availability
Not Available
Package Dimensions
3.5" x 1.5" x 3.5"
Package Weight
0.7 lb(s)
UPC Code
756122088777
Country of Origin
United States
