2021-2024 BRONCO 2.3L ECOBOOST PERFORMANCE CALIBRATION
M-9603-B23
Retail
$825.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
The “Forty-nine States Street Legal" icon means Ford Motor Company has determined that this part does not have an adverse effect on emissions when installed and used properly in the application(s) identified in the product description and may be installed in vehicles driven on public roads and highways. However, this part does not have regulatory approval for use in California and can not legally be registered or used on vehicles in California. The use of this product in California may subject the user to penalty provisions under California law.
Enhance the performance of the 2.3L EcoBoost engine in your 2021-2024 Bronco. Ford Performance Parts calibrations are engineered and dyno tested to deliver increased power and performance while maintaining reliability.

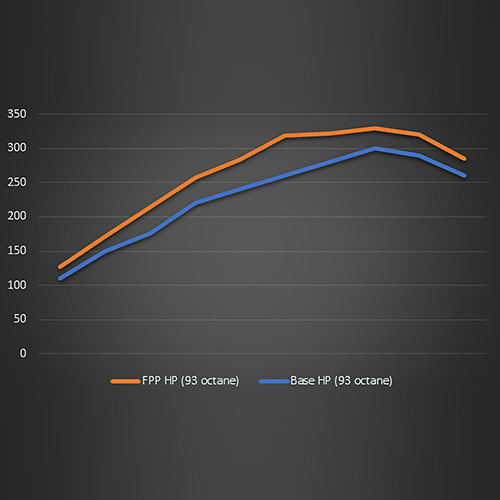

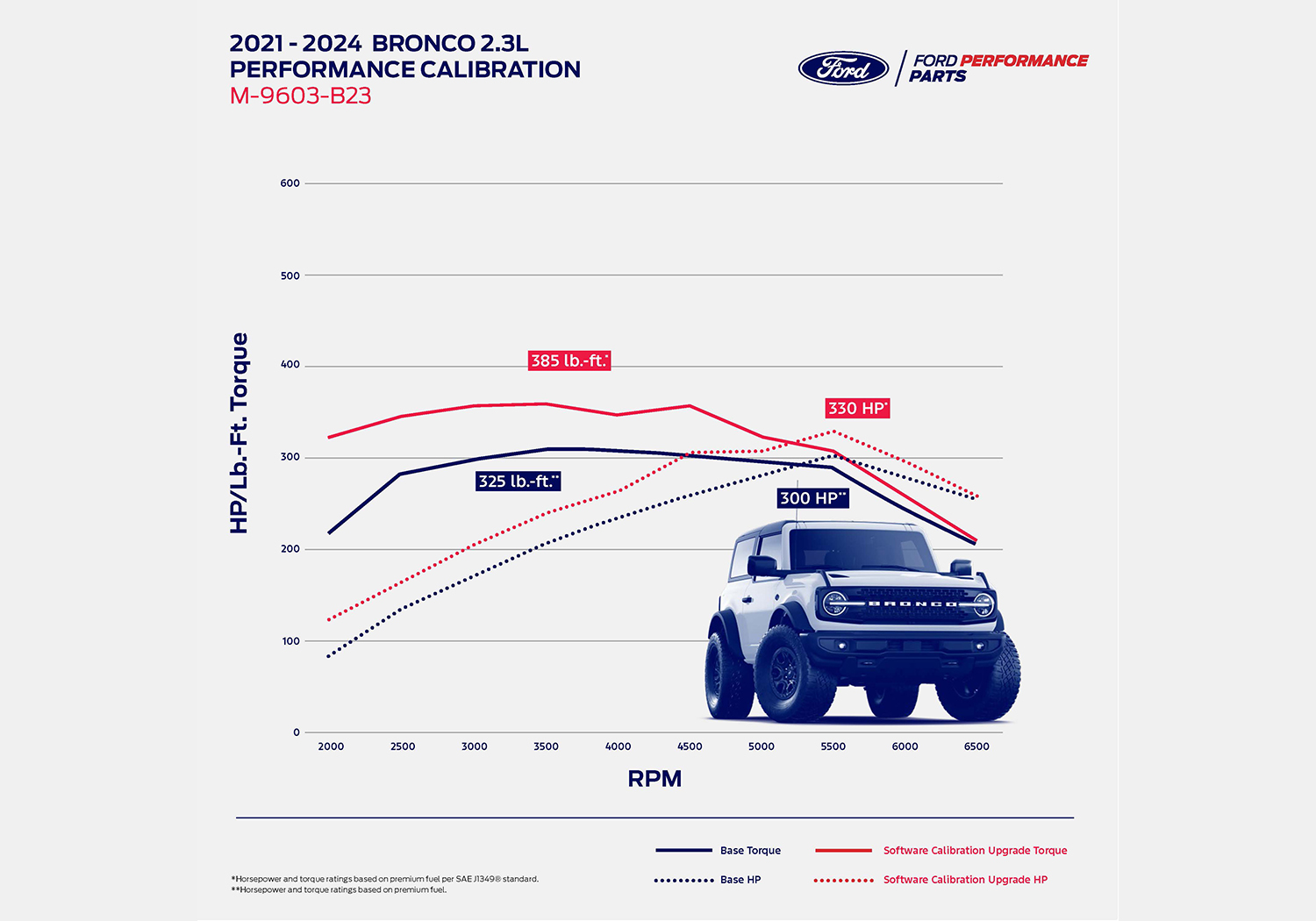

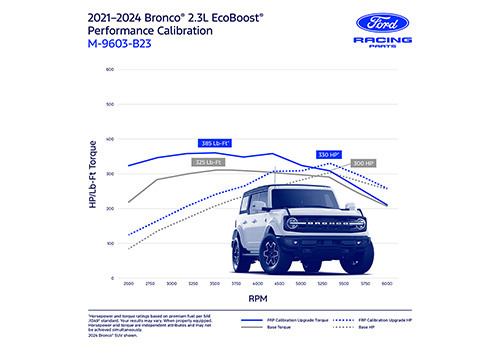

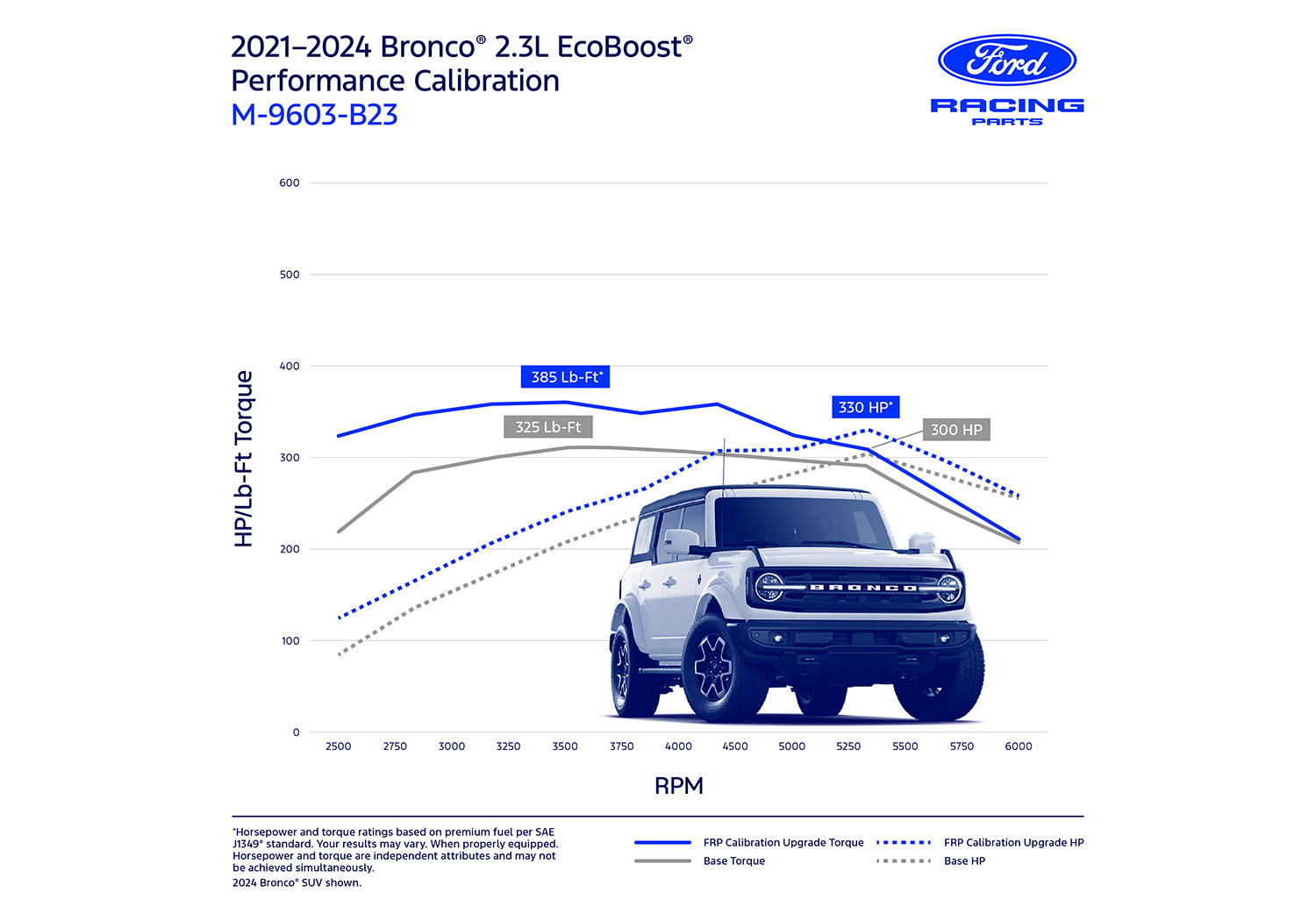

- Peak Power = 330 hp @ 5,500 rpm
- Peak Torque = 385 lb-ft @ 3,500 rpm
- Improved throttle response throughout rpm range
- Optimized Shift Schedule for automatic transmission equipped vehicles
- Premium Fuel Required
- 3 year/36k mile warranty from new vehicle in-service when installed by a Ford dealer or ASE/Red Seal certified technician
-
Ability to change tire size up to BFG 37x12.5R17 KO2 size (579 revolutions per mile) [Additional modifications required]
- Ability to change axle/FDU ratio up to 5.38
- Enables upgrade of M190 to M210 front drive unit by reconfiguring DLCM module
- For U.S. & Canadian Vehicles
-
CARB E.O. #: D-431-4 for 2021- 2023 models
- ***NOT available for 2024 California Vehicles***
- M-12655-F ProCal 4 delivery tool included
- * Premium fuel required*
- The M-9603-B27 calibration is also available for 2.7L
***Reverting to stock calibration with non-production tires/gears will result in error codes. Loss of functionality of critical systems may occur***
***Calibration and ProCal 4 tool are VIN locked. Please contact the Tech Line with additional questions***
***NOTE*** ProCal 4 software only available for Windows 7 or greater. Will NOT work with Windows 10 in "S Mode".
***NOTE*** ProCal 4 tool receives periodic firmware updates for greater usability and additional features. Please connect tool to PC periodically to receive the updates automatically.
Part Type
Electrical: Analyzers / Calibrators
Instruction Sheet
Warranty Availability
Package Dimensions
6.5" x 3.5" x 6.5"
Package Weight
1.3 lb(s)
UPC Code
756122017494
Country of Origin
United States
