2019-2023 RANGER ECOBOOST POWER PACK PERFORMANCE CALIBRATION
M-9603-REB
Retail
$900.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
The “Forty-nine States Street Legal" icon means Ford Motor Company has determined that this part does not have an adverse effect on emissions when installed and used properly in the application(s) identified in the product description and may be installed in vehicles driven on public roads and highways. However, this part does not have regulatory approval for use in California and can not legally be registered or used on vehicles in California. The use of this product in California may subject the user to penalty provisions under California law.
Ford Performance calibration for 2019-2023 Ranger EcoBoost. The Ford Performance engineered performance calibration is a 50 state legal calibration for your Ford Ranger that increases power and improves performance throughout the RPM range. The 2022-2023 calibration is available for non-California vehicles.
- 50 state legal - C.A.R.B. EO#: D-431-4 (2019-2021 vehicles)
- 2022 and 2023 available for non-California vehicles
- Ford Performance engineered and dyno tested
- Improved drivability and throttle response throughout RPM range
- Optimized shift schedule

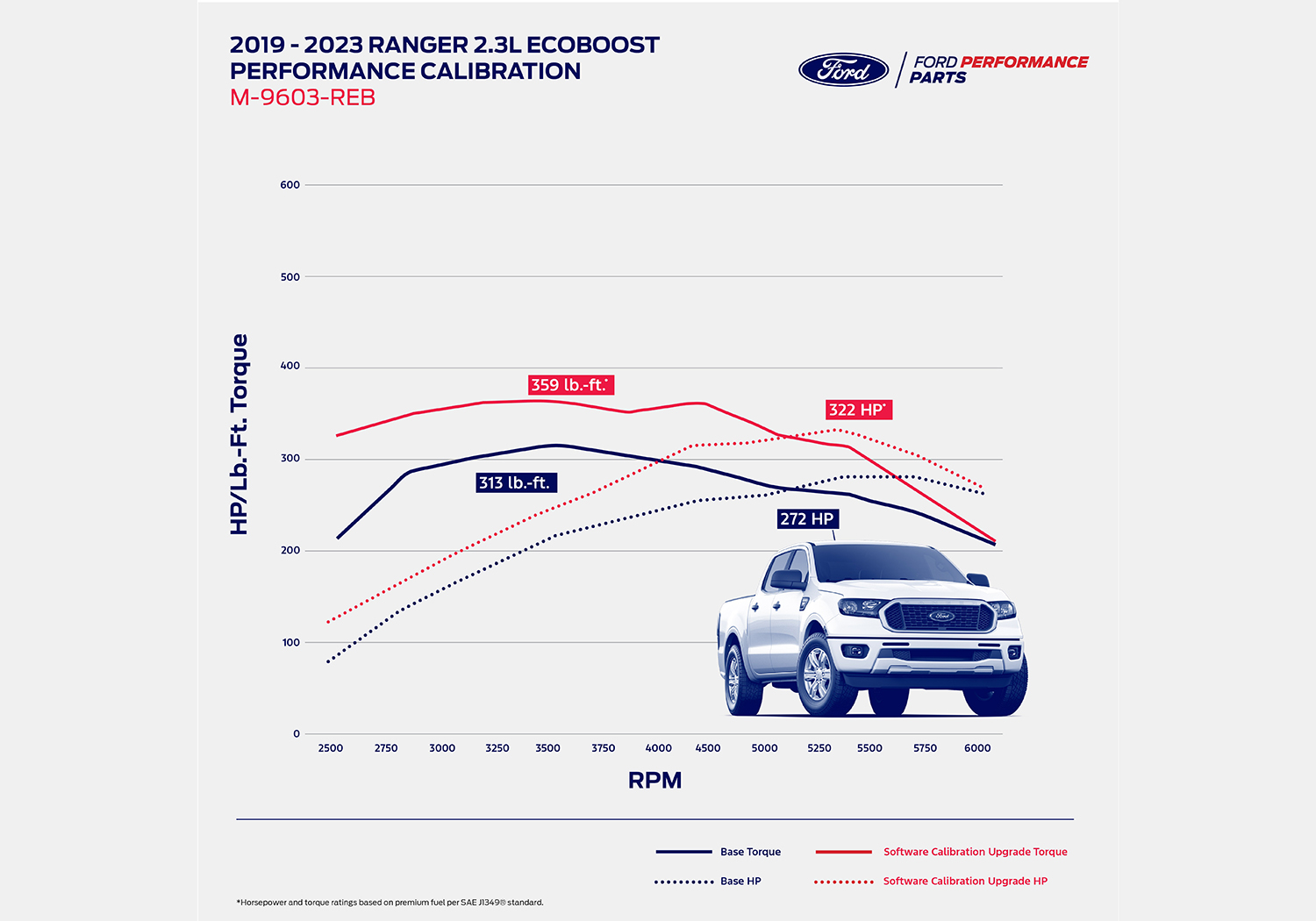

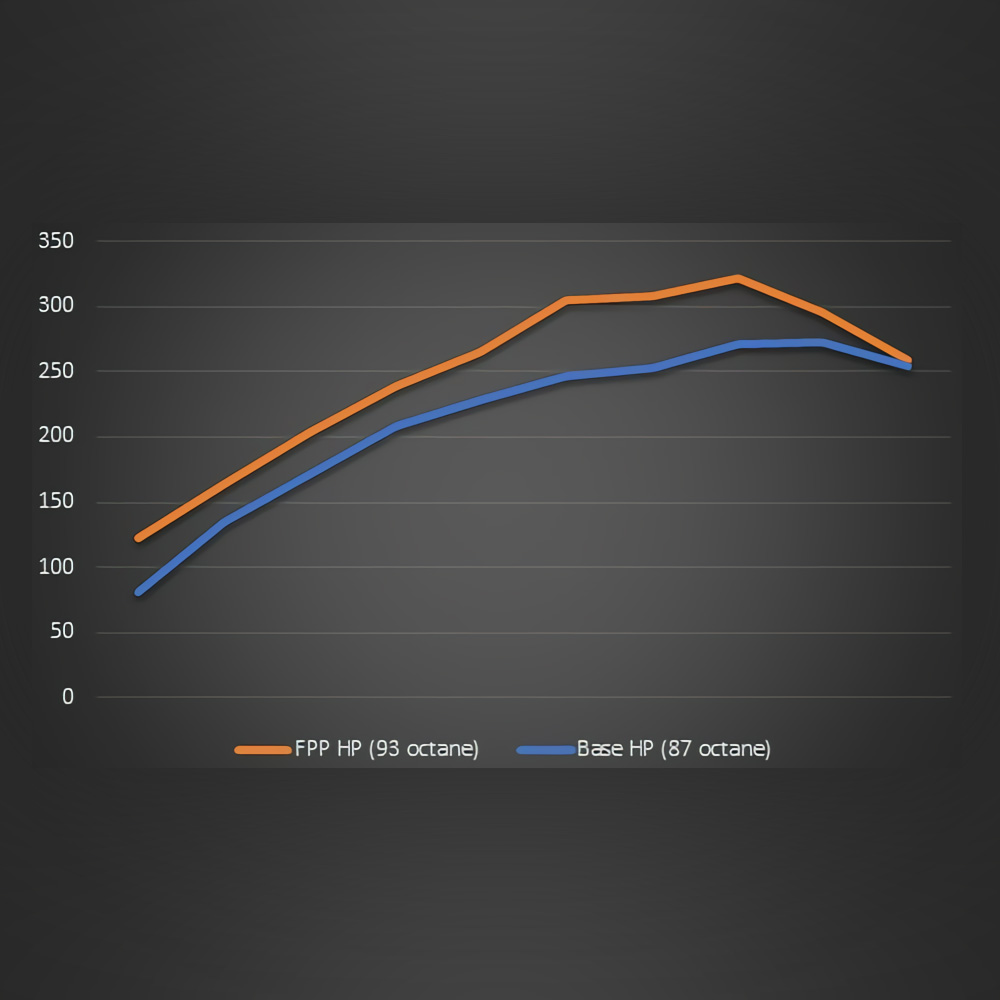

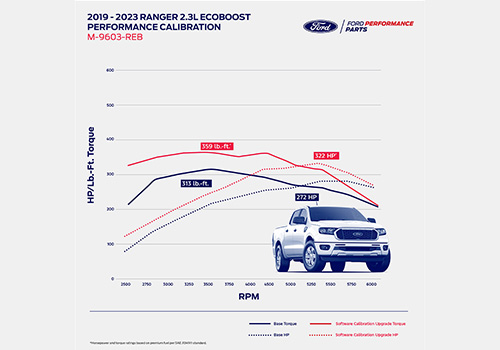

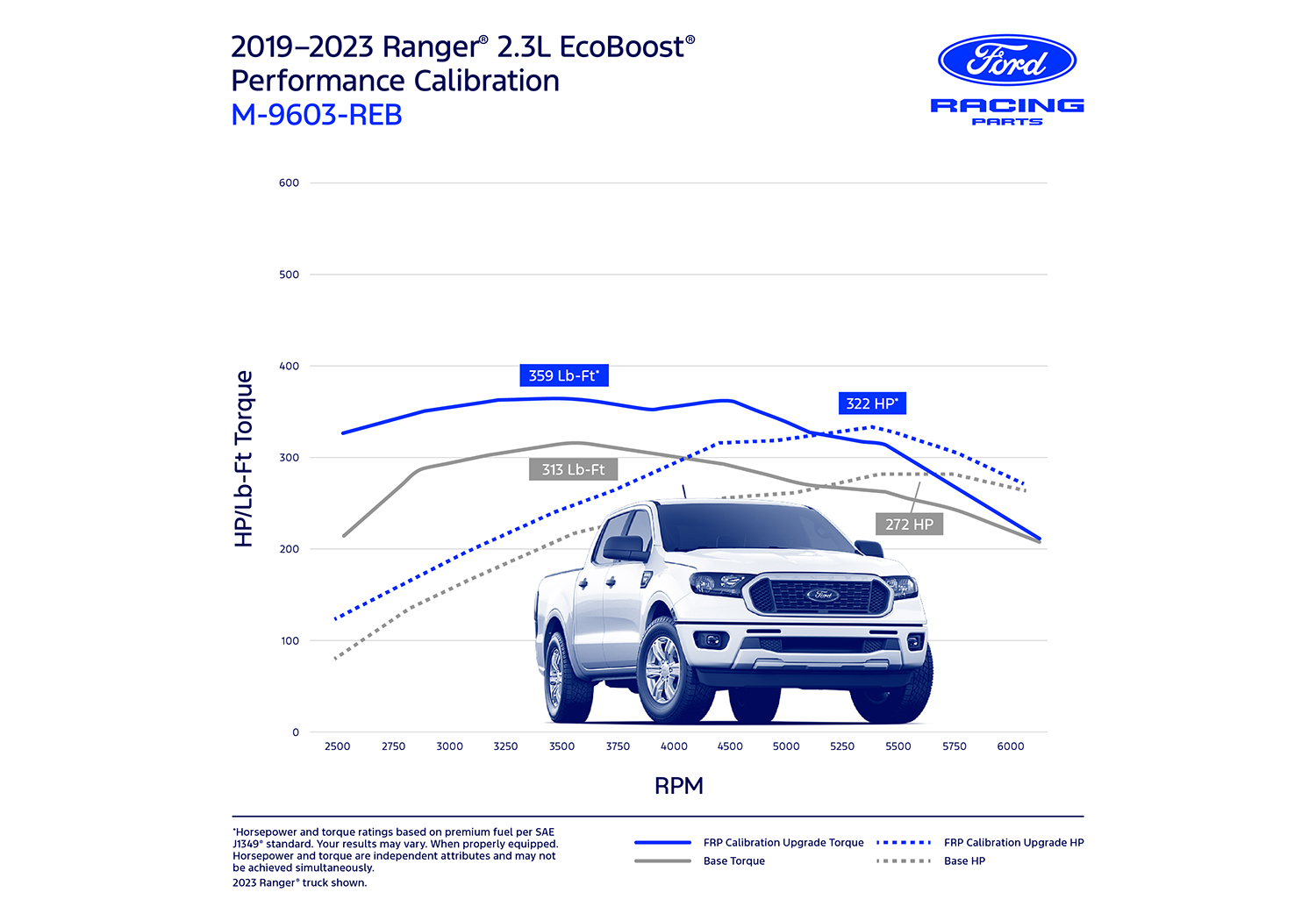

- Horsepower gain: 45 HP @ 4,500 RPM

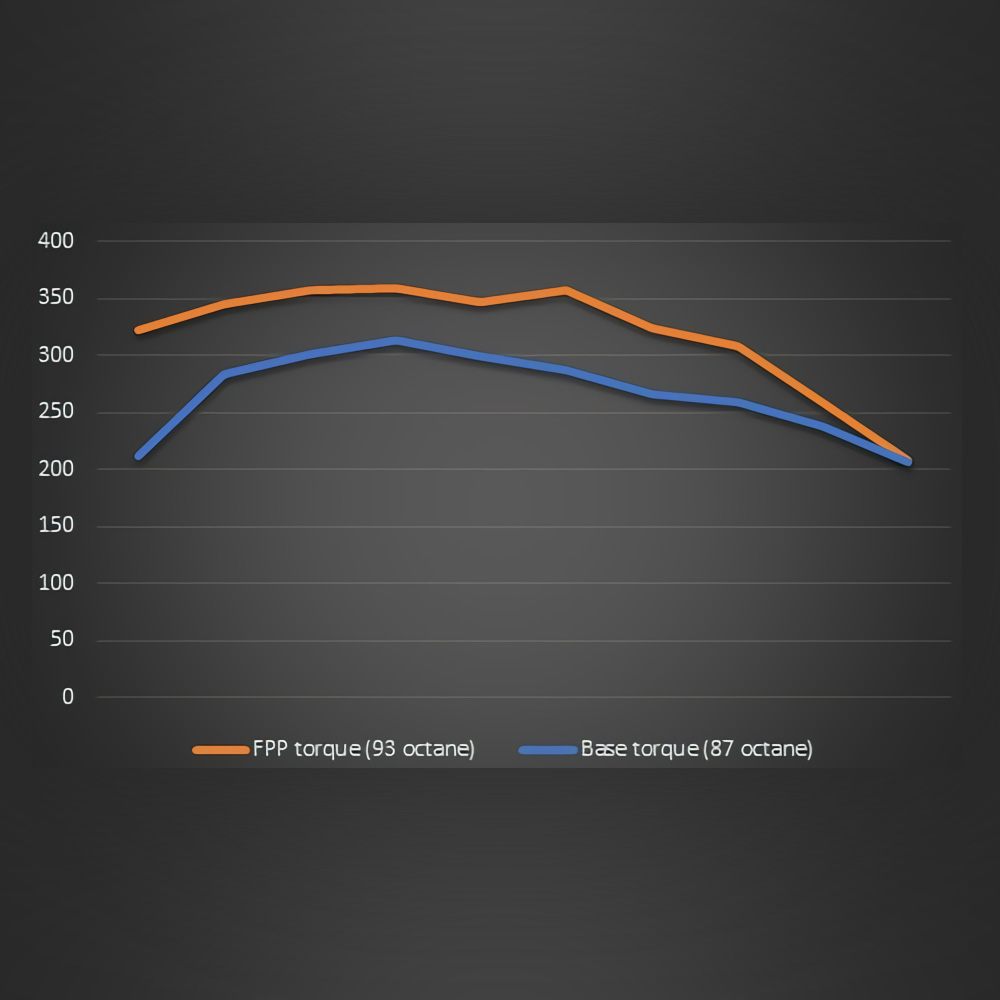

- Torque gain: 60 lb.-ft. @ 2,500 RPM
- For U.S. and Canadian vehicles
- Comes with Ford Performance 3yr/36k mile warranty from new vehicle in-service when installed by a Ford dealer or ASE/Red Seal certified technician
- Tire size configurable up to a maximum diameter equivalent to a 265/70R17 tire as recommended with the M-18000-R Ranger Off-Road Suspension Leveling Kit
- Premium fuel - 91 octane or higher is required

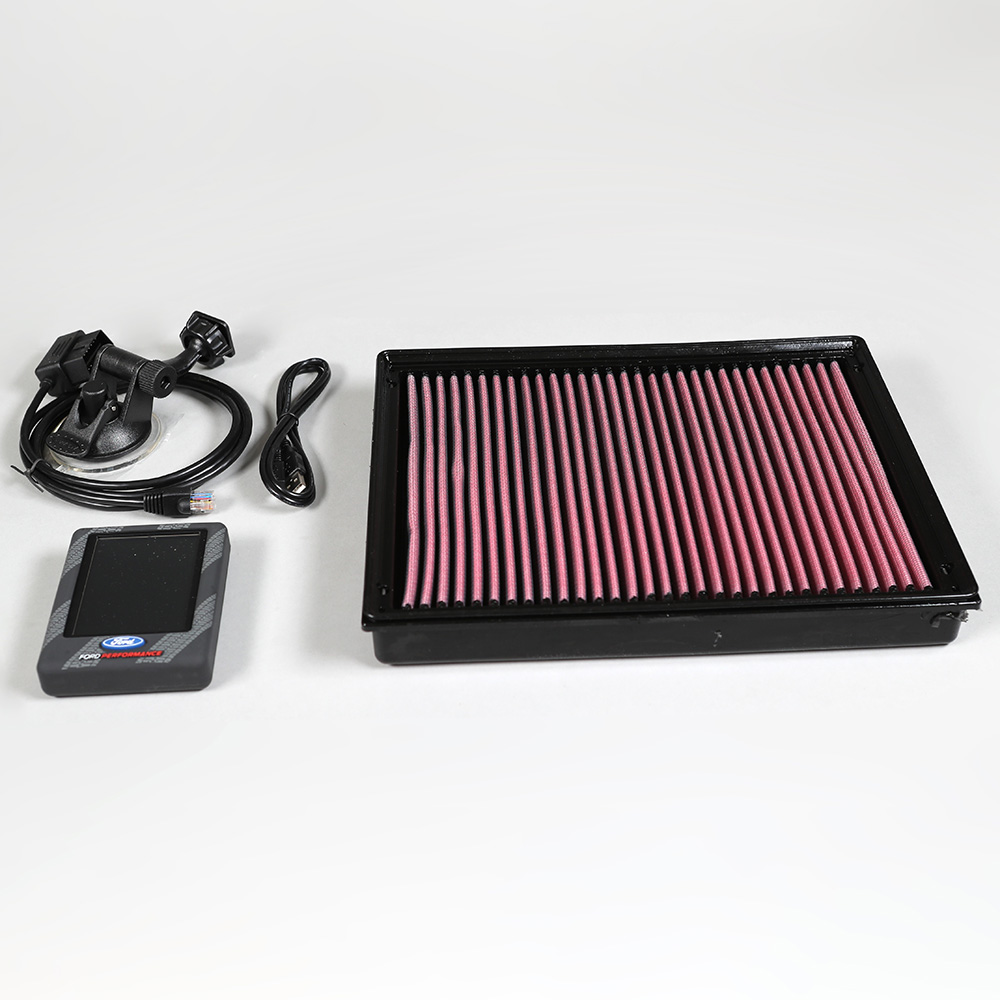

- Includes Ford Performance Pro Cal 4 calibration delivery tool M-12655-F
- Includes Ford Performance high-flow K&N® air filter
- Optimized for trailer towing
***Calibration and ProCal 4 tool are VIN locked. Please contact the Tech Line with additional questions***
***NOTE*** ProCal 4 software only available for Windows 7 or greater. Will NOT work with Windows 10 in "S Mode".
***NOTE*** ProCal 4 tool receives periodic firmware updates for greater usability and additional features. Please connect tool to PC periodically to receive the updates automatically.
Part Type
Engine: Power Packs
Instruction Sheet
Warranty Availability
Package Dimensions
5" x 15" x 15"
Package Weight
4.1 lb(s)
UPC Code
756122013915
Country of Origin
United States
