2021-2023 F-150 RAPTOR 3.5L PERORMANCE CALIBRATION

2021-2023 F-150 RAPTOR 3.5L PERORMANCE CALIBRATION
2021-2023 F-150 RAPTOR 3.5L PERORMANCE CALIBRATION
2021-2023 F-150 RAPTOR 3.5L PERORMANCE CALIBRATION
2021-2023 F-150 RAPTOR 3.5L PERORMANCE CALIBRATION
2021-2023 F-150 RAPTOR 3.5L PERORMANCE CALIBRATION
M-9603-R35
Retail
$825.00
Sold in Units of
Each (1)
Instruction Sheet
Available (PDF)
Sign in to add to wish list
This part has the Forty-nine State Street Legal icon The “Forty-nine States Street Legal" icon means Ford Motor Company has determined that this part does not have an adverse effect on emissions when installed and used properly in the application(s) identified in the product description and may be installed in vehicles driven on public roads and highways. However, this part does not have regulatory approval for use in California and can not legally be registered or used on vehicles in California. The use of this product in California may subject the user to penalty provisions under California law.
Enhance the performance of the 3.5L EcoBoost engine in your 2021-2023 F-150 Raptor. Ford Performance Parts calibrations are engineered and dyno tested to deliver more power and increased performance while maintaining reliability.

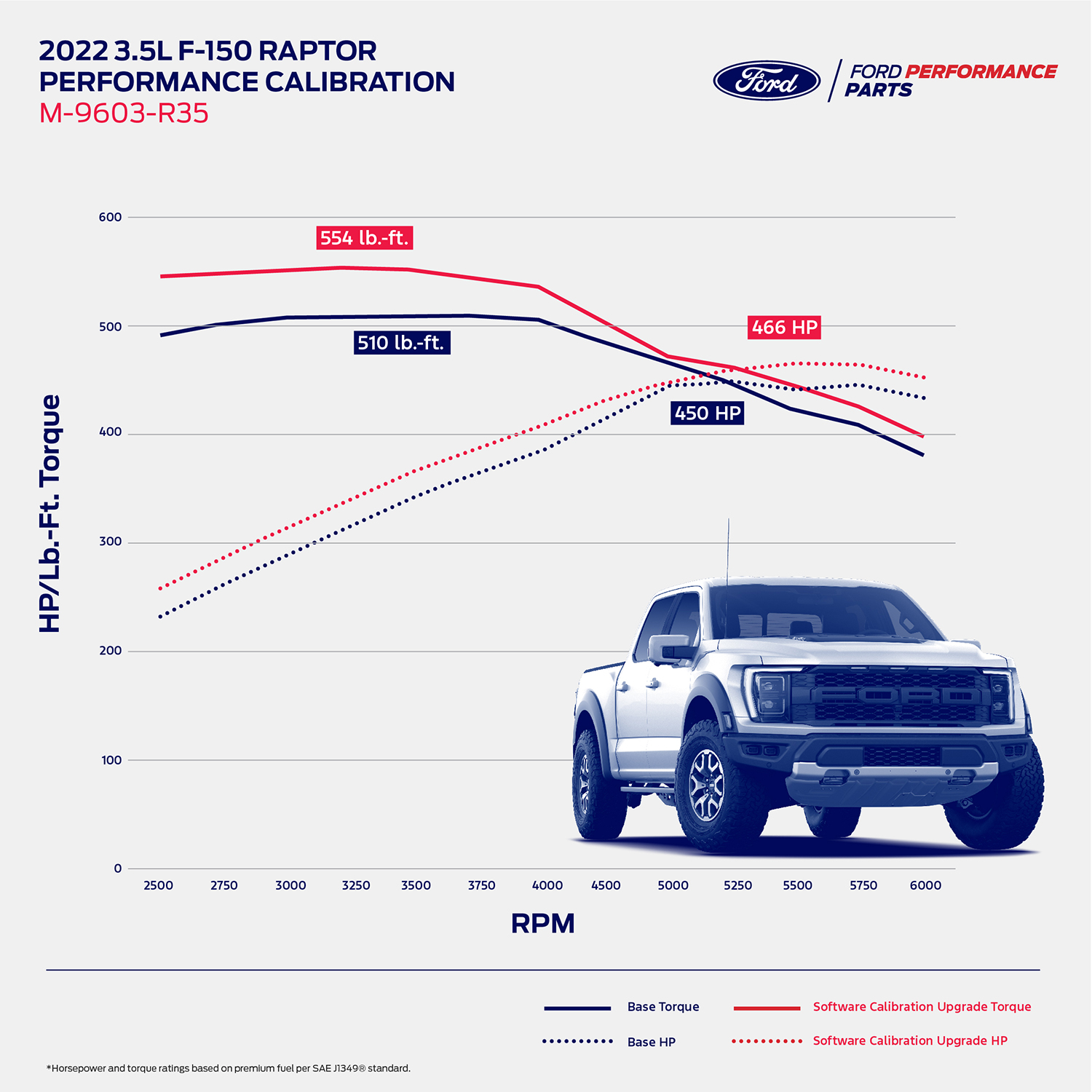

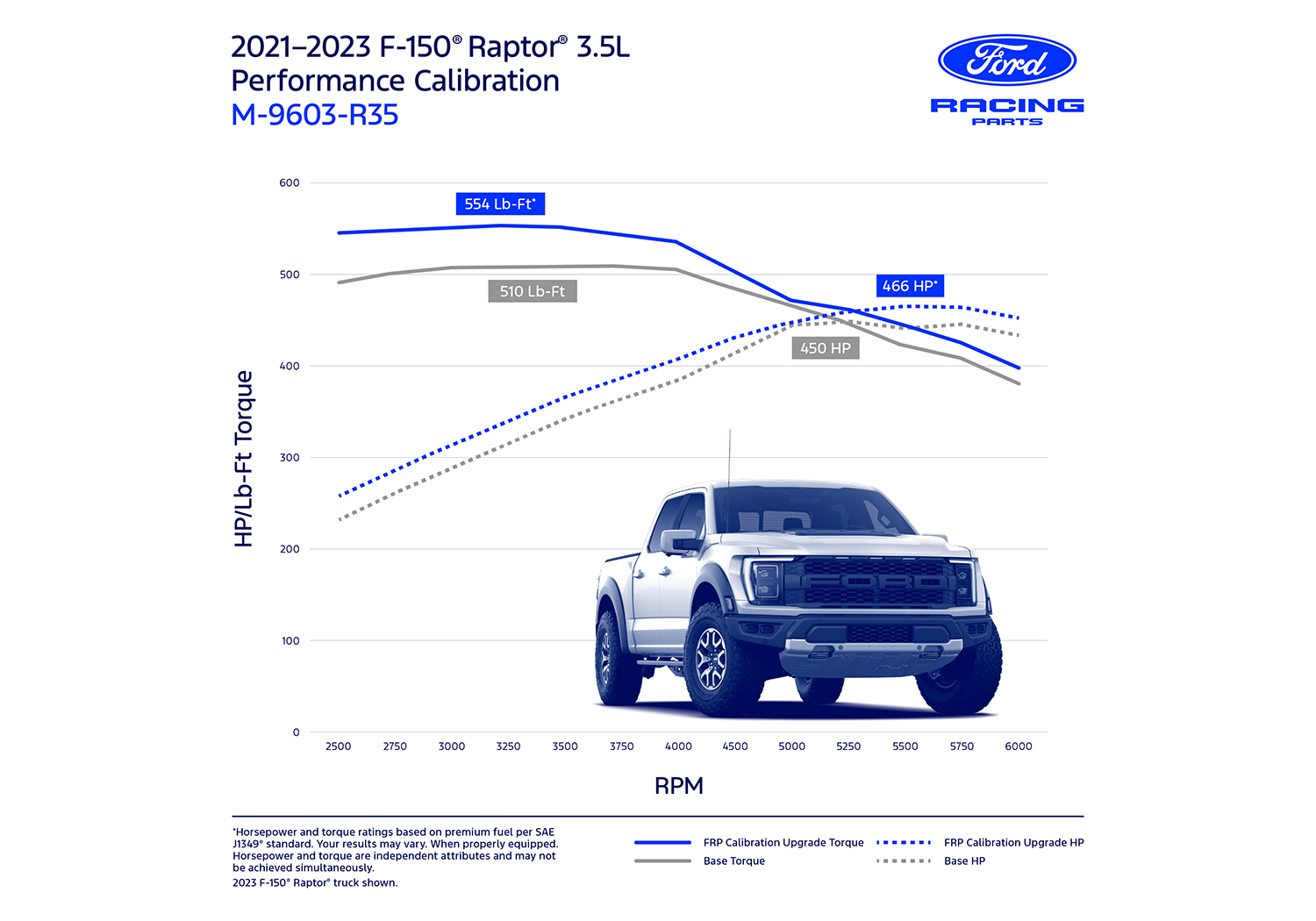

  • Peak power = 466 HP @ 5,500 rpm
  • +26 HP @ 3,250 rpm
  • Peak torque = 554 lb-ft @ 3,250 rpm
  • +54 lb-ft @ 2,500 rpm
  • Improved throttle response throughout the rpm range
  • Optimized Shift Schedule
  • Premium Fuel Required (91 octane minimum)

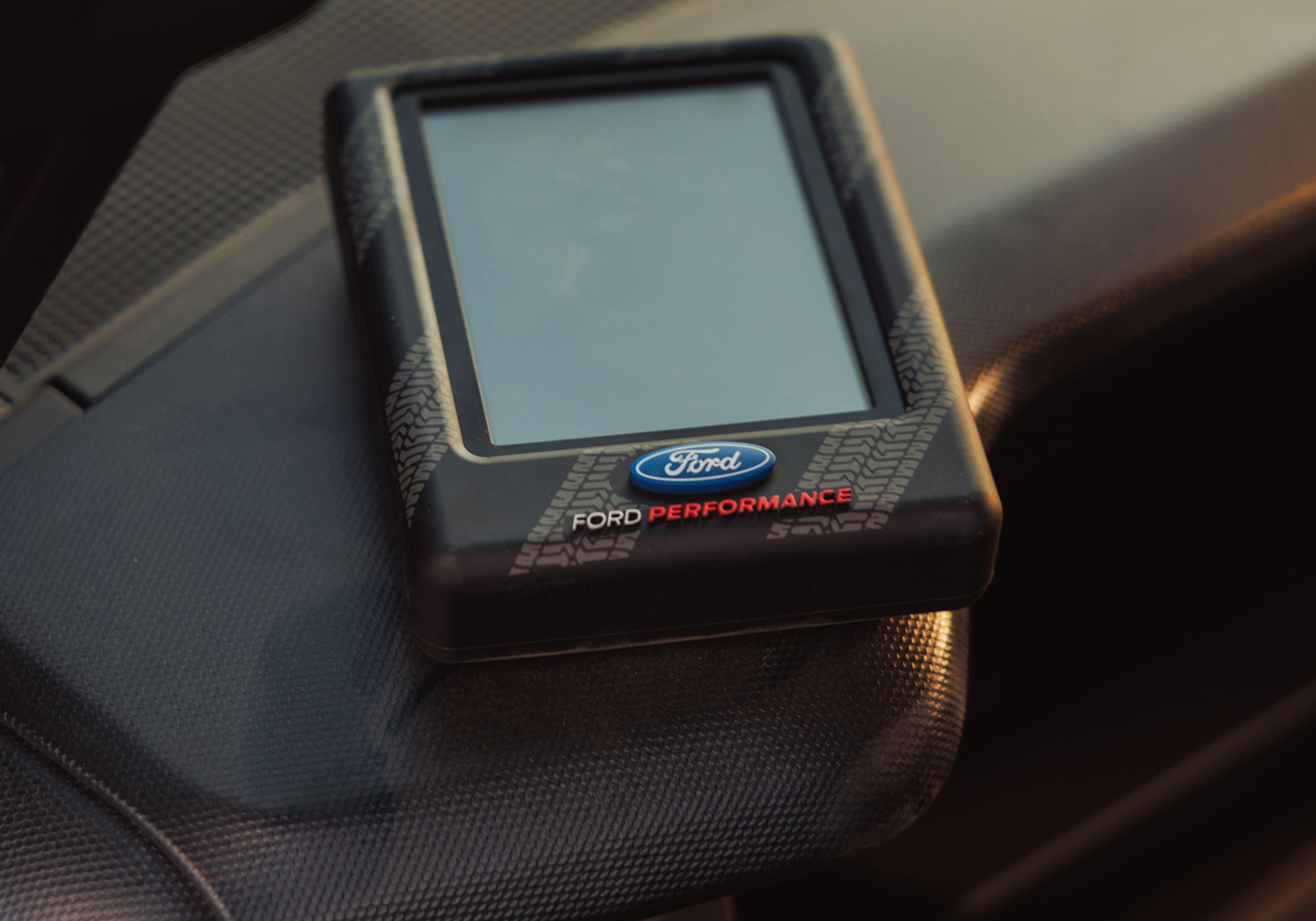

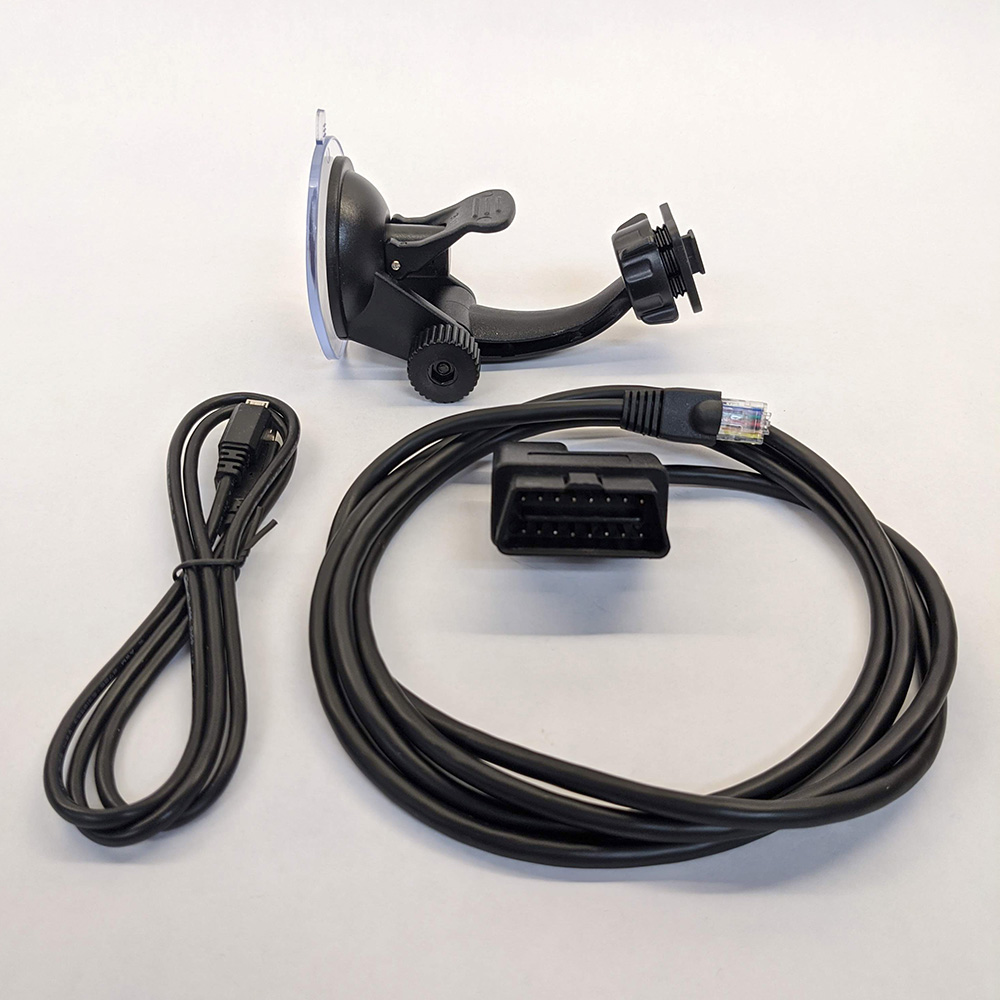

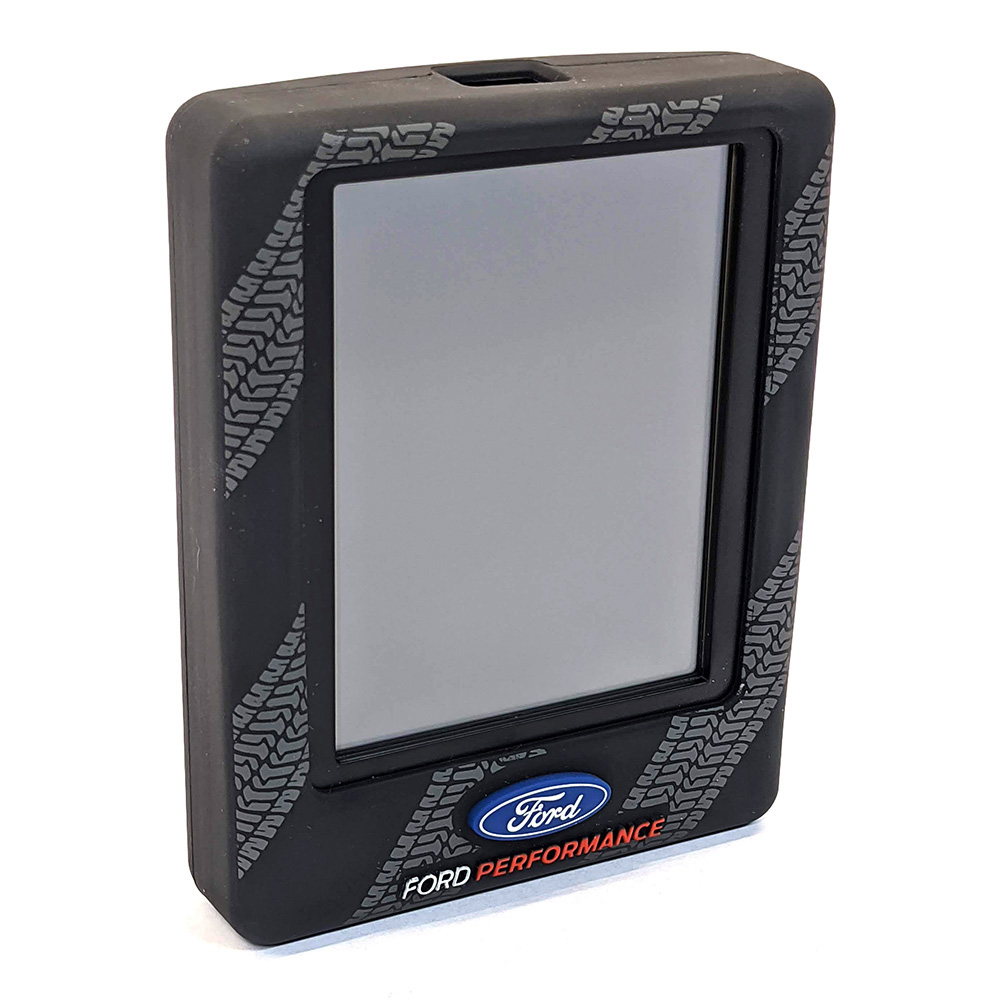

  • M-12655-F Pro-Cal 4 delivery tool included
  • 3yr/36k mile Ford Performance Parts warranty from new vehicle in-service date when installed at a Ford dealer or by an ASE/Red Seal certified technician. Please contact the Ford Performance Parts Tech-line for warranty registration.
  • For US & Canada Vehicles Only
  • 49-State Approved, Non-California Approved
  • ProCal Tool can read and clear DTCs
    • Tire size and gear ratio cannot be adjusted

***For non-Raptor F-150 3.5L engine see M-9603-F35

 ***Calibration and ProCal 4 tool are VIN locked. Please contact the Tech Line with additional questions***

 ***NOTE*** ProCal 4 software only available for Windows 7 or greater.  Will NOT work with Windows 10 in "S Mode".
Part Type
Electrical: Analyzers / Calibrators
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
3.5" x 3.5" x 6"
Package Weight
1.05 lb(s)
UPC Code
756122023280
Country of Origin
United States
