460 SIAMESE BORE ENGINE BLOCK

460 SIAMESE BORE ENGINE BLOCK
460 SIAMESE BORE ENGINE BLOCK
460 SIAMESE BORE ENGINE BLOCK
460 SIAMESE BORE ENGINE BLOCK
460 SIAMESE BORE ENGINE BLOCK
460 SIAMESE BORE ENGINE BLOCK
460 SIAMESE BORE ENGINE BLOCK
M-6010-A460X
Retail
$3,500.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
WARNING: Cancer http://www.p65warnings.ca.gov.
Proudly Made in the USA

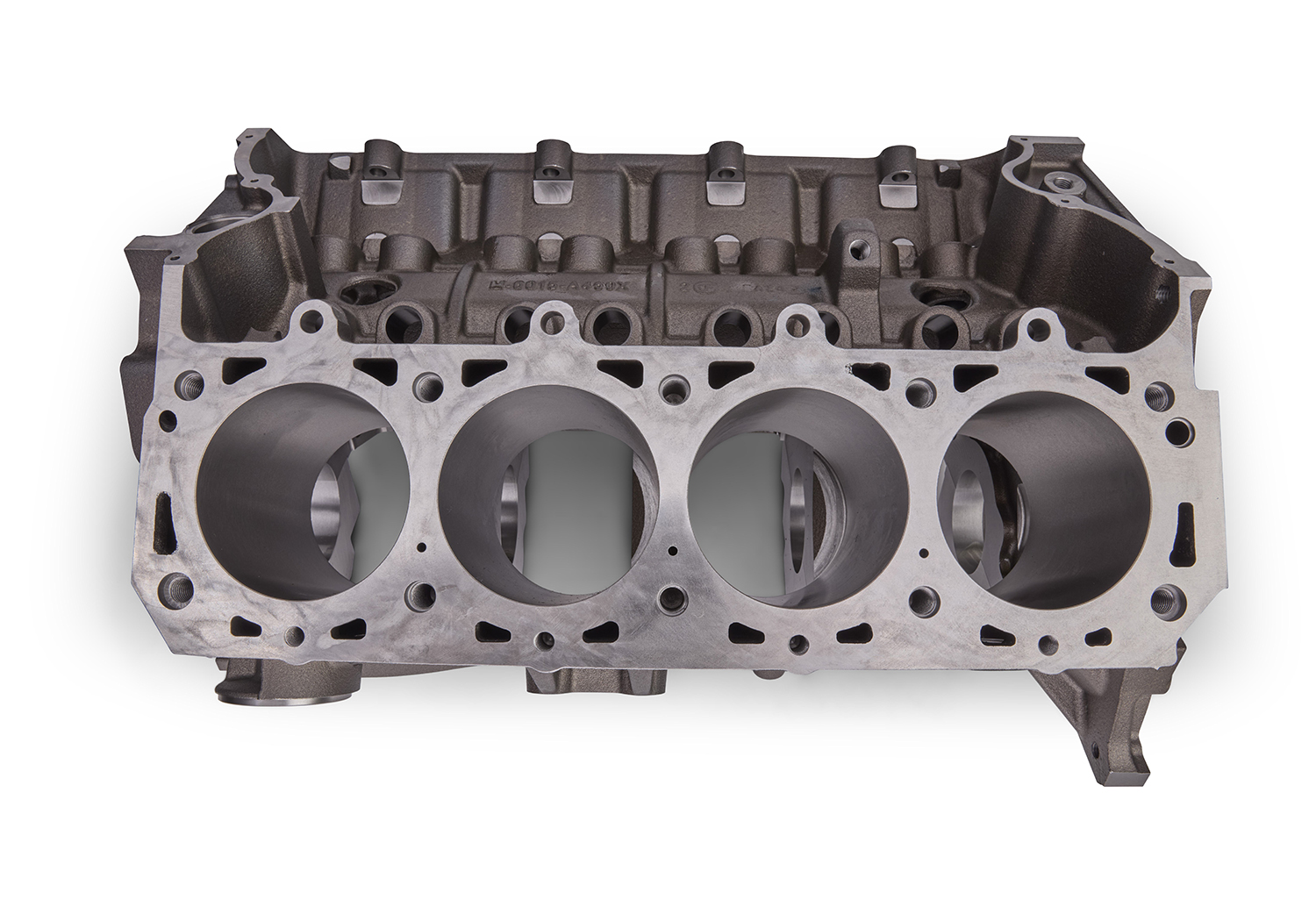

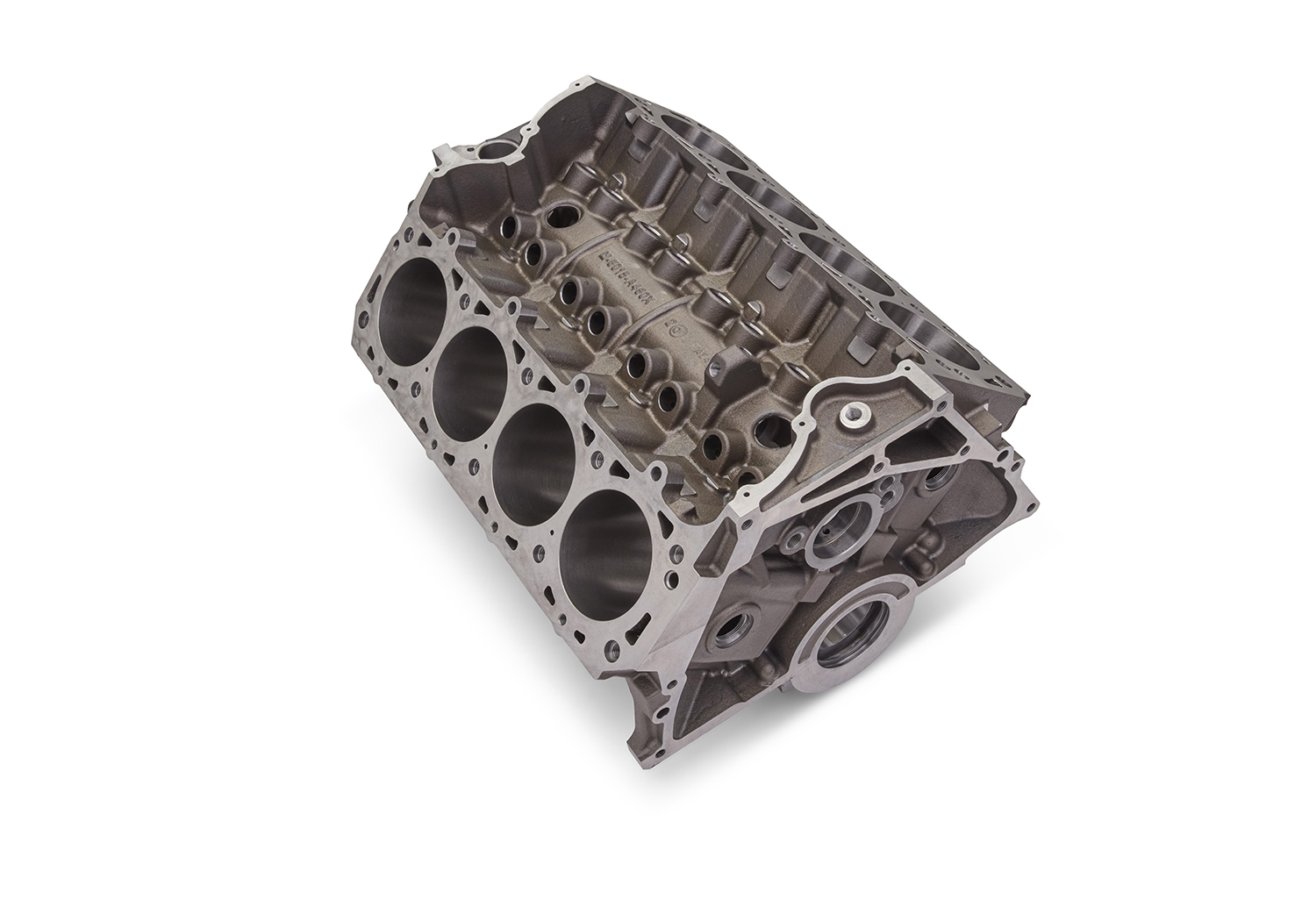

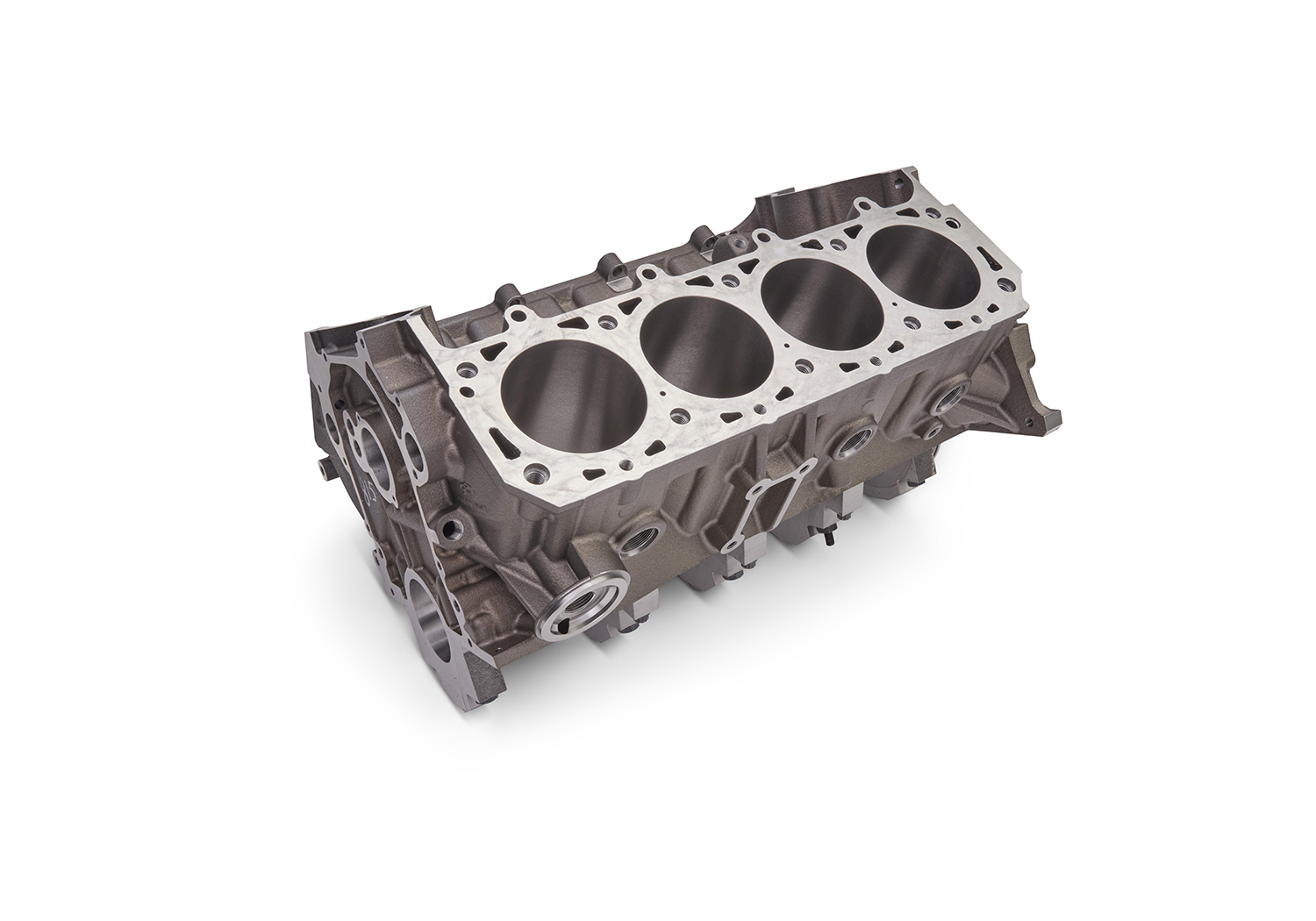

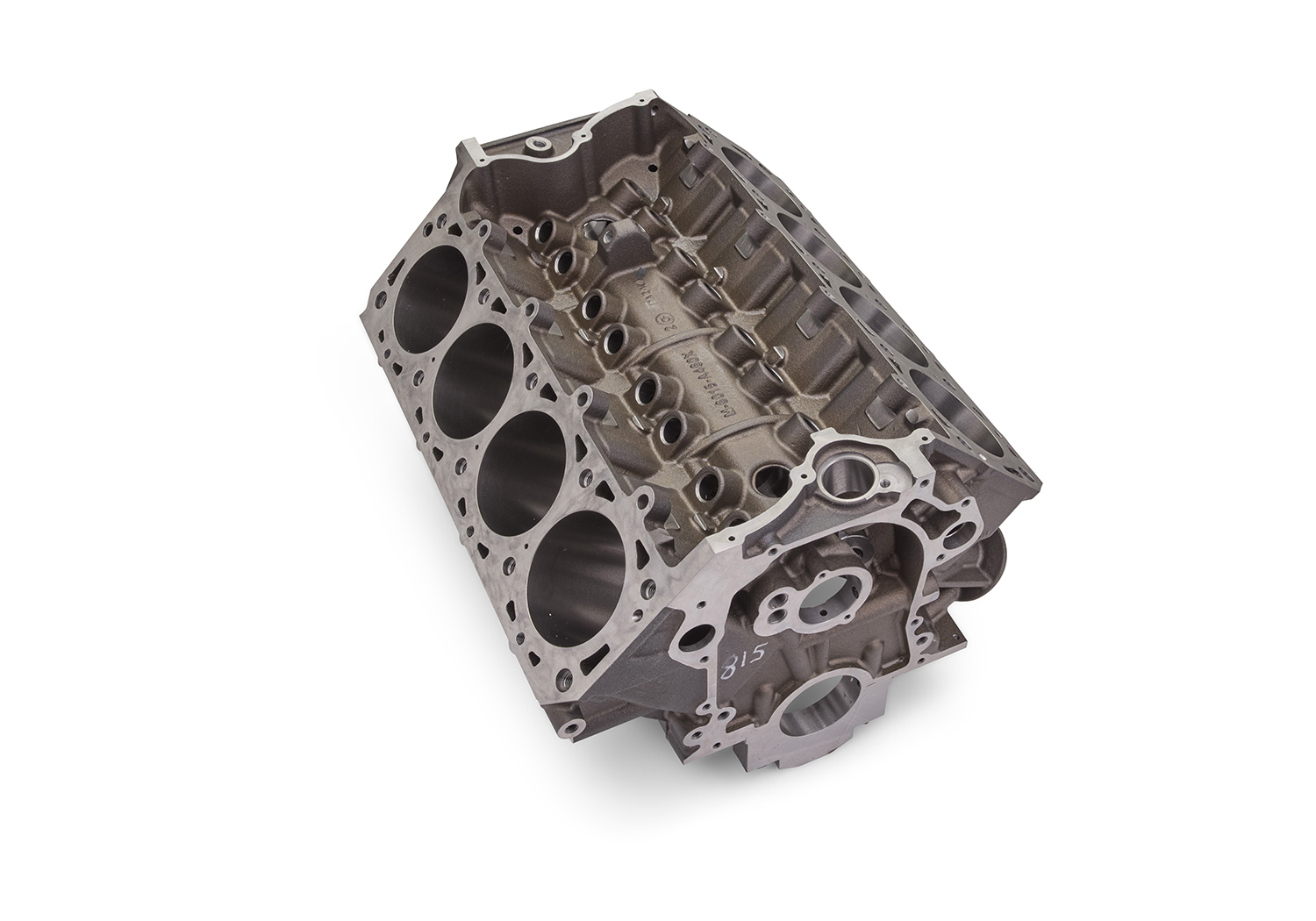

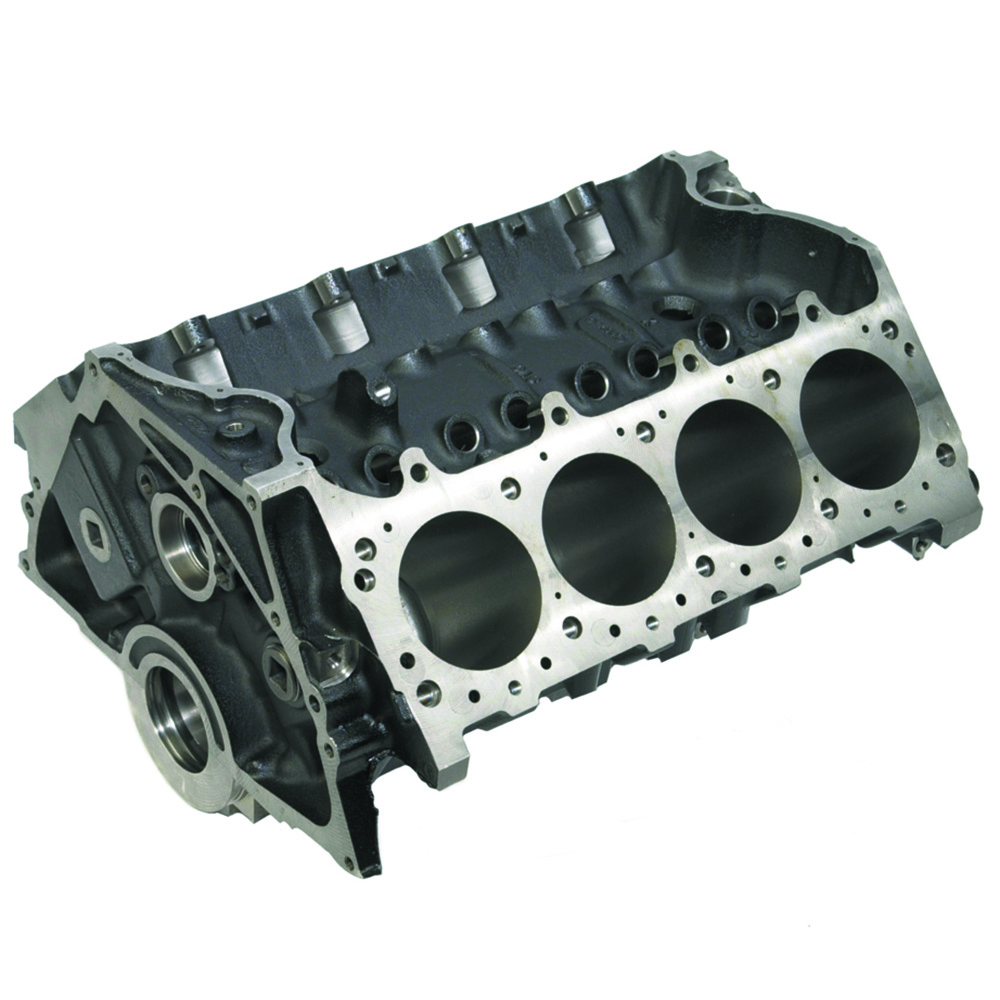

New 460 cubic inch engine block replaces the famous M-6010-A460 block, and is manufactured using all new tooling!
  • High-strength block for professional competition
  • 10.322" deck height, +/- .005"
  • Cast iron block with 4-bolt main caps on journals 2, 3, 4
  • Nodular iron main caps
  • 3.00" main journal diameter
  • Siamese cylinder bore design
  • Can be bored/stroked to produce up to 598 cubic inches
  • Bore range from 4.360-4.600"
  • Also available in Big Bore version-M-6010-A460XBB
  • Wet sump oiling system
  • Priority main oiling system design
  • Block weighs approximately 275 pounds
  • NOTE: Siamese blocks are a solid casting between the cylinder bores. There are no water passages between them-this is done to increase the strength of the block
  • NOTE: Four bolt main cap requires stock oil pan modifications
Part Type
Engine: Engine Blocks
Warranty Availability
Package Dimensions
25" x 24" x 31"
Package Weight
271 lb(s)
UPC Code
756122013045
Country of Origin
United States
