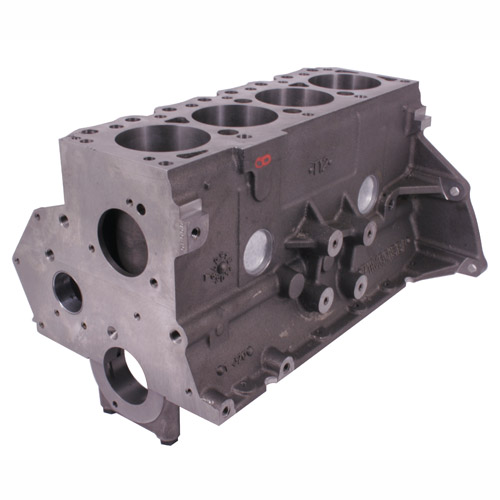

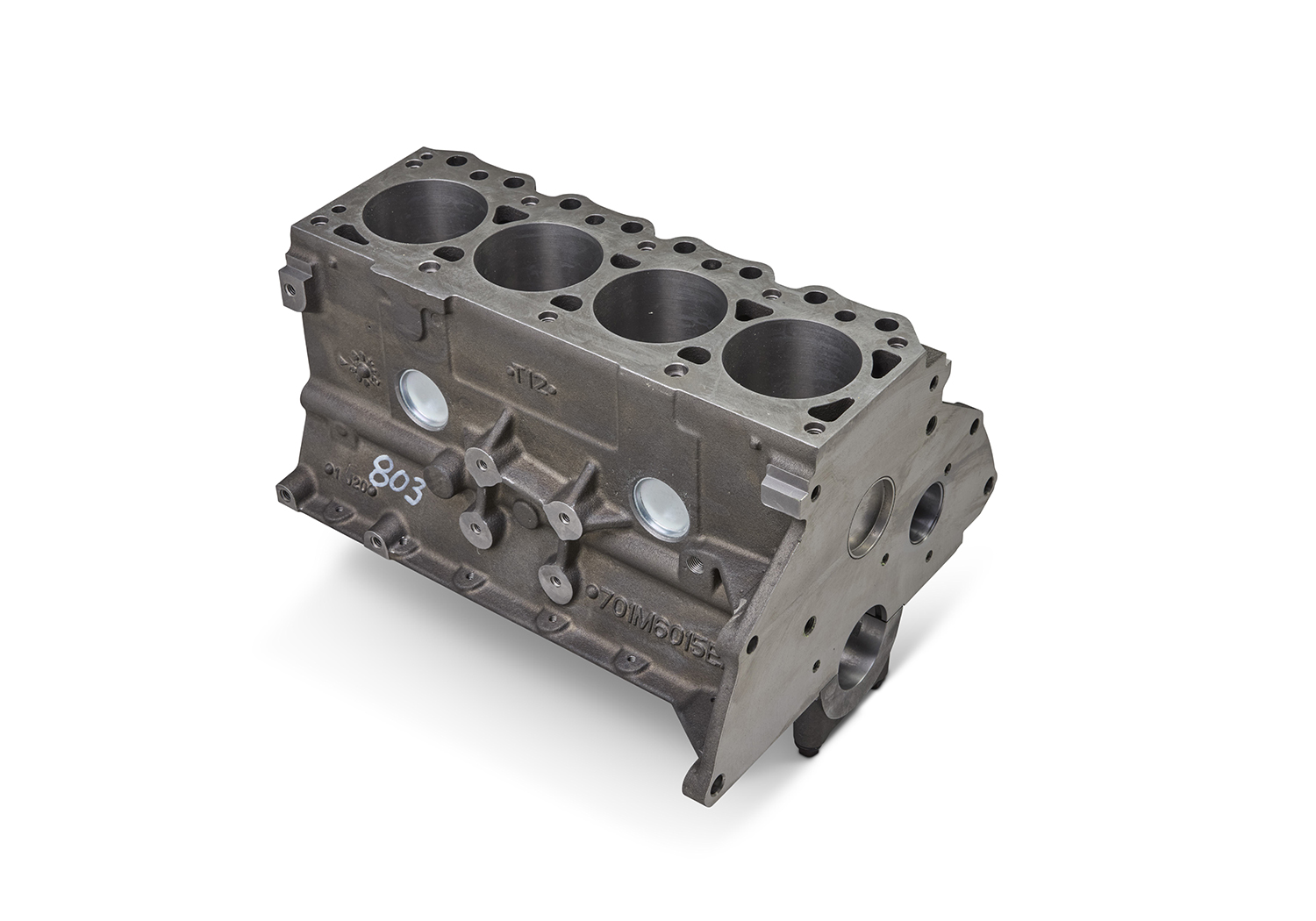

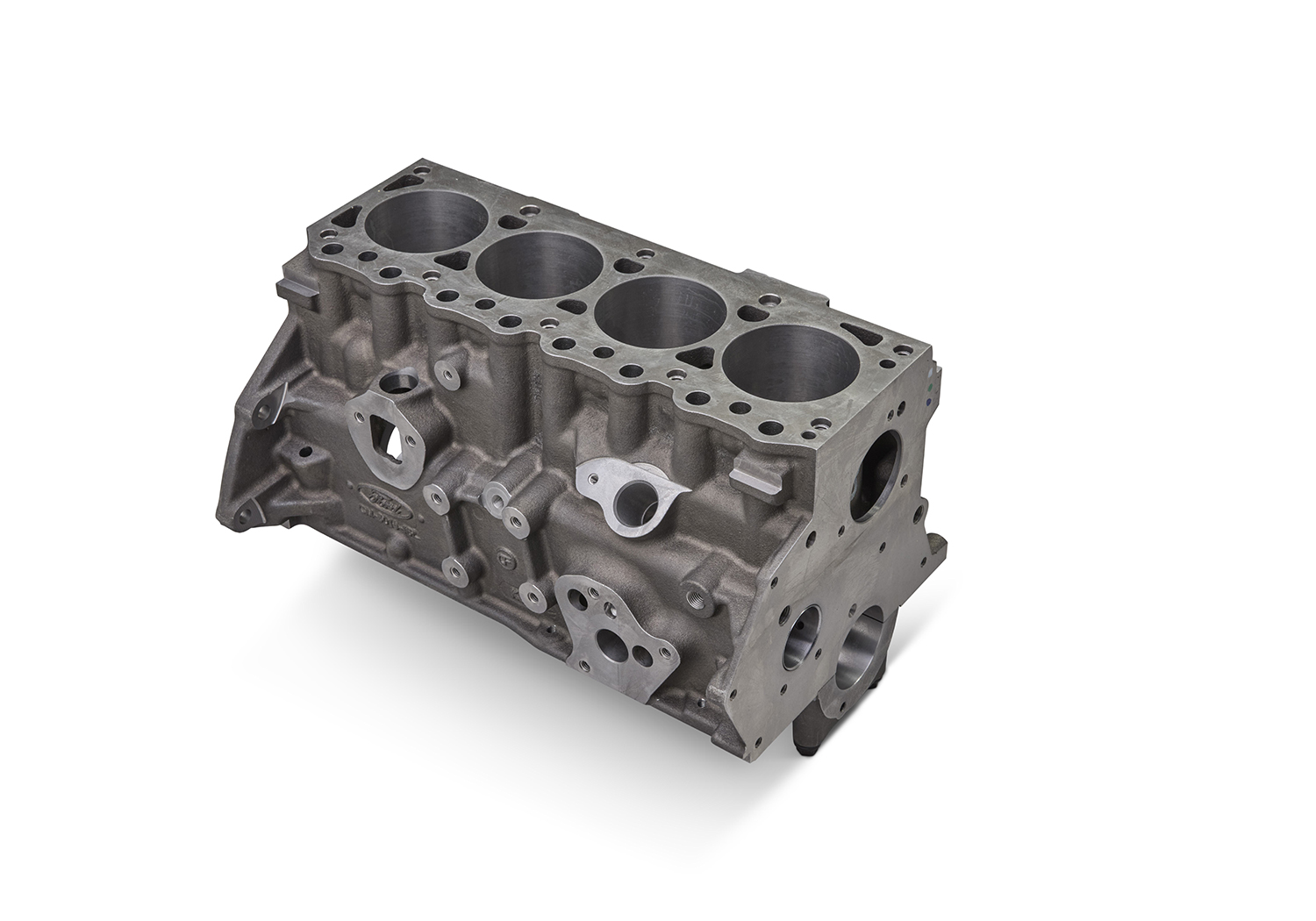

1.6 LITER 4-CYLINDER LOTUS ENGINE BLOCK

1.6 LITER 4-CYLINDER LOTUS ENGINE BLOCK
Proudly Made in the USA

The Lotus block features an all new grey iron casting that is stronger than the original and accepts the Lotus cylinder head.

  • Standard 7.800" deck height with extra material for decking
  • Machined and delivered with cylinder bores semi-finished at 3.228 - 3.226" (81.99 - 81.94mm) diameters
  • Block is designed for standard bore engine builds
  • Lifter bore diameter: .5155" - .5145"
  • Block cast from 40,000 PSI grey iron
  • Lower clutch housing bolt bosses reinforced
  • Select areas around main bearing webs strengthened

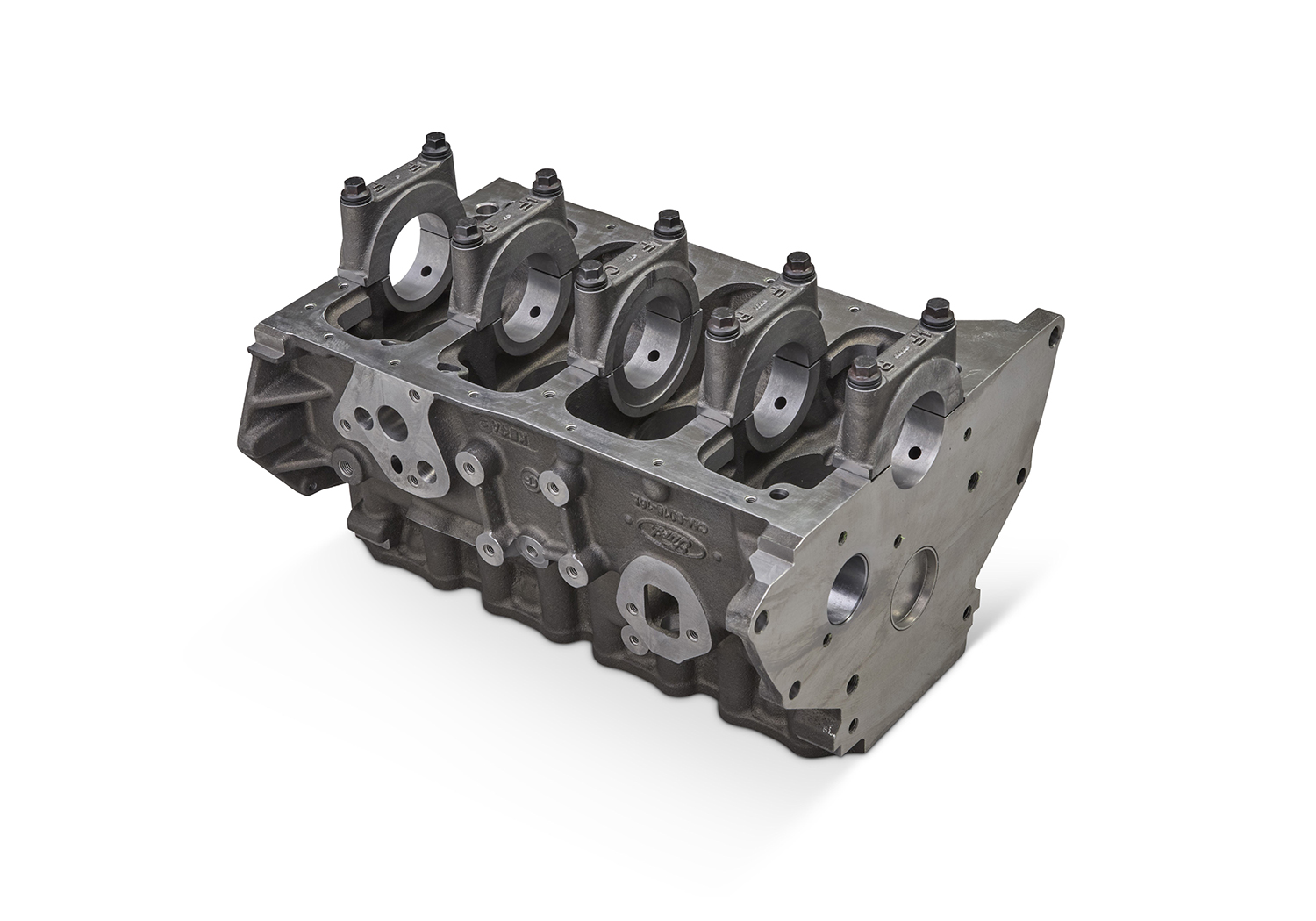

  • Center main will accept upper and lower crankshaft thrust bearing inserts
  • Includes cam bearings (Installed)
Part Type
Engine: Engine Blocks
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
20" x 15" x 14"
Package Weight
97 lb(s)
UPC Code
756122121818
Country of Origin
United States
