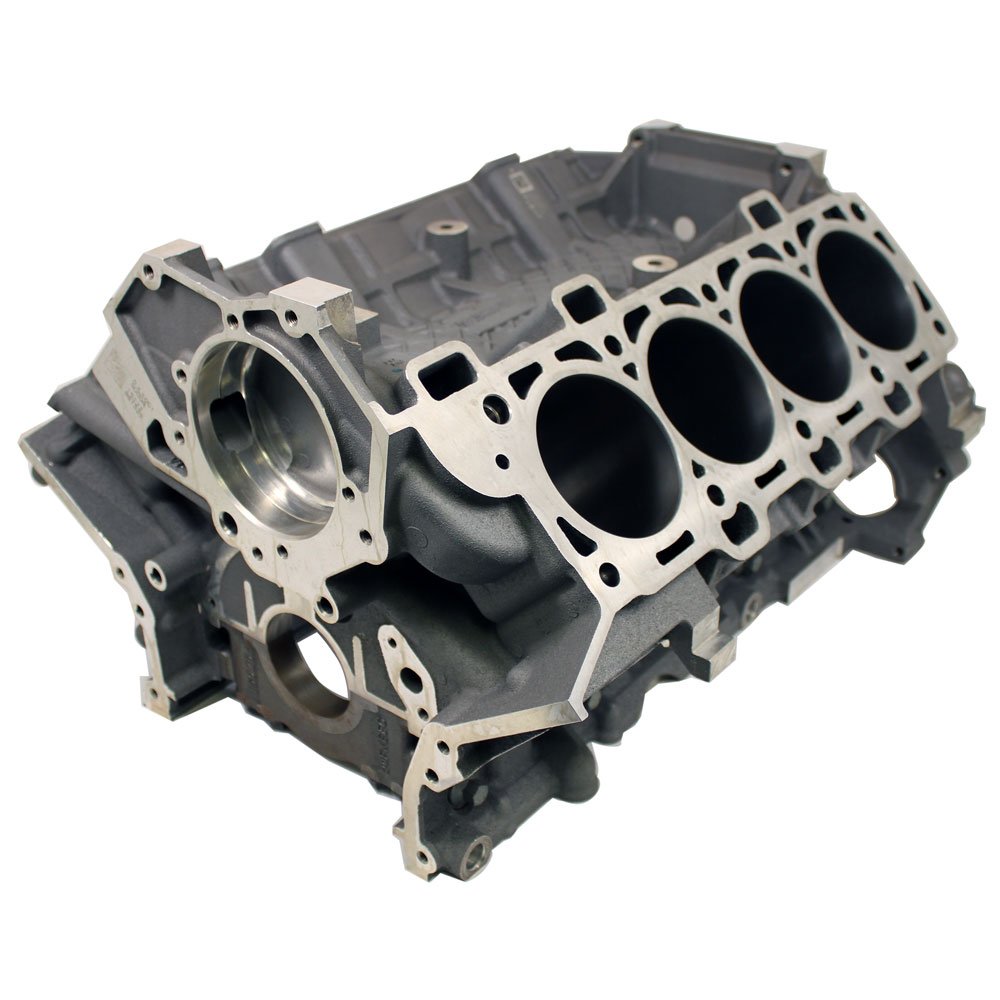

5.2L COYOTE ALUMINUM ENGINE BLOCK
This part is no longer available.
M-6010-M52
Instruction Sheet
Not Available
ATTENTION:
This part is intended as a replacement part for use only in the application(s)
identified in the product description. Installation of this part in a vehicle for
which it is not intended may violate U.S. and Canadian laws and regulations related
to motor vehicle emissions.
- Original equipment for the 2015-2018 Mustang GT350
- 94.0 mm bore
- Special high-performance casting of the Coyote block with improvements to support higher horsepower engine builds
- Water jacket below cylinder bore has been updated to add more material for strength
- The intake side of the bore at the deck surface includes a cast-in brace to improve strength of the cylinder wall and head gasket sealing
- Block features plasma transferred wire arc spray weld liner coating
- Liner coating provides improved durability and heat transfer, reduced friction, and a weight savings compared to the Mustang GT aluminum block
- Cylinder bores are finish-honed and ready to assemble
- All block features are finish-machined including head deck and crank bore
- Cylinder liner coating does not require unique piston rings or piston material
- Cross-bolted nodular iron main bearing caps
- Uses 12 mm cylinder head bolts
- Block has provisions for piston oil squirters
- Includes plugs and dowels
Part Type
Engine: Engine Blocks
Warranty Availability
Not Available
Package Dimensions
21.5" x 14.25" x 22.5"
Package Weight
112.5 lb(s)
UPC Code
756122003091
Country of Origin
United States
