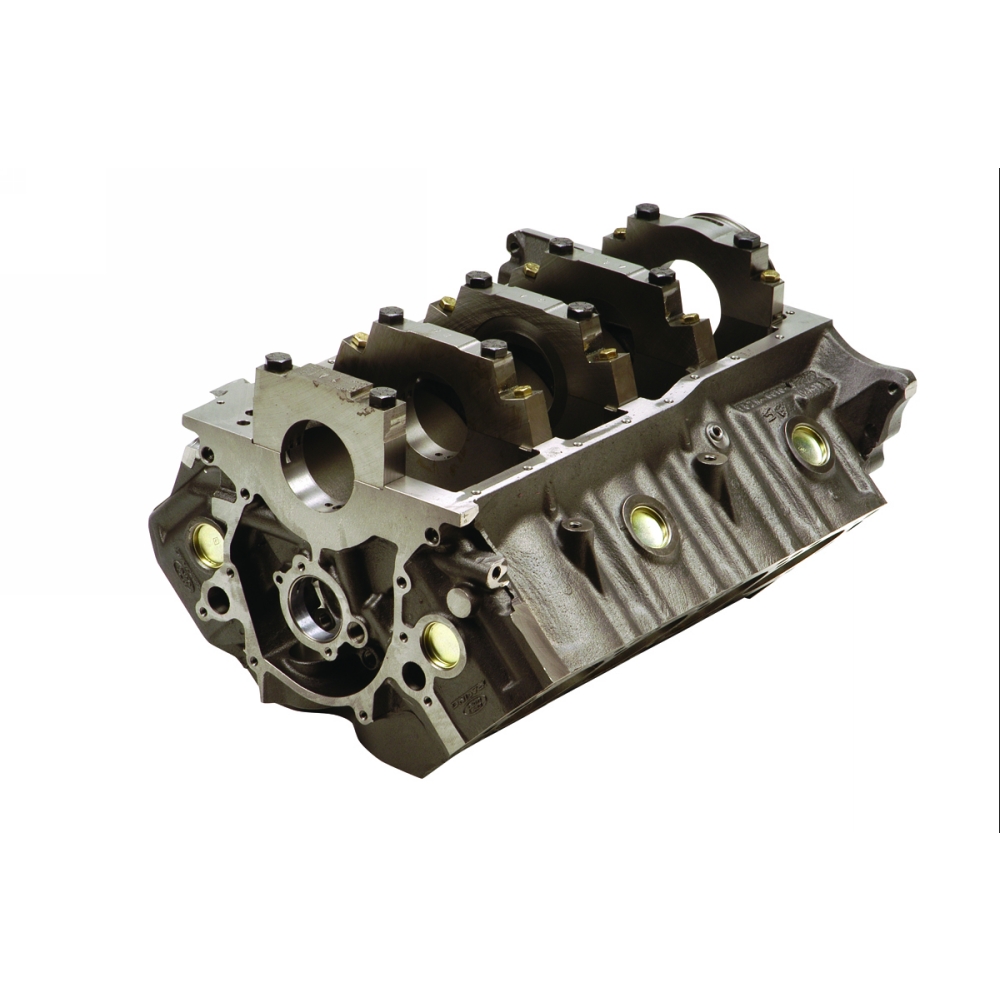

351 SIAMESE BORE BLOCK 9.2" DECK WET SUMP

351 SIAMESE BORE BLOCK 9.2" DECK WET SUMP
M-6010-V351
Retail
$1,295.95
Sold in Units of
Each (1)
Instruction Sheet
Not Available

Proudly Made in the USA
  • Cast iron block with 4-bolt main caps on journals 2, 3, 4, 5 and strengthened structural sections
  • Nodular iron main caps
  • Can be bored/stroked to produce 427 cu. in.
  • Siamese cylinder bores
  • 9.2" Deck
  • Bore range from 4.000-4.125"
  • Wet sump oiling design
  • 2.749" main journal diameter (stock 351C size)
  • Weighs approximately 190 lbs.
  • For professional competition (Circle Track, Drag Racing)
  • Semi-finished lifter bores and main bearing bores—must be honed to fit
  • Uses common OD cam bearings M-6261-J351/R351. See page 118
  • Requires cam plug M-6026-S351 included NOTE: Siamese blocks are solid casting between the cylinder bores. There are no water passages between them.This is done to increase the strength of the block.
Part Type
Engine: Engine Blocks
Warranty Availability
Not Available
Packaged Dimensions
21.5" x 14.25" x 22.5
Packaged Weight
235 lb(s)
Part Type
Engine: Engine Blocks
UPC Code
756122601488
Country of Origin
United States
California Executive Order
No
