CYLINDER HEAD GASKET

CYLINDER HEAD GASKET
M-6051-A302
Retail
$84.00
Sold in Units of
Set
Instruction Sheet
Not Available

Proudly Made in the USA

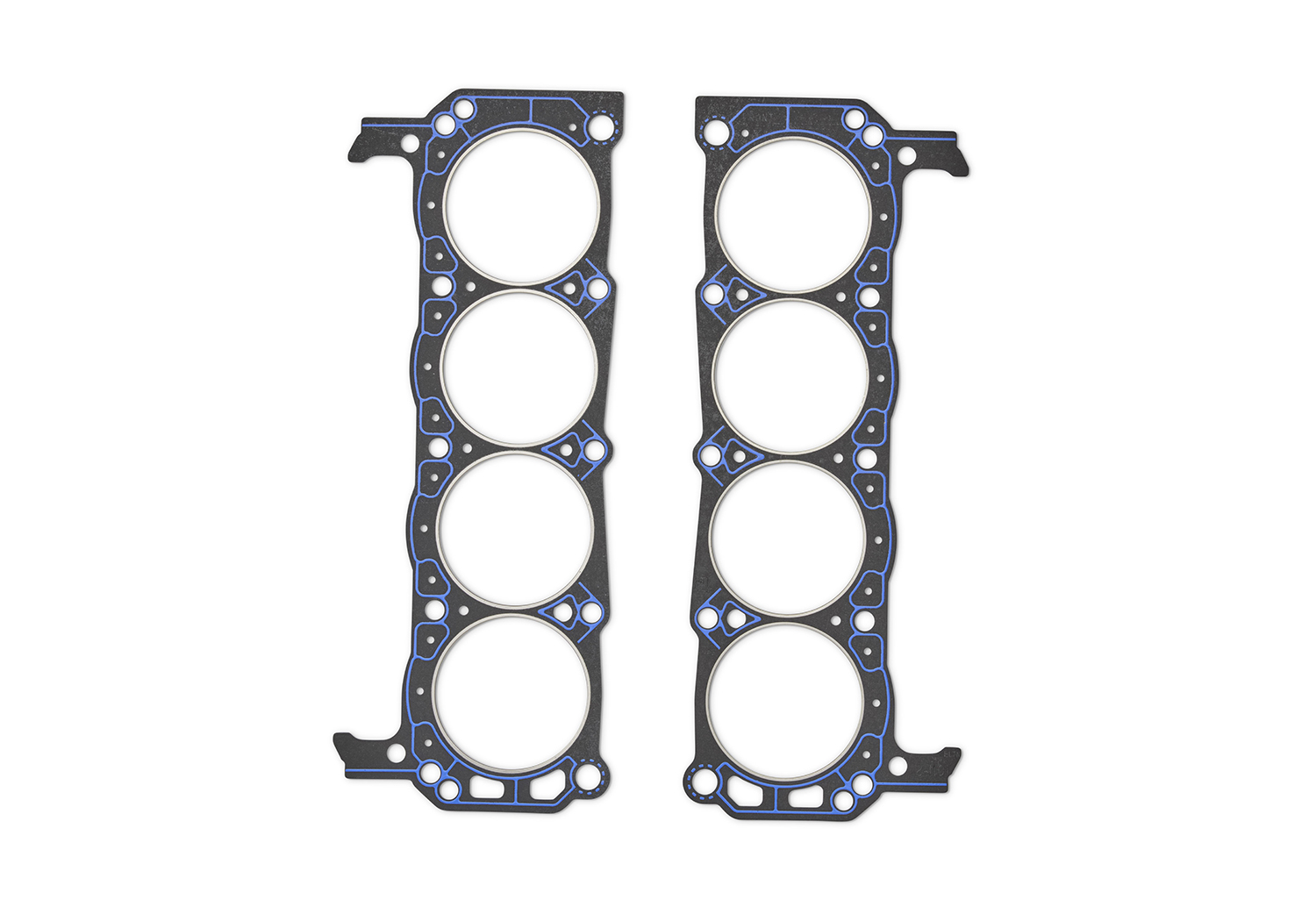

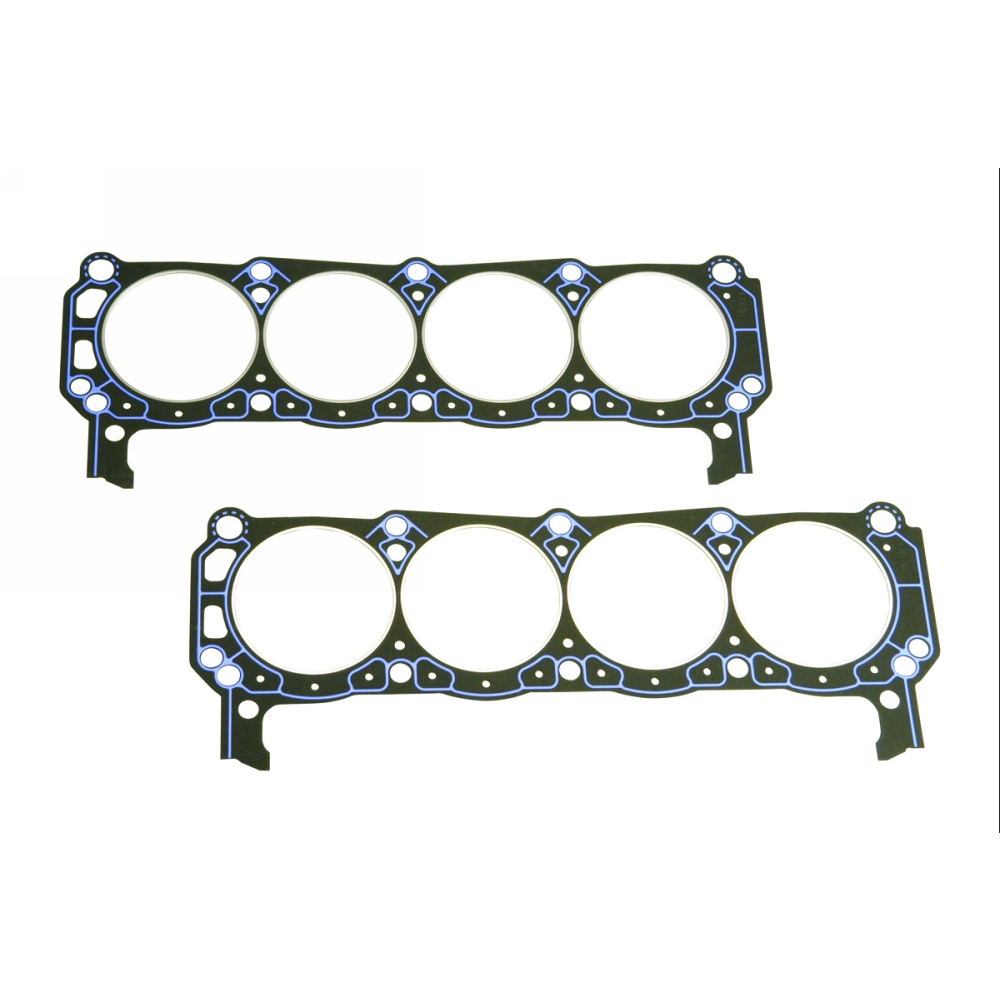

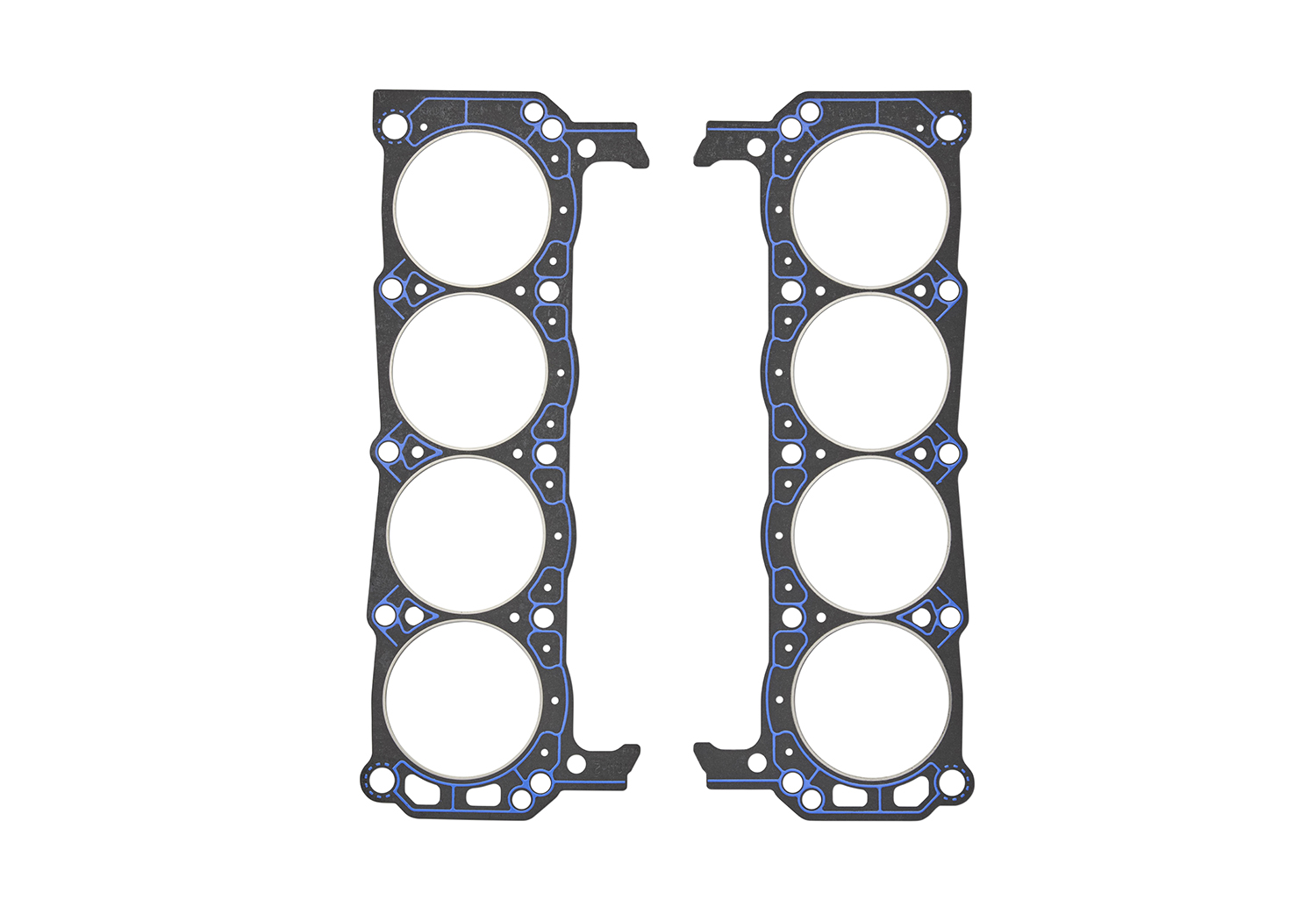

    CYLINDER HEAD GASKETS (SOLD IN PAIRS)
    PART
    NUMBER
    CYLINDER BORE APPLICATION BORE DIAMETER GASKET DIAMETER COMPRESSED THICKNESS COMPRESSED VOLUME NOTES

    M-6051-A302**

    (1)

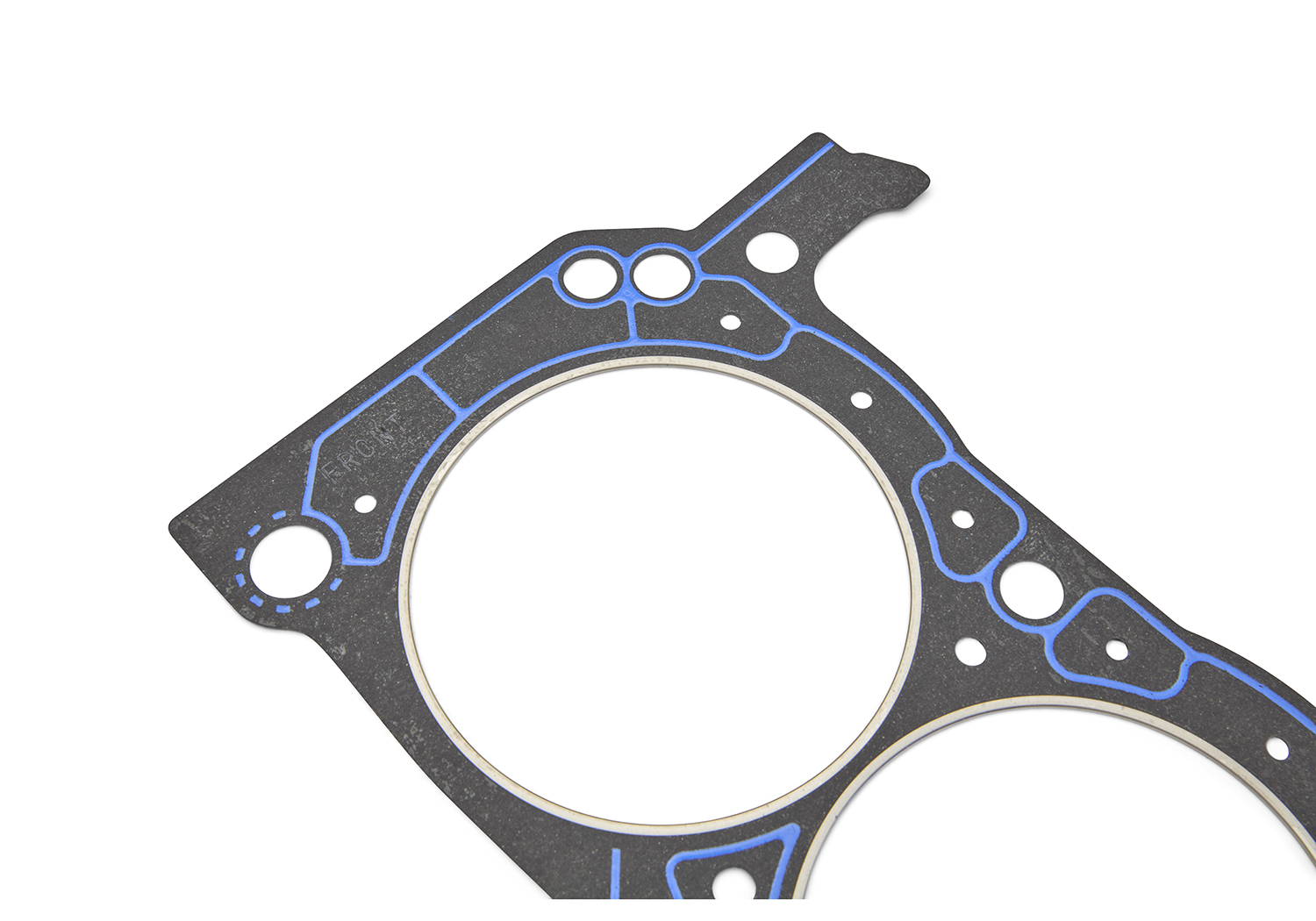

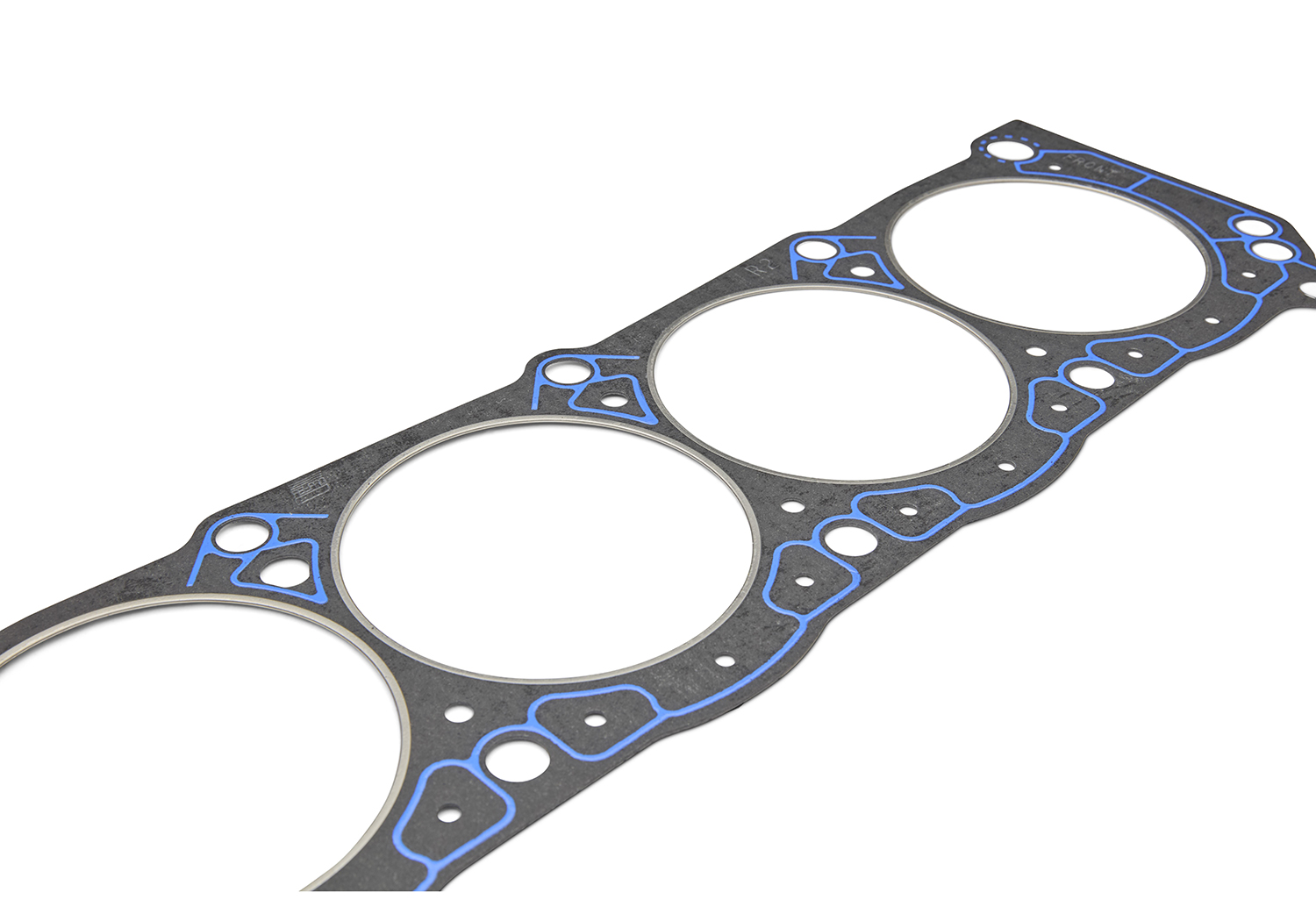

    289/302/351W Production-Type Cast Iron and Aluminum Heads 4.00" 4.100" 0.042" 9.1cc 4.00" standard bore "competition" gasket for cast iron or aluminum cylinder heads on 302 and 351W production blocks. Features solid metallic core with wire encased combustion chamber seal for applications. Surfaces are Teflon coated.

    M-6051-C51**

    (1)

    302/351  4.00" 4.100" 0.047" 10.169cc Fits: Pushrod 302 and 351 Ford high performance engines

    M-6051-S331*

    (1)

    302/351 4.00" 4.100" 0.040" 8.8cc Pre-flattened steel wire combustion ring. Exhaust side is straight to accommodate FRPP block water passages.

    M-6051-CP331*

    (1)

    302/351 4.00" 4.100" 0.040" 8.8cc Pre-flattened copper wire combustion ring. Exhaust side is straight to accommodate FRPP block water passages.

    M-6051-B341*

    (1)

    Big Bore 351 Ford Racing Blocks 4.125" 4.160" 0.040" 9.1cc 4.125" overbore "competition" gasket. Same as gasket (M-6051-D331) except designed for Ford Racing blocks with larger 4.125" overbore. Bore flange valve pockets have been added to unshroud intake and exhaust valves. Set includes unique right- and left-hand gaskets!

    M-6051-R351*

    (1)

    302/351 Ford Racing Up to 4.125" 4.160" 0.040" 9.0cc For use on M-6010-R351/ R352/ R451/ R452/ BOSS302/ B302BB/ BOSS35195/ BOSS35192/ BOSS351BB.
    M-6051-A427*
    All "FE" V-8 Up to 4.230" 4.400" 0.040" 9.7cc Race-quality gasket with steel wire combustion ring and stainless steel armor.
    M-6051-A441*
    429/460 Wedge 4.360" Std. 4.500" 0.0425" 11.2cc Race-quality "competition" gasket. Features solid metal core and wire-encased combustion chamber seal.
    M-6051-B460*
    429/460 Wedge Up to 4.625" 4.670" 0.038" 10.7cc Competition gasket with round water openings to match M-6010-A460 engine blocks.
    NOTES: (1)Several different water hole patterns have been used on 302 and 351W Ford Racing cylinder blocks and heads since their introduction. Engine assemblers should lay the head gasket on the block and the cylinder head (with front of gasket toward the front of the engine) to make sure there is a path for coolant flow from the block into the head. In some cases, holes may have to be drilled in the block or head, or punched in the gasket.

Part Type
Engine: Gaskets
Warranty Availability
Not Available
Packaged Dimensions
8" x 0.25" x 21
Packaged Weight
1 lb(s)
Part Type
Engine: Gaskets
UPC Code
756122605035
Country of Origin
United States
California Executive Order
No
