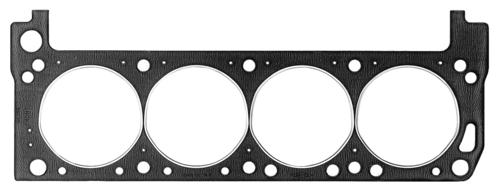

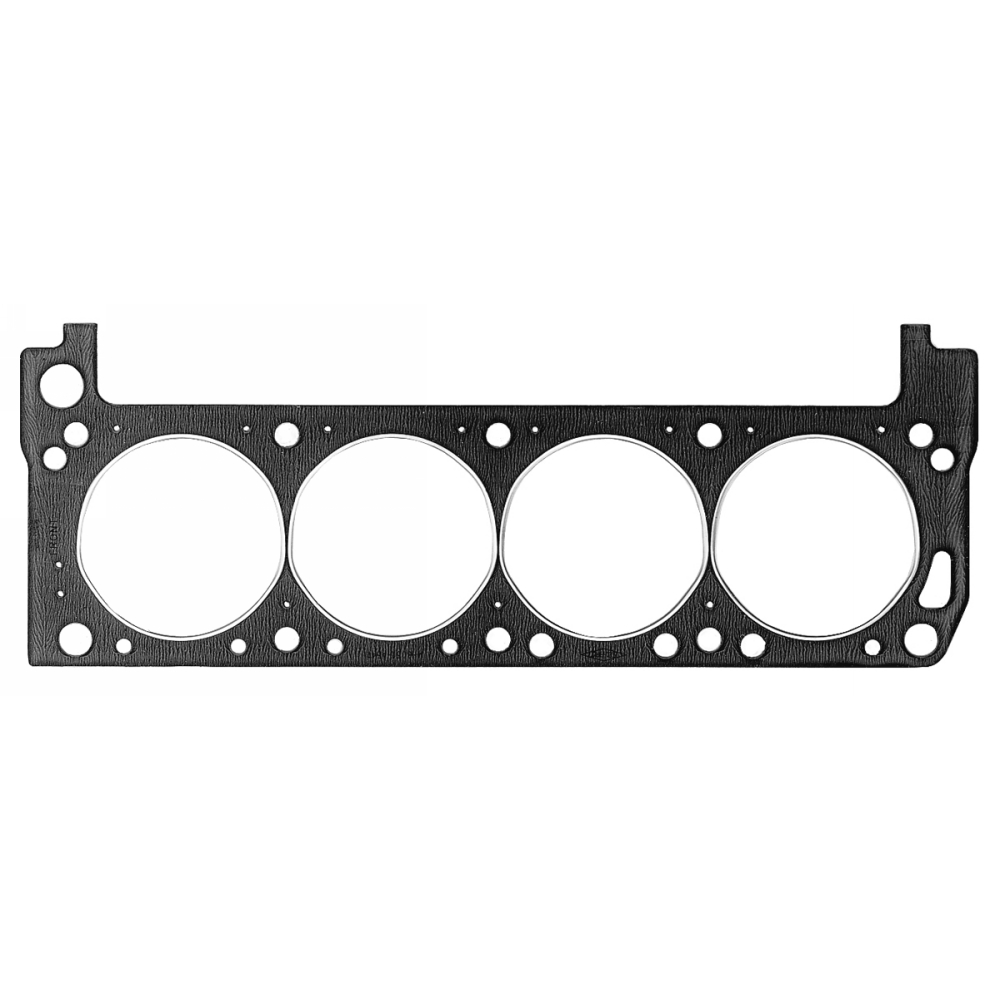

CYLINDER HEAD GASKET
M-6051-B341
Retail
$105.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
-

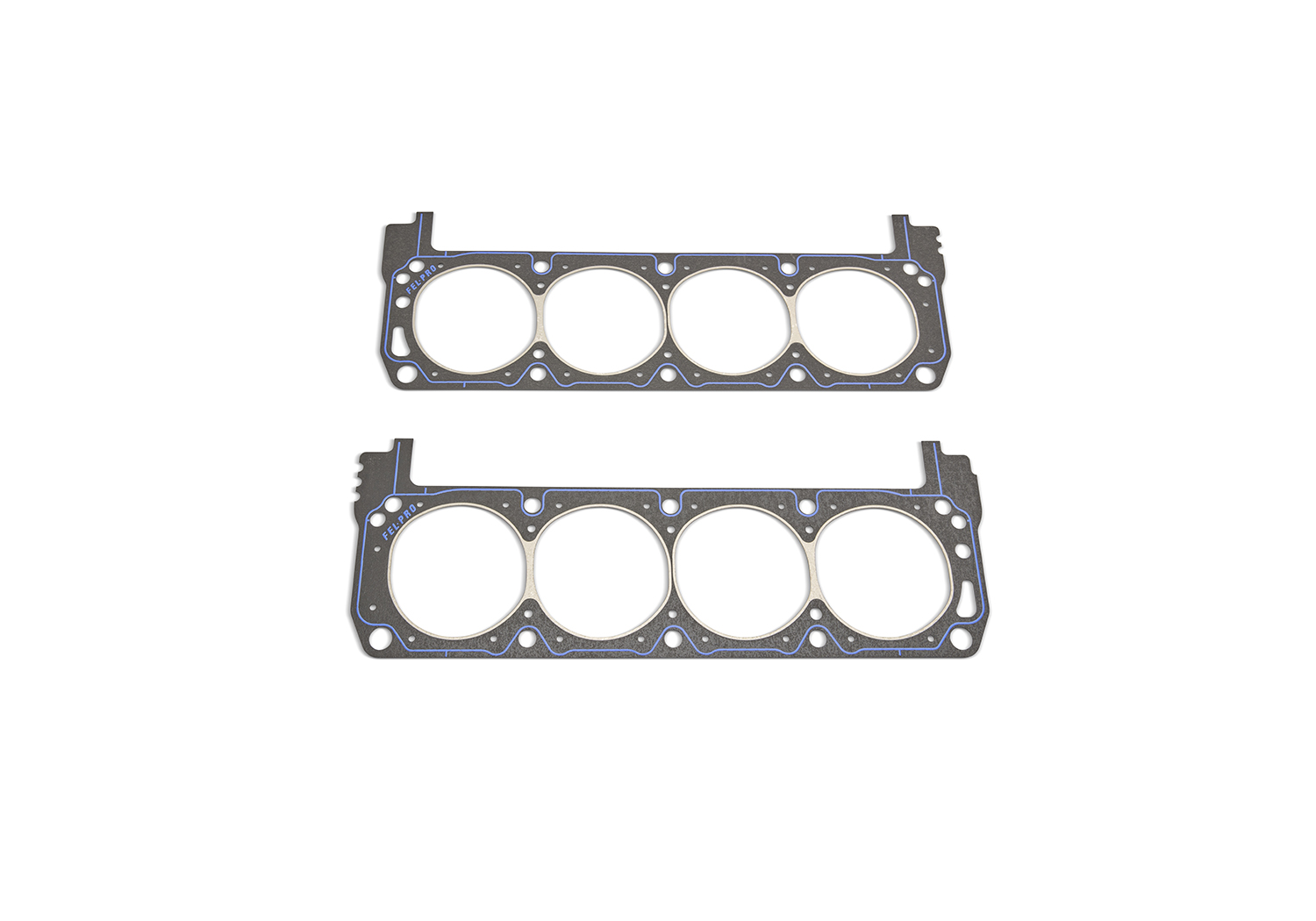

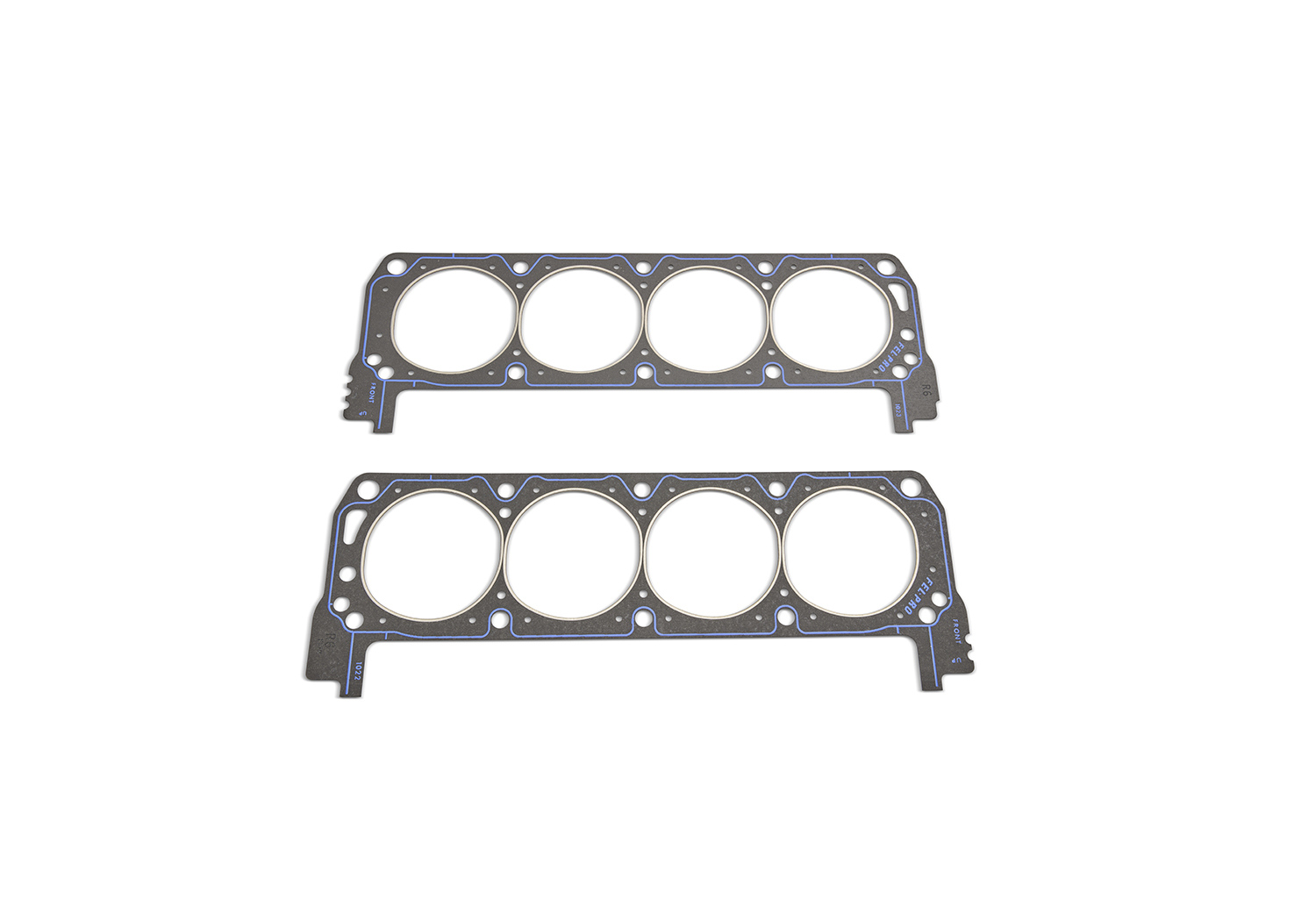

CYLINDER HEAD GASKETS (SOLD IN PAIRS)
|
PART
NUMBER |
CYLINDER BORE APPLICATION | BORE DIAMETER | GASKET DIAMETER | COMPRESSED THICKNESS | COMPRESSED VOLUME | NOTES |
|
(1)
|
289/302/351W Production-Type Cast Iron and Aluminum Heads | 4.00" | 4.100" | 0.042" | 9.1cc | 4.00" standard bore "competition" gasket for cast iron or aluminum cylinder heads on 302 and 351W production blocks. Features solid metallic core with wire encased combustion chamber seal for applications. Surfaces are Teflon coated. |
|
(1)
|
302/351
|
4.00" | 4.100" | 0.040" | 8.8cc | 4.00" standard bore expanded graphite gasket for high performance applications. Part of M-6051-A50 5.0L gasket kit described on page 62. Requires torque-to-yield cylinder head bolts. |
|
(1)
|

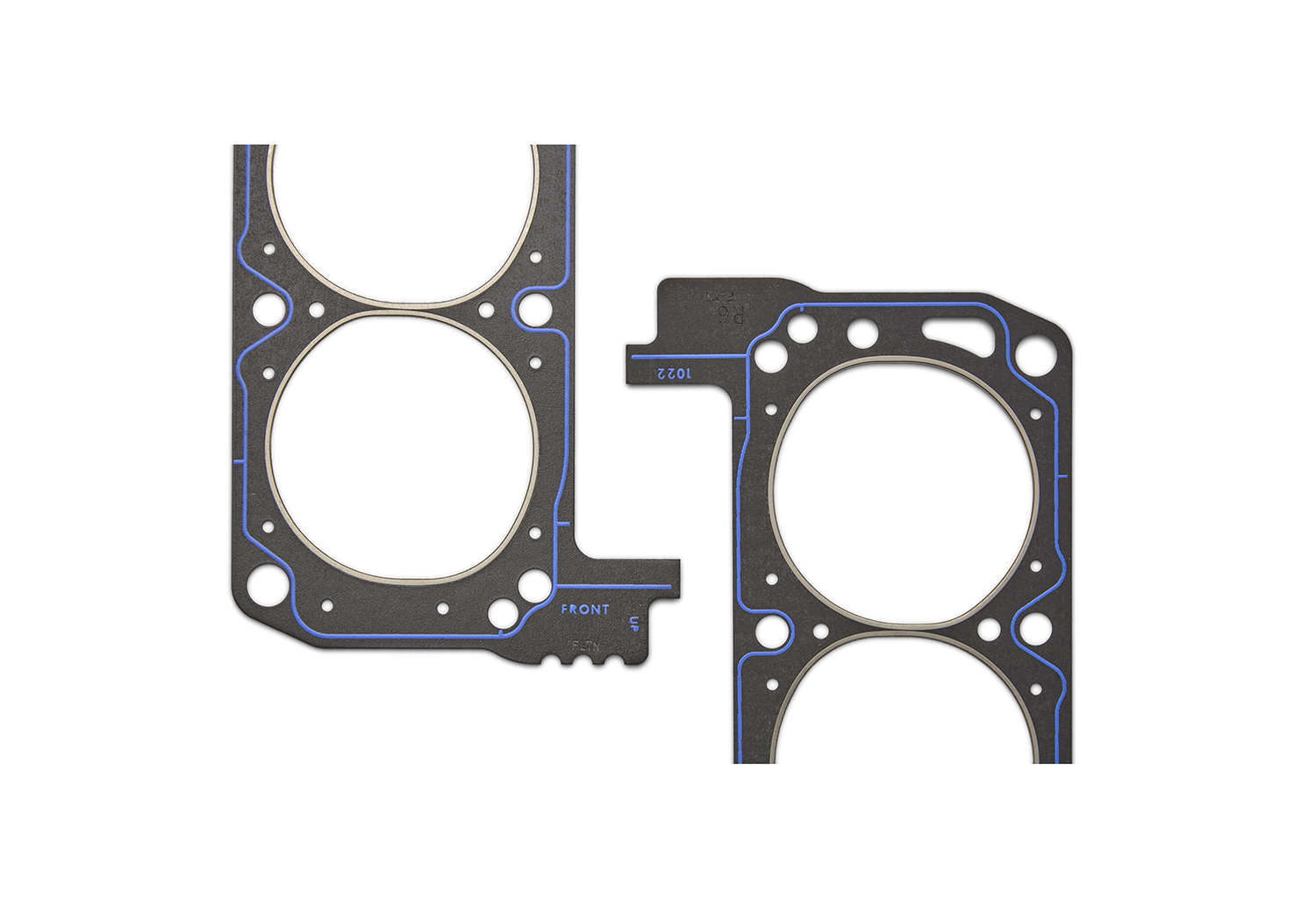

302/351 | 4.00" | 4.100" | 0.040" | 8.8cc | Pre-flattened steel wire combustion ring. Exhaust side is straight to accommodate FPP block water passages. |
|
(1)
|
302/351 | 4.00" | 4.100" | 0.040" | 8.8cc | Pre-flattened copper wire combustion ring. Exhaust side is straight to accommodate FPP block water passages. |
|
(1)
|
Big Bore 351 Ford Performance Blocks | 4.125" | 4.160" | 0.040" | 9.1cc | 4.125" overbore "competition" gasket. Same as gasket (M-6051-D331) except designed for Ford Performance blocks with larger 4.125" overbore. Bore flange valve pockets have been added to unshroud intake and exhaust valves. Set includes unique right- and left-hand gaskets! |
|
(1)
|
302/351 Ford Performance | Up to 4.125" | 4.160" | 0.040" | 9.0cc | For use on M-6010-R351/ R352/ R451/ R452/ BOSS302/ B302BB/ BOSS35195/ BOSS35192/ BOSS351BB. |
|
M-6051-A427*
|
All "FE" V-8 | Up to 4.230" | 4.400" | 0.040" | 9.7cc | Race-quality gasket with steel wire combustion ring and stainless steel armor. |
|
M-6051-A441*
|
429/460 Wedge | 4.360" Std. | 4.500" | 0.0425" | 11.2cc | Race-quality "competition" gasket. Features solid metal core and wire-encased combustion chamber seal. |
|
M-6051-B460*
|
429/460 Wedge | Up to 4.625" | 4.670" | 0.038" | 10.7cc | Competition gasket with round water openings to match M-6010-A460 engine blocks. |
Part Type
Engine: Gaskets
Warranty Availability
Not Available
Package Dimensions
0.02" x 0.02" x 20.25"
Package Weight
0.7 lb(s)
UPC Code
756122605103
Country of Origin
United States
