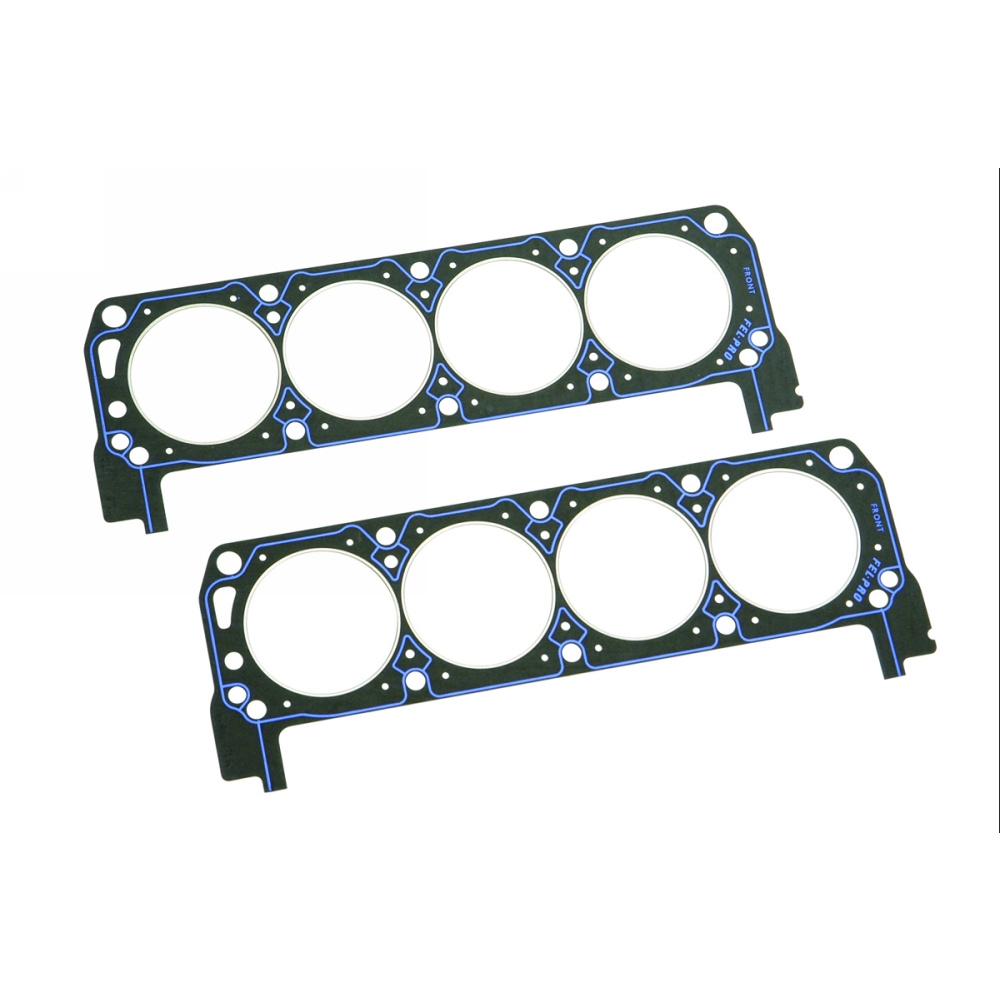

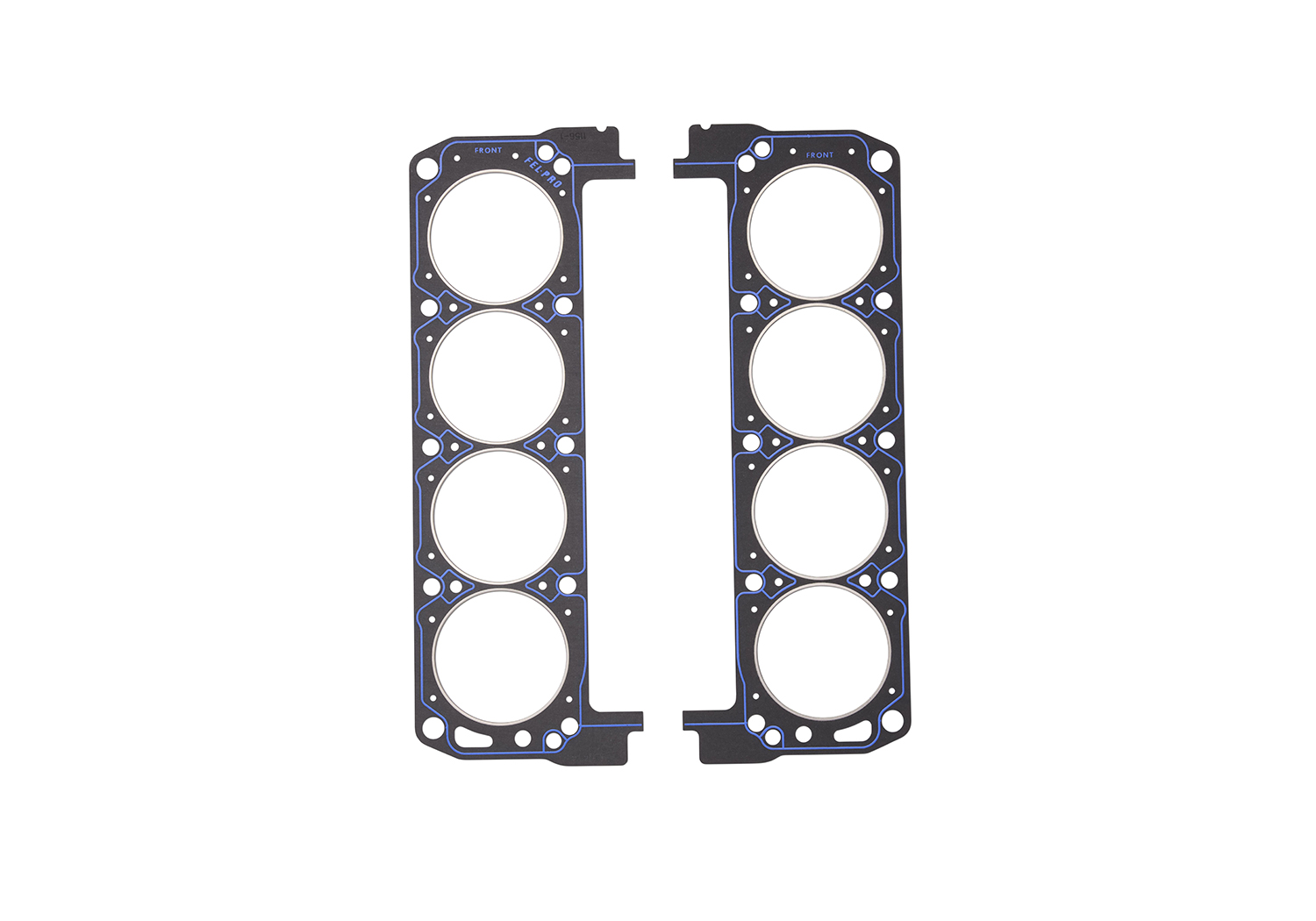

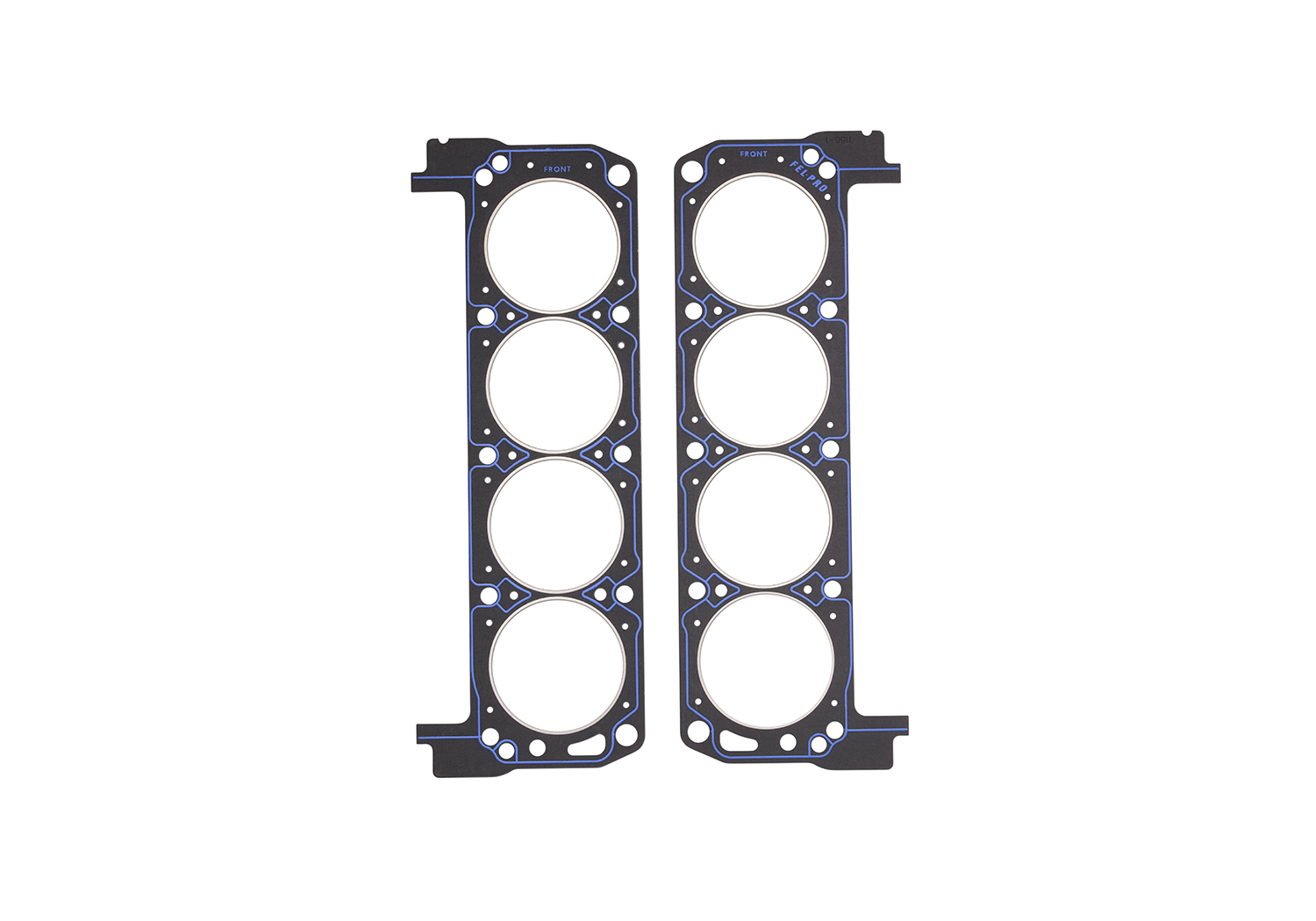

302/351 HEAD GASKET SET

302/351 HEAD GASKET SET
M-6051-S331
Retail
$95.00
Sold in Units of
Pair
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
    CYLINDER HEAD GASKETS (SOLD IN PAIRS)
    PART
    NUMBER     		CYLINDER BORE APPLICATION BORE DIAMETER GASKET DIAMETER COMPRESSED THICKNESS COMPRESSED VOLUME NOTES

    M-6051-A302**

    (1)

    		289/302/351W Production-Type Cast Iron and Aluminum Heads 4.00" 4.100" 0.042" 9.1cc 4.00" standard bore "competition" gasket for cast iron or aluminum cylinder heads on 302 and 351W production blocks. Features solid metallic core with wire encased combustion chamber seal for applications. Surfaces are Teflon coated.

    M-6051-C51**

    (1)

    		302/351
    		4.00" 4.100" 0.040" 8.8cc 4.00" standard bore expanded graphite gasket for high performance applications. Part of M-6051-A50 5.0L gasket kit described on page 132. Requires torque-to-yield cylinder head bolts.

    M-6051-S331*

    (1)

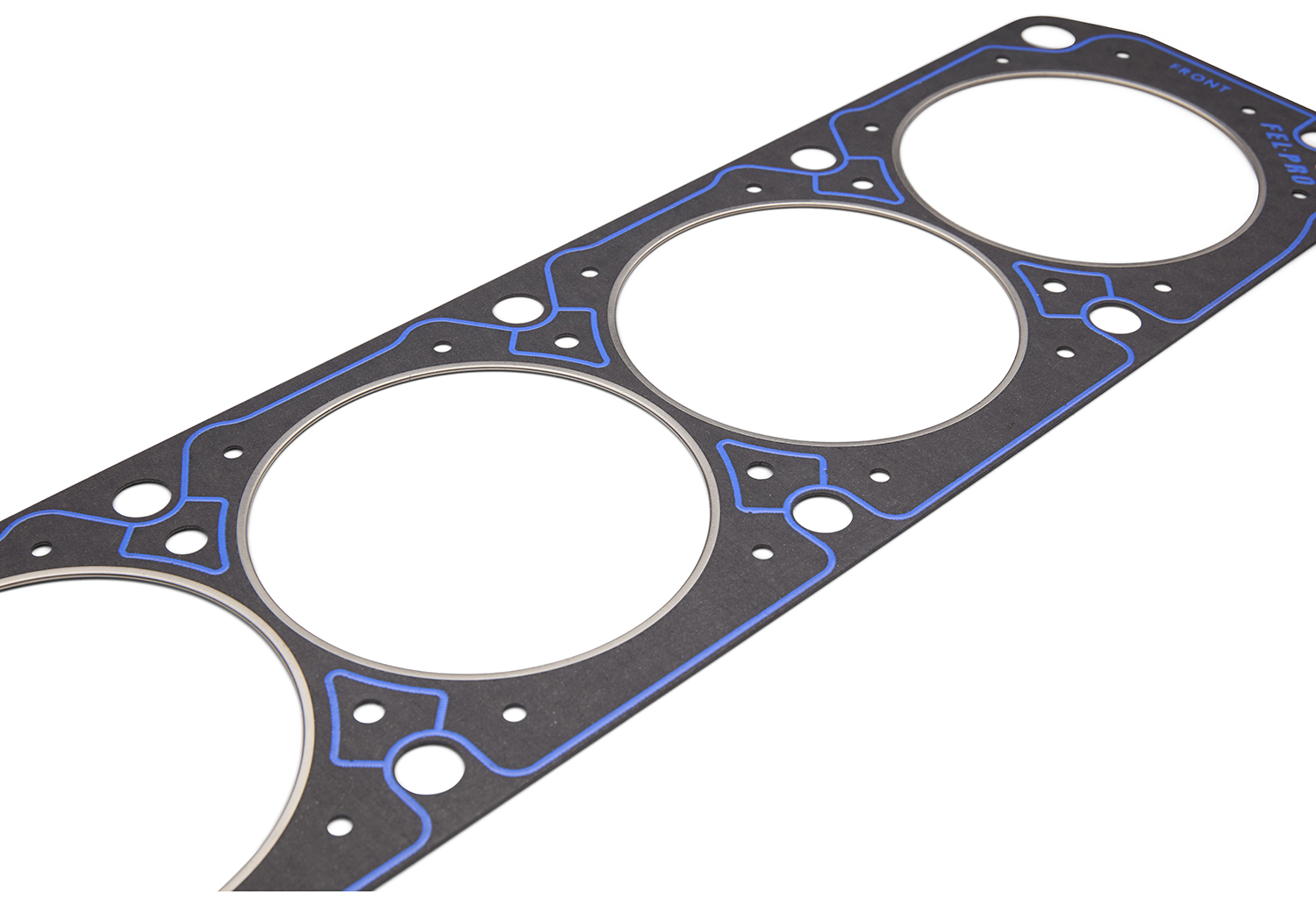

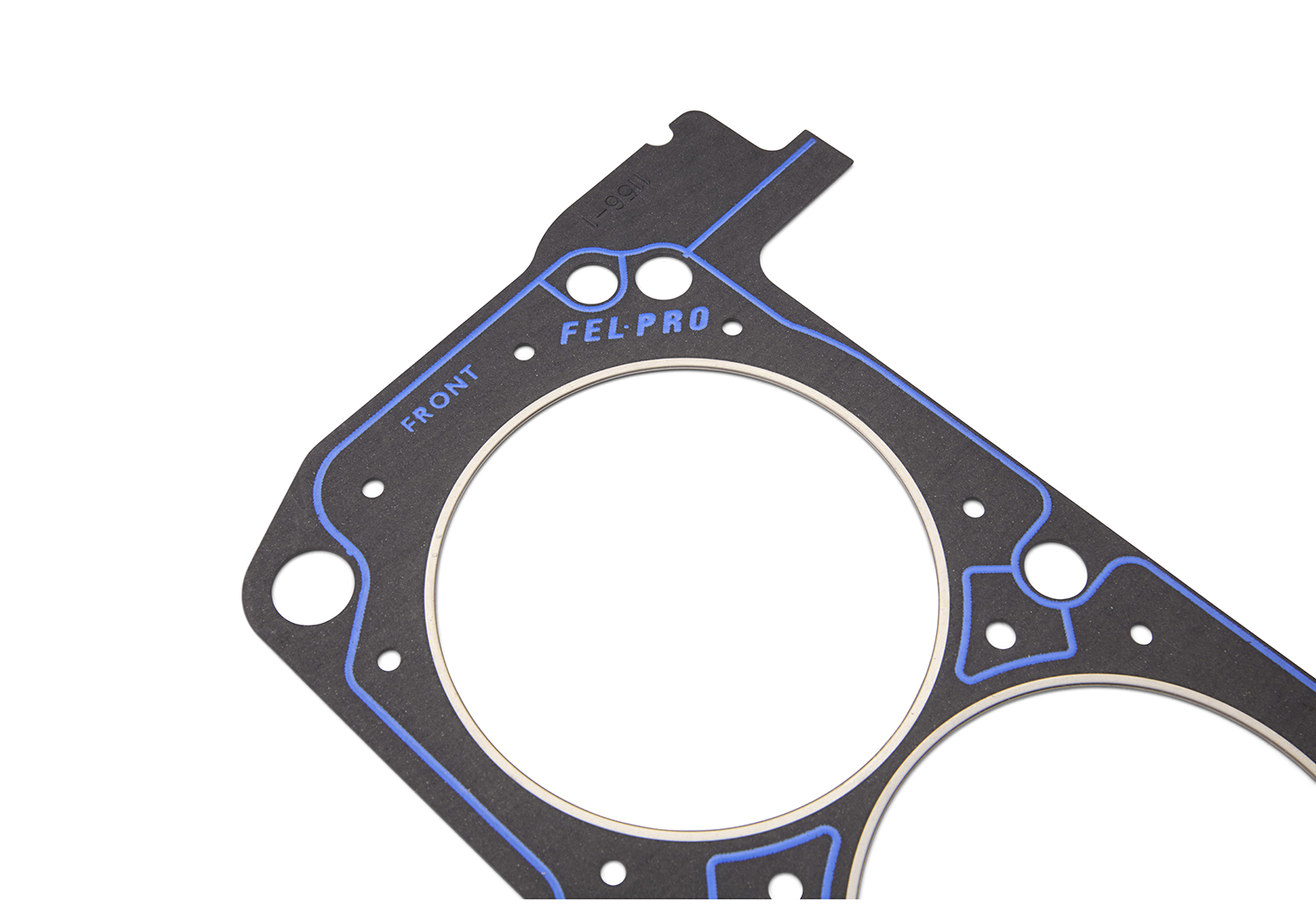

    		302/351 4.00" 4.100" 0.040" 8.8cc Pre-flattened steel wire combustion ring. Exhaust side is straight to accommodate FPP block water passages.

    M-6051-CP331*

    (1)

    		302/351 4.00" 4.100" 0.040" 8.8cc Pre-flattened copper wire combustion ring. Exhaust side is straight to accommodate FPP block water passages.

    M-6051-B341*

    (1)

    		Big Bore 351 Ford Performance Blocks 4.125" 4.160" 0.040" 9.1cc 4.125" overbore "competition" gasket. Same as gasket (M-6051-D331) except designed for Ford Performance blocks with larger 4.125" overbore. Bore flange valve pockets have been added to unshroud intake and exhaust valves. Set includes unique right- and left-hand gaskets!

    M-6051-R351*

    (1)

    		302/351 Ford Performance  Up to 4.125" 4.160" 0.040" 9.0cc For use on M-6010-R351/ R352/ R451/ R452/ BOSS302/ B302BB/ BOSS35195/ BOSS35192/ BOSS351BB.
    M-6051-A427*
    		All "FE" V-8 Up to 4.230" 4.400" 0.040" 9.7cc Race-quality gasket with steel wire combustion ring and stainless steel armor.
    M-6051-A441*
    		429/460 Wedge 4.360" Std. 4.500" 0.0425" 11.2cc Race-quality "competition" gasket. Features solid metal core and wire-encased combustion chamber seal.
    M-6051-B460*
    		429/460 Wedge Up to 4.625" 4.670" 0.038" 10.7cc Competition gasket with round water openings to match M-6010-A460 engine blocks.
    NOTES: (1)Several different water hole patterns have been used on 302 and 351W Ford Performance cylinder blocks and heads since their introduction. Engine assemblers should lay the head gasket on the block and the cylinder head (with front of gasket toward the front of the engine) to make sure there is a path for coolant flow from the block into the head. In some cases, holes may have to be drilled in the block or head, or punched in the gasket.

Part Type
Engine: Gaskets
Warranty Availability
Not Available
Package Dimensions
8" x 0.25" x 21"
Package Weight
1 lb(s)
UPC Code
756122086346
Country of Origin
United States
