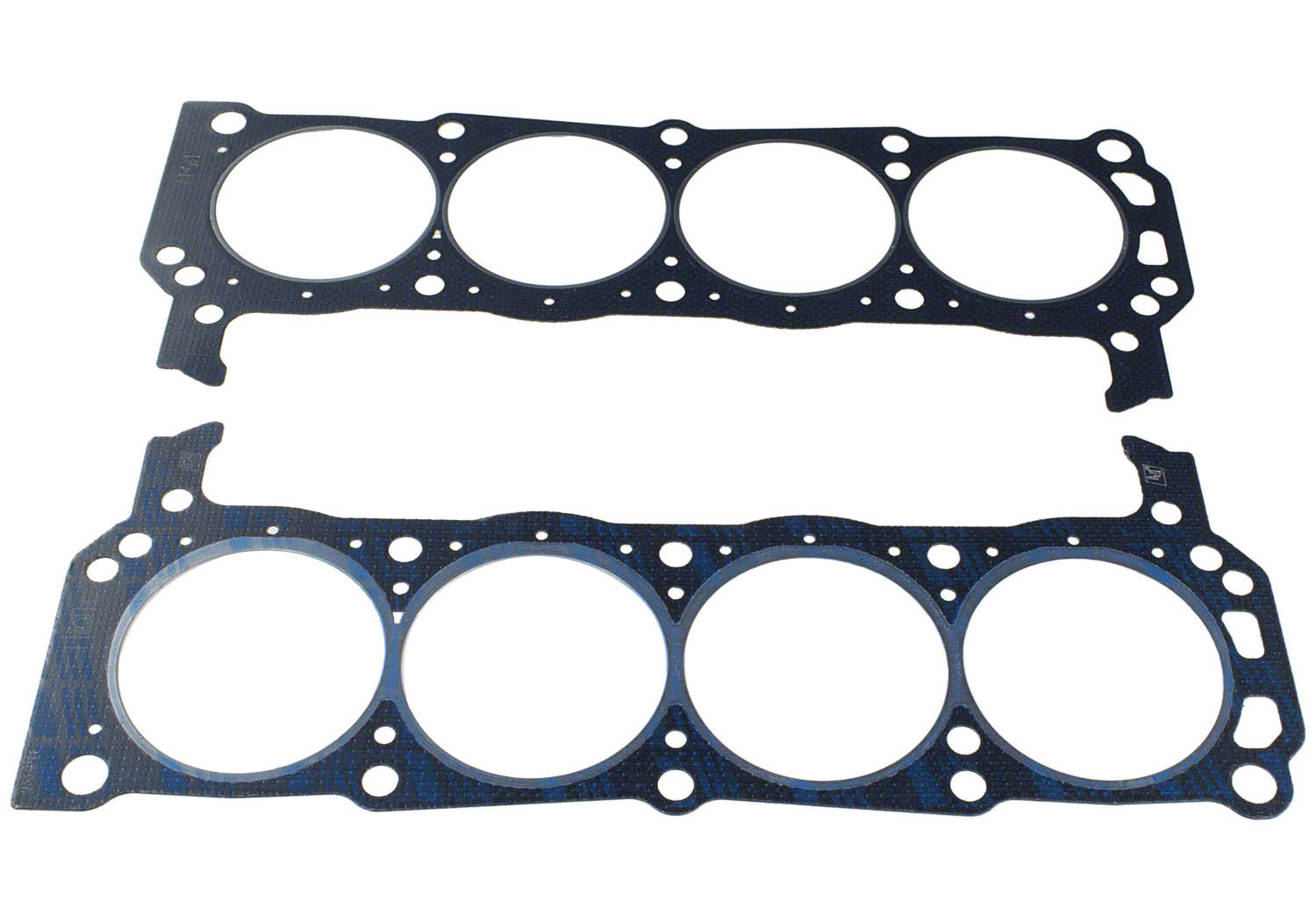

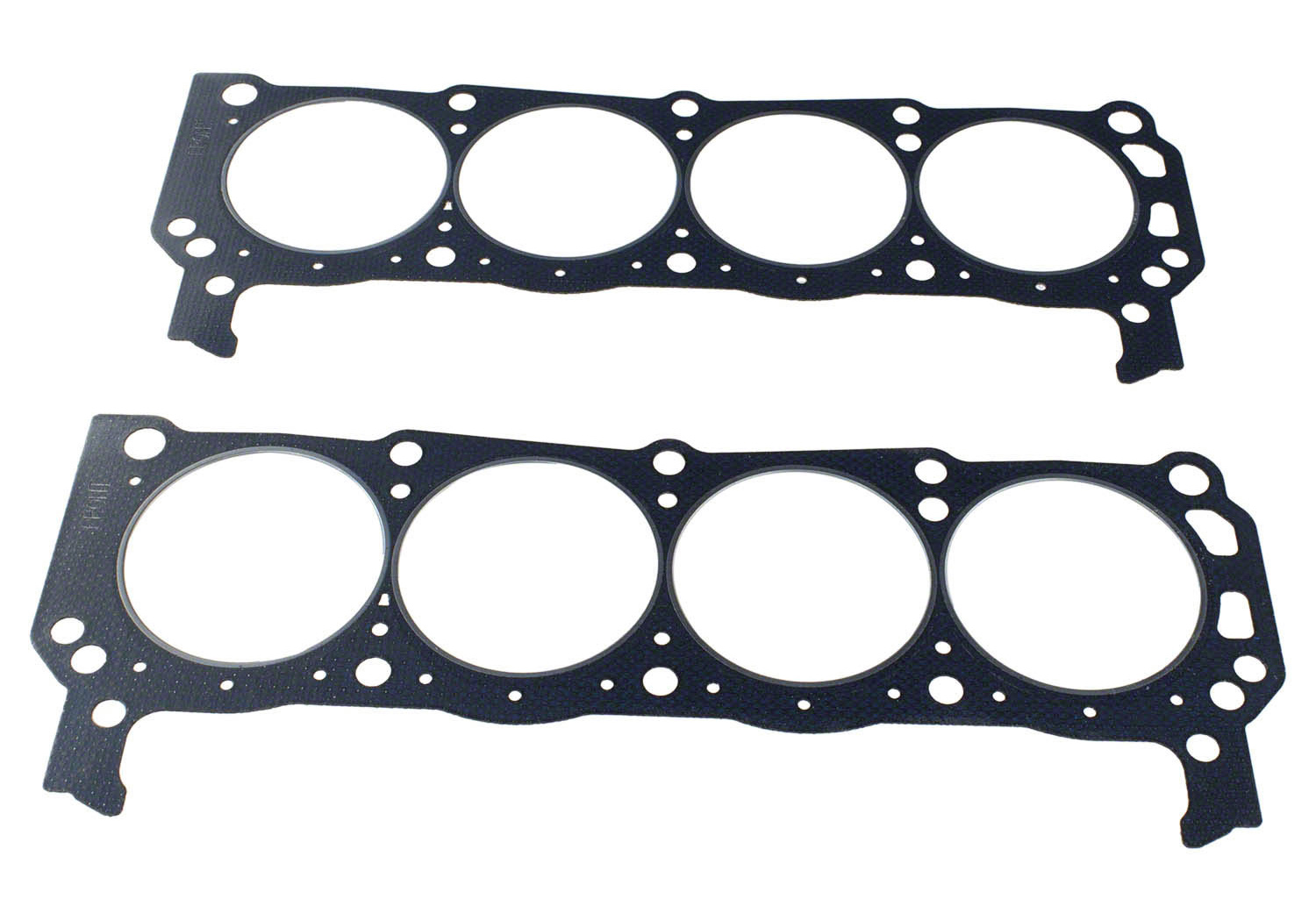

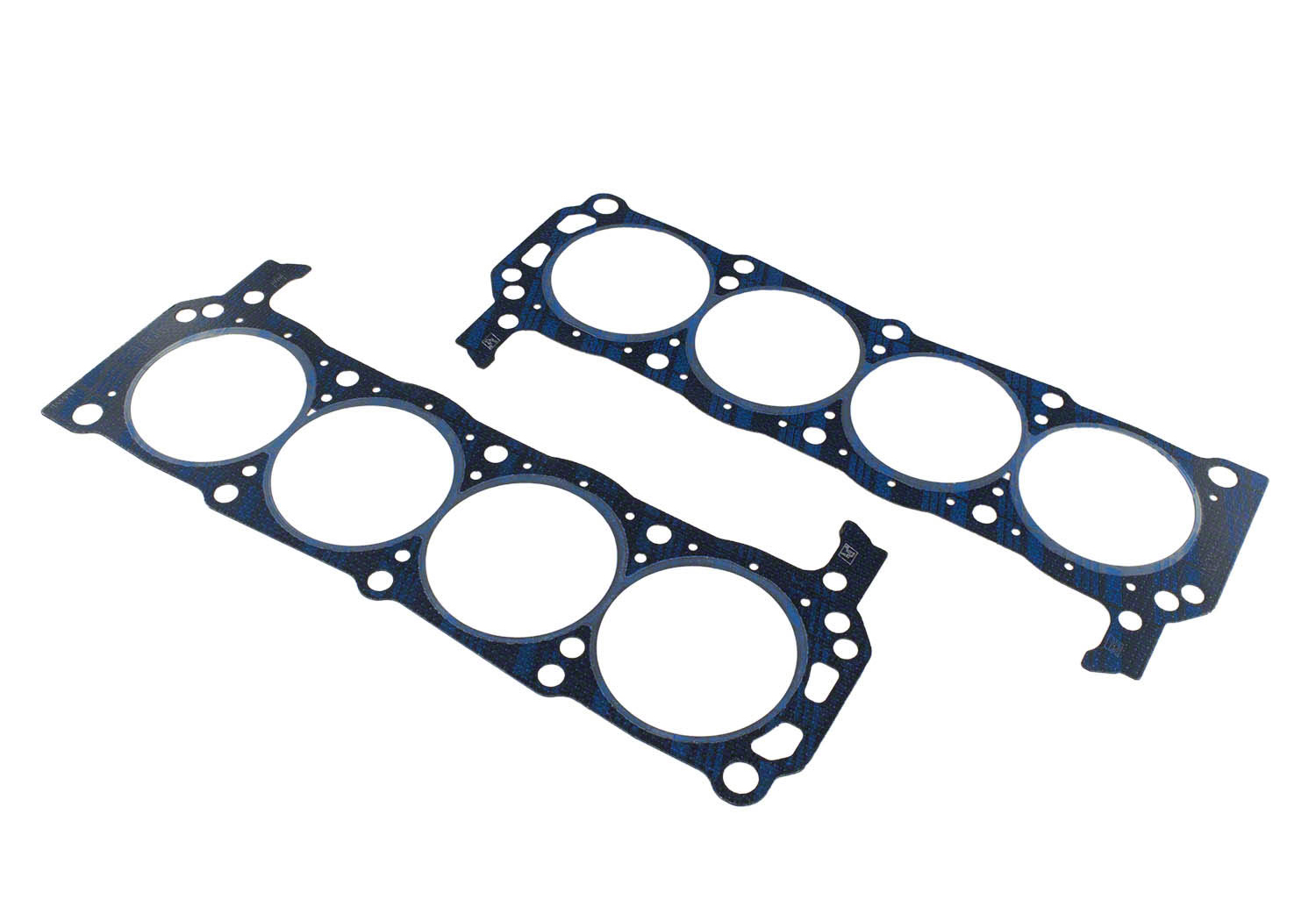

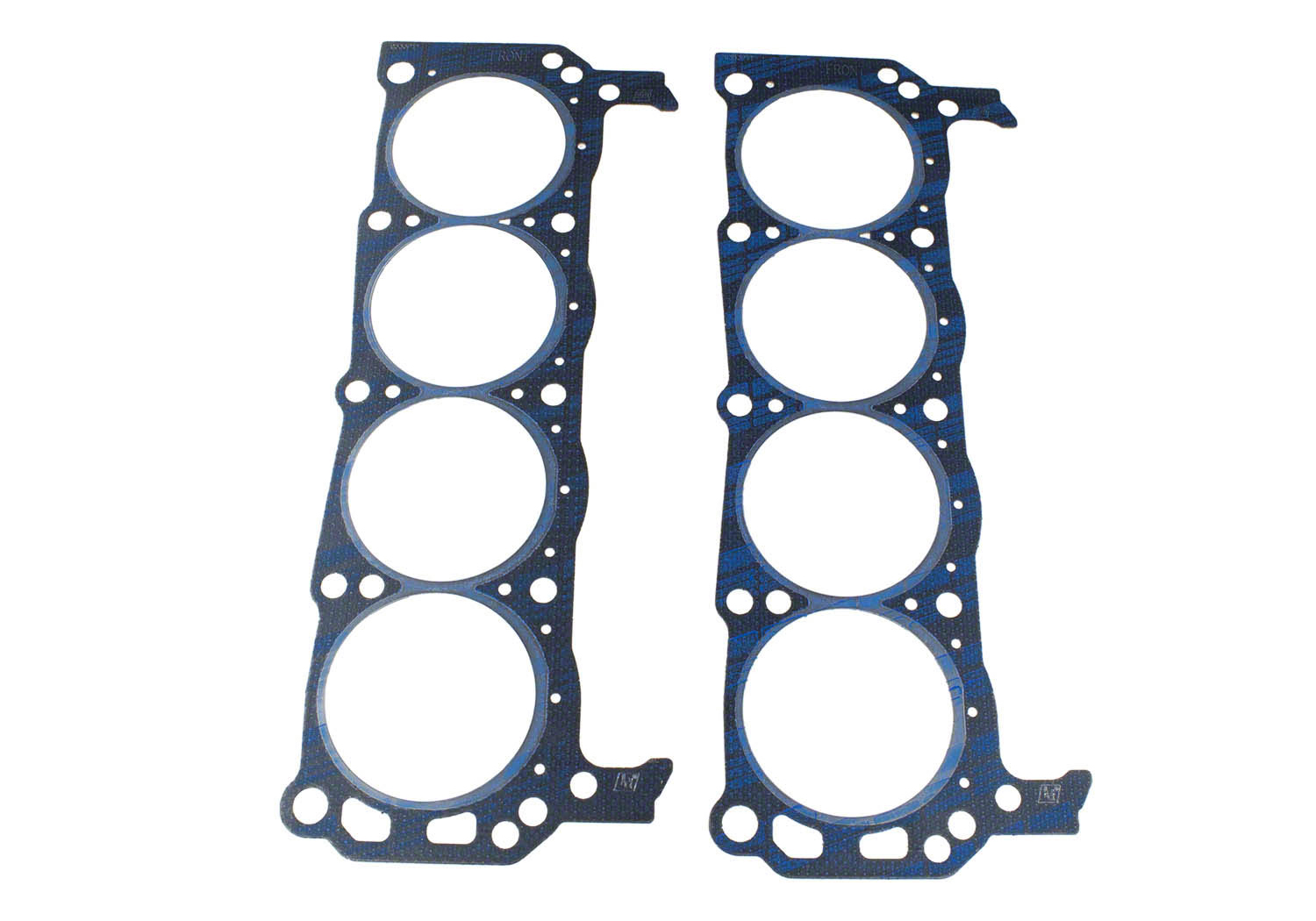

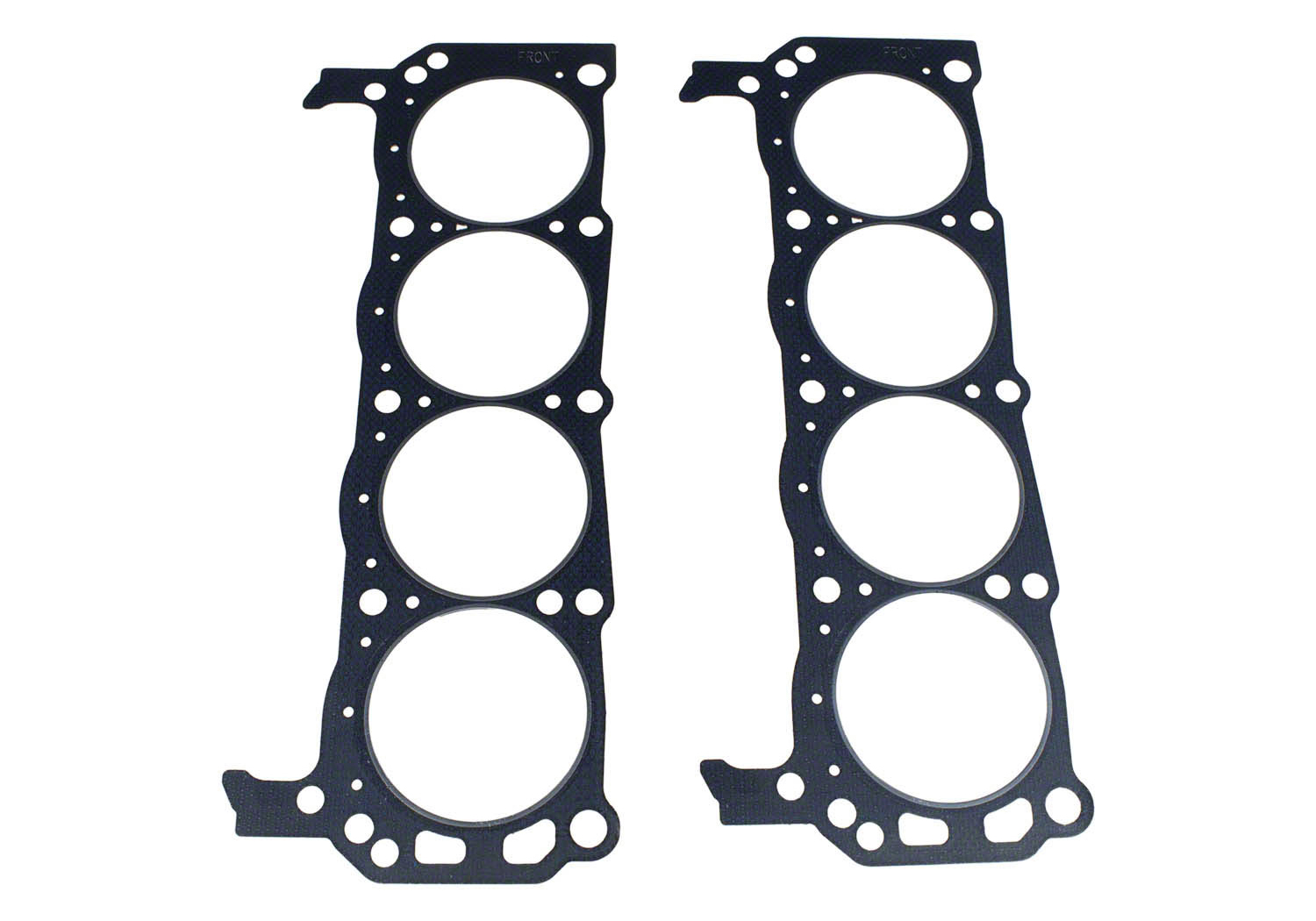

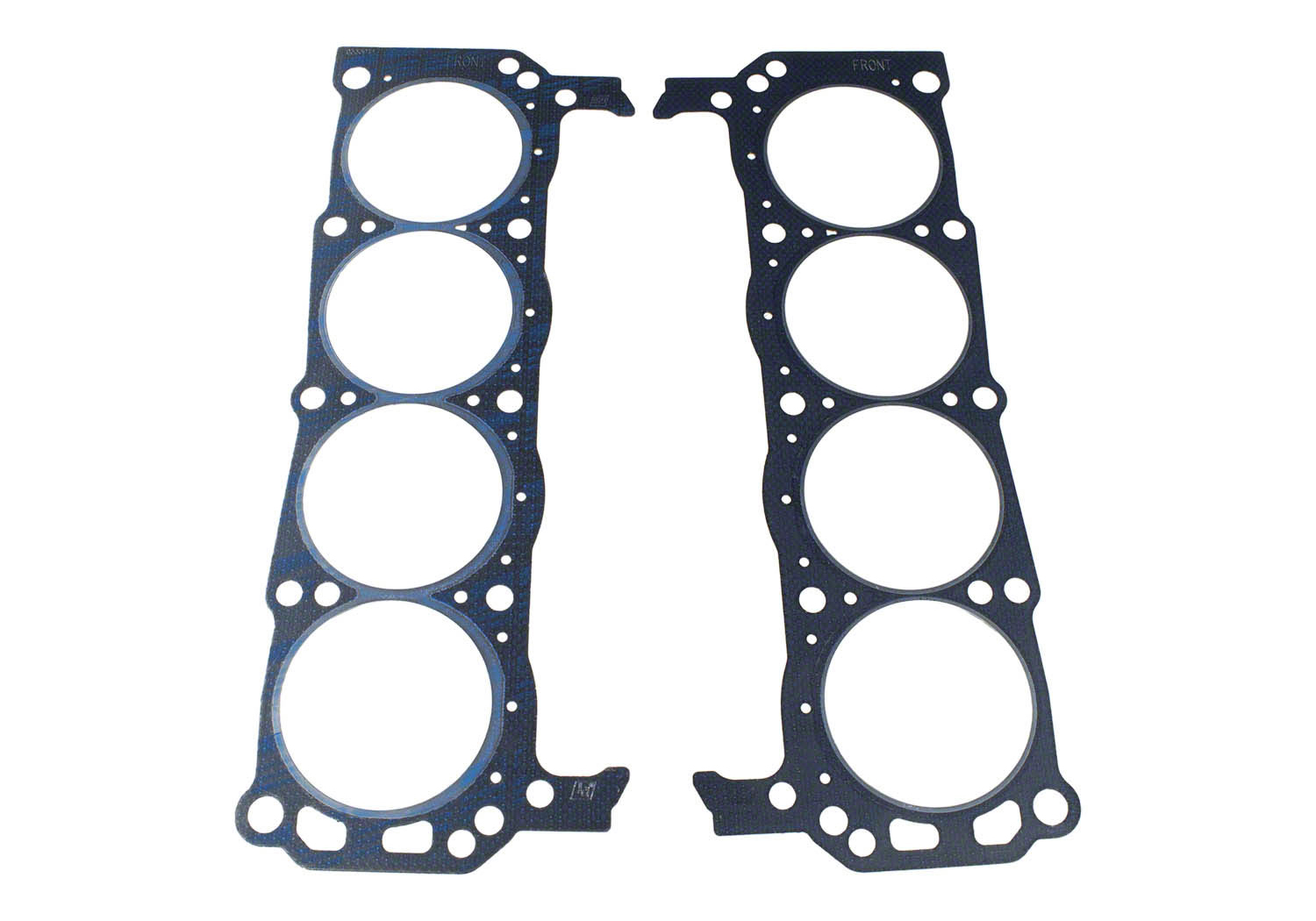

302/351 HEAD GASKET SET

Proudly Made in the USA
  • Fits: Pushrod 302 and 351 Ford high performance engines
  • Bore (in):4.100 in.
  • Bore (mm):104.140mm
  • Gasket Material:Composite
  • Compressed Thickness (in):0.047 in.
  • Compressed Volume (cc):10.169cc

    OTHER CYLINDER HEAD GASKETS (SOLD IN PAIRS)
    PART
    NUMBER
    CYLINDER BORE APPLICATIONBORE DIAMETERGASKET DIAMETERCOMPRESSED THICKNESSCOMPRESSED VOLUMENOTES

    M-6051-A302**

    (1)

    289/302/351W Production-Type Cast Iron and Aluminum Heads4.00"4.100"0.042"9.1cc4.00" standard bore "competition" gasket for cast iron or aluminum cylinder heads on 302 and 351W production blocks. Features solid metallic core with wire encased combustion chamber seal for applications. Surfaces are Teflon coated.

    M-6051-C51**

    (1)

    302/351 4.00"4.100"0.047"10.169ccFits: Pushrod 302 and 351 Ford high performance engines

    M-6051-S331*

    (1)

    302/3514.00"4.100"0.040"8.8ccPre-flattened steel wire combustion ring. Exhaust side is straight to accommodate FRPP block water passages.

    M-6051-CP331*

    (1)

    302/3514.00"4.100"0.040"8.8ccPre-flattened copper wire combustion ring. Exhaust side is straight to accommodate FRPP block water passages.

    M-6051-B341*

    (1)

    Big Bore 351 Ford Racing Blocks4.125"4.160"0.040"9.1cc4.125" overbore "competition" gasket. Same as gasket (M-6051-D331) except designed for Ford Racing blocks with larger 4.125" overbore. Bore flange valve pockets have been added to unshroud intake and exhaust valves. Set includes unique right- and left-hand gaskets!

    M-6051-R351*

    (1)

    302/351 Ford RacingUp to 4.125"4.160"0.040"9.0ccFor use on M-6010-R351/ R352/ R451/ R452/ BOSS302/ B302BB/ BOSS35195/ BOSS35192/ BOSS351BB.
    M-6051-A427*
    All "FE" V-8Up to 4.230"4.400"0.040"9.7ccRace-quality gasket with steel wire combustion ring and stainless steel armor.
    M-6051-A441*
    429/460 Wedge4.360" Std.4.500"0.0425"11.2ccRace-quality "competition" gasket. Features solid metal core and wire-encased combustion chamber seal.
    M-6051-B460*
    429/460 WedgeUp to 4.625"4.670"0.038"10.7ccCompetition gasket with round water openings to match M-6010-A460 engine blocks.
    NOTES: (1)Several different water hole patterns have been used on 302 and 351W Ford Racing cylinder blocks and heads since their introduction. Engine assemblers should lay the head gasket on the block and the cylinder head (with front of gasket toward the front of the engine) to make sure there is a path for coolant flow from the block into the head. In some cases, holes may have to be drilled in the block or head, or punched in the gasket.


Part Type
Engine: Gaskets
Warranty Availability
Not Available
Packaged Dimensions
8" x 27.75" x 0.25
Packaged Weight
0.7 lb(s)
UPC Code
756122235393
Country of Origin
United States
