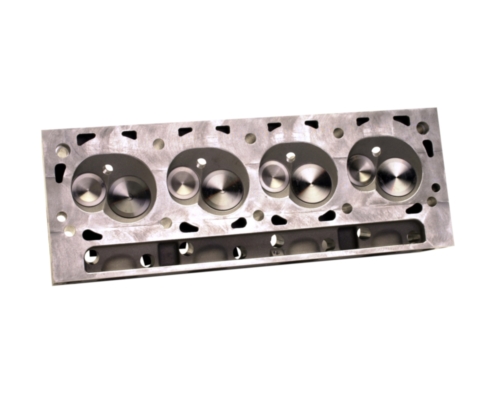

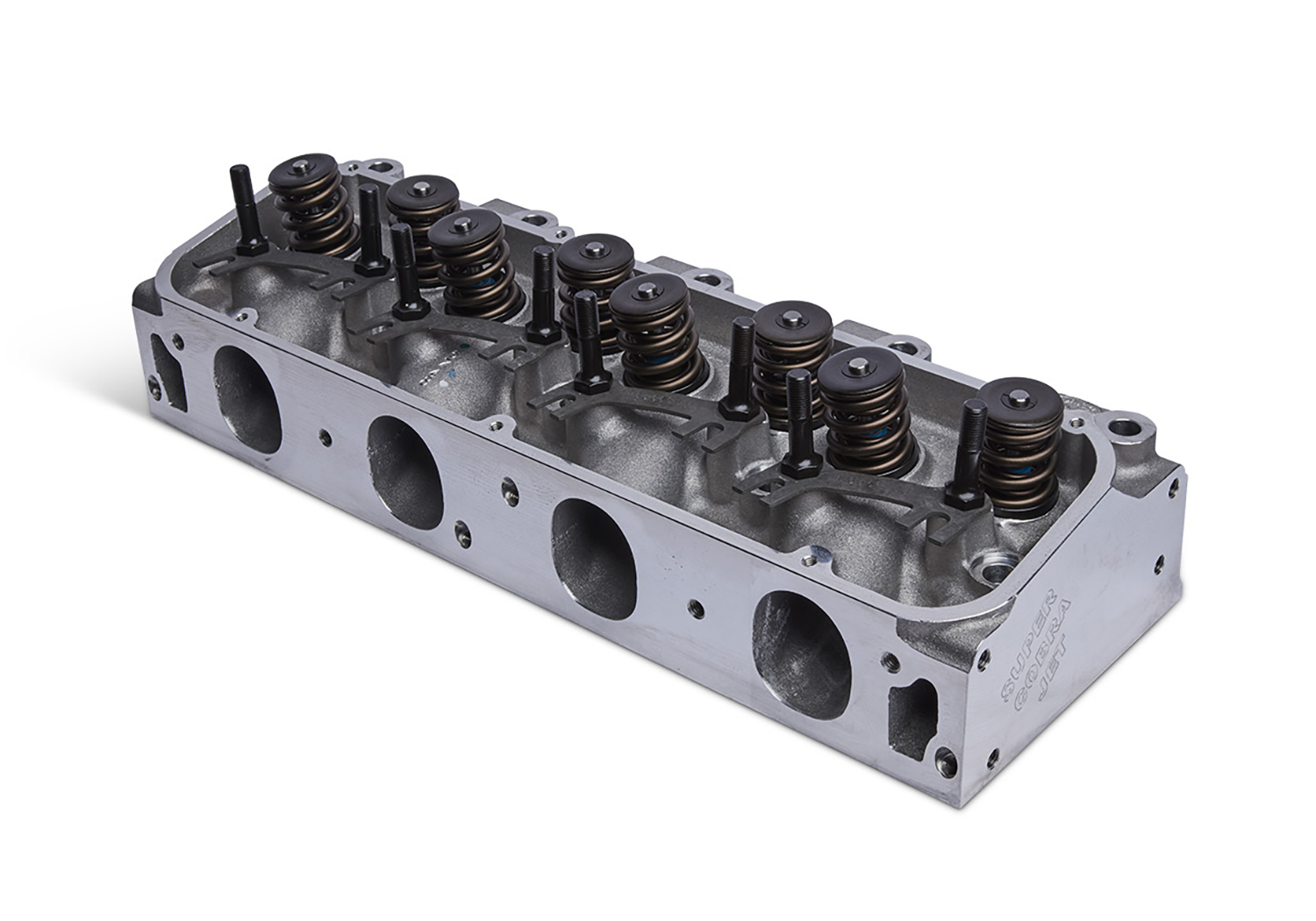

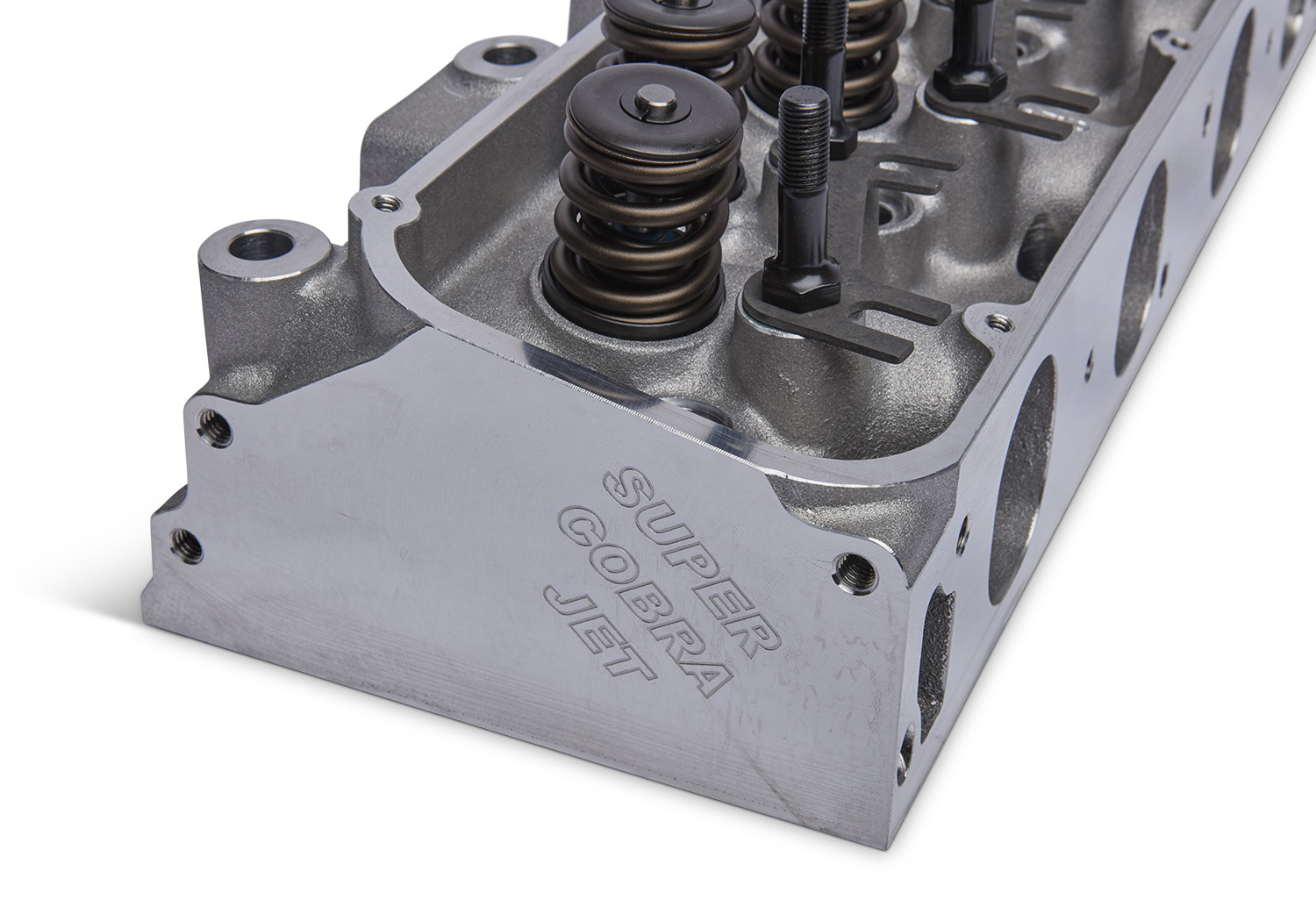

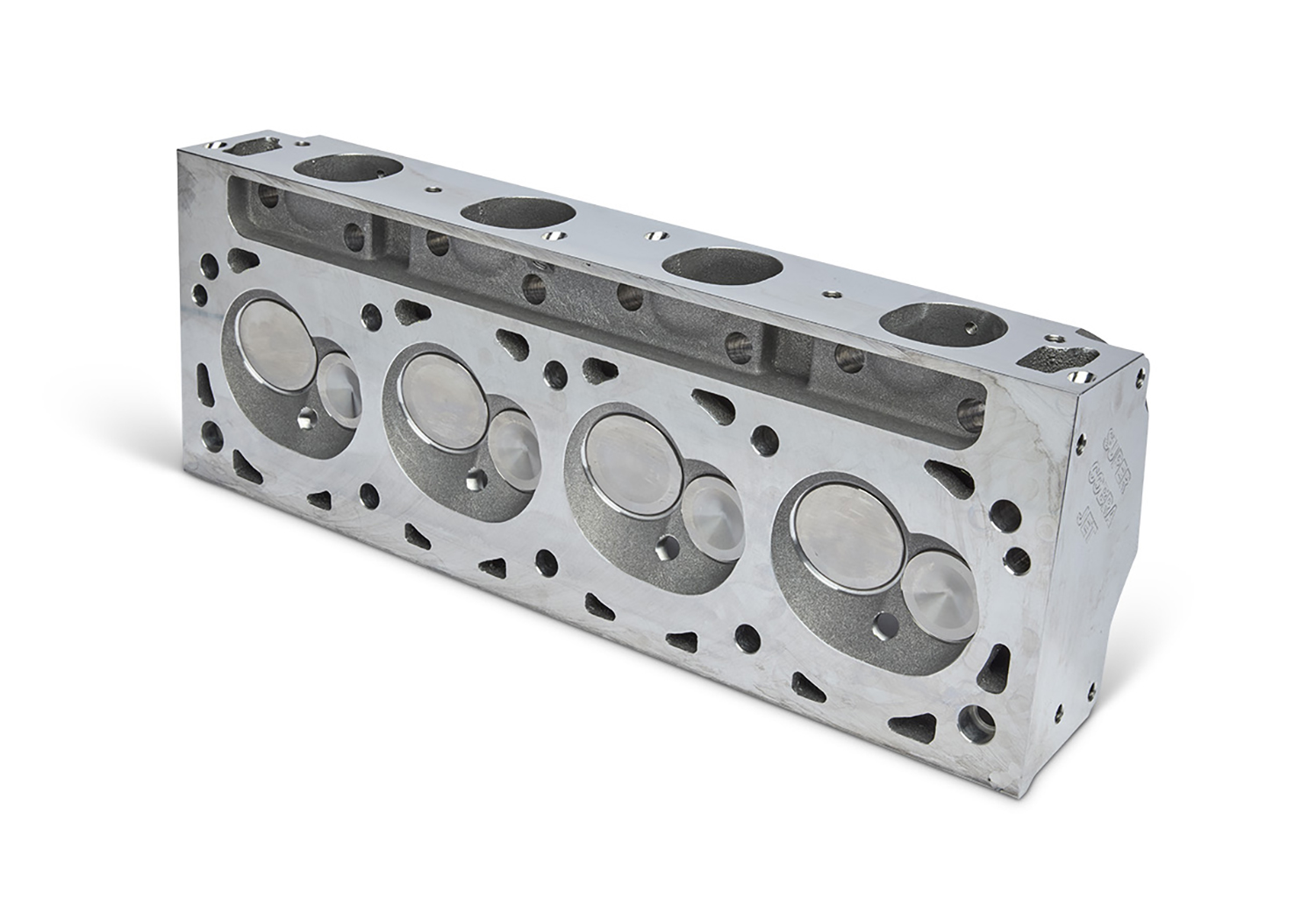

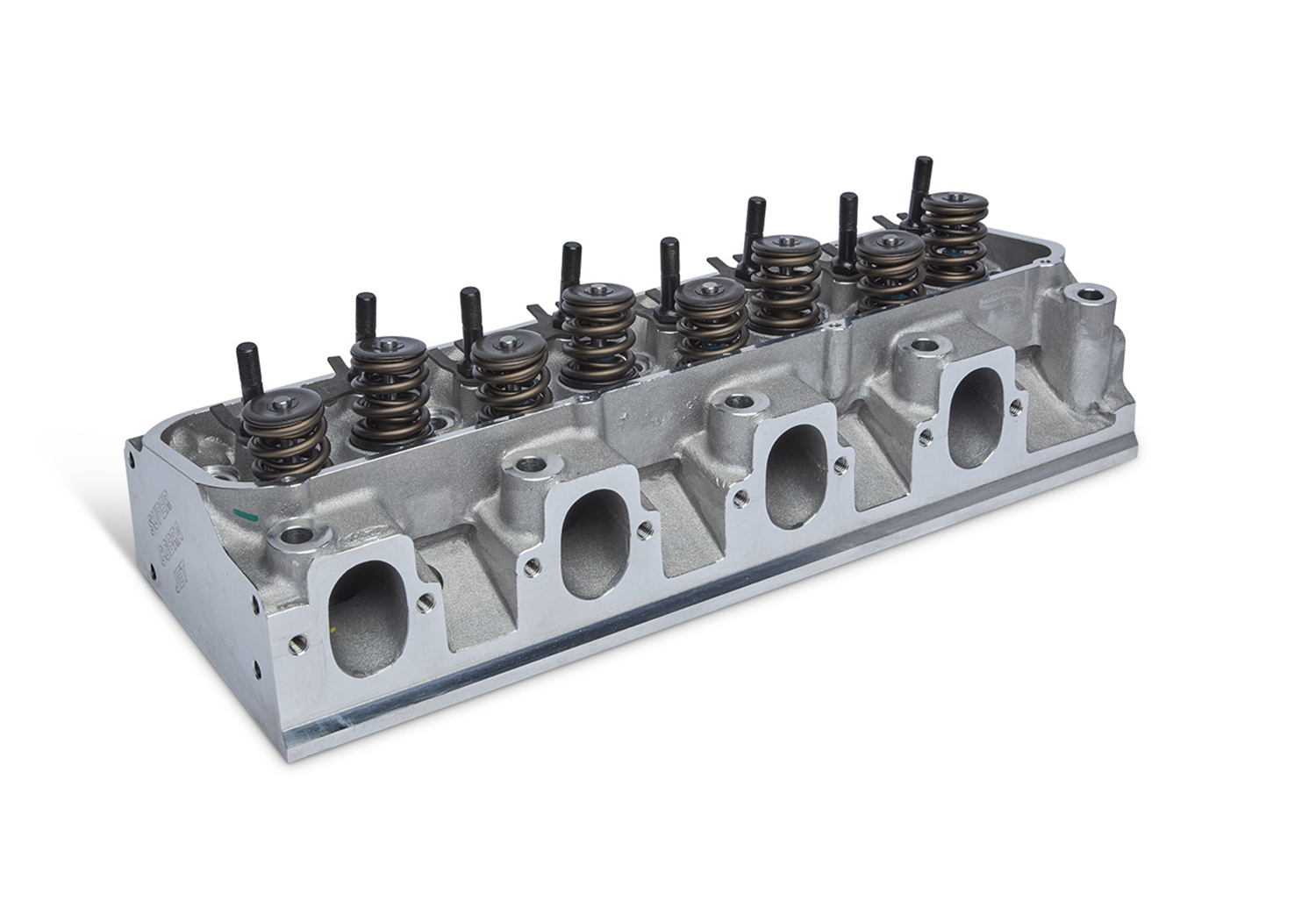

SUPER COBRA JET CYLINDER HEAD ASSEMBLED WITH DUAL SPRINGS W/DAMPER

SUPER COBRA JET CYLINDER HEAD ASSEMBLED WITH DUAL SPRINGS W/DAMPER
M-6049-SCJB
Retail
$1,179.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available

WARNING:
This part has been designed and is intended for off-highway application only. Installation of this part on a vehicle that is driven on public roads may violate U.S. and Canadian laws and regulations relating to emission requirements and motor vehicle safety standards.
Proudly Made in the USA
  • Fits 429 and 460 ci engines (except BOSS 429)
  • Valve angles and locations designed to reduce cylinder wall shrouding and improve flow
  • Combustion chambers designed to accommodate centrally located valves
  • Production 429 Cobra Jet intake and exhaust manifolds bolt on
  • Production Ford 429/460 valve cover bolt pattern
  • M-6582-C460 Ford Racing Valve Covers recommended
  • 2.200" intake valve, 1.76" exhaust valve
  • Flows approximately 330 CFM intake and 225 CFM exhaust
  • 72cc combustion chambers
  • 290cc intake runner, 148cc exhaust runner
  • Assembled with solid roller springs: Closed seat pressure 240# @ 1.900"; Open seat pressure 625# @ 1.200"; Max lift .650"
  • Machined 10-degree locks and steel valve spring retainers, premium valve seals
  • Uses Motorcraft AGSP series spark plugs
  • NOTE: If replacing Ford Racing or production 429 Cobra Jet heads, new intake valve notches are required
  • NOTE: Uses Felpro® exhaust gasket part number 1420, Uses Felpro® intake gasket part number 1231
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Packaged Dimensions
9" x 8" x 23
Packaged Weight
37 lb(s)
Part Type
Engine: Cylinder Heads
UPC Code
756122054697
Catalog Page Number
180
Country of Origin
United States
California Executive Order
No
