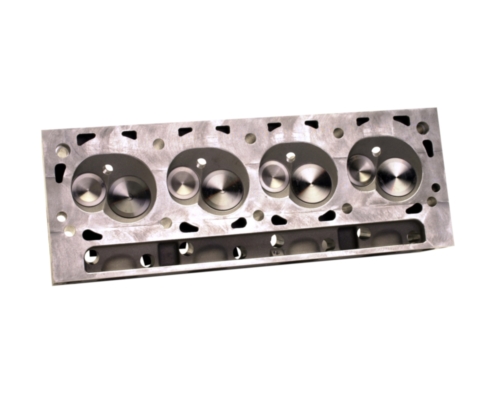

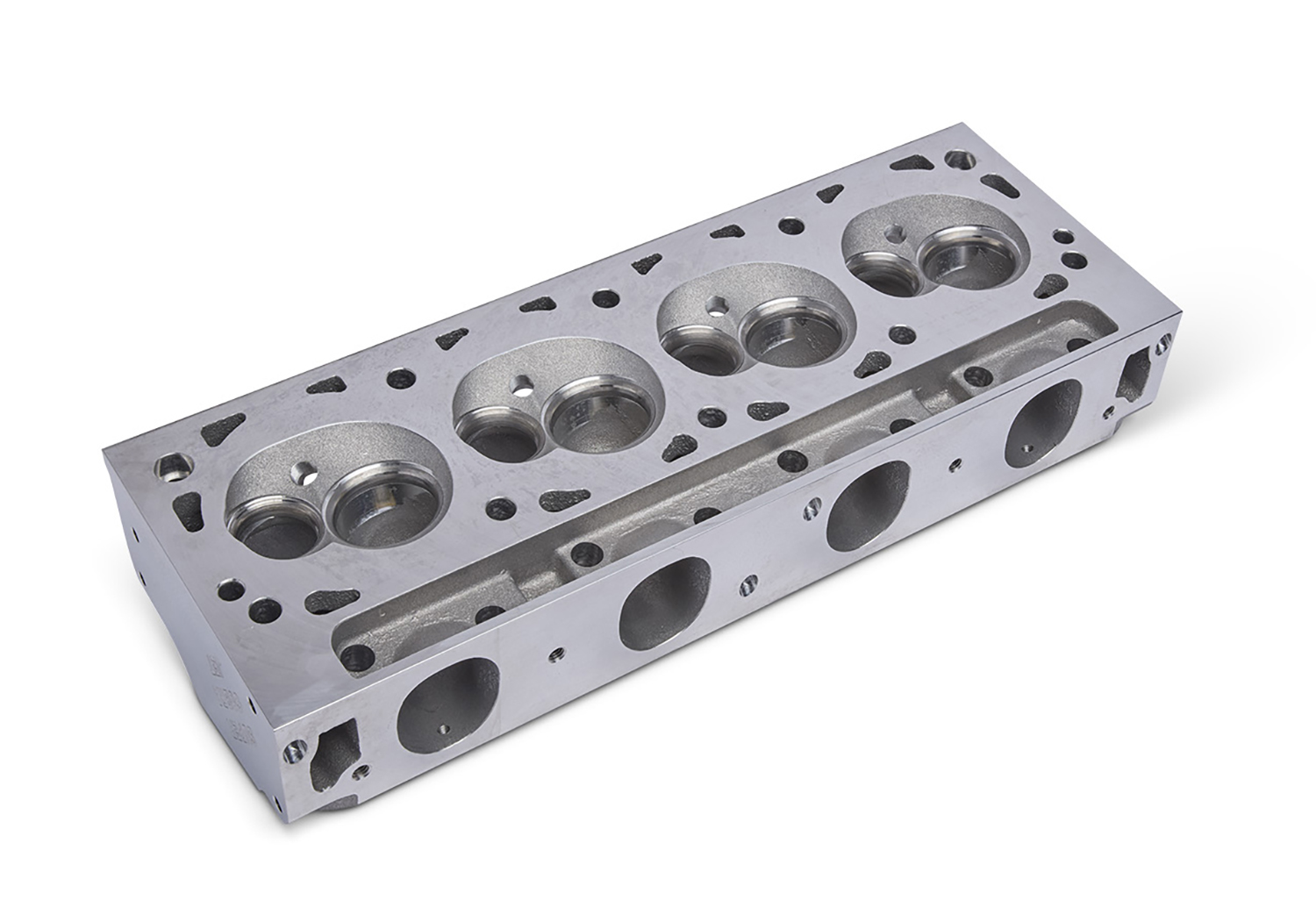

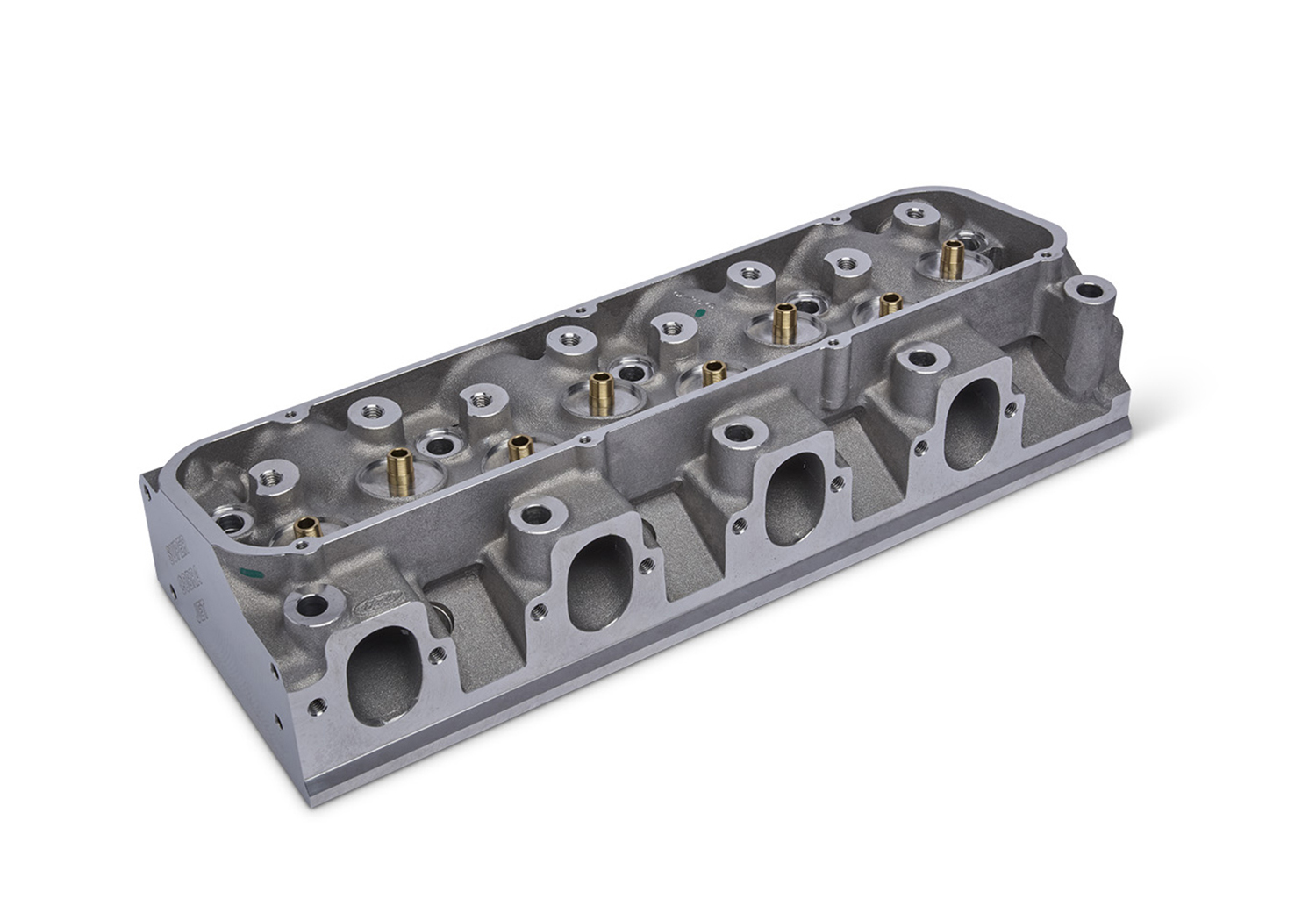

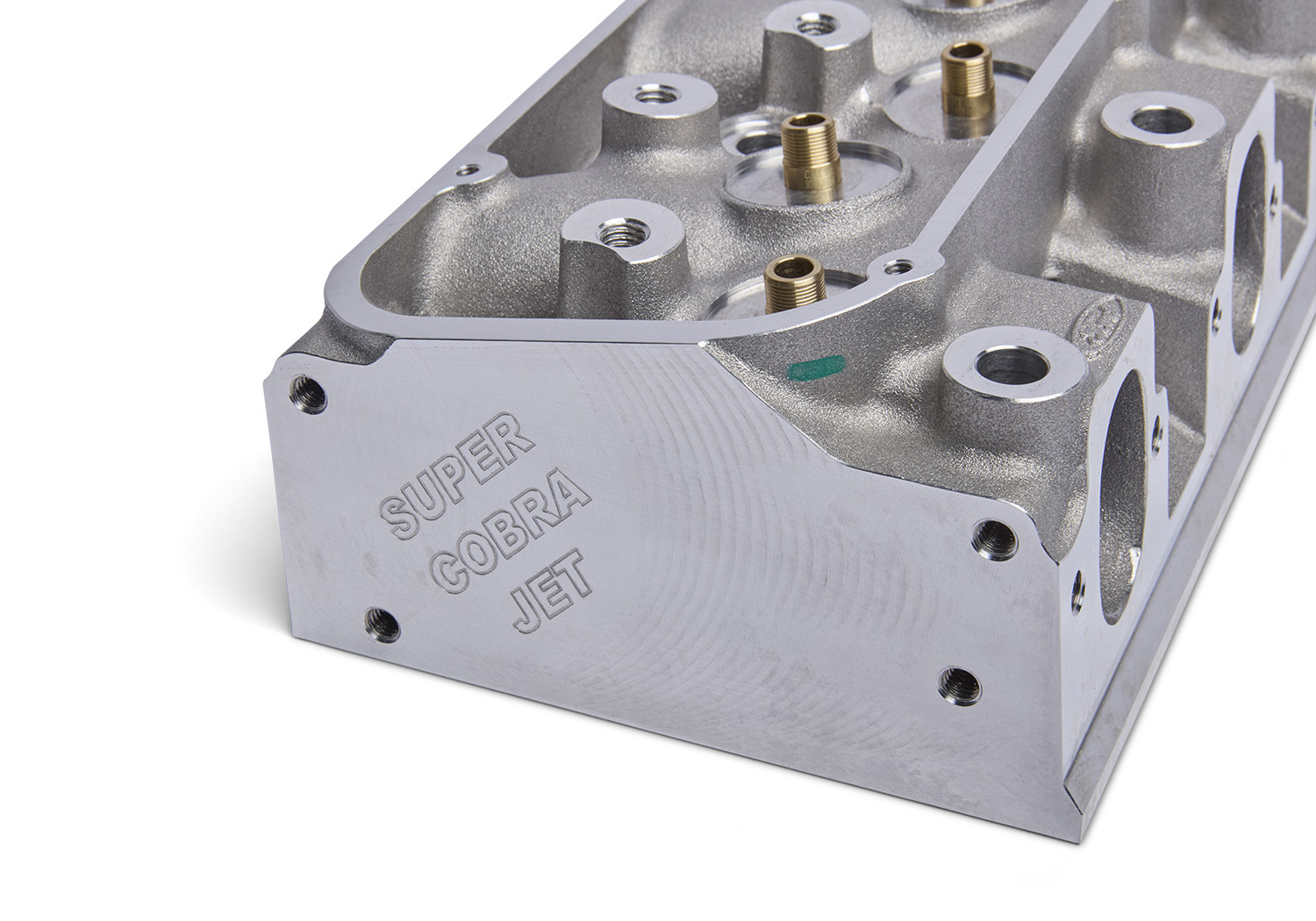

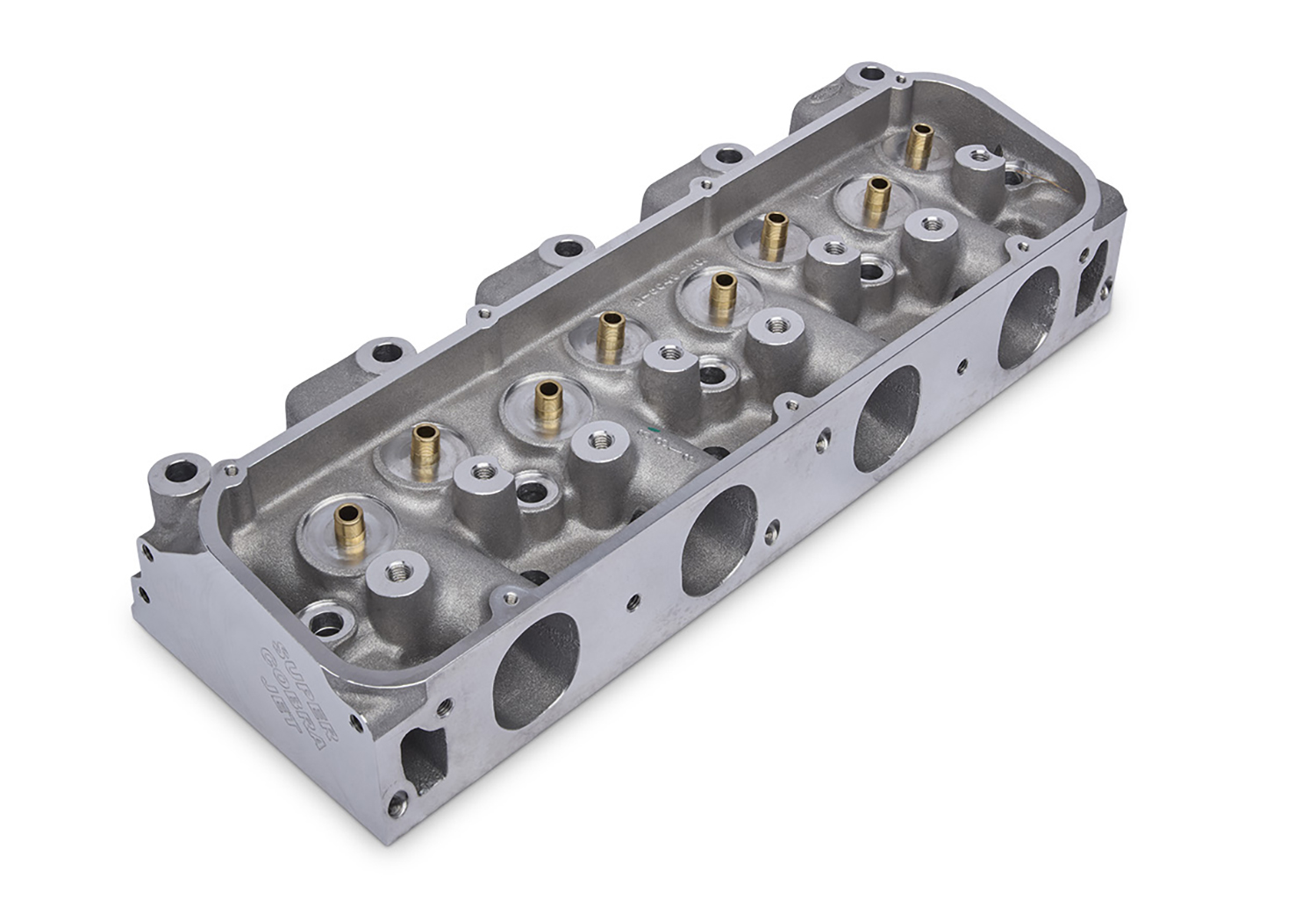

SUPER COBRA JET CYLINDER HEAD - BARE
M-6049-SCJ
Retail
$1,250.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
- Fits 429 and 460 ci engines (except BOSS 429)
- Valve angles and locations designed to reduce cylinder wall shrouding and improve flow
- Combustion chambers to accommodate the more centrally located valves
- Production 429 Cobra Jet intake and exhaust manifolds bolt on
- Production Ford 429/460 valve cover bolt pattern
- M-6582-C460 Ford Performance Valve Covers recommended
- 2.200" intake valve, 1.76" exhaust valve
- Flows approximately 330 CFM intake and 225 CFM exhaust
- 72cc combustion chambers
- 290cc intake runner, 148cc exhaust runner
- Uses rocker arm part numbers M-6564-A460
- Uses Motorcraft AGSP series spark plugs
- NOTE: If replacing Ford Performance or production 429 Cobra Jet heads, new intake valve notches are required
- NOTE: Uses Felpro® exhaust gasket part number 1420 and Felpro® intake gasket part number 1231
Part Type
Engine: Cylinder Heads
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
8.75" x 8" x 23"
Package Weight
28 lb(s)
UPC Code
756122054673
Country of Origin
United States
