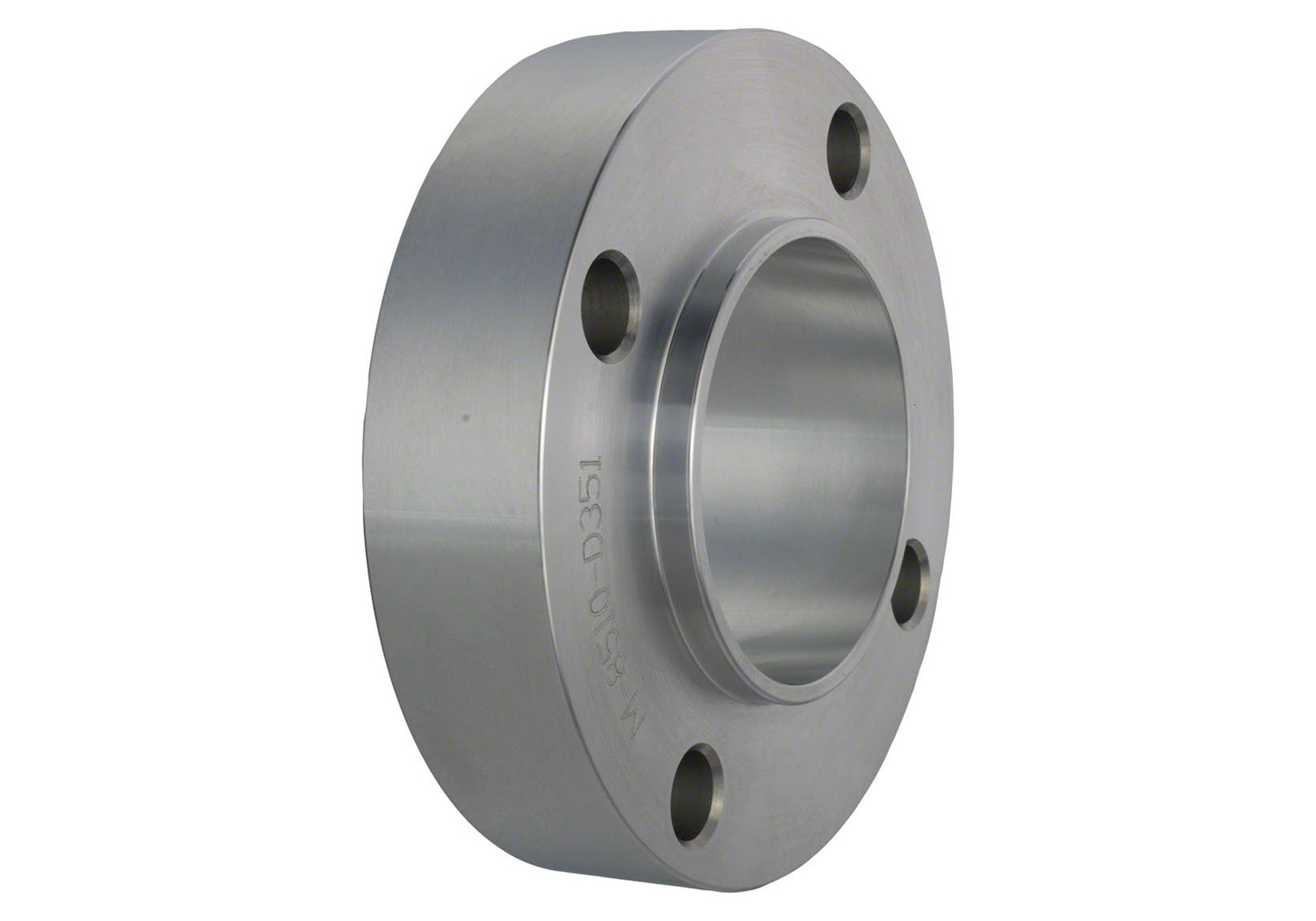

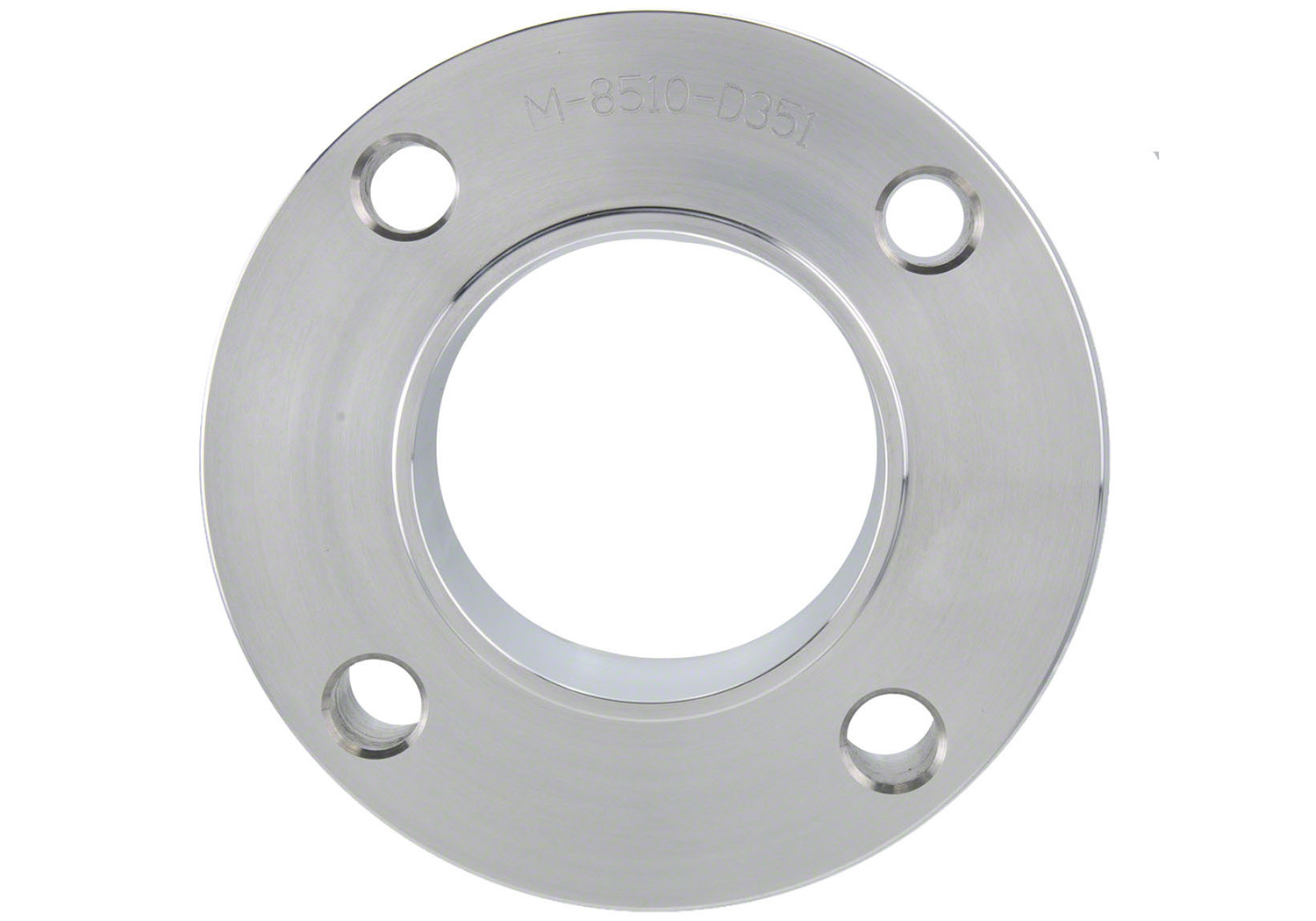

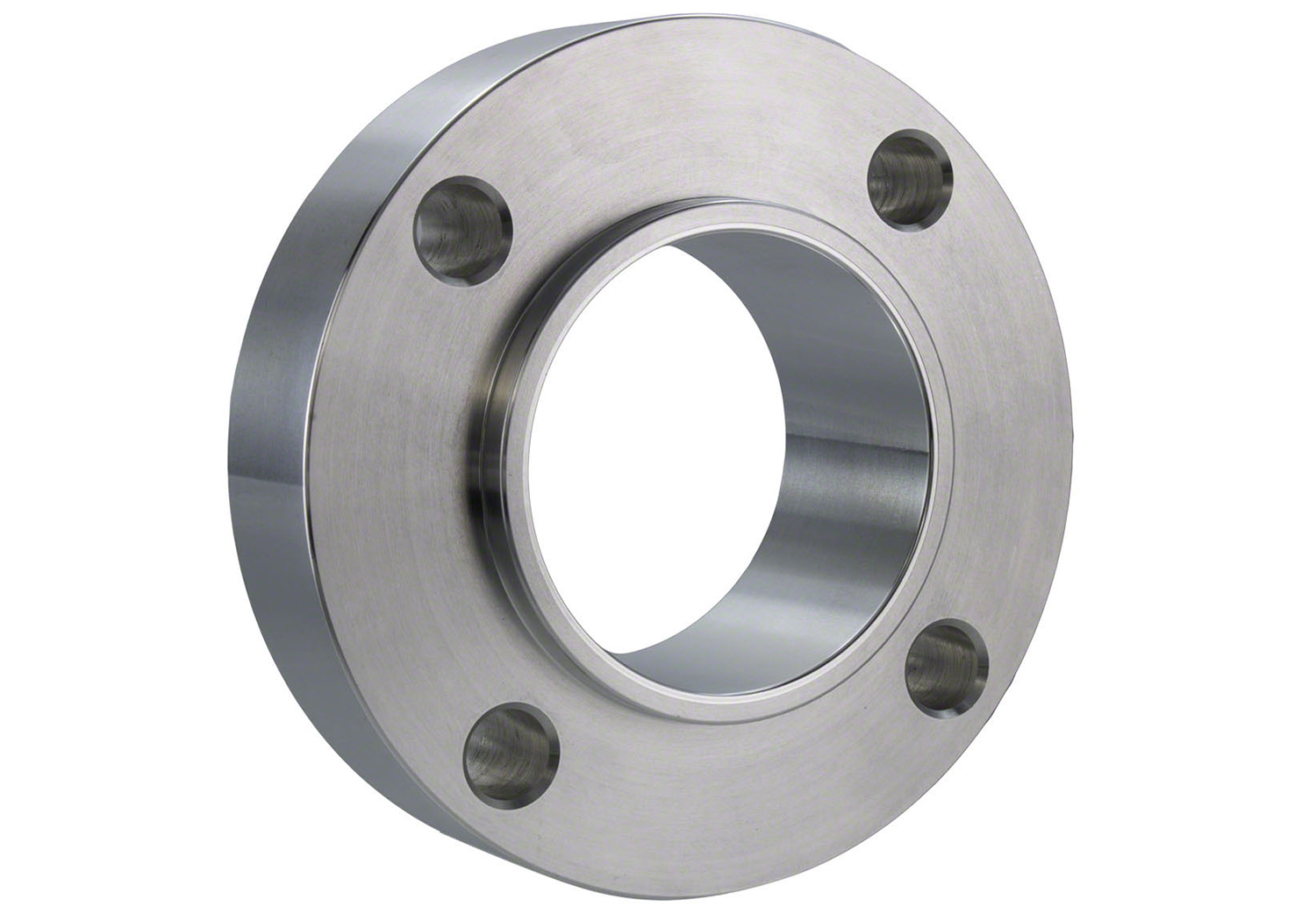

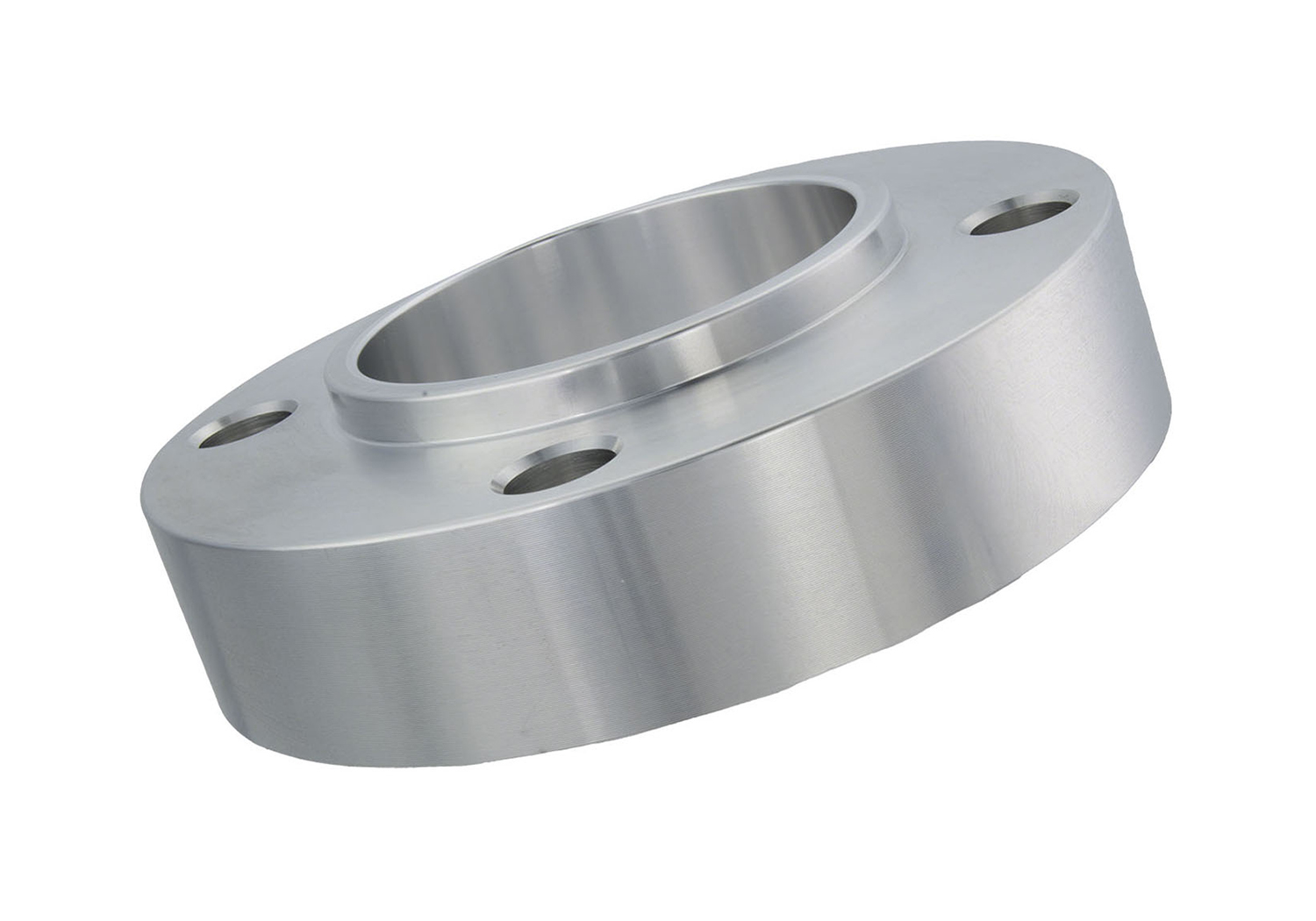

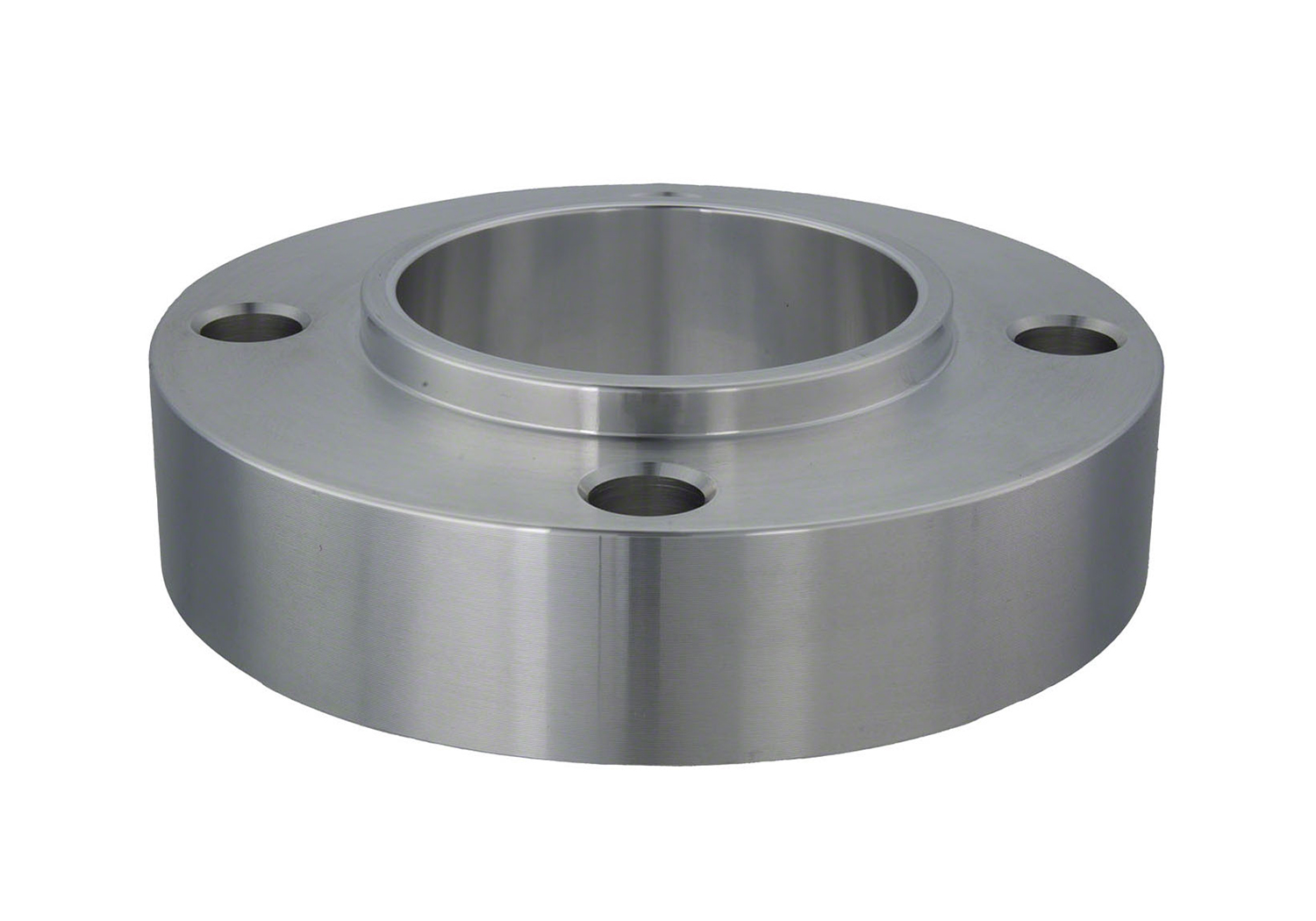

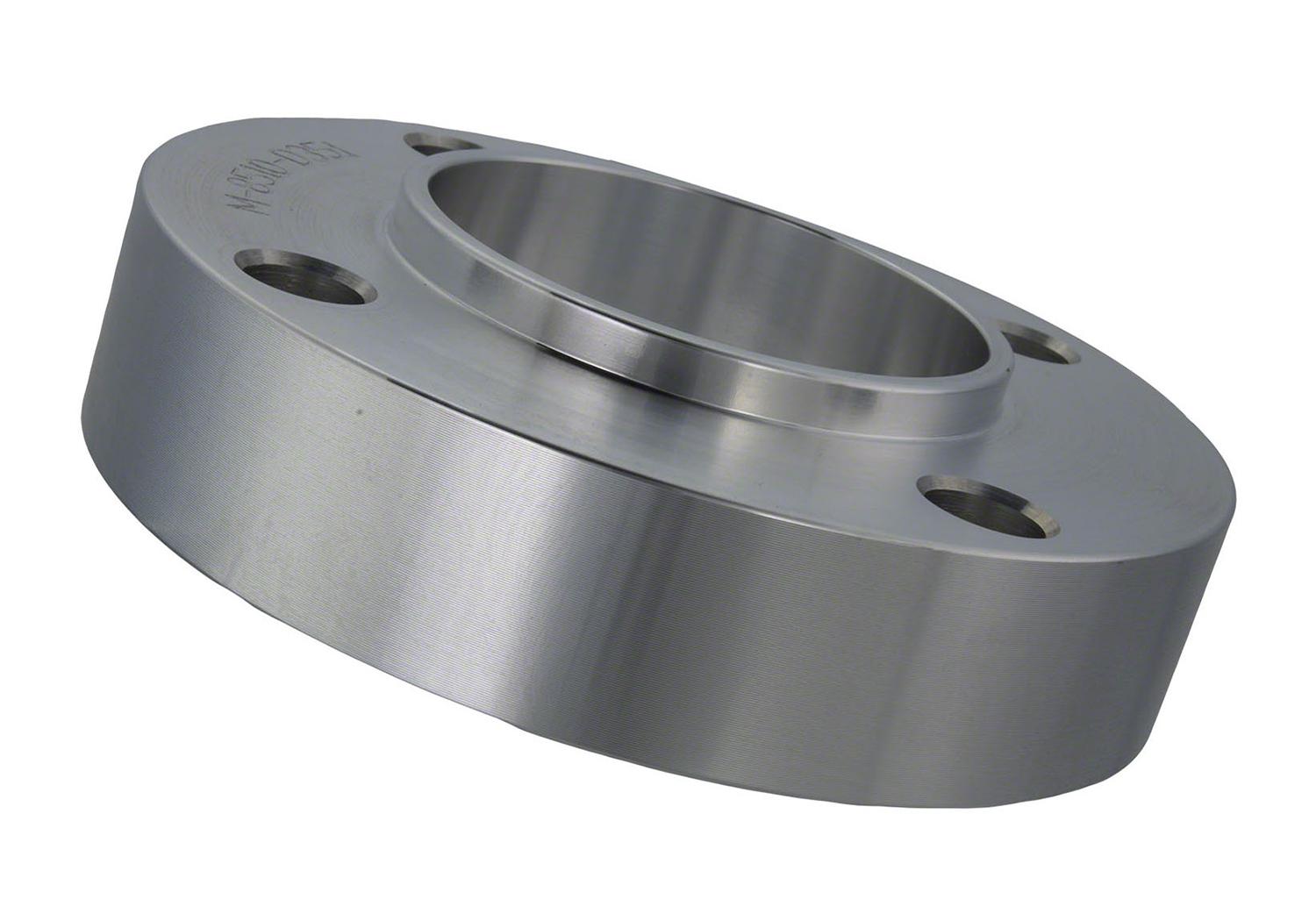

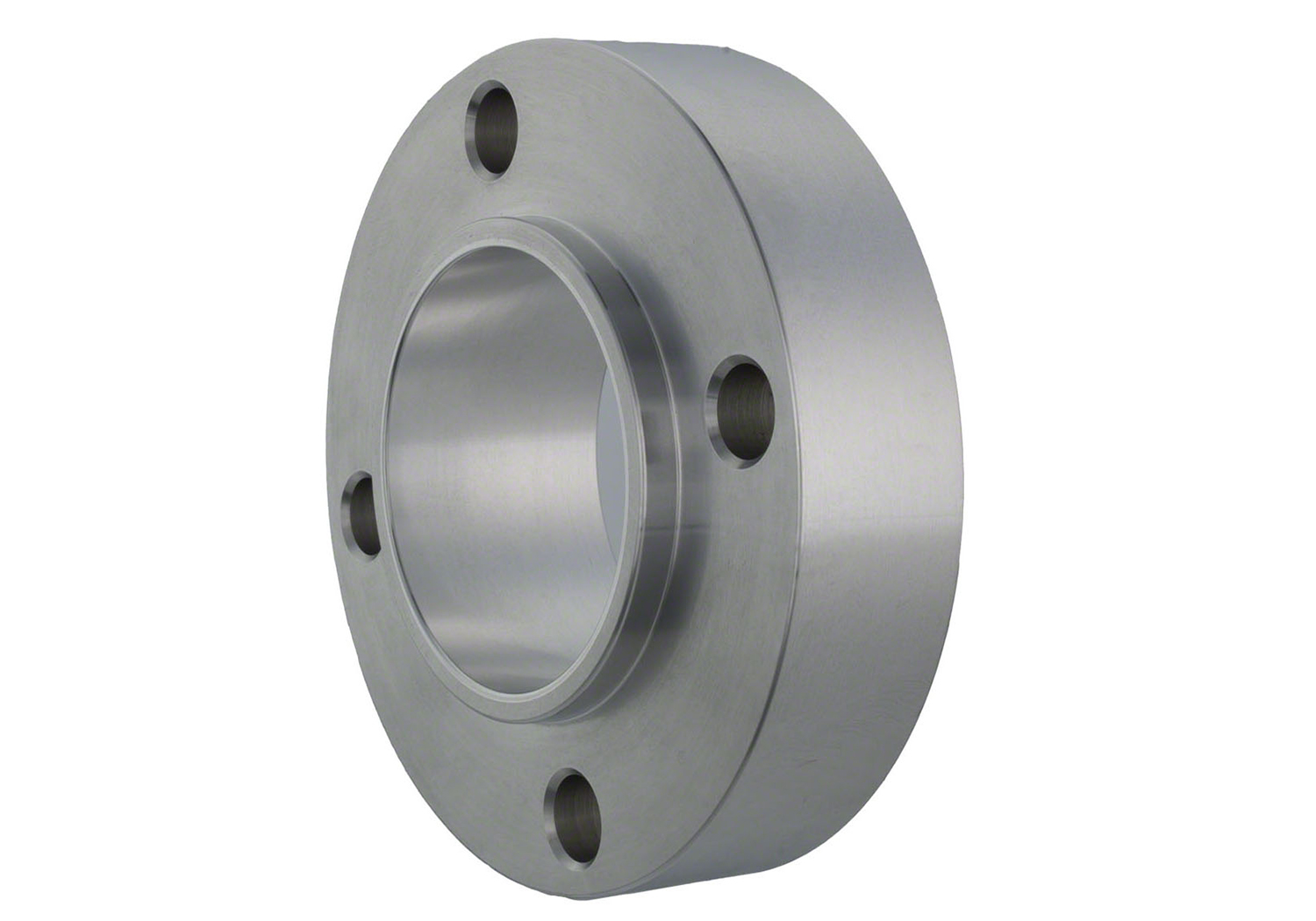

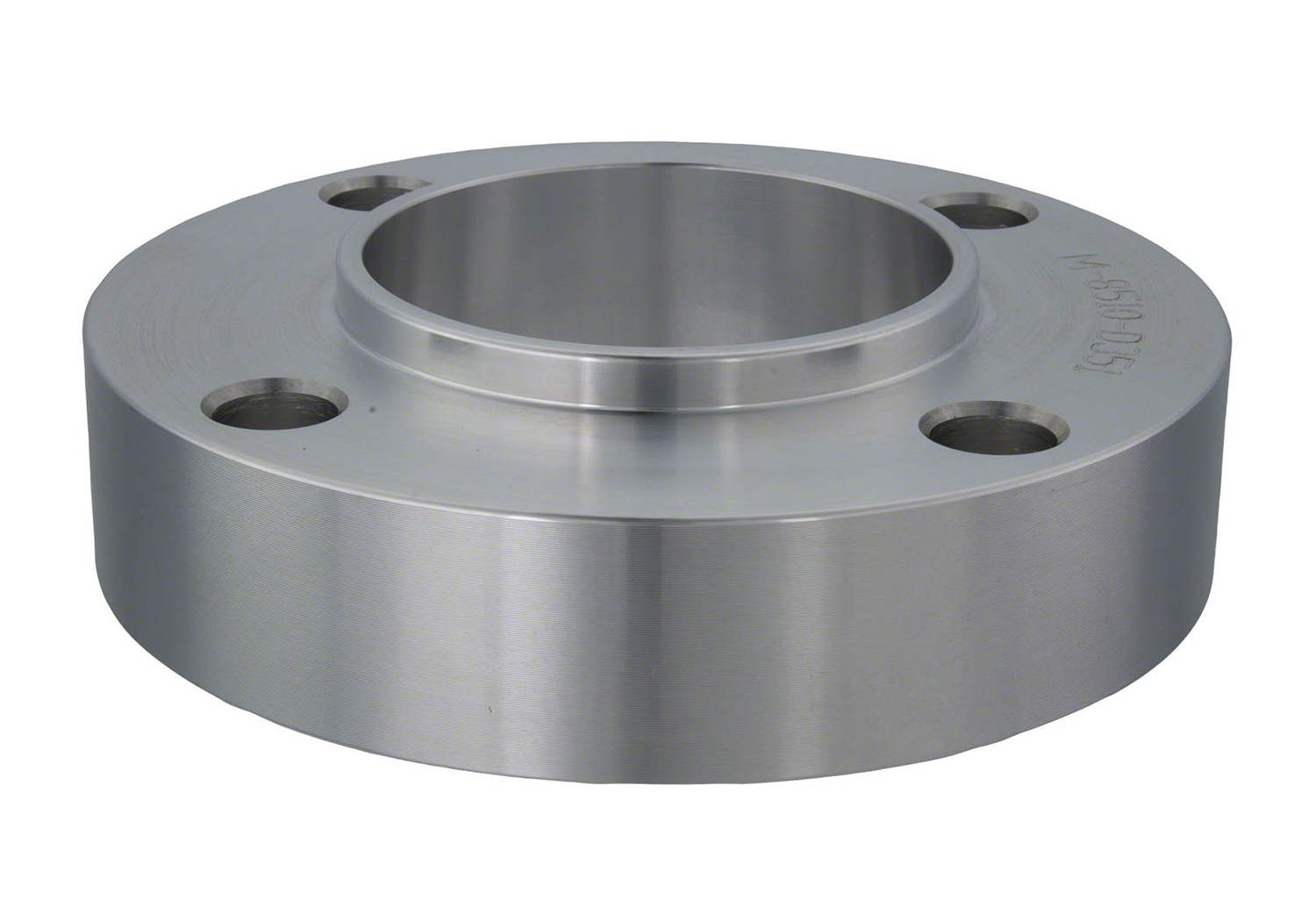

302/351W CRANKSHAFT PULLEY SPACER - 0.909"

302/351W CRANKSHAFT PULLEY SPACER -  0.909"
M-8510-D351
Retail
$42.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
    Use the following chart to select the proper crankshaft pulley spacer to use with Ford Performance M-6316-C351/A50/D302 crank dampers to achieve proper belt alignment on late model 302 and 351 Windsor engines:
    PART NUMBER     ENGINE   CRANK PULLEY BOLT PATTERN   SPACER THICKNESS
M-8510-A351          302/351W                            4                                            0.350"
M-8510-B351          302/351W                            4                                            0.950"

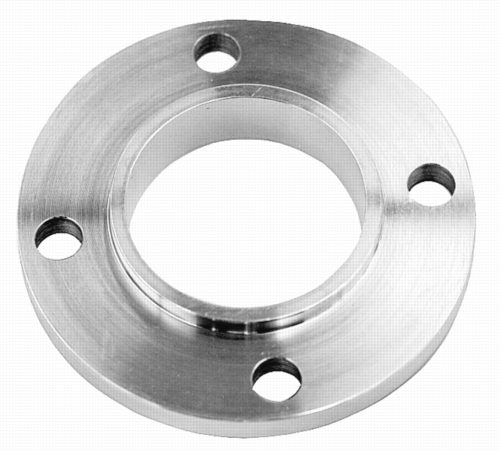

M-8510-C351          302/351W                            4                                            0.875"
M-8510-D351          302/351W                            4                                            0.909"

    Note: Early 3-bolt crank pulleys generally bolt directly to the damper with flanged pulley pilot (damper is drilled for 3- and 4-bolt patterns). Pulley alignment should be checked and any misalignment corrected with the proper thickness spacer.
Part Type
Engine: Cooling
Warranty Availability
Not Available
Packaged Dimensions
5.75" x 8" x 2.25
Packaged Weight
0.9 lb(s)
UPC Code
756122113868
Catalog Page Number
179
Country of Origin
United States
