INTAKE MANIFOLD GASKET

This part is no longer available.

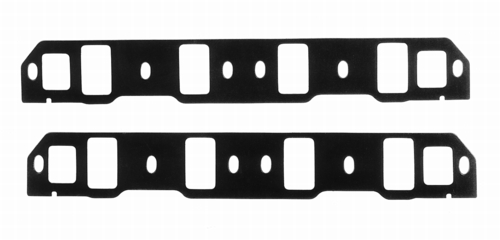

INTAKE MANIFOLD GASKET
M-9439-A51
Instruction Sheet
Not Available
    INTAKE MANIFOLD GASKETS (SOLD IN PKG. OF 2) NOTE: None of the following race quality gasket kits include rubber end seals. Use RTV sealer or production end seals.
    PART NUMBERMANIFOLD APPLICATIONPRINT-O-SEALGASKET THICKNESS .004
    M-9439-A302*M-9424-A321Yes0.050"
    M-9439-B302**AllYes0.050"
    M-9439-A50*AllYes0.070"
    M-9439-A51*AllNo0.090"
    M-9439-E460*M-9424-C460No0.060"
    M-9439-F460*M-9424-C460No0.125"
    M-9439-R352*M-9424-W352No0.050"
    PART NUMBERCYLINDER HEAD APPLICATIONPRINT-O-SEALGASKET THICKNESS  .004
    M-9439-A302*289/302/351W, M-6049-J302/K302/L302/L303/Y302/Y303 no EGRYes0.050"
    M-9439-B302**289/302/351W, M-6049-J302/K302/L302/L303/Y302/Y303 with EGRYes0.050"
    M-9439-A50*M-6049-L302/L303/X302/X303/X304/X305/Y302/Y303 with or without EGR 1 2 3Yes0.070"
    M-9439-A51*M-6049-L302/L303/X302/X303/X304/X305/Y302/Y303 without EGR 2 4No0.090"
    M-9439-E460*M-6049-C460/D460No0.060"
    M-9439-F460*M-6049-C460/D460No0.125"
    M-9439-R352*M-6049-C3HNo0.050"
    NOTES: 1 Synthetic rubber Print-O-Seal (Fel Pro Inc.) bead around ports provides improved sealing. 2 Redesigned for improved port location and allows mild porting. 3 Teflon coated, steel reinforced. 4 Similar to M-9439-A302 without Print-O-Seal.
Part Type
Engine: Gaskets
Warranty Availability
Not Available
Packaged Dimensions
21" x 0.5" x 4
Packaged Weight
0.4 lb(s)
UPC Code
756122943663
Country of Origin
United States
